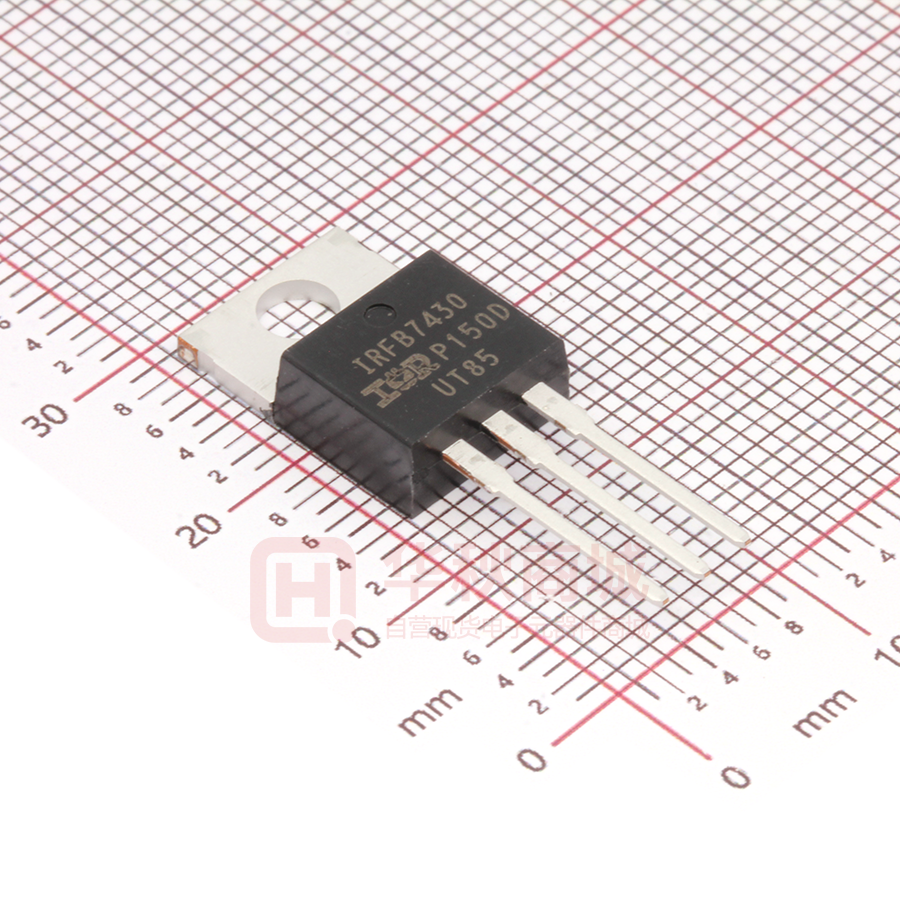

IRFB7430PBF

IRFB7430PBF

  • 厂商:

    EUPEC(英飞凌)

  • 封装:

    TO220AB

  • 描述:

    MOSFETs N-Channel VDS=40V ID=195A TO220AB

  • 数据手册
  • 价格&库存
IRFB7430PBF 数据手册
StrongIRFETTM IRFB7430PbF Applications l l l l l l l l l HEXFET® Power MOSFET Brushed Motor drive applications BLDC Motor drive applications Battery powered circuits Half-bridge and full-bridge topologies Synchronous rectifier applications Resonant mode power supplies OR-ing and redundant power switches DC/DC and AC/DC converters DC/AC Inverters D G S VDSS RDS(on) typ. max. ID (Silicon Limited) 40V 1.0mΩ 1.3mΩ 409A ID (Package Limited) 195A c D Benefits l l l l l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness Fully Characterized Capacitance and Avalanche SOA Enhanced body diode dV/dt and dI/dt Capability Lead-Free RoHS Compliant, Halogen-Free* G D S TO-220AB IRFB7430PbF G D S Gate Drain Source Ordering Information Base Part Number Package Type TO-220 ID = 100A IRFB7430PbF Limited By Package 400 4.0 T J = 125°C 2.0 300 200 100 T J = 25°C 0 0.0 4 6 8 10 12 14 16 18 20 VGS, Gate -to -Source Voltage (V) Fig 1. Typical On-Resistance vs. Gate Voltage 1 Complete Part Number Quantity 50 500 6.0 ID, Drain Current (A) RDS(on), Drain-to -Source On Resistance (m Ω) IRFB7430PbF Standard Pack Form Tube www.irf.com © 2015 International Rectifier 25 50 75 100 125 150 175 T C , Case Temperature (°C) Fig 2. Maximum Drain Current vs. Case Temperature Submit Datasheet Feedback February 19, 2015 IRFB7430PbF Absolute Maximum Ratings Symbol Parameter ID @ TC = 25°C ID @ TC = 100°C ID @ TC = 25°C IDM PD @TC = 25°C Max. Symbol RθJC RθCS RθJA 409 289 195 1524 375 2.5 ± 20 -55 to + 175 d j A W W/°C V °C 300 10lbf in (1.1N m) x e k d Units c c Continuous Drain Current, VGS @ 10V (Silicon Limited) Continuous Drain Current, VGS @ 10V (Silicon Limited) Continuous Drain Current, VGS @ 10V (Wire Bond Limited) Pulsed Drain Current Maximum Power Dissipation Linear Derating Factor VGS Gate-to-Source Voltage TJ Operating Junction and TSTG Storage Temperature Range Soldering Temperature, for 10 seconds (1.6mm from case) Mounting torque, 6-32 or M3 screw Avalanche Characteristics Single Pulse Avalanche Energy EAS (Thermally limited) EAS (Thermally limited) Single Pulse Avalanche Energy Avalanche Current IAR Repetitive Avalanche Energy EAR Thermal Resistance x 760 1452 See Fig. 14, 15, 22a, 22b d Parameter Junction-to-Case Case-to-Sink, Flat Greased Surface Junction-to-Ambient mJ A mJ Typ. Max. Units ––– 0.50 ––– 0.40 ––– 62 °C/W Static @ TJ = 25°C (unless otherwise specified) Symbol Parameter Min. Typ. Max. Units 40 ––– ––– V Breakdown Voltage Temp. Coefficient ––– 0.014 ––– V/°C Reference to 25°C, ID = 1.0mA Static Drain-to-Source On-Resistance ––– 1.0 1.3 mΩ VGS = 10V, ID = 100A V(BR)DSS Drain-to-Source Breakdown Voltage ΔV(BR)DSS/ΔTJ RDS(on) Conditions VGS = 0V, ID = 250μA VGS = 6.0V, ID g = 50A g ––– 1.2 ––– VGS(th) Gate Threshold Voltage 2.2 ––– 3.9 V VDS = VGS, ID = 250μA IDSS Drain-to-Source Leakage Current ––– ––– 1.0 μA VDS = 40V, VGS = 0V ––– ––– 150 IGSS Gate-to-Source Forward Leakage ––– ––– 100 Gate-to-Source Reverse Leakage ––– ––– -100 Internal Gate Resistance ––– 2.1 ––– RG Notes:  Calculated continuous current based on maximum allowable junction temperature. Bond wire current limit is 195A. Note that current limitations arising from heating of the device leads may occur with some lead mounting arrangements. (Refer to AN-1140) ‚ Repetitive rating; pulse width limited by max. junction temperature. ƒ Limited by TJmax, starting TJ = 25°C, L = 0.15mH RG = 50Ω, IAS = 100A, VGS =10V. „ ISD ≤ 100A, di/dt ≤ 990A/μs, VDD ≤ V(BR)DSS, TJ ≤ 175°C. 2 www.irf.com © 2015 International Rectifier d VDS = 40V, VGS = 0V, TJ = 125°C nA VGS = 20V VGS = -20V Ω … Pulse width ≤ 400μs; duty cycle ≤ 2%. † Coss eff. (TR) is a fixed capacitance that gives the same charging time as Coss while VDS is rising from 0 to 80% VDSS . ‡ Coss eff. (ER) is a fixed capacitance that gives the same energy as Coss while VDS is rising from 0 to 80% VDSS . ˆ Rθ is measured at TJ approximately 90°C.. ‰ Limited by TJmax, starting TJ = 25°C, L = 1mH, RG = 50Ω, IAS = 54A, * VGS =10V. Halogen -Free since April 30, 2014 Submit Datasheet Feedback February 2, 2015 IRFB7430PbF Dynamic @ TJ = 25°C (unless otherwise specified) Symbol Parameter gfs Forward Transconductance Min. Typ. Max. Units 150 ––– ––– S VDS = 10V, ID = 100A Conditions nC ID = 100A Qg Total Gate Charge ––– 300 460 Qgs Gate-to-Source Charge ––– 77 ––– VDS =20V Qgd Gate-to-Drain ("Miller") Charge ––– 98 ––– VGS = 10V Qsync Total Gate Charge Sync. (Qg - Qgd) ––– 202 ––– td(on) Turn-On Delay Time ––– 32 ––– tr Rise Time ––– 105 ––– td(off) Turn-Off Delay Time ––– 160 ––– RG = 2.7Ω tf Fall Time ––– 100 ––– VGS = 10V Ciss Input Capacitance ––– 14240 ––– Coss Output Capacitance ––– 2130 ––– VDS = 25V ––– 1460 ––– ƒ = 1.0 MHz ––– 2605 ––– VGS = 0V, VDS = 0V to 32V ––– 2920 ––– VGS = 0V, VDS = 0V to 32V Min. Typ. Max. ––– ––– 394 ––– ––– 1576 Crss Reverse Transfer Capacitance Coss eff. (ER) Effective Output Capacitance (Energy Related) Coss eff. (TR) Effective Output Capacitance (Time Related) h i ns g VDD = 20V ID = 30A pF g VGS = 0V i h Diode Characteristics Symbol IS Parameter Continuous Source Current c Units A Pulsed Source Current (Body Diode) d A G integral reverse S p-n junction diode. VSD Diode Forward Voltage 0.86 dv/dt f ––– Peak Diode Recovery ––– trr Reverse Recovery Time ––– ––– 52 ––– Qrr Reverse Recovery Charge ––– 97 ––– ––– 97 ––– IRRM Reverse Recovery Current ––– 2.3 ––– 3 D showing the (Body Diode) ISM Conditions MOSFET symbol www.irf.com © 2015 International Rectifier TJ = 25°C, IS = 100A, VGS = 0V 1.2 V 2.7 ––– V/ns 52 ––– ns TJ = 25°C VR = 34V, TJ = 125°C IF = 100A nC TJ = 25°C di/dt = 100A/μs A TJ = 25°C g TJ = 175°C, IS = 100A, VDS = 40V g TJ = 125°C Submit Datasheet Feedback February 2, 2015 IRFB7430PbF 1000 1000 100 BOTTOM TOP ID, Drain-to-Source Current (A) ID, Drain-to-Source Current (A) TOP VGS 15V 10V 8.0V 7.0V 6.0V 5.5V 4.8V 4.5V 10 4.5V BOTTOM 100 4.5V ≤60μs PULSE WIDTH ≤60μs PULSE WIDTH Tj = 175°C Tj = 25°C 10 1 0.1 1 10 0.1 100 Fig 3. Typical Output Characteristics 100 2.0 RDS(on) , Drain-to-Source On Resistance (Normalized) ID, Drain-to-Source Current (A) 10 Fig 4. Typical Output Characteristics 1000 100 T J = 25°C TJ = 175°C 10 VDS = 25V ≤60μs PULSE WIDTH 1.0 ID = 100A VGS = 10V 1.8 1.6 1.4 1.2 1.0 0.8 0.6 2 3 4 5 6 7 Fig 6. Normalized On-Resistance vs. Temperature Fig 5. Typical Transfer Characteristics 100000 -60 -40 -20 0 20 40 60 80 100120140160180 T J , Junction Temperature (°C) VGS, Gate-to-Source Voltage (V) 14.0 VGS = 0V, f = 1 MHZ C iss = C gs + C gd, C ds SHORTED VGS, Gate-to-Source Voltage (V) C rss = C gd C oss = C ds + C gd C, Capacitance (pF) 1 V DS, Drain-to-Source Voltage (V) V DS, Drain-to-Source Voltage (V) Ciss 10000 Coss Crss 1000 ID= 100A 12.0 VDS= 32V VDS= 20V 10.0 8.0 6.0 4.0 2.0 0.0 1 10 100 VDS, Drain-to-Source Voltage (V) Fig 7. Typical Capacitance vs. Drain-to-Source Voltage 4 VGS 15V 10V 8.0V 7.0V 6.0V 5.5V 4.8V 4.5V www.irf.com © 2015 International Rectifier 0 50 100 150 200 250 300 350 400 QG, Total Gate Charge (nC) Fig 8. Typical Gate Charge vs. Gate-to-Source Voltage Submit Datasheet Feedback February 2, 2015 IRFB7430PbF 10000 T J = 175°C 100 ID, Drain-to-Source Current (A) ISD, Reverse Drain Current (A) 1000 10 T J = 25°C 1 OPERATION IN THIS AREA LIMITED BY R DS(on) 1000 100 Limited by package 10msec 10 1 DC Tc = 25°C Tj = 175°C Single Pulse VGS = 0V 0.1 0.1 0.0 0.5 1.0 1.5 2.0 0.1 2.5 1 10 100 VDS, Drain-toSource Voltage (V) VSD, Source-to-Drain Voltage (V) Fig 10. Maximum Safe Operating Area Fig 9. Typical Source-Drain Diode Forward Voltage 2.5 47 Id = 1.0mA VDS= 0V to 32V 46 2.0 45 Energy (μJ) V(BR)DSS , Drain-to-Source Breakdown Voltage (V) 100μsec 1msec 44 43 1.5 1.0 42 0.5 41 0.0 40 0 -60 -40 -20 0 20 40 60 80 100120140160180 5 T J , Temperature ( °C ) 15 20 25 30 35 40 45 VDS, Drain-to-Source Voltage (V) Fig 11. Drain-to-Source Breakdown Voltage RDS(on), Drain-to -Source On Resistance ( mΩ) 10 Fig 12. Typical COSS Stored Energy 6.0 VGS = 5.5V VGS = 6.0V VGS = 7.0V VGS = 8.0V VGS =10V 4.0 2.0 0.0 0 200 400 600 800 1000 1200 ID, Drain Current (A) Fig 13. Typical On-Resistance vs. Drain Current 5 www.irf.com © 2015 International Rectifier Submit Datasheet Feedback February 2, 2015 IRFB7430PbF Thermal Response ( Z thJC ) °C/W 1 D = 0.50 0.1 0.20 0.10 0.05 0.02 0.01 0.01 0.001 Notes: 1. Duty Factor D = t1/t2 2. Peak Tj = P dm x Zthjc + Tc SINGLE PULSE ( THERMAL RESPONSE ) 0.0001 1E-006 1E-005 0.0001 0.001 0.01 0.1 t1 , Rectangular Pulse Duration (sec) Fig 14. Maximum Effective Transient Thermal Impedance, Junction-to-Case 1000 Avalanche Current (A) Allowed avalanche Current vs avalanche pulsewidth, tav, assuming ΔTj = 150°C and Tstart =25°C (Single Pulse) 100 10 Allowed avalanche Current vs avalanche pulsewidth, tav, assuming ΔΤ j = 25°C and Tstart = 150°C. 1 1.0E-06 1.0E-05 1.0E-04 1.0E-03 1.0E-02 1.0E-01 tav (sec) Fig 15. Typical Avalanche Current vs.Pulsewidth 800 700 EAR , Avalanche Energy (mJ) Notes on Repetitive Avalanche Curves , Figures 14, 15: (For further info, see AN-1005 at www.irf.com) 1. Avalanche failures assumption: Purely a thermal phenomenon and failure occurs at a temperature far in excess of Tjmax. This is validated for every part type. 2. Safe operation in Avalanche is allowed as long asTjmax is not exceeded. 3. Equation below based on circuit and waveforms shown in Figures 16a, 16b. 4. PD (ave) = Average power dissipation per single avalanche pulse. 5. BV = Rated breakdown voltage (1.3 factor accounts for voltage increase during avalanche). 6. Iav = Allowable avalanche current. 7. ΔT = Allowable rise in junction temperature, not to exceed Tjmax (assumed as 25°C in Figure 14, 15). tav = Average time in avalanche. D = Duty cycle in avalanche = tav ·f ZthJC(D, tav) = Transient thermal resistance, see Figures 13) TOP Single Pulse BOTTOM 1.0% Duty Cycle ID = 100A 600 500 400 300 200 100 0 25 50 75 100 125 150 175 Starting T J , Junction Temperature (°C) PD (ave) = 1/2 ( 1.3·BV·Iav) = DT/ ZthJC Iav = 2DT/ [1.3·BV·Zth] EAS (AR) = PD (ave)·tav Fig 16. Maximum Avalanche Energy vs. Temperature 6 www.irf.com © 2015 International Rectifier Submit Datasheet Feedback February 2, 2015 IRFB7430PbF 12 3.5 3.0 2.5 IRRM (A) VGS(th) , Gate threshold Voltage (V) 4.0 ID = 250μA ID = 1.0mA 2.0 ID = 1.0A 10 IF = 60A V R = 34V 8 TJ = 25°C TJ = 125°C 6 4 1.5 2 1.0 0 -75 -50 -25 0 25 50 75 100 125 150 175 0 200 T J , Temperature ( °C ) 600 800 1000 Fig. 18 - Typical Recovery Current vs. dif/dt Fig 17. Threshold Voltage vs. Temperature 12 300 10 IF = 100A V R = 34V 8 TJ = 25°C TJ = 125°C IF = 60A V R = 34V 250 QRR (nC) IRRM (A) 400 diF /dt (A/μs) 6 TJ = 25°C TJ = 125°C 200 150 4 100 2 0 50 0 200 400 600 800 1000 0 200 diF /dt (A/μs) 400 600 800 1000 diF /dt (A/μs) Fig. 20 - Typical Stored Charge vs. dif/dt Fig. 19 - Typical Recovery Current vs. dif/dt 260 IF = 100A V R = 34V QRR (nC) 220 TJ = 25°C TJ = 125°C 180 140 100 60 0 200 400 600 800 1000 diF /dt (A/μs) Fig. 21 - Typical Stored Charge vs. dif/dt 7 www.irf.com © 2015 International Rectifier Submit Datasheet Feedback February 2, 2015 IRFB7430PbF Driver Gate Drive D.U.T ƒ - ‚ - - „ * D.U.T. ISD Waveform Reverse Recovery Current +  RG • dv/dt controlled by RG • Driver same type as D.U.T. • ISD controlled by Duty Factor "D" • D.U.T. - Device Under Test P.W. Period VGS=10V Circuit Layout Considerations • Low Stray Inductance • Ground Plane • Low Leakage Inductance Current Transformer + D= Period P.W. + V DD + - Body Diode Forward Current di/dt D.U.T. VDS Waveform Diode Recovery dv/dt Re-Applied Voltage Body Diode VDD Forward Drop Inductor InductorCurrent Curent ISD Ripple ≤ 5% * VGS = 5V for Logic Level Devices Fig 22. Peak Diode Recovery dv/dt Test Circuit for N-Channel HEXFET® Power MOSFETs V(BR)DSS 15V DRIVER L VDS tp D.U.T RG 20V VGS + V - DD IAS A 0.01Ω tp I AS Fig 22a. Unclamped Inductive Test Circuit RD V DS Fig 22b. Unclamped Inductive Waveforms VDS 90% V GS D.U.T. RG + - V DD V10V GS 10% VGS Pulse Width ≤ 1 µs Duty Factor ≤ 0.1 % td(on) Fig 23a. Switching Time Test Circuit tr t d(off) Fig 23b. Switching Time Waveforms Id Current Regulator Same Type as D.U.T. Vds Vgs 50KΩ 12V tf .2μF .3μF D.U.T. + V - DS Vgs(th) VGS 3mA IG ID Current Sampling Resistors Fig 24a. Gate Charge Test Circuit 8 www.irf.com © 2015 International Rectifier Qgs1 Qgs2 Qgd Qgodr Fig 24b. Gate Charge Waveform Submit Datasheet Feedback February 2, 2015 IRFB7430PbF TO-220AB Package Outline Dimensions are shown in millimeters (inches) TO-220AB Part Marking Information TO-220AB packages are not recommended for Surface Mount Application. Note: For the most current drawing please refer to IR website at http://www.irf.com/package/ 9 www.irf.com © 2015 International Rectifier Submit Datasheet Feedback February 2, 2015 IRFB7430PbF Qualification information† Qualification level Moisture Sensitivity Level RoHS compliant Industrial (per JEDEC JESD47F††guidelines) TO-220 Not applicable Yes † Qualification standards can be found at International Rectifier’s web site: http://www.irf.com/product-info/reliability/ †† Applicable version of JEDEC standard at the time of product release. Revision History Date 4/22/2014 Comment • Updated data sheet with new IR corporate template. • Updated package outline and part marking on page 9. • Added bullet point in the Benefits "RoHS Compliant, Halogen -Free" on page 1. 2/19/2015 • Updated EAS (L =1mH) = 1452mJ on page 2 • Updated note 9 “Limited by TJmax , starting TJ = 25°C, L = 1mH, RG = 50Ω, IAS = 54A, VGS =10V”. on page 2 IR WORLD HEADQUARTERS: 101 N. Sepulveda Blvd., El Segundo, California 90245, USA To contact International Rectifier, please visit http://www.irf.com/whoto-call/ 10 www.irf.com © 2015 International Rectifier Submit Datasheet Feedback February 2, 2015 IMPORTANT NOTICE The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics (“Beschaffenheitsgarantie”) . With respect to any examples, hints or any typical values stated herein and/or any information regarding the application of the product, Infineon Technologies hereby disclaims any and all warranties and liabilities of any kind, including without limitation warranties of non-infringement of intellectual property rights of any third party. In addition, any information given in this document is subject to customer’s compliance with its obligations stated in this document and any applicable legal requirements, norms and standards concerning customer’s products and any use of the product of Infineon Technologies in customer’s applications. The data contained in this document is exclusively intended for technically trained staff. It is the responsibility of customer’s technical departments to evaluate the suitability of the product for the intended application and the completeness of the product information given in this document with respect to such application. For further information on the product, technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies office (www.infineon.com). WARNINGS Due to technical requirements products may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies office. Except as otherwise explicitly approved by Infineon Technologies in a written document signed by authorized representatives of Infineon Technologies, Infineon Technologies’ products may not be used in any applications where a failure of the product or any consequences of the use thereof can reasonably be expected to result in personal injury.
