PD - 95072A
IRFR3709ZPbF
IRFU3709ZPbF
Applications
l High Frequency Synchronous Buck
Converters for Computer Processor Power
l High Frequency Isolated DC-DC
Converters with Synchronous Rectification
for Telecom and Industrial Use
l Lead-Free
HEXFET® Power MOSFET
VDSS RDS(on) max
6.5m:
30V
Qg
17nC
Benefits
l
l
l
Very Low RDS(on) at 4.5V VGS
Ultra-Low Gate Impedance
Fully Characterized Avalanche Voltage
and Current
I-Pak

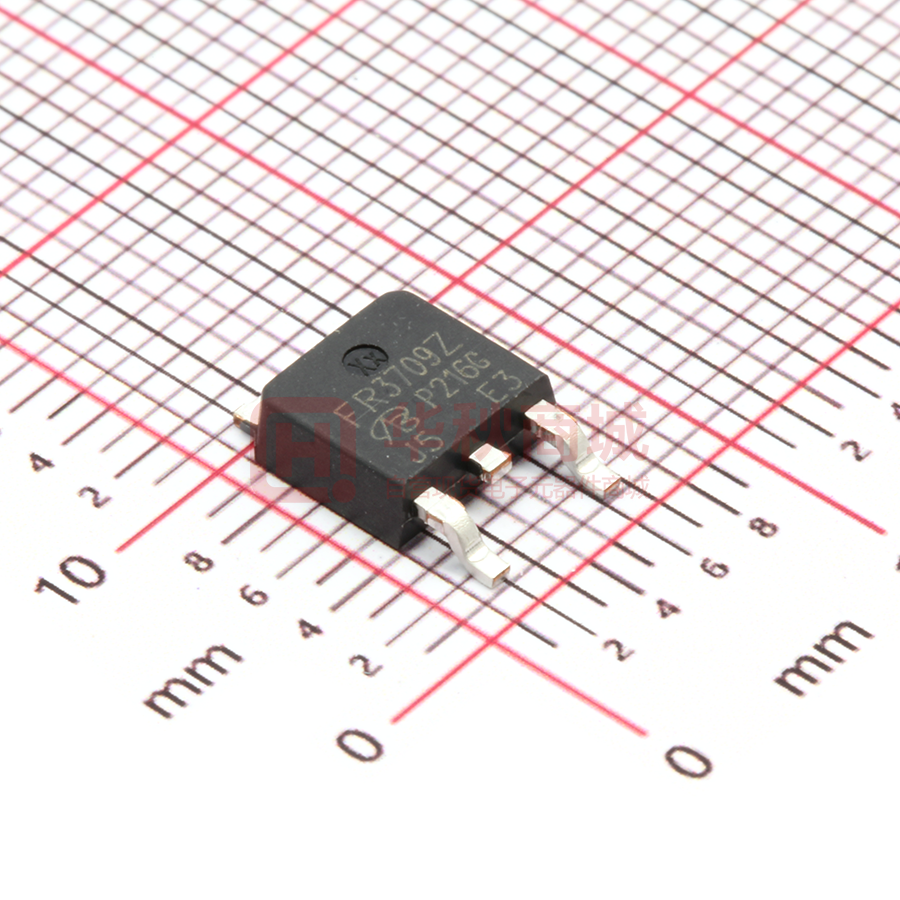

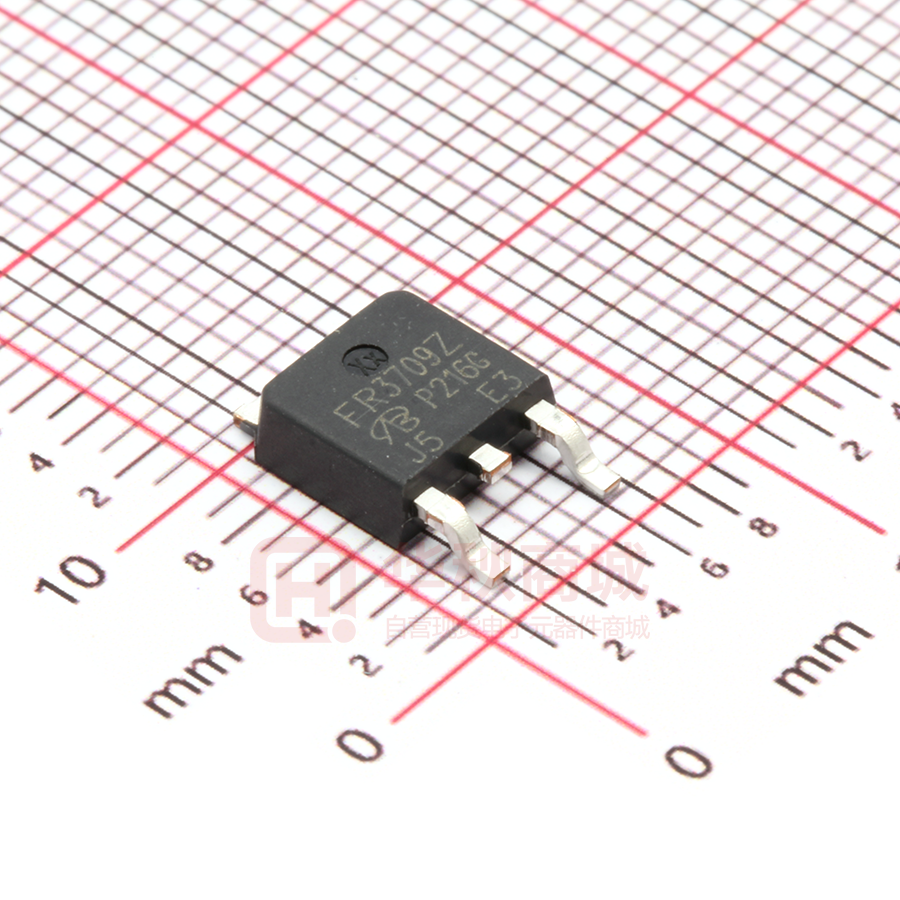

D-Pak
IRFR3709ZPbF IRFU3709ZPbF
Absolute Maximum Ratings
Parameter
Max.
Units
30
V
Gate-to-Source Voltage
Continuous Drain Current, VGS @ 10V
± 20
86
A
61
IDM
Continuous Drain Current, VGS @ 10V
Pulsed Drain Current
PD @TC = 25°C
Maximum Power Dissipation
79
PD @TC = 100°C
Maximum Power Dissipation
39
TJ
Linear Derating Factor
Operating Junction and
TSTG
Storage Temperature Range
VDS
Drain-to-Source Voltage
VGS
ID @ TC = 25°C
ID @ TC = 100°C
c
f
f
340
W
0.53
-55 to + 175
Soldering Temperature, for 10 seconds
W/°C
°C
300 (1.6mm from case)
Thermal Resistance
Parameter
RθJC
RθJA
Junction-to-Case
Junction-to-Ambient (PCB Mount)
RθJA
Junction-to-Ambient
g
Typ.
Max.
Units
–––
1.9
°C/W
–––
50
–––
110
Notes through
are on page 11
www.irf.com
1
12/2/04
IRFR/U3709ZPbF
Static @ TJ = 25°C (unless otherwise specified)
Parameter
Min. Typ. Max. Units
BVDSS
Drain-to-Source Breakdown Voltage
∆ΒVDSS/∆TJ
Breakdown Voltage Temp. Coefficient
RDS(on)
Static Drain-to-Source On-Resistance
30
V
Conditions
–––
–––
VGS = 0V, ID = 250µA
–––
22
–––
–––
5.2
6.5
mV/°C Reference to 25°C, ID = 1mA
mΩ VGS = 10V, ID = 15A
–––
6.5
8.2
VGS = 4.5V, ID = 12A
VGS(th)
Gate Threshold Voltage
1.35
1.80
2.25
V
∆VGS(th)/∆TJ
Gate Threshold Voltage Coefficient
–––
-5.6
–––
mV/°C
IDSS
Drain-to-Source Leakage Current
µA
VDS = 24V, VGS = 0V
nA
VGS = 20V
–––
–––
1.0
–––
–––
150
e
e
VDS = VGS, ID = 250µA
VDS = 24V, VGS = 0V, TJ = 150°C
IGSS
Gate-to-Source Forward Leakage
–––
–––
100
Gate-to-Source Reverse Leakage
–––
–––
-100
gfs
Qg
Forward Transconductance
51
–––
–––
Total Gate Charge
–––
17
26
Qgs1
Pre-Vth Gate-to-Source Charge
–––
4.7
–––
Qgs2
Post-Vth Gate-to-Source Charge
–––
1.6
–––
Qgd
Gate-to-Drain Charge
–––
5.7
–––
ID = 12A
Qgodr
Gate Charge Overdrive
Switch Charge (Qgs2 + Qgd)
–––
5.0
–––
See Fig. 16
Qsw
–––
7.3
–––
Qoss
Output Charge
–––
10
–––
td(on)
Turn-On Delay Time
–––
12
–––
VDD = 16V, VGS = 4.5V
tr
Rise Time
–––
12
–––
ID = 12A
td(off)
Turn-Off Delay Time
–––
15
–––
tf
Fall Time
–––
3.9
–––
Ciss
Input Capacitance
–––
2330
–––
Coss
Output Capacitance
–––
460
–––
Crss
Reverse Transfer Capacitance
–––
230
–––
VGS = -20V
S
VDS = 15V, ID = 12A
VDS = 15V
nC
nC
ns
VGS = 4.5V
VDS = 16V, VGS = 0V
e
Clamped Inductive Load
VGS = 0V
pF
VDS = 15V
ƒ = 1.0MHz
Avalanche Characteristics
EAS
Parameter
Single Pulse Avalanche Energy
IAR
Avalanche Current
EAR
Repetitive Avalanche Energy
c
d
c
Typ.
Max.
Units
–––
100
mJ
–––
12
A
–––
7.9
mJ
Diode Characteristics
Parameter
Min. Typ. Max. Units
f
Conditions
IS
Continuous Source Current
–––
–––
86
ISM
(Body Diode)
Pulsed Source Current
–––
–––
340
showing the
integral reverse
VSD
(Body Diode)
Diode Forward Voltage
–––
–––
1.0
V
p-n junction diode.
TJ = 25°C, IS = 12A, VGS = 0V
trr
Reverse Recovery Time
–––
29
44
ns
Qrr
Reverse Recovery Charge
–––
25
37
nC
ton
Forward Turn-On Time
2
c
MOSFET symbol
A
D
G
S
e
TJ = 25°C, IF = 12A, VDD = 15V
di/dt = 100A/µs
e
Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
www.irf.com
IRFR/U3709ZPbF
10000
10000
1000
100
BOTTOM
VGS
10V
5.0V
4.5V
3.5V
3.0V
2.7V
2.5V
2.25V
TOP
ID, Drain-to-Source Current (A)
ID, Drain-to-Source Current (A)
TOP
10
1
2.25V
0.1
1000
BOTTOM
100
VGS
10V
5.0V
4.5V
3.5V
3.0V
2.7V
2.5V
2.25V
10
2.25V
1
20µs PULSE WIDTH
Tj = 175°C
20µs PULSE WIDTH
Tj = 25°C
0.01
0.1
0.1
1
10
100
0.1
VDS, Drain-to-Source Voltage (V)
Fig 1. Typical Output Characteristics
10
100
Fig 2. Typical Output Characteristics
1000
2.0
RDS(on) , Drain-to-Source On Resistance
(Normalized)
ID, Drain-to-Source Current (Α)
1
VDS, Drain-to-Source Voltage (V)
100
T J = 175°C
10
T J = 25°C
1
VDS = 15V
20µs PULSE WIDTH
ID = 30A
VGS = 10V
1.5
1.0
0.5
0.1
0
1
2
3
4
5
6
7
VGS, Gate-to-Source Voltage (V)
Fig 3. Typical Transfer Characteristics
www.irf.com
8
-60 -40 -20 0
20 40 60 80 100 120 140 160 180
T J , Junction Temperature (°C)
Fig 4. Normalized On-Resistance
vs. Temperature
3
IRFR/U3709ZPbF
100000
VGS, Gate-to-Source Voltage (V)
ID= 12A
C oss = C ds + C gd
10000
C, Capacitance(pF)
6.0
VGS = 0V,
f = 1 MHZ
C iss = C gs + C gd, C ds SHORTED
C rss = C gd
Ciss
1000
Coss
Crss
100
VDS= 24V
VDS= 15V
5.0
4.0
3.0
2.0
1.0
10
0.0
1
10
100
0
VDS, Drain-to-Source Voltage (V)
5
10
15
20
25
QG Total Gate Charge (nC)
Fig 6. Typical Gate Charge vs.
Gate-to-Source Voltage
Fig 5. Typical Capacitance vs.
Drain-to-Source Voltage
1000
1000
ID, Drain-to-Source Current (A)
ISD, Reverse Drain Current (A)
OPERATION IN THIS AREA
LIMITED BY R DS(on)
100
T J = 175°C
100
10
T J = 25°C
1
100µsec
10
1msec
Tc = 25°C
Tj = 175°C
Single Pulse
VGS = 0V
0
0.0
0.5
1.0
1.5
2.0
VSD, Source-to-Drain Voltage (V)
Fig 7. Typical Source-Drain Diode
Forward Voltage
4
10msec
1
2.5
0
1
10
100
1000
VDS, Drain-to-Source Voltage (V)
Fig 8. Maximum Safe Operating Area
www.irf.com
IRFR/U3709ZPbF
100
2.5
VGS(th) Gate threshold Voltage (V)
90
Limited By Package
ID, Drain Current (A)
80
70
60
50
40
30
20
2.0
1.5
ID = 250µA
1.0
0.5
10
0.0
0
25
50
75
100
125
150
-75 -50 -25
175
0
25
50
75
100 125 150 175
T J , Temperature ( °C )
T C , Case Temperature (°C)
Fig 9. Maximum Drain Current vs.
Case Temperature
Fig 10. Threshold Voltage vs. Temperature
Thermal Response ( Z thJC )
10
1
D = 0.50
0.20
0.10
0.05
0.1
τJ
0.02
0.01
0.01
R1
R1
τJ
τ1
R2
R2
τ2
τ1
τ2
R3
R3
τ3
τC
τ
τ3
0.451
Ci= τi/Ri
Ci= τi/Ri
SINGLE PULSE
( THERMAL RESPONSE )
Ri (°C/W) τi (sec)
0.810
0.000260
0.640
0.001697
0.021259
Notes:
1. Duty Factor D = t1/t2
2. Peak Tj = P dm x Zthjc + Tc
0.001
1E-006
1E-005
0.0001
0.001
0.01
0.1
1
10
t1 , Rectangular Pulse Duration (sec)
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com
5
IRFR/U3709ZPbF
15V
D.U.T
RG
+
V
- DD
IAS
20V
VGS
A
0.01Ω
tp
Fig 12a. Unclamped Inductive Test Circuit
V(BR)DSS
tp
EAS , Single Pulse Avalanche Energy (mJ)
DRIVER
L
VDS
450
ID
6.6A
8.4A
BOTTOM 12A
400
TOP
350
300
250
200
150
100
50
0
25
50
75
100
125
150
175
Starting T J , Junction Temperature (°C)
Fig 12c. Maximum Avalanche Energy
vs. Drain Current
LD
I AS
VDS
Fig 12b. Unclamped Inductive Waveforms
+
VDD D.U.T
Current Regulator
Same Type as D.U.T.
VGS
Pulse Width < 1µs
Duty Factor < 0.1%
50KΩ
12V
.2µF
.3µF
Fig 14a. Switching Time Test Circuit
D.U.T.
+
V
- DS
VDS
90%
VGS
3mA
10%
IG
ID
Current Sampling Resistors
Fig 13. Gate Charge Test Circuit
VGS
td(on)
tr
td(off)
tf
Fig 14b. Switching Time Waveforms
6
www.irf.com
IRFR/U3709ZPbF
D.U.T
Driver Gate Drive
P.W.
+
+
-
-
*
D.U.T. ISD Waveform
Reverse
Recovery
Current
+
RG
•
•
•
•
dv/dt controlled by R G
Driver same type as D.U.T.
I SD controlled by Duty Factor "D"
D.U.T. - Device Under Test
P.W.
Period
VGS=10V
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
D=
Period
V DD
+
-
Body Diode Forward
Current
di/dt
D.U.T. VDS Waveform
Diode Recovery
dv/dt
Re-Applied
Voltage
Body Diode
VDD
Forward Drop
Inductor Curent
ISD
Ripple ≤ 5%
* VGS = 5V for Logic Level Devices
Fig 15. Peak Diode Recovery dv/dt Test Circuit for N-Channel
HEXFET® Power MOSFETs
Id
Vds
Vgs
Vgs(th)
Qgs1 Qgs2
Qgd
Qgodr
Fig 16. Gate Charge Waveform
www.irf.com
7
IRFR/U3709ZPbF
Power MOSFET Selection for Non-Isolated DC/DC Converters
Control FET
Synchronous FET
Special attention has been given to the power losses
in the switching elements of the circuit - Q1 and Q2.
Power losses in the high side switch Q1, also called
the Control FET, are impacted by the Rds(on) of the
MOSFET, but these conduction losses are only about
one half of the total losses.
The power loss equation for Q2 is approximated
by;
*
Ploss = Pconduction + Pdrive + Poutput
(
2
Ploss = Irms × Rds(on)
)
Power losses in the control switch Q1 are given
by;
+ (Qg × Vg × f )
Ploss = Pconduction+ Pswitching+ Pdrive+ Poutput
⎛Q
⎞
+ ⎜ oss × Vin × f + (Qrr × Vin × f )
⎝ 2
⎠
This can be expanded and approximated by;
*dissipated primarily in Q1.
Ploss = (Irms 2 × Rds(on ) )
⎛
Qgd
+⎜I ×
× Vin ×
ig
⎝
⎞
⎞ ⎛
Qgs 2
f⎟ + ⎜ I ×
× Vin × f ⎟
ig
⎠ ⎝
⎠
+ (Qg × Vg × f )
+
⎛ Qoss
× Vin × f ⎞
⎝ 2
⎠
This simplified loss equation includes the terms Qgs2
and Qoss which are new to Power MOSFET data sheets.
Qgs2 is a sub element of traditional gate-source
charge that is included in all MOSFET data sheets.
The importance of splitting this gate-source charge
into two sub elements, Qgs1 and Qgs2, can be seen from
Fig 16.
Qgs2 indicates the charge that must be supplied by
the gate driver between the time that the threshold
voltage has been reached and the time the drain current rises to Idmax at which time the drain voltage begins to change. Minimizing Q gs2 is a critical factor in
reducing switching losses in Q1.
Qoss is the charge that must be supplied to the output capacitance of the MOSFET during every switching cycle. Figure A shows how Qoss is formed by the
parallel combination of the voltage dependant (nonlinear) capacitances Cds and Cdg when multiplied by
the power supply input buss voltage.
For the synchronous MOSFET Q2, Rds(on) is an important characteristic; however, once again the importance of gate charge must not be overlooked since
it impacts three critical areas. Under light load the
MOSFET must still be turned on and off by the control IC so the gate drive losses become much more
significant. Secondly, the output charge Qoss and reverse recovery charge Qrr both generate losses that
are transfered to Q1 and increase the dissipation in
that device. Thirdly, gate charge will impact the
MOSFETs’ susceptibility to Cdv/dt turn on.
The drain of Q2 is connected to the switching node
of the converter and therefore sees transitions between ground and Vin. As Q1 turns on and off there is
a rate of change of drain voltage dV/dt which is capacitively coupled to the gate of Q2 and can induce
a voltage spike on the gate that is sufficient to turn
the MOSFET on, resulting in shoot-through current .
The ratio of Qgd/Qgs1 must be minimized to reduce the
potential for Cdv/dt turn on.
Figure A: Qoss Characteristic
8
www.irf.com
IRFR/U3709ZPbF
D-Pak (TO-252AA) Package Outline
Dimensions are shown in millimeters (inches)
D-Pak (TO-252AA) Part Marking Information
EXAMPLE: THIS IS AN IRFR120
WIT H ASSEMBLY
LOT CODE 1234
ASS EMBLED ON WW 16, 1999
IN THE ASSEMBLY LINE "A"
PART NUMBER
INTERNATIONAL
RECT IFIER
LOGO
Note: "P" in as sembly line position
indicates "Lead-Free"
IRFU120
12
916A
34
ASSEMBLY
LOT CODE
DAT E CODE
YE AR 9 = 1999
WEEK 16
LINE A
OR
PART NUMBER
INTERNATIONAL
RECT IFIER
LOGO
IRFU120
12
ASSEMBLY
LOT CODE
www.irf.com
34
DAT E CODE
P = DE SIGNATE S LEAD-FRE E
PRODUCT (OPTIONAL)
YEAR 9 = 1999
WEEK 16
A = AS SEMBLY SITE CODE
9
IRFR/U3709ZPbF
I-Pak (TO-251AA) Package Outline
Dimensions are shown in millimeters (inches)
I-Pak (TO-251AA) Part Marking Information
EXAMPLE: T HIS IS AN IRFU120
WIT H ASSEMBLY
LOT CODE 5678
ASSEMBLED ON WW 19, 1999
IN THE ASS EMBLY LINE "A"
Note: "P" in as s embly line
pos ition indicates "Lead-Free"
INTE RNATIONAL
RECTIFIER
LOGO
PART NUMBER
IRFU120
919A
56
78
ASS EMBLY
LOT CODE
DAT E CODE
YE AR 9 = 1999
WEE K 19
LINE A
OR
INT ERNATIONAL
RE CTIFIER
LOGO
PART NUMBER
IRFU120
56
AS S EMBLY
LOT CODE
10
78
DAT E CODE
P = DES IGNAT ES LEAD-F REE
PRODUCT (OPT IONAL)
YEAR 9 = 1999
WEEK 19
A = AS S EMBLY S ITE CODE
www.irf.com
IRFR/U3709ZPbF
D-Pak (TO-252AA) Tape & Reel Information
Dimensions are shown in millimeters (inches)
TR
TRR
TRL
16.3 ( .641 )
15.7 ( .619 )
12.1 ( .476 )
11.9 ( .469 )
FEED DIRECTION
16.3 ( .641 )
15.7 ( .619 )
8.1 ( .318 )
7.9 ( .312 )
FEED DIRECTION
NOTES :
1. CONTROLLING DIMENSION : MILLIMETER.
2. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS ( INCHES ).
3. OUTLINE CONFORMS TO EIA-481 & EIA-541.
13 INCH
16 mm
NOTES :
1. OUTLINE CONFORMS TO EIA-481.
Notes:
Repetitive rating; pulse width limited by
max. junction temperature.
Starting TJ = 25°C, L = 1.4mH, RG = 25Ω,
IAS = 12A.
Pulse width ≤ 400µs; duty cycle ≤ 2%.
Calculated continuous current based on maximum allowable
junction temperature. Package limitation current is 30A.
When mounted on 1" square PCB (FR-4 or G-10 Material).
For recommended footprint and soldering techniques refer to
application note #AN-994.
Data and specifications subject to change without notice.
This product has been designed and qualified for the Industrial market.
Qualification Standards can be found on IR’s Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7903
Visit us at www.irf.com for sales contact information. 12/04
www.irf.com
11
Note: For the most current drawings please refer to the IR website at:
http://www.irf.com/package/
工商网监
湘ICP备2023018690号
