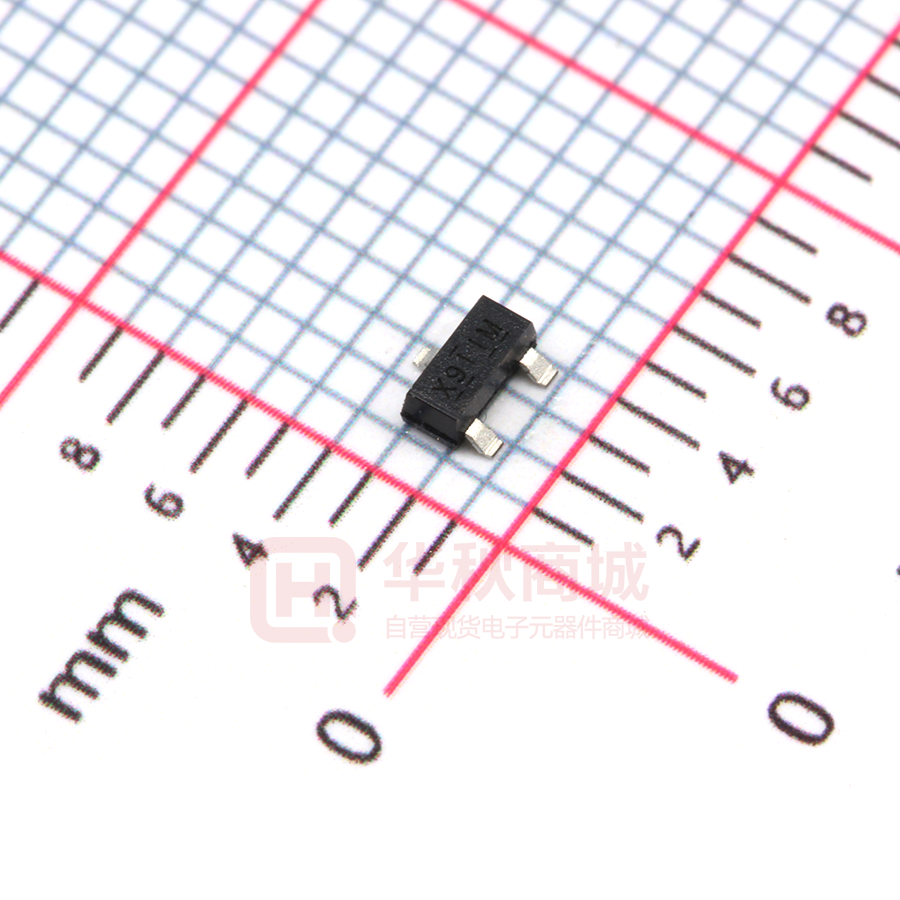

IRLML2244TRPBF

PD - 97631 IRLML2244TRPbF VDS -20 V VGS Max ± 12 V RDS(on) max 54 mΩ 95 mΩ (@VGS = -4.5V) RDS(on) max (@VGS = -2.5V) HEXFET® Power MOSFET G 1 3 D S 2 Micro3TM (SOT-23) IRLML2244TRPbF Application(s) • System/Load Switch Features and Benefits Benefits Features Low RDS(on) ( ≤ 54mΩ) Industry-standard pinout Compatible with existing Surface Mount Techniques RoHS compliant containing no lead, no bromide and no halogen MSL1, Consumer qualification Lower switching losses Multi-vendor compatibility results in Easier manufacturing Environmentally friendly ⇒ Increased reliability Absolute Maximum Ratings Symbol Parameter Max. Units V VDS Drain-Source Voltage -20 ID @ TA = 25°C Continuous Drain Current, VGS @ -4.5V -4.3 ID @ TA = 70°C Continuous Drain Current, VGS @ -4.5V -3.4 IDM Pulsed Drain Current -18 PD @TA = 25°C Maximum Power Dissipation 1.3 PD @TA = 70°C Maximum Power Dissipation 0.8 Linear Derating Factor 0.01 VGS Gate-to-Source Voltage ± 12 V TJ, TSTG Junction and Storage Temperature Range -55 to + 150 °C A W W/°C Thermal Resistance Symbol Parameter RθJA Junction-to-Ambient e RθJA Junction-to-Ambient (t
