M AP
Analog Manifold Air Pressure Sensor IC
KP 2 1 5 F 1 7 0 1
Analog Absolute Pressure Sensor
Da t a S h e e t
Revision 1.0, 2010-06-28
Se n s e & Co n tr o l
Edition 2010-06-28
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2010 Infineon Technologies AG
All Rights Reserved.
Legal Disclaimer
The information given in this document shall in no event be regarded as a guarantee of conditions or
characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any
information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties
and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights
of any third party.
Information
For further information on technology, delivery terms and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com).
Warnings
Due to technical requirements, components may contain dangerous substances. For information on the types in
question, please contact the nearest Infineon Technologies Office.
Infineon Technologies components may be used in life-support devices or systems only with the express written
approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure
of that life-support device or system or to affect the safety or effectiveness of that device or system. Life support
devices or systems are intended to be implanted in the human body or to support and/or maintain and sustain
and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may
be endangered.
KP215F1701
Analog Absolute Pressure Sensor
Data Sheet
3
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
KP215F1701 Analog Absolute Pressure Sensor
Revision History: 2010-06-28, Revision 1.0
Previous Revision: Revision 0.2
Page
Subjects (major changes since last revision)
Page 17
Comment about application circuit example added
Page 18
Thermal resistance specified according JESD51-2
Change document status from target to final
Trademarks of Infineon Technologies AG
A-GOLD™, BlueMoon™, COMNEON™, CONVERGATE™, COSIC™, C166™, CROSSAVE™, CanPAK™,
CIPOS™, CoolMOS™, CoolSET™, CONVERPATH™, CORECONTROL™, DAVE™, DUALFALC™, DUSLIC™,
EasyPIM™, EconoBRIDGE™, EconoDUAL™, EconoPACK™, EconoPIM™, E-GOLD™, EiceDRIVER™,
EUPEC™, ELIC™, EPIC™, FALC™, FCOS™, FLEXISLIC™, GEMINAX™, GOLDMOS™, HITFET™,
HybridPACK™, INCA™, ISAC™, ISOFACE™, IsoPACK™, IWORX™, M-GOLD™, MIPAQ™, ModSTACK™,
MUSLIC™, my-d™, NovalithIC™, OCTALFALC™, OCTAT™, OmniTune™, OmniVia™, OptiMOS™,
OPTIVERSE™, ORIGA™, PROFET™, PRO-SIL™, PrimePACK™, QUADFALC™, RASIC™, ReverSave™,
SatRIC™, SCEPTRE™, SCOUT™, S-GOLD™, SensoNor™, SEROCCO™, SICOFI™, SIEGET™,
SINDRION™, SLIC™, SMARTi™, SmartLEWIS™, SMINT™, SOCRATES™, TEMPFET™, thinQ!™,
TrueNTRY™, TriCore™, TRENCHSTOP™, VINAX™, VINETIC™, VIONTIC™, WildPass™, X-GOLD™, XMM™,
X-PMU™, XPOSYS™, XWAY™.
Other Trademarks
AMBA™, ARM™, MULTI-ICE™, PRIMECELL™, REALVIEW™, THUMB™ of ARM Limited, UK. AUTOSAR™ is
licensed by AUTOSAR development partnership. Bluetooth™ of Bluetooth SIG Inc. CAT-iq™ of DECT Forum.
COLOSSUS™, FirstGPS™ of Trimble Navigation Ltd. EMV™ of EMVCo, LLC (Visa Holdings Inc.). EPCOS™ of
Epcos AG. FLEXGO™ of Microsoft Corporation. FlexRay™ is licensed by FlexRay Consortium.
HYPERTERMINAL™ of Hilgraeve Incorporated. IEC™ of Commission Electrotechnique Internationale. IrDA™ of
Infrared Data Association Corporation. ISO™ of INTERNATIONAL ORGANIZATION FOR STANDARDIZATION.
MATLAB™ of MathWorks, Inc. MAXIM™ of Maxim Integrated Products, Inc. MICROTEC™, NUCLEUS™ of
Mentor Graphics Corporation. Mifare™ of NXP. MIPI™ of MIPI Alliance, Inc. MIPS™ of MIPS Technologies, Inc.,
USA. muRata™ of MURATA MANUFACTURING CO. OmniVision™ of OmniVision Technologies, Inc.
Openwave™ Openwave Systems Inc. RED HAT™ Red Hat, Inc. RFMD™ RF Micro Devices, Inc. SIRIUS™ of
Sirius Sattelite Radio Inc. SOLARIS™ of Sun Microsystems, Inc. SPANSION™ of Spansion LLC Ltd. Symbian™
of Symbian Software Limited. TAIYO YUDEN™ of Taiyo Yuden Co. TEAKLITE™ of CEVA, Inc. TEKTRONIX™
of Tektronix Inc. TOKO™ of TOKO KABUSHIKI KAISHA TA. UNIX™ of X/Open Company Limited. VERILOG™,
PALLADIUM™ of Cadence Design Systems, Inc. VLYNQ™ of Texas Instruments Incorporated. VXWORKS™,
WIND RIVER™ of WIND RIVER SYSTEMS, INC. ZETEX™ of Diodes Zetex Limited.
Last Trademarks Update 2009-10-19
Data Sheet
4
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Table of Contents
Table of Contents
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1
1.1
1.2
Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Target Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2
2.1
2.2
2.3
2.4
2.5
2.5.1
2.5.2
2.6
2.7
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Transfer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Ratiometric Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Overall Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Output Voltage versus Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Timing Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3
3.1
3.2
3.3
3.4
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application Circuit Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4.1
4.2
Package Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
PG-DSOF-8-16 Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Identification Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Data Sheet
5
17
17
18
19
20
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
List of Figures
List of Figures
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Data Sheet
Pin configuration (top view, figure not to scale) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ratiometric error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accuracy for pressure acquisition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum output voltage limit with pull-down load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Minimum output voltage limit with pull-up load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power-up time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Response and stabilization time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application circuit example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package outline (all dimensions in mm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
10
11
12
13
14
15
15
16
16
17
22
23
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
List of Tables
List of Tables
Table 1
Table 2
Table 3
Table 4
Table 5
Table 6
Table 7
Table 8
Table 9
Data Sheet
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ratiometric Error. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Component Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
10
12
13
14
17
18
19
20
21
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Product Description
KP215F1701
1
Product Description

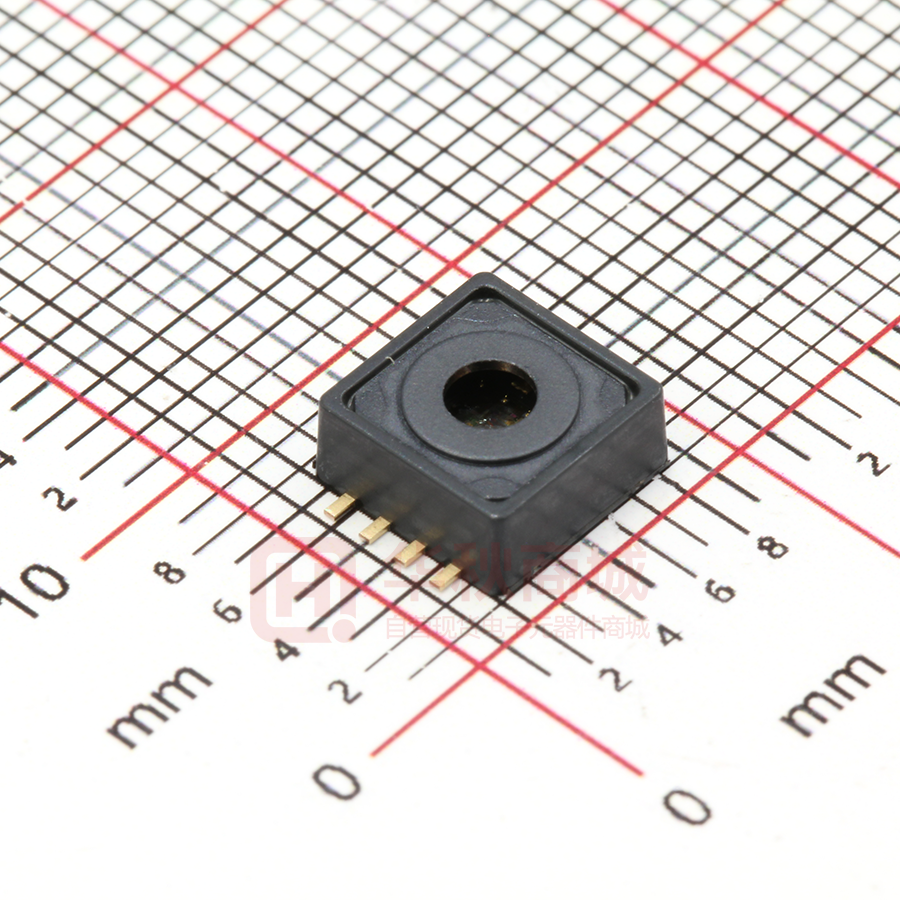

The KP215F1701 is a miniaturized Analog Manifold Air Pressure Sensor
IC based on a capacitive principle. It is surface micromachined with a
monolithic integrated signal conditioning circuit implemented in BiCMOS
technology.
The sensor converts a pressure into an analog output signal. The
calibrated transfer function converts a pressure of 10 kPa to 115 kPa into
a voltage range of 0.4 V to 4.65 V.
The chip is packaged in a “green” SMD housing. The sensor has been
primarily developed for measuring manifold air pressure, but can also be
used in other application fields. The high accuracy and the high sensitivity
of the device makes it a perfect fit for advanced automotive applications
as well as in industrial and consumer applications.
1.1
Features
Following features are supported by the KP215F1701:
•
•
•
•
•
•
•
High precision pressure sensing (± 1.4 kPa)
Ratiometric analog output
Large temperature range (-40 °C to 140 °C)
Broken wire detection
Clamping
“Green” 8 pin SMD housing
Automotive qualified
1.2
Target Applications
The KP215F1701 is defined for use in following target applications:
•
•
•
•
•
•
Automotive applications (manifold air pressure measurement)
Industrial control
Consumer applications
Medical applications
Weather stations
Altimeters
Product Name
Product Type
Ordering Code
Package
Analog Absolute Pressure Sensor
KP215F1701
SP000698278
PG-DSOF-8-16
Data Sheet
8
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Functional Description
2
Functional Description
The pressure is detected by an array of capacitive surface micromachined sensor cells. The sensor cell output is
amplified, temperature compensated and linearized to obtain an output voltage that is proportional to the applied
pressure.
The transfer function for linearization is computed in the digital part of the sensor using a third order polynomial
calculation. The transfer function is created from the following parameters:
•
•
•
Minimum and maximum rated pressure
Voltage level at minimum and maximum rated pressure
Clamping levels
The output is analog and ratiometric with respect to the supply voltage.
All parameters needed for the complete calibration algorithm — such as offset, gain, temperature coefficients of
offset and gain, and linearization parameters — are determined after assembly. The parameters are stored in an
integrated E²PROM. The E²PROM content is protected with forward error correction (a one bit error is detected
and corrected, errors of more than one bit are detected and the output signal is switched to ground potential).
Clamping
The output voltage is limited internally to two clamping threshold levels. Based on this feature, the open bond
detection (OBD) is simplified and improved.
Open Bond Detection
The open bond detection, in conjunction with the clamping levels, eases the implementation of error and
malfunction detection strategies (e.g. for On-Board Diagnosis requirements). The microcontroller can sample the
output of the sensor and compare it with programmed overvoltage and undervoltage limits. When the sensor’s
output voltage exceeds those limits, a broken wire condition is identified.
When the chip is not powered properly, the JFET transistors of the broken wire detection stage are selfconducting. For example, if the GND connection is interrupted, the output is drawn strongly to VDD. Similarly, if
the VDD connection is broken, the output is drawn to GND.
Data Sheet
9
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Functional Description
2.1
Pin Configuration
Figure 1 shows the pin configuration.
TEST
1
8
GND
CLOCK / VPROG
2
7
VOUT
DATA IN
3
6
GND
DATA OUT
4
5
VDD
Figure 1
Pin configuration (top view, figure not to scale)
2.2
Pin Description
Table 1 shows the pin description.
Table 1
Pin Description
Pin No.
Name
Function
1
TEST
Test pin1)
2
CLOCK / VPROG
External clock for communication / programming voltage1)
3
DATA IN
Serial data input pin1)
4
DATA OUT
Serial data output pin1)
5
VDD
Supply voltage
6
GND
Circuit ground potential2)
7
VOUT
Analog pressure signal output
8
GND
Circuit ground potential2)
1) Digital pins are used only during calibration and test. It is recommended to leave these pins floating (in case of an open
GND connection, the floating pins prevent from a cross grounding through the corresponding ESD diodes).
2) It is recommended to connect both GND pins.
Data Sheet
10
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Functional Description
2.3
Block Diagram
Figure 2 shows the functional block diagram.
CLOCK /
VPROG
VDD
Internal
Reference
Voltage
EEPROM
( 90+22 bit )
DATA
IN
DATA
OUT
Test and Programming
Interface
Digital
Control
Temperature
Compensation
VOUT
A
D
1 bit
1 kHz
12 bit
D
Clamping
Linearization
10 bit
10 bit
A
30kHz
VDD
Clock
Generator
OBD
GND
Figure 2
Data Sheet
Functional block diagram
11
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Functional Description
2.4
Transfer Function
The KP215F1701 device is fully calibrated on delivery. The sensor has a linear transfer function between the
applied pressure and the output signal:
V OUT = VDD x (a x P + b)
The output signal is ratiometric. Gain a and offset b are determined during calibration in order to generate the
required transfer function.
Calibrated Transfer Function
The following calibration is adjusted with the parameters a and b:
Table 2
Transfer function
Pressure
Output Voltage @ VDD = VDD,Typ
Gain and Offset
Symbol
Values
Unit
Symbol
Values
Unit
Symbol
Value
Unit
pIN,1
10
kPa
VOUT,1
0.40
V
a
0.00810
1/kPa
pIN,2
115
kPa
VOUT,2
4.65
V
b
-0.00095
–
VOUT [V]
Note: The points pIN,1/VOUT,1 and pIN,2/VOUT,2 define the calibrated transfer function and not the operating range.
The operating pressure range is defined by the parameter 2.4 “Ambient operating pressure range” on
Page 19
5.0
4.0
3.0
2.0
1.0
0.0
10
30
50
70
90
110
130
150
pressure [kPa]
operating pressure range
maximum input pressure range
Figure 3
Transfer function
Note: The application circuitry determines the current driven by the device and thus may have an impact on the
output voltage delivered by the sensor.
Data Sheet
12
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Functional Description
2.5
Accuracy
The accuracy of the KP215F1701 sensor is influenced by the supply voltage (ratiometric error) as well as by
pressure, temperature and aging effects. The specified value, calculated with the transfer function, represents the
theoretical value (see Figure 3). The error equals the deviation between the measured output voltage value and
the specified output voltage value.
2.5.1
Ratiometric Error
Ideally the sensor is ratiometric - the output (VOUT) scales by the same ratio that VDD increases or decreases. The
ratiometric error is defined as the difference between the ratio that VDD changed and the ratio that VOUT changed,
expressed as a percentage.
VOUT(@VDD) - V OUT(@5V) x
ERAT (%) =
5V
VDD
5V
x 100%
The output voltage VOUT is ratiometric to VDD. VDD must be in the operating range provided in Table 7.
Table 3
Ratiometric Error
Supply voltage (V)
Max. ratiometric error (ERAT in % of VDD, Typ)
VDD,Min
± 0.5
VDD,Typ
0
VDD,Max
± 0.5
E RAT (%)
0.5
0
-0.5
VDD,MIN
VDD,TYP
VDD,MAX
VDD
Figure 4
Ratiometric error
2.5.2
Overall Accuracy
Overall accuracy covers the entire pressure and temperature range from different sources of error including the
following:
•
Pressure:
Output deviation from target transfer function over the specified pressure range
•
Temperature:
Output deviation over the temperature range
•
Aging:
Parameter drift over life time
Data Sheet
13
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Functional Description
Note: Ratiometric signal error is not included in the overall accuracy. For error measurements, the supply voltage
must have the nominal value (VDD = VDD,Typ).
The error band is determined by three continuous lines through four relevant breakpoints.
Accuracy
Error [kPa]
Error Multiplier
-40
±2.1
1.50
0
±1.4
1.00
85
±1.4
1.00
140
±2.3
1.64
error multiplier
Temperature [°C]
2.5
2.0
1.5
2.3
2.1
1.0
1.4
absolute error [kPa]
Table 4
0.5
0.0
-40
0
85
140
temperature [°C]
Figure 5
Data Sheet
Accuracy for pressure acquisition
14
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Functional Description
2.6
Output Voltage versus Load
The output voltage limits depend on:
The value of the external load resistor.
The type of connection (pull-up or pull-down).
VOUT [V]
•
•
50
5.00
20
10
pull-down resistance [kΩ]
5
4.90
4.85
4.80
4.70
4.60
4.50
0.0
Figure 6
0.1
0.2
0.4
0.6
0.8
1.0
source current [mA]
Maximum output voltage limit with pull-down load
pull-up resistance [kΩ]
VOUT [V]
50
20
10
5
0.50
0.40
0.30
0.20
0.10
0
0.0
Figure 7
0.1
0.2
0.4
0.6
0.8
1.0
source current [mA]
Minimum output voltage limit with pull-up load
Note: The values in the diagrams are valid for the entire specified temperature range.
The two diagrams above do not take into account clamping levels. In case clamping levels are implemented,
the output voltage is clamped accordingly.
Data Sheet
15
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Functional Description
2.7
Timing Properties
voltage [V]
Power-up Time
The power-up time tUP is defined as the maximum time between the supply voltage reaching its operating range
and the output voltage reaching 90% of its final value (assuming pin VOUT open and constant input pressure).
5
VDD
4
V OUT
3
90% of Final Value
tUP
2
1
constant input pressure
0
2.5
0
5
7.5
10
12.5
15
time [ms]
Figure 8
Power-up time
120
5
input pressure
tS
100
within required accuracy
4
VOUT
90% of final value
3
80
60
tR
2
pressure [kPa]
voltage [V]
Response Time and Stabilization Time
The response time tR is defined as the time required by the output to change from 10% to 90% of its final value
after a specified pressure step (assuming pin VOUT open).
The stabilization time tS is defined as the time required by the output to meet the specified accuracy after the
pressure has been stabilized (assuming pin VOUT open).
40
10% of final value
1
20
0
0
0
1
2
3
4
5
time [ms]
Figure 9
Response and stabilization time
Note: The values in the diagrams are valid for the entire specified temperature range.
Data Sheet
16
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Specification
3
Specification
3.1
Application Circuit Example
It is recommended to protect the pressure sensor IC against overload and electro-magnetic interferences (as
shown in Figure 10).
The output circuit acts as a low-pass decoupling filter between the sensor IC output and the A/D input of the
microcontroller.
The shown application circuit example considers an increased cable length between the sensor and the
microcontroller. A combined location on a PCB with reduced distance between the sensor and the controller allows
a reduction of the numbers of the passive components (e.g. C2, R1 and R2 can be omitted).
5V
n.c.
n.c.
1
2
VDD
Test
CLOCK /
VPROG
5
Ref
C1
KP
2xx
GND
R1
6
C2
n.c.
3
DATA IN
VOUT
7
n.c.
4
DATA OUT
GND
8
ADC
A/D in
*)
R3
C3
R2 *)
Microcontroller
GND
*) R 1 and R2 only alternatively
Figure 10
Application circuit example
Note: It is recommended to leave the digital pins CLOCK/VPROG, DATA IN and DATA OUT floating (in case of an
open GND connection, the floating pins prevent from a cross grounding through the corresponding ESD
diodes).
Table 5
Component Values
Component
Symbol
Values
Unit
Min.
Typ.
Max.
Pull-Up Resistor
R1
5
59
100
kΩ
Pull-Down Resistor
R2
5
59
100
kΩ
Low Pass Resistor
R3
3.9
22
100
kΩ
Supply Blocking Capacitor
C1
10
100
100
nF
Output Blocking Capacitor
C2
0
100
100
nF
Low Pass Capacitor
C3
10
100
100
nF
Data Sheet
17
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Specification
3.2
Absolute Maximum Ratings
Table 6
Absolute Maximum Ratings
Parameter
Symbol
Values
Min.
Typ.
Max.
Unit
Note / Test Condition
Number
V
V
V
–
1 h @ 70°C
Limited time: Max.
300 s
1.1
Supply voltage
VDD_max
-0.3
–
-6.51)
–
–
–
6.5
16.5
–
Output voltage
VOUT
-0.3
–
VDD + 0.3 V
–
1.2
–
–
20
V
–
1.3
Voltage on
VCLK
CLOCK / VPROG pin
Voltage on
DATA IN &
DATA_OUT pins
VDATA
–
–
5
V
–
1.4
Storage
temperature
TS
-60
–
150
°C
–
1.5
–
–
180
K/W
Thermal resistance
between the die and
ambient; according to
JESD51-2
1.6
10
–
150
600
kPa
kPa
2
kV
Thermal resistance RthJA
Maximum input
pressure
pamb_max
ESD robustness
(HBM: 1.5 kΩ,
100 pF)
VESD
–
–
1.7
Limited time: Max. 300
s
According to
EIA / JESD22-A114-E
1.8
1) Reverse polarity; IDD < 300 mA
Attention: Stresses above the max. values listed in Table 6 may cause permanent damage to the device.
Exposure to absolute maximum rating conditions for extended periods may affect device
reliability. Maximum ratings are absolute ratings; exceeding only one of these values may
cause irreversible damage to the integrated circuit.
Data Sheet
18
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Specification
3.3
Operating Range
The following operating conditions must not be exceeded in order to ensure correct operation of the device. All
parameters specified in the following sections refer to these operating conditions, unless noted otherwise.
Table 7
Operating Range
Parameter
Symbol
Values
Min.
Typ.
Max.
Unit
Note / Test Condition
Number
2.1
Supply voltage
VDD
4.5
5.0
5.5
V
VOUT is ratiometric to
VDD
Output current on
VOUT pin
IOUT
–
-1
–
–
1
–
mA
mA
pull-down resistor used 2.2
pull-up resistor used
Operating
temperature
Ta
-40
–
140
°C
2.3
Ambient operating
pressure range
pamb
10
–
115
kPa
2.4
Lifetime1)
tlive
15
–
–
years
2.5
1) The life time shall be considered as anticipation with regard to the product that shall not extend the agreed warranty period.
Data Sheet
19
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Specification
3.4
Characteristics
Table 8
Electrical Characteristics
Parameter
Symbol
Values
Min.
Typ.
Max.
Unit
Note / Test Condition
Number
3.1
Output voltage
range
VOUT_R
0.10
–
4.85
V
See also section
“Output Voltage
versus Load” on
Page 15
Supply current
IDD
–
8
10
mA
During power up a peak 3.2
supply current of max.
22 mA is possible
Output referred
noise
VNOISE
–
–
–
–
2.5
1.8
mVRMS Frequency > 1 kHz1)
mVRMS Frequency < 1 kHz
Response time2)
tR
–
0.65
1.03)
ms
10% to 90% of the final 3.4
output value
Stabilization time2)
tS
–
–
10
ms
For full accuracy
3.5
Power-up time2)
tUP
–
–
5
ms
90% of the final output
value
3.6
–
–
1
ms
3.7
–
–
160
Ω
3.8
Broken wire:
tOBD
Diagnosis response
time4)
OBD transistor on
resistance
RDSON
3.3
1) 200 measurements in sequence, bandwidth limited to 40kHz
2) More details in section “Timing Properties” on Page 16
3) The maximum response time considers a maximal value of 100nF for the output blocking capacitor C2 and a maximum
pressure pulse equivalent 4.0V output change
4) In the event of a broken wire (broken VDD line or broken GND line), the output changes to certain voltage levels within the
broken wire response time. The OBD ranges are determined by the application circuitry
Data Sheet
20
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Specification
Table 9
Transfer Function
Parameter
Symbol
Values
Unit
Min.
Typ.
Max.
Note / Test Condition
Number
Sensitivity
S
–
40.5
–
mV
/kPa
Accuracy pressure
(overall)1)
accp
-1.4
-2.1
-2.3
–
–
–
1.4
2.1
2.3
kPa
kPa
kPa
Ratriometric error2)
ERAT
-25
–
25
mV
4.3
Lower clamping
level
VCl_low
–
0.3
–
V
4.4
Upper clamping
level
VCl_high
–
4.8
–
V
4.5
Clamping level
error
∆VCl
-30
–
30
mV
4.1
0°C up to 85 °C
@ -40°C
@ 140°C
Accuracy of lower and
upper clamping level
4.2
4.6
1) More details in section “Overall Accuracy” on Page 13
2) More details in section “Ratiometric Error” on Page 13
Data Sheet
21
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Package Information
4
Package Information
The PG-DSOF-8-16 package is optimized regarding external mechanical stress influences. The package fulfills
the solder conditions for lead-free board assembly. Details (soldering profile, application notes, etc.) are available
under: www.infineon.com/package.
Note: In the application, it is recommended to ensure that the same pressure is applied to the whole package.
4.1
PG-DSOF-8-16 Outline
OUTER DIMENSIONS DOES NOT INCLUDE PROTUSION
OR INTRUSION OF 0.2 MAX. PER SIDE
Figure 11
Data Sheet
Package outline (all dimensions in mm)
22
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Package Information
4.2
Identification Code
Figure 12
Date Code
Sales Code I
Sales Code II
K P 2 1 5
F 1 7 0 1
Data Matrix Code
8 x 18 Dots
Dot Size:
0.15 mm x 0.15 mm
B Y Y WW
The identification code is provided in a machine readable format. The date and sales code are provided in human
readable format.
B:
YY:
WW:
BE Location
Year
Week
Identification Code
The identification code for the KP215F1701 is on the same side of the package as pin 8 (GND).
Data Sheet
23
Revision 1.0, 2010-06-28
KP215F1701
Analog Absolute Pressure Sensor
Data Sheet
24
Revision 1.0, 2010-06-28
w w w . i n f i n e o n . c o m
Published by Infineon Technologies AG
工商网监
湘ICP备2023018690号
