S29GL01GS, S29GL512S, S29GL256S, S29GL128S
128 Mb/256 Mb/512 Mb/1 Gb GL-S
MIRRORBIT™ Flash
Parallel, 3.0 V
General description
The S29GL01G/512/256/128S are MIRRORBIT™ Eclipse flash products fabricated on 65-nm process technology.
These devices offer a fast page access time as fast as 15 ns with a corresponding random access time as fast as
90 ns. They feature a Write Buffer that allows a maximum of 256 words/512 bytes to be programmed in one
operation, resulting in faster effective programming time than standard programming algorithms. This makes
these devices ideal for today’s embedded applications that require higher density, better performance and lower
power consumption.
Dist inct ive characteristics
• CMOS 3.0 V core with versatile I/O
• 65 nm MIRRORBIT™ Eclipse technology
• Single supply (VCC) for read / program / erase (2.7 V to 3.6 V)
• Versatile I/O feature
- Wide I/O voltage range (VIO): 1.65 V to VCC
• ×16 data bus
• Asynchronous 32-byte page read
• 512-byte programming buffer
- Programming in page multiples, up to a maximum of 512 bytes
• Single word and multiple program on same word options
• Automatic error checking and correction (ECC) – internal hardware ECC with single bit error correction
• Sector erase
- Uniform 128-kbyte sectors
• Suspend and resume commands for program and erase operations
• Status register, data polling, and ready/busy pin methods to determine device status
• Advanced sector protection (ASP)
- Volatile and non-volatile protection methods for each sector
• Separate 1024-byte one time program (OTP) array with two lockable regions
• Common flash interface (CFI) parameter table
• Temperature range / grade
- Industrial (–40°C to +85°C)
- Industrial plus(–40°C to +105°C)
- Automotive, AEC-Q100 grade 3 (–40°C to +85°C)
- Automotive, AEC-Q100 grade 2 (–40°C to +105°C)
• 100,000 program / erase cycles
• 20 years data retention
Datasheet
www.infineon.com
Please read the Important Notice and Warnings at the end of this document
page 1
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Performance summary
• Packaging options

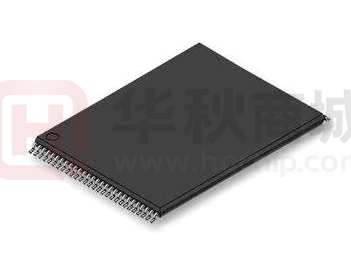

- 56-pin TSOP
- 64-ball LAA Fortified BGA, 13 mm × 11 mm
- 64-ball LAE Fortified BGA, 9 mm × 9 mm
- 56-ball VBU Fortified BGA, 9 mm × 7 mm
Performance summar y
Maximum read access times
Density
Voltage range
Random access
time (tACC)
Page access time
(tPACC)
CE# access time
(tCE)
OE# access time
(tOE)
128 Mb
Full VCC = VIO
90
15
90
25
VersatileIO VIO
100
25
100
35
Full VCC = VIO
90
15
90
25
VersatileIO VIO
100
25
100
35
Full VCC = VIO
100
15
100
25
VersatileIO VIO
110
25
110
35
Full VCC = VIO
100
15
100
25
VersatileIO VIO
110
25
110
35
256 Mb
512 Mb
1 Gb
Typical program and erase rates
Operation
Rates
Buffer programming (512 bytes)
1.5 MBps
Sector erase (128 kbytes)
477 kBps
Maximum current consumption
Operation
Unit
Active read at 5 MHz, 30 pF
60 mA
Program
100 mA
Erase
100 mA
Standby
100 µA
Datasheet
2
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Table of contents
Table of contents
General description ...........................................................................................................................1
Distinctive characteristics ..................................................................................................................1
Performance summary ......................................................................................................................2
Table of contents ...............................................................................................................................3
1 Product overview ...........................................................................................................................5
2 Address space maps ........................................................................................................................7
2.1 Flash memory array ................................................................................................................................................8
2.2 Device ID and CFI (ID-CFI) ASO ...............................................................................................................................9
2.3 Device ID and common flash interface (ID-CFI) ASO map — automotive only ..................................................10
2.4 Status register ASO ...............................................................................................................................................11
2.5 Data polling status ASO ........................................................................................................................................11
2.6 Secure silicon region ASO.....................................................................................................................................12
2.7 Sector protection control .....................................................................................................................................12
2.8 ECC status ASO......................................................................................................................................................13
3 Data protection ............................................................................................................................14
3.1 Device protection methods ..................................................................................................................................14
3.2 Command protection ...........................................................................................................................................14
3.3 Secure silicon region (OTP) ..................................................................................................................................14
3.4 Sector protection methods ..................................................................................................................................15
4 Read operations ...........................................................................................................................20
4.1 Asynchronous read ...............................................................................................................................................20
4.2 Page mode read ....................................................................................................................................................20
5 Embedded operations ...................................................................................................................21
5.1 Embedded algorithm controller (EAC).................................................................................................................21
5.2 Program and erase summary ...............................................................................................................................22
5.3 Automatic ECC ......................................................................................................................................................23
5.4 Command set ........................................................................................................................................................24
5.5 Status monitoring .................................................................................................................................................36
5.6 Error types and clearing procedures....................................................................................................................43
5.7 Embedded Algorithm Performance table............................................................................................................46
6 Data integrity ...............................................................................................................................57
6.1 Erase endurance ...................................................................................................................................................57
6.2 Data retention .......................................................................................................................................................57
7 Software interface reference .........................................................................................................58
7.1 Command summary .............................................................................................................................................58
7.2 Device ID and Common Flash Interface (ID-CFI) ASO Map..................................................................................61
7.3 Device ID and Common Flash Interface (ID-CFI) ASO Map..................................................................................67
8 Signal descriptions .......................................................................................................................68
8.1 Address and data configuration...........................................................................................................................68
8.2 Input/Output summary ........................................................................................................................................68
8.3 Versatile I/O feature ..............................................................................................................................................69
8.4 Ready/Busy# (RY/BY#) ..........................................................................................................................................69
8.5 Hardware Reset.....................................................................................................................................................69
9 Signal protocols............................................................................................................................70
9.1 Interface states .....................................................................................................................................................70
9.2 Power-Off with Hardware Data Protection..........................................................................................................71
9.3 Power Conservation Modes..................................................................................................................................71
9.4 Read.......................................................................................................................................................................72
9.5 Write ......................................................................................................................................................................73
10 Electrical specifications...............................................................................................................74
10.1 Absolute maximum ratings ................................................................................................................................74
Datasheet
3
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Table of contents
10.2 Latchup characteristics ......................................................................................................................................74
10.3 Thermal resistance .............................................................................................................................................74
10.4 Operating ranges ................................................................................................................................................75
10.5 DC characteristics ...............................................................................................................................................78
10.6 Capacitance characteristics ...............................................................................................................................80
11 Timing specifications ..................................................................................................................81
11.1 Key to switching waveforms...............................................................................................................................81
11.2 AC test conditions ...............................................................................................................................................81
11.3 Power-on reset (POR) and warm reset ..............................................................................................................82
11.4 AC characteristics................................................................................................................................................85
12 Physical interface ..................................................................................................................... 100
12.1 56-pin TSOP.......................................................................................................................................................100
12.2 64-ball FBGA ......................................................................................................................................................102
12.3 56-ball FBGA ......................................................................................................................................................105
13 Ordering information ................................................................................................................ 107
13.1 Ordering code definitions.................................................................................................................................107
13.2 Valid combinations — standard .......................................................................................................................108
13.3 Valid combinations — automotive grade / AEC-Q100.....................................................................................110
Revision history ............................................................................................................................ 112
Datasheet
4
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Product overview
1
Product overview
The GL-S family consists of 128-Mb to 1-Gb, 3.0 V core, versatile I/O, non-volatile, flash memory devices. These
devices have a 16-bit (word) wide data bus and use only word boundary addresses. All read accesses provide
16 bits of data on each bus transfer cycle. All writes take 16 bits of data from each bus transfer cycle.
DQ15–DQ0
RY/BY#
VCC
Sector Switches
VSS
VIO
Erase Voltage
Generator
Input/Output
Buffers
RESET#
WE#
WP#
State
Control
Command
Register
PGM Voltage
Generator
Chip Enable
Output Enable
Logic
CE#
OE#
STB
Y-Decoder
Y-Gating
X-Decoder
Cell Matrix
STB
Timer
Address Latch
VCC Detector
AMax**–A0
Data
Latch
** AMAX GL01GS = A25, AMAX GL512S = A24, AMAX GL256S = A23, AMAX GL128S = A22
Figure 1
Block diagram
The GL-S family combines the best features of eXecute-In-Place (XIP) and data storage flash memories. This
family has the fast random access of XIP flash along with the high density and fast program speed of Data Storage
flash.
Read access to any random location takes 90 ns to 120 ns depending on device density and I/O power supply
voltage. Each random (initial) access reads an entire 32-byte aligned group of data called a page. Other words
within the same page may be read by changing only the low order 4 bits of word address. Each access within the
same page takes 15 ns to 30 ns. This is called page mode read. Changing any of the higher word address bits will
select a different page and begin a new initial access. All read accesses are asynchronous.
Datasheet
5
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Product overview
Table 1
S29GL-S address map
Type
Count
Addresses
Address within page
16
A3–A0
Address within write buffer
256
A7–A0
Page
4096
A15–A4
Write-buffer-line
256
A15–A8
1024 (1 Gb)
512 (512 Mb)
256 (256 Mb)
128 (128 Mb)
AMAX–A16
Sector
The device control logic is subdivided into two parallel operating sections, the host interface controller (HIC) and
the embedded algorithm controller (EAC). HIC monitors signal levels on the device inputs and drives outputs as
needed to complete read and write data transfers with the host system. HIC delivers data from the currently
entered address map on read transfers; places write transfer address and data information into the EAC
command memory; notifies the EAC of power transition, hardware reset, and write transfers. The EAC looks in
the command memory, after a write transfer, for legal command sequences and performs the related embedded
algorithms.
Changing the non-volatile data in the memory array requires a complex sequence of operations that are called
embedded algorithms (EA). The algorithms are managed entirely by the device internal EAC. The main algorithms
perform programming and erase of the main array data. The host system writes command codes to the flash
device address space. The EAC receives the commands, performs all the necessary steps to complete the
command, and provides status information during the progress of an EA.
The erased state of each memory bit is a logic 1. Programming changes a logic 1 (High) to a logic 0 (Low). Only an
Erase operation is able to change ‘0’ to ‘1’. An erase operation must be performed on an entire 128-kbyte aligned
and length group of data call a sector. When shipped from Infineon all sectors are erased.
Programming is done via a 512-byte write buffer. It is possible to write from 1 to 256 words, anywhere within the
write buffer before starting a programming operation. Within the flash memory array, each 512-byte aligned
group of 512 bytes is called a line. A programming operation transfers volatile data from the write buffer to a
non-volatile memory array line. The operation is called write buffer programming.
As the device transfers each 32-byte aligned page of data that was loaded into the write buffer to the 512-byte
flash array line, internal logic programs an ECC Code for the Page into a portion of the memory array not visible
to the host system software. The internal logic checks the ECC information during the initial access of every array
read operation. If needed, the ECC information corrects a one bit error during the initial access time.
The write buffer is filled with 1’s after reset or the completion of any operation using the write buffer. Any
locations not written to a ‘0’ by a Write to Buffer command are by default still filled with 1’s. Any 1’s in the write
buffer do not affect data in the memory array during a programming operation.
As each page of data that was loaded into the write buffer is transferred to a memory array line.
Sectors may be individually protected from program and erase operations by the advanced sector protection
(ASP) feature set. ASP provides several, hardware and software controlled, volatile and non-volatile, methods to
select which sectors are protected from program and erase operations.
Datasheet
6
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Address space maps
2
Address space maps
There are several separate address spaces that may appear within the address range of the flash memory device.
One address space is visible (entered) at any given time.
• Flash memory array: the main non-volatile memory array used for storage of data that may be randomly
accessed by asynchronous read operations.
• ID/CFI: a memory array used for Infineon factory programmed device characteristics information. This area
contains the device identification (ID) and common flash interface (CFI) information tables.
• Secure silicon region (SSR): a one time programmable (OTP) non-volatile memory array used for Infineon factory
programmed permanent data, and customer programmable permanent data.
• Lock register: an OTP non-volatile word used to configure the ASP features and lock the SSR.
• Persistent protection bits (PPB): a non-volatile flash memory array with one bit for each sector. When
programmed, each bit protects the related sector from erasure and programming.
• PPB lock: a volatile register bit used to enable or disable programming and erasure of the PPB bits.
• Password: an OTP non-volatile array used to store a 64-bit password used to enable changing the state of the
PPB lock bit when using password mode sector protection.
• Dynamic protection bits (DYB): a volatile array with one bit for each sector. When set, each bit protects the
related sector from erasure and programming.
• Status register: a volatile register used to display embedded algorithm status.
• Data polling status: a volatile register used as an alternate, legacy software compatible, way to display
embedded algorithm status.
• ECC status: provides the status of any error detection or correction action taken when reading the selected page.
The main flash memory array is the primary and default address space but, it may be overlaid by one other
address space, at any one time. Each alternate address space is called an address space overlay (ASO).
Each ASO replaces (overlays) the entire flash device address range. Any address range not defined by a particular
ASO address map, is reserved for future use. All read accesses outside of an ASO address map returns non-valid
(undefined) data. The locations will display actively driven data but the meaning of whatever 1’s or 0’s appear
are not defined.
There are four device operating modes that determine what appears in the flash device address space at any
given time:
• Read mode
• Data polling mode
• Status register (SR) mode
• Address space overlay (ASO) mode
In read mode the entire flash memory array may be directly read by the host system memory controller. The
memory device embedded algorithm controller (EAC), puts the device in read mode during power-on, after a
hardware reset, after a command reset, or after an embedded algorithm (EA) is suspended. Read accesses and
command writes are accepted in read mode. A subset of commands are accepted in read mode when an EA is
suspended.
While in any mode, the status register read command may be issued to cause the status register ASO to appear
at every word address in the device address space. In this status register ASO Mode, the device interface waits for
a read access and, any write access is ignored. The next read access to the device accesses the content of the
status register, exits the status register ASO, and returns to the previous (calling) mode in which the status
register read command was received.
Datasheet
7
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Address space maps
In EA mode the EAC is performing an embedded algorithm, such as programming or erasing a non-volatile
memory array. While in EA mode, none of the main flash memory array is readable because the entire flash device
address space is replaced by the data polling status ASO. Data Polling Status will appear at every word location
in the device address space.
While in EA mode, only a program / erase suspend command or the status register read command will be
accepted. All other commands are ignored. Thus, no other ASO may be entered from the EA mode.
When an embedded algorithm is suspended, the data polling ASO is visible until the device has suspended the
EA. When the EA is suspended the data polling ASO is exited and flash array data is available. The data polling
ASO is reentered when the suspended EA is resumed, until the EA is again suspended or finished. When an
embedded algorithm is completed, the data polling ASO is exited and the device goes to the previous (calling)
mode (from which the embedded algorithm was started).
In ASO mode, one of the remaining overlay address spaces is entered (overlaid on the main flash Array address
map). Only one ASO may be entered at any one time. Commands to the device affect the currently entered ASO.
Only certain commands are valid for each ASO. These are listed in the Table 41, in each ASO related section of
the table.
The following ASOs have non-volatile data that may be programmed to change 1’s to 0’s:
• Secure silicon region
• Lock register
• Persistent protection bits (PPB)
• Password
• Only the PPB ASO has non-volatile data that may be erased to change 0’s to 1’s
When a program or erase command is issued while one of the non-volatile ASOs is entered, the EA operates on
the ASO. The ASO is not readable while the EA is active. When the EA is completed the ASO remains entered and
is again readable. Suspend and Resume commands are ignored during an EA operating on any of these ASOs.
2.1
Flash memory array
The S29GL-S family has uniform sector architecture with a sector size of 128 kB. Table 2 to Table 5 shows the
sector architecture of the four devices.
Table 2
S29GL01GS sector and memory address map
Sector size (kbyte)
Sector count
Sector range
Address range
(16-bit)
128
1024
SA00
0000000h–000FFFFh
Sector starting
address
:
:
–
SA1023
3FF0000h–3FFFFFFh
Sector ending
address
Table 3
Notes
S29GL512S sector and memory address map
Sector size (kbyte)
Sector count
Sector range
Address range
(16-bit)
128
512
SA00
0000000h–000FFFFh
Sector starting
address
:
:
–
SA511
1FF0000h–1FFFFFFh
Sector ending
address
Datasheet
8
Notes
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Address space maps
Table 4
S29GL256S sector and memory address map
Sector size (kbyte)
Sector count
Sector range
Address range
(16-bit)
128
256
SA00
0000000h–000FFFFh
Sector starting
address
:
:
–
SA255
0FF0000h–0FFFFFFh
Sector ending
address
Table 5
Notes
S29GL128S sector and memory address map
Sector size (kbyte)
Sector count
Sector range
Address range
(16-bit)
Notes
128
128
SA00
0000000h–000FFFFh
Sector starting
address
:
:
–
SA127
07F0000h–07FFFFFh
Sector ending
address
Note: These tables have been condensed to show sector related information for an entire device on a single page
Sectors and their address ranges that are not explicitly listed (such as SA001–SA510) have sectors starting and
ending addresses that form the same pattern as all other sectors of that size. For example, all 128 kB sectors have
the pattern XXX0000h–XXXFFFFh.
2.2
Device ID and CFI (ID-CFI) ASO
There are two traditional methods for systems to identify the type of flash memory installed in the system. One
has traditionally been called Autoselect and is now referred to as device identification (ID). The other method is
called common flash interface (CFI).
For ID, a command is used to enable an address space overlay where up to 16 word locations can be read to get
JEDEC manufacturer identification (ID), device ID, and some configuration and protection status information
from the flash memory. The system can use the manufacturer and device IDs to select the appropriate driver
software to use with the flash device.
CFI also uses a command to enable an address space overlay where an extendable table of standard information
about how the flash memory is organized and operates can be read. With this method the driver software does
not have to be written with the specifics of each possible memory device in mind. Instead the driver software is
written in a more general way to handle many different devices but adjusts the driver behavior based on the
information in the CFI table.
Traditionally these two address spaces have used separate commands and were separate overlays. However, the
mapping of these two address spaces are non-overlapping and so can be combined in to a single address space
and appear together in a single overlay. Either of the traditional commands used to access (enter) the autoselect
(ID) or CFI overlay will cause the now combined ID-CFI address map to appear.
The ID-CFI address map appears within, and overlays the flash array data of, the sector selected by the address
used in the ID-CFI enter command. While the ID-CFI ASO is entered the content of all other sectors is undefined.
Datasheet
9
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Address space maps
The ID-CFI address map starts at location ‘0’ of the selected sector. Locations above the maximum defined
address of the ID-CFI ASO to the maximum address of the selected sector have undefined data. The ID-CFI enter
commands use the same address and data values used on previous generation memories to access the JEDEC
Manufacturer ID (Autoselect) and common flash interface (CFI) information, respectively. See Figure 28 for ASO
Entry timing requirements.
Table 6
ID-CFI address map overview
Word address
Description
Read / Write
(SA) + 0000h to 000Fh
Device ID
(traditional Autoselect values)
Read only
(SA) + 0010h to 0079h
CFI data structure
Read only
(SA) + 0080h to FFFFh
Undefined
Read only
For the complete address map see Table 42.
2.3
Device ID and common flash interface (ID-CFI) ASO map — automotive
only
Table 7
Device ID and common flash interface (ID-CFI) ASO map — automotive only
Example of
# of bytes Data format actual data
Hex read out of example
data
Word address
Data field
(SA) + 0080h
Size of Electronic
Marking
1
Hex
19
0013h
(SA) + 0081h
Revision of
Electronic Marking
1
Hex
1
0001h
(SA) + 0082h
Fab Lot #
7
Ascii
LD87270
004Ch, 0044h, 0038h, 0037h,
0032h, 0037h, 0030h
(SA) + 0089h
Wafer #
1
Hex
23
0017h
(SA) + 008Ah
Die X coordinate
1
Hex
10
000Ah
(SA) + 008Bh
Die Y coordinate
1
Hex
15
000Fh
(SA) + 008Ch
Class Lot #
7
Ascii
BR33150
0042h, 0052h, 0033h, 0033h,
0031h, 0035h, 0030h
(SA) + 0093h
Reserved for future
13
n/a
n/a
undefined
Fab Lot # + Wafer # + Die X coordinate + Die Y coordinate gives a unique ID for each device.
2.3.1
Device ID
The Joint Electron Device Engineering Council (JEDEC) standard JEP106T defines the manufacturer ID for a
compliant memory. Common industry usage defined a method and format for reading the manufacturer ID and
a device specific ID from a memory device. The manufacturer and device ID information is primarily intended for
programming equipment to automatically match a device with the corresponding programming algorithm.
Infineon has added additional fields within this 32-byte address space.
The original industry format was structured to work with any memory data bus width e. g. ×8, ×16, ×32. The ID
code values are traditionally byte wide but are located at bus width address boundaries such that incrementing
the device address inputs will read successive byte, word, or double word locations with the ID codes always
located in the least significant byte location of the data bus. Because the device data bus is word wide each code
byte is located in the lower half of each word location. The original industry format made the high order byte
always ‘0’. Infineon has modified the format to use both bytes in some words of the address space. For the detail
description of the device ID address map see Table 42.
Datasheet
10
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Address space maps
2.3.2
Common flash memory interface
The JEDEC common flash interface (CFI) specification (JESD68.01) defines a standardized data structure that
may be read from a flash memory device, which allows vendor-specified software algorithms to be used for entire
families of devices. The data structure contains information for system configuration such as various electrical
and timing parameters, and special functions supported by the device. Software support can then be
device-independent, device ID-independent, and forward-and-backward-compatible for entire flash device
families.
The system can read CFI information at the addresses within the selected sector as shown in “Device ID and
Common Flash Interface (ID-CFI) ASO Map” on page 61.
Like the device ID information, CFI information is structured to work with any memory data bus width e. g. ×8,
×16, ×32. The code values are always byte wide but are located at data bus width address boundaries such that
incrementing the device address reads successive byte, word, or double word locations with the codes always
located in the least significant byte location of the data bus. Because the data bus is word wide each code byte
is located in the lower half of each word location and the high order byte is always ‘0’.
For further information, please refer to the Infineon CFI Specification, Version 1.4 (or later), and the JEDEC
publications JEP137-A and JESD68.01. Contact JEDEC (www.jedec.org) for their standards.
2.4
Status register ASO
The status register ASO contains a single word of registered volatile status for embedded algorithms. When the
status register read command is issued, the current status is captured (by the rising edge of WE#) into the register
and the ASO is entered. The status register content appears on all word locations. The first read access exits the
status register ASO (with the rising edge of CE# or OE#) and returns to the address space map in use when the
status register read command was issued. Write commands will not exit the status register ASO state.
2.5
Data polling status ASO
The data polling status ASO contains a single word of volatile memory indicating the progress of an EA. The data
polling status ASO is entered immediately following the last write cycle of any command sequence that initiates
an EA. Commands that initiate an EA are:
• Word program
• Program buffer to flash
• Chip erase
• Sector erase
• Erase resume / program resume
• Program resume enhanced method
• Blank check
• Lock register program
• Password program
• PPB program
• All PPB erase
Engineering Note: The reset and write buffer abort reset commands require very short time to execute so data
polling is not supported for these commands. The data polling status word appears at all word locations in the
device address space. When an EA is completed the data polling status ASO is exited and the device address space
returns to the address map mode where the EA was started.
Datasheet
11
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Address space maps
2.6
Secure silicon region ASO
The secure silicon region (SSR) provides an extra flash memory area that can be programmed once and
permanently protected from further changes i. e. it is a one time program (OTP) area. The SSR is 1024 bytes in
length. It consists of 512 bytes for factory locked secure silicon region and 512 bytes for customer locked secure
silicon region.
The sector address supplied during the secure silicon entry command selects the flash memory array sector that
is overlaid by the secure silicon region address map. See Figure 28 for ASO entry timing requirements. The SSR
is overlaid starting at location 0 in the selected sector. Use of the sector 0 address is recommended for future
compatibility. While the SSR ASO is entered the content of all other sectors is undefined. Locations above the
maximum defined address of the SSR ASO to the maximum address of the selected sector have undefined data.
Table 8
Secure silicon region
Word address range
Content
Size
(SA) + 0000h to 00FFh
Factory locked secure silicon region
512 bytes
(SA) + 0100h to 01FFh
Customer locked secure silicon region
512 bytes
(SA) + 0200h to FFFFh
Undefined
127 kbytes
2.7
Sector protection control
2.7.1
Lock register ASO
The lock register ASO contains a single word of OTP memory. When the ASO is entered the lock register appears
at all word locations in the device address space. See Figure 28 for ASO Entry timing requirements. However, it
is recommended to read or program the lock register only at location 0 of the device address space for future
compatibility.
2.7.2
Persistent protection bits (PPB) ASO
The PPB ASO contains one bit of a flash memory array for each Sector in the device. When the PPB ASO is entered,
the PPB bit for a sector appears in the least significant bit (LSB) of each address in the sector. See Figure 28 for
ASO Entry timing requirements. Reading any address in a sector displays data where the LSB indicates the
non-volatile protection status for that sector. However, it is recommended to read or program the PPB only at
address ‘0’ of the sector for future compatibility. If the bit is ‘0’, the sector is protected against programming and
erase operations. If the bit is ‘1’, the sector is not protected by the PPB. The sector may be protected by other
features of ASP.
2.7.3
PPB LOCK ASO
The PPB lock ASO contains a single bit of volatile memory. The bit controls whether the bits in the PPB ASO may
be programmed or erased. If the bit is ‘0’, the PPB ASO is protected against programming and erase operations.
If the bit is ‘1’, the PPB ASO is not protected. When the PPB Lock ASO is entered the PPB Lock bit appears in the
least significant bit (LSB) of each address in the device address space. See Figure 28 for ASO Entry timing
requirements. However, it is recommended to read or program the PPB Lock only at address 0 of the device for
future compatibility.
2.7.4
Password ASO
The password ASO contains four words of OTP memory. When the ASO is entered the password appears starting
at address 0 in the device address space. See Figure 28 for ASO Entry timing requirements. All locations above
the forth word are undefined.
Datasheet
12
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Address space maps
2.7.5
Dynamic protection bits (DYB) ASO
The DYB ASO contains one bit of a volatile memory array for each Sector in the device. When the DYB ASO is
entered, the DYB bit for a sector appears in the Least Significant Bit (LSB) of each address in the sector. See
Figure 28 for ASO entry timing requirements. Reading any address in a sector displays data where the LSB
indicates the non-volatile protection status for that sector. However, it is recommended to read, set, or clear the
DYB only at address 0 of the sector for future compatibility. If the bit is ‘0’, the sector is protected against
programming and erase operations. If the bit is ‘1’, the sector is not protected by the DYB. The sector may be
protected by other features of ASP.
2.8
ECC status ASO
The system can access the ECC status ASO by issuing the ECC status entry command sequence during read mode.
The ECC status ASO provides the status of a single bit error correction when reading the selected page.
“Automatic ECC” on page 23 describes the ECC function in more detail. See Figure 28 for ASO Entry timing
requirements.
The ECC Status ASO allows the following activities:
• Read ECC Status for the selected page.
• ASO exit.
2.8.1
ECC status
The contents of the ECC Status ASO indicates, for the selected ECC page, whether ECC protection has corrected
an error in the eight-bit error correction code or the 16 Words of data in the ECC page. The address specified in
the ECC Status Read Command, provided in Table 41 selects the ECC Page.
Table 9
ECC status word – upper byte
Bit
15
14
13
12
11
10
9
8
Name
RFU
RFU
RFU
RFU
RFU
RFU
RFU
RFU
Value
X
X
X
X
X
X
X
X
Table 10
ECC status word – lower byte
Bit
7
6
5
4
Name
RFU
RFU
RFU
RFU
Value
X
X
X
X
Datasheet
3
2
1
0
RFU Single bit error corrected in Single bit error corrected in RFU
the 8-bit error correction
16 words of data
code
X
0 = No error corrected
0 = No error corrected
1 = Single bit error corrected 1 = Single bit error corrected
13
X
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Data protection
3
Data protection
The device offers several features to prevent malicious or accidental modification of any sector via hardware
means.
3.1
Device protection methods
3.1.1
Power-up write inhibit
RESET#, CE#, WE#, and, OE# are ignored during power-on reset (POR). During POR, the device can not be selected,
will not accept commands on the rising edge of WE#, and does not drive outputs. The host interface controller
(HIC) and embedded algorithm controller (EAC) are reset to their standby states, ready for reading array data,
during POR. CE# or OE# must go to VIH before the end of POR (tVCS).
At the end of POR the device conditions are:
• all internal configuration information is loaded,
• the device is in read mode,
• the status register is at default value,
• all bits in the DYB ASO are set to un-protect all sectors,
• the write buffer is loaded with all 1’s,
• the EAC is in the standby state.
3.1.2
Low VCC write inhibit
When VCC is less than VLKO, the HIC does not accept any write cycles and the EAC resets. This protects data during
VCC power-up and power-down. The system must provide the proper signals to the control pins to prevent
unintentional writes when VCC is greater than VLKO.
3.2
Command protection
Embedded algorithms are initiated by writing command sequences into the EAC command memory. The
command memory array is not readable by the host system and has no ASO. Each host interface write is a
command or part of a command sequence to the device. The EAC examines the address and data in each write
transfer to determine if the write is part of a legal command sequence. When a legal command sequence is
complete the EAC will initiate the appropriate EA.
Writing incorrect address or data values, or writing them in an improper sequence, will generally result in the EAC
returning to its standby state. However, such an improper command sequence may place the device in an
unknown state, in which case the system must write the reset command, or possibly provide a hardware reset by
driving the RESET# signal LOW, to return the EAC to its Standby state, ready for random read.
The address provided in each write may contain a bit pattern used to help identify the write as a command to the
device. The upper portion of the address may also select the sector address on which the command operation is
to be performed. The sector address (SA) includes AMAX through A16 flash address bits (system byte address signals
amax through a17). A command bit pattern is located in A10 to A0 flash address bits (system byte address signals
a11 through a1).
The data in each write may be: a bit pattern used to help identify the write as a command, a code that identifies
the command operation to be performed, or supply information needed to perform the operation. See Table 41
for a listing of all commands accepted by the device.
3.3
Secure silicon region (OTP)
The secure silicon region (SSR) provides an extra flash memory area that can be programmed once and
permanently protected from further changes i. e. it is a one time program (OTP) area. The SSR is 1024 bytes in
length. It consists of 512 bytes for factory locked secure silicon region and 512 bytes for customer locked secure
silicon region.
Datasheet
14
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Data protection
3.4
Sector protection methods
3.4.1
Write protect signal
If WP# = VIL, the lowest or highest address sector is protected from program or erase operations independent of
any other ASP configuration. Whether it is the lowest or highest sector depends on the device ordering option
(model) selected. If WP# = VIH, the lowest or highest address sector is not protected by the WP# signal but it may
be protected by other aspects of ASP configuration. WP# has an internal pull-up; when unconnected, WP# is at
VIH.
3.4.2
ASP
Advanced sector protection (ASP) is a set of independent hardware and software methods used to disable or
enable programming or erase operations, individually, in any or all sectors. This section describes the various
methods of protecting data stored in the memory array. An overview of these methods is shown in Figure 2.
Lock Register
(One Time Programmable)
Password Method
Persistent Method
(DQ2)
(DQ1)
64-bit Password
(One Time Protect)
1,2,3
PPB Lock Bit
0 = PPBs Locked
Memory Array
Persistent
Protection Bit
(PPB)5,6
Sector 0
PPB 0
DYB 0
Sector 1
PPB 1
DYB 1
Sector 2
PPB 2
DYB 2
Sector N-2
PPB N-2
DYB N-2
Sector N-1
PPB N-1
DYB N-1
Sector N4
PPB N
DYB N
4. N = Highest Address Sector.
Figure 2
1 = PPBs Unlocked
1. Bit is volatile, and defaults to “1” on reset (to
“0” if in Password Mode).
2. Programming to “0” locks all PPBs to their
current state.
3. Once programmed to “0”, requires hardware
reset to unlock or application of the
password.
5. 0 = Sector Protected,
1 = Sector Unprotected.
6. PPBs programmed individually,
but cleared collectively
Dynamic
Protection Bit
(DYB)7,8,9
7. 0 = Sector Protected,
1 = Sector Unprotected.
8. Protect effective only if corresponding PPB
is “1” (unprotected).
9. Volatile Bits: defaults to user choice upon
power-up (see ordering options).
Advanced sector protection overview
Every main flash array sector has a non-volatile (PPB) and a volatile (DYB) protection bit associated with it. When
either bit is ‘0’, the sector is protected from program and erase operations.
The PPB bits are protected from program and erase when the PPB Lock bit is ‘0’. There are two methods for
managing the state of the PPB lock bit, persistent protection and password protection.
Datasheet
15
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Data protection
The persistent protection method sets the PPB lock to ‘1’ during POR or hardware reset so that the PPB bits are
unprotected by a device reset. There is a command to clear the PPB lock bit to ‘0’ to protect the PPB bits. There
is no command in the persistent protection method to set the PPB lock bit therefore the PPB lock bit will remain
at ‘0’ until the next power-off or hardware reset. The persistent protection method allows boot code the option
of changing sector protection by programming or erasing the PPB, then protecting the PPB from further change
for the remainder of normal system operation by clearing the PPB lock bit. This is sometimes called boot-code
controlled sector protection.
The password method clears the PPB lock bit to ‘0’ during POR or hardware reset to protect the PPB. A 64-bit
password may be permanently programmed and hidden for the password method. A command can be used to
provide a password for comparison with the hidden password. If the password matches the PPB lock bit is set to
‘1’ to unprotect the PPB. A command can be used to clear the PPB lock bit to ‘0’.
The selection of the PPB lock management method is made by programming OTP bits in the lock register so as
to permanently select the method used.
The lock register also contains OTP bits, for protecting the SSR.
The PPB bits are erased so that all main flash array sectors are unprotected when shipped from Infineon. The
secured silicon region can be factory protected or left unprotected depending on the ordering option (model)
ordered.
3.4.3
PPB lock
The persistent protection bit lock is a volatile bit for protecting all PPB bits. When cleared to ‘0’, it locks all PPBs
and when set to ‘1’, it allows the PPBs to be changed. There is only one PPB lock bit per device.
The PPB lock command is used to clear the bit to ‘0’. The PPB lock bit must be cleared to ‘0’ only after all the PPBs
are configured to the desired settings.
In persistent protection mode, the PPB lock is set to ‘1’ during POR or a hardware reset. When cleared, no software
command sequence can set the PPB lock, only another hardware reset or power-up can set the PPB lock bit.
In the password protection mode, the PPB lock is cleared to ‘0’ during POR or a hardware reset. The PPB lock can
only set to ‘1’ by the password unlock command sequence. The PPB lock can be cleared by the PPB lock bit clear
command.
3.4.4
Persistent protection bits (PPB)
The persistent protection bits (PPB) are located in a separate nonvolatile flash array. One of the PPB bits is
assigned to each sector. When a PPB is ‘0’ its related sector is protected from program and erase operations. The
PPB are programmed individually but must be erased as a group, similar to the way individual words may be
programmed in the main array but an entire sector must be erased at the same time. Preprogramming and
verification prior to erasure are handled by the EAC.
Programming a PPB bit requires the typical word programming time. During a PPB bit programming operation
or PPB bit erasing, data polling status DQ6 Toggle Bit I will toggle until the operation is complete. Erasing all the
PPBs requires typical sector erase time.
If the PPB lock is ‘0’, the PPB program or erase commands do not execute and time-out without programming or
erasing the PPB.
The protection state of a PPB for a given sector can be verified by executing a PPB status read command when
entered in the PPB ASO.
3.4.5
Dynamic protection bits (DYB)
Dynamic protection bits are volatile and unique for each sector and can be individually modified. DYBs only
control protection for sectors that have their PPBs erased. By issuing the DYB set or clear command sequences,
the DYB are set to ‘0’ or cleared to ‘1’, thus placing each sector in the protected or unprotected state respectively,
if the PPB for the Sector is ‘1’. This feature allows software to easily protect sectors against inadvertent changes,
yet does not prevent the easy removal of protection when changes are needed.
The DYB can be set to ‘0’ or cleared to ‘1’ as often as needed.
Datasheet
16
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Data protection
3.4.6
Sector protection states summary
Each sector can be in one of the following protection states:
• Unlocked – The sector is unprotected and protection can be changed by a simple command. The protection
state defaults to unprotected after a power cycle or hardware reset.
• Dynamically locked – A sector is protected and protection can be changed by a simple command. The protection
state is not saved across a power cycle or hardware reset.
• Persistently locked – A sector is protected and protection can only be changed if the PPB lock bit is set to ‘1’.
The protection state is non-volatile and saved across a power cycle or hardware reset. Changing the protection
state requires programming or erase of the PPB bits.
Table 11
Sector protection states
Protection bit values
Sector state
PPB lock
PPB
DYB
1
1
1
Unprotected - PPB and DYB are changeable
1
1
0
Protected - PPB and DYB are changeable
1
0
1
Protected - PPB and DYB are changeable
1
0
0
Protected - PPB and DYB are changeable
0
1
1
Unprotected - PPB not changeable, DYB is changeable
0
1
0
Protected - PPB not changeable, DYB is changeable
0
0
1
Protected - PPB not changeable, DYB is changeable
0
0
0
Protected - PPB not changeable, DYB is changeable
3.4.7
Lock register
The lock register holds the non-volatile OTP bits for controlling protection of the SSR, and determining the PPB
lock bit management method (protection mode).
Table 12
Lock register
Bit
Default value
Name
15–9
1
Reserved
8
0
Reserved
7
X
Reserved
6
1
SSR Region 1 (Customer) lock bit
5
1
Reserved
4
1
Reserved
3
1
Reserved
2
1
Password protection mode lock bit
1
1
Persistent protection mode lock bit
0
0
SSR Region 0 (Factory) lock bit
The secure silicon region (SSR) protection bits must be used with caution, as once locked, there is no procedure
available for unlocking the protected portion of the secure silicon region and none of the bits in the protected
secure silicon region memory space can be modified in any way. Once the secure silicon region area is protected,
any further attempts to program in the area will fail with status indicating the area being programmed is
protected. The region 0 indicator bit is located in the lock register at bit location 0 and region 1 in bit location 6.
Datasheet
17
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Data protection
As shipped from the factory, all devices default to the persistent protection method, with all sectors unprotected,
when power is applied. The device programmer or host system can then choose which sector protection method
to use. Programming either of the following two, one-time programmable, non-volatile bits, locks the part
permanently in that mode:
• Persistent protection mode lock bit (DQ1)
• Password protection mode lock bit (DQ2)
If both lock bits are selected to be programmed at the same time, the operation will abort. Once the password
mode lock bit is programmed, the persistent mode lock bit is permanently disabled and no changes to the
protection scheme are allowed. Similarly, if the persistent mode lock bit is programmed, the password mode is
permanently disabled.
If the password mode is to be chosen, the password must be programmed prior to setting the corresponding lock
register bit. Setting the password protection mode lock bit is programmed, a power cycle, hardware reset, or PPB
lock bit set command is required to set the PPB lock bit to ‘0’ to protect the PPB array.
The programming time of the lock register is the same as the typical word programming time. During a lock
register programming EA, data polling status DQ6 Toggle Bit I will toggle until the programming has completed.
The system can also determine the status of the lock register programming by reading the status register. See
“Status register” on page 36 for information on these status bits.
The user is not required to program DQ2 or DQ1, and DQ6 or DQ0 bits at the same time. This allows the user to
lock the SSR before or after choosing the device protection scheme. When programming the lock bits, the
reserved bits must be ‘1’ (masked).
3.4.8
Persistent protection mode
The persistent protection method sets the PPB lock to ‘1’ during POR or hardware reset so that the PPB bits are
unprotected by a device reset. There is a command to clear the PPB lock bit to ‘0’ to protect the PPB. There is no
command in the persistent protection method to set the PPB lock bit to ‘1’ therefore the PPB Lock bit will remain
at ‘0’ until the next power-off or hardware reset.
3.4.9
Password protection mode
3.4.9.1
PPB password protection mode
PPB password protection mode allows an even higher level of security than the persistent sector protection
mode, by requiring a 64-bit password for setting the PPB lock. In addition to this password requirement, after
power up and reset, the PPB lock is cleared to ‘0’ to ensure protection at power-up. Successful execution of the
password unlock command by entering the entire password sets the PPB lock to ‘1’, allowing for sector PPB
modifications.
Password protection notes:
• The password program command is only capable of programming 0’s.
• The password is all 1’s when shipped from Infineon. It is located in its own memory space and is accessible
through the use of the password program and password read commands.
• All 64-bit password combinations are valid as a password.
• Once the password is programmed and verified, the password mode locking bit must be set in order to prevent
reading or modification of the password.
• The password mode lock bit, once programmed, prevents reading the 64-bit password on the data bus and
further password programming. All further program and read commands to the password region are disabled
(data is read as 1’s) and these commands are ignored. There is no means to verify what the password is after
the password protection mode lock bit is programmed. Password verification is only allowed before selecting
the password protection mode.
• The password mode lock bit is not erasable.
• The exact password must be entered in order for the unlocking function to occur.
Datasheet
18
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Data protection
• The addresses can be loaded in any order but all 4 words are required for a successful match to occur.
• The sector addresses and word line addresses are compared while the password address/data are loaded. If
the sector address don’t match than the error will be reported at the end of that write cycle. The status register
will return to the ready state with the program status bit set to ‘1’, program status register bit set to ‘1’, and
write buffer abort status bit set to ‘1’ indicating a failed programming operation. It is a failure to change the
state of the PPB lock bit because it is still protected by the lack of a valid password. The data polling status will
remain active, with DQ7 set to the complement of the DQ7 bit in the last word of the password unlock command,
and DQ6 toggling. RY/BY# will remain LOW.
• The specific address and data are compared after the program buffer to flash command has been given. If they
don’t match to the internal set value than the status register will return to the ready state with the program
status bit set to ‘1’ and program status register bit set to ‘1’ indicating a failed programming operation. It is a
failure to change the state of the PPB lock bit because it is still protected by the lack of a valid password. The
data polling status will remain active, with DQ7 set to the complement of the DQ7 bit in the last word of the
password unlock command, and DQ6 toggling. RY/BY# will remain LOW.
• The device requires approximately 100 µs for setting the PPB Lock after the valid 64-bit password is given to the
device.
• The password unlock command cannot be accepted any faster than once every 100 µs ± 20 µs. This makes it
take an unreasonably long time (58 million years) for a hacker to run through all the 64-bit combinations in an
attempt to correctly match a password. The EA status checking methods may be used to determine when the
EAC is ready to accept a new password command.
• If the password is lost after setting the password mode lock bit, there is no way to clear the PPB lock.
Datasheet
19
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Read operations
4
Read operations
4.1
Asynchronous read
Each read access may be made to any location in the memory (random access). Each random access is self-timed
with the same latency from CE# or address to valid data (tACC or tCE).
4.2
Page mode read
Each random read accesses an entire 32-byte page in parallel. Subsequent reads within the same page have
faster read access speed. The page is selected by the higher address bits (AMAX–A4), while the specific word of that
page is selected by the least significant address bits A3–A0. The higher address bits are kept constant and only
A3–A0 changed to select a different word in the same page. This is an asynchronous access with data appearing
on DQ15–DQ0 when CE# remains LOW, OE# remains LOW, and the asynchronous page access time (tPACC) is
satisfied. If CE# goes HIGH and returns LOW for a subsequent access, a random read access is performed and time
is required (tACC or tCE).
Datasheet
20
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5
Embedded operations
5.1
Embedded algorithm controller (EAC)
The EAC takes commands from the host system for programming and erasing the flash memory array and
performs all the complex operations needed to change the non-volatile memory state. This frees the host system
from any need to manage the program and erase processes.
There are four EAC operation categories:
• Standby (Read mode)
• Address space switching
• Embedded algorithms (EA)
• Advanced sector protection (ASP) management
5.1.1
EAC standby
In the standby mode current consumption is greatly reduced. The EAC enters its standby mode when no
command is being processed and no embedded algorithm is in progress. If the device is deselected (CE# = HIGH)
during an embedded algorithm, the device still draws active current until the operation is completed (ICC3). ICC4
in “DC characteristics” on page 78 represents the standby current specification when both the Host Interface
and EAC are in their standby state.
5.1.2
Address space switching
Writing specific address and data sequences (command sequences) switch the memory device address space
from the main flash array to one of the address space overlays (ASO).
Embedded algorithms operate on the information visible in the currently active (entered) ASO. The system
continues to have access to the ASO until the system issues an ASO exit command, performs a hardware RESET,
or until power is removed from the device. An ASO exit command switches from an ASO back to the main flash
array address space. The commands accepted when a particular ASO is entered are listed between the ASO enter
and exit commands in the command definitions table. See “Command summary” on page 58 for address and
data requirements for all command sequences.
5.1.3
Embedded algorithms (EA)
Changing the non-volatile data in the memory array requires a complex sequence of operations that are called
embedded algorithms (EA). The algorithms are managed entirely by the device internal embedded algorithm
controller (EAC). The main algorithms perform programming and erasing of the main array data and the ASO’s.
The host system writes command codes to the flash device address space. The EAC receives the commands,
performs all the necessary steps to complete the command, and provides status information during the progress
of an EA.
Datasheet
21
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.2
Program and erase summary
Flash data bits are erased in parallel in a large group called a sector. The Erase operation places each data bit in
the sector in the logical 1 state (HIGH). Flash data bits may be individually programmed from the erased 1 state
to the programmed logical 0 (LOW) state. A data bit of 0 cannot be programmed back to ‘1’. A succeeding read
shows that the data is still ‘0’. Only erase operations can convert ‘0’ to ‘1’. Programming the same word location
more than once with different 0 bits will result in the logical AND of the previous data and the new data being
programmed.
The duration of program and erase operations is shown in “Embedded Algorithm Performance table” on
page 46.
Program and erase operations may be suspended.
• An erase operation may be suspended to allow either programming or reading of another sector (not in the
erase sector). No other erase operation can be started during an erase suspend.
• A program operation may be suspended to allow reading of another location (not in the line being programmed).
• No other program or erase operation may be started during a suspended program operation - program or erase
commands will be ignored during a suspended program operation.
• After an intervening program operation or read access is complete the suspended erase or program operation
may be resumed. The resume can happen at any time after the suspend assuming the device is not in the process
of executing another command.
• Program and erase operations may be interrupted as often as necessary but in order for a program or erase
operation to progress to completion there must be some periods of time between resume and the next suspend
commands greater than or equal to tPRS or tERS in “Embedded Algorithm Performance table” on page 46.
• When an embedded algorithm (EA) is complete, the EAC returns to the operation state and address space from
which the EA was started (Erase suspend or EAC standby).
The system can determine the status of a program or erase operation by reading the status register or using data
polling status. Refer to “Status register” on page 36 for information on these status bits. Refer to “Data Polling
Status” on page 38 for more information.
Any commands written to the device during the embedded program algorithm are ignored except the program
suspend, and status read command.
Any commands written to the device during the embedded erase algorithm are ignored except erase suspend
and status read command.
A hardware reset immediately terminates any in progress program / erase operation and returns to read mode
after tRPH time. The terminated operation should be reinitiated once the device has returned to the idle state, to
ensure data integrity.
For performance and reliability reasons reading and programming is internally done on full 32-byte pages.
ICC3 in “DC characteristics” on page 78 represents the active current specification for a write (embedded
algorithm) operation.
Datasheet
22
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.2.1
Program granularity
The S29GL-S supports two methods of programming, word or write buffer programming. Each page can be
programmed by either method. Pages programmed by different methods may be mixed within a line for the
industrial temperature version (–40°C to +85°C). For the in-cabin version (–40°C to +105°C) the device will only
support one programming operation on each 32-byte page between erase operations and single word
programming command is not supported.
Word programming examines the data word supplied by the command and programs 0’s in the addressed
memory array word to match the 0’s in the command data word.
Write buffer programming examines the write buffer and programs 0’s in the addressed memory array pages to
match the 0’s in the write buffer. The write buffer does not need to be completely filled with data. It is allowed to
program as little as a single bit, several bits, a single word, a few words, a page, multiple Pages, or the entire buffer
as one programming operation. Use of the write buffer method reduces host system overhead in writing program
commands and reduces memory device internal overhead in programming operations to make write buffer
programming more efficient and thus faster than programming individual words with the word programming
command.
5.2.2
Incremental programming
The same word location may be programmed more than once, by either the word or write buffer programming
methods, to incrementally change 1’s to 0’s. Note that if additional programming is performed on a page its ECC
coverage is disabled.
5.3
Automatic ECC
5.3.1
ECC overview
The automatic ECC feature works transparently with normal program, erase, and read operations. As the device
transfers each page of data from the write buffer is to the memory array, internal ECC logic programs ECC code
for the page into a portion of the memory array that is not visible to the host system. The device evaluates the
page data and the ECC code during each initial page access. If needed, the internal ECC logic corrects a one bit
error during the initial access.
Programming more than once to a particular page will disable the ECC function for that page. The ECC function
will remain disabled for that page until the next time the host system erases the sector containing that page. The
host system may read data stored in that page following multiple programming operations; however, ECC is
disabled and an error in that page will not be detected or corrected.
5.3.2
Program and erase summary
For performance and reliability reasons, GL-S devices perform reading and programming on full 32-byte pages
in parallel. The GL-S device provides ECC on each page by adding an ECC code to each page when it is first
programmed. The ECC code is automatic and transparent to the host system.
5.3.3
ECC implementation
Each 32-byte page in the main flash array and OTP regions features an associated ECC Code. The ECC code, in
combination with ECC logic, is able to detect and correct any single bit error found in a page during a read access.
The first write buffer program operation applied to a page programs the ECC code for that page. Subsequent
programming operations that occur more than once on a particular page disable the ECC function for that page.
This allows bit or word programming; however, note that multiple programming operations to the same page
will disable the ECC function on the page where incremental programming occurs. An erase of the sector
containing a page with ECC disabled will re-enable the ECC function for that page.
The ECC function is automatic and transparent to the user. The transparency of the automatic ECC function
enhances data integrity for typical programming operations that write data once to each page. The ECC function
also facilitates software compatibility to previous generations of GL family products by allowing single word
programming and bit walking where the same page or word is programmed more than once. When a page has
automatic ECC disabled, the ECC function will not detect or correct an error on a data read from that page.
Datasheet
23
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.3.4
Word programming
Word programming programs a single word anywhere in the main flash memory array. Programming multiple
words in the same 32-byte page disables automatic ECC protection on that page. A sector erase of the sector
containing that page will re-enable automatic ECC following word programming on that page.
5.3.5
Write buffer programming
Each write buffer program operation allows for programming of 1 bit up to 512 bytes. A 32-byte page is the
smallest program granularity that features automatic ECC protection. Programming the same page more than
once will disable the automatic ECC on that page. Infineon recommends that a write buffer programming
operation program multiple pages in an operation and write each page only once. This keeps the automatic ECC
protection enabled on each page. For the very best performance, program in full lines of 512 bytes aligned on
512-byte boundaries.
5.4
Command set
5.4.1
Program methods
5.4.1.1
Word programming
Word programming is used to program a single word anywhere in the main flash memory array.
The word programming command is a four-write-cycle sequence. The program command sequence is initiated
by writing two unlock write cycles, followed by the program set up command. The program address and data are
written next, which in turn initiate the embedded word program algorithm. The system is not required to provide
further controls or timing. The device automatically generates the program pulses and verifies the programmed
cell margin internally. When the embedded word program algorithm is complete, the EAC then returns to its
standby mode.
The system can determine the status of the program operation by using data polling status, reading the status
register, or monitoring the RY/BY# output. See “Status register” on page 36 for information on these status bits.
See “Data Polling Status” on page 38 for information on these status bits. See Figure 3 for a diagram of the
programming operation.
Any commands other than program suspend written to the device during the embedded program algorithm are
ignored. Note that a hardware reset (RESET# = VIL) immediately terminates the programming operation and
returns the device to read mode after tRPH time. To ensure data integrity, the program command sequence
should be reinitiated once the device has completed the hardware reset operation.
A modified version of the word programming command, without unlock write cycles, is used for programming
when entered into the lock register, password, and PPB ASOs. The same command is used to change volatile bits
when entered in to the PPB Lock, and DYB ASOs. See Table 41 for program command sequences.
START
Write Program Command
Sequence
Data Poll from System
Embedded
Program
algorithm
in progress
Verify Word?
No
Yes
No
Last Addresss?
Increment Address
Yes
Programming Completed
Figure 3
Datasheet
Word program operation
24
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.4.1.2
Write buffer programming
A write buffer is used to program data within a 512-byte address range aligned on a 512-byte boundary (Line).
Thus, a full write buffer programming operation must be aligned on a line boundary. Programming operations of
less than a full 512 bytes may start on any word boundary but may not cross a Line boundary. At the start of a
write buffer programming operation all bit locations in the buffer are all 1’s (FFFFh words) thus any locations not
loaded will retain the existing data. See “Product overview” on page 5 for information on address map.
Write buffer programming allows up to 512 bytes to be programmed in one operation. It is possible to program
from 1 bit up to 512 bytes in each write buffer programming operation. It is recommended that a multiple of pages
be written and each page written only once. For the very best performance, programming should be done in full
lines of 512 bytes aligned on 512-byte boundaries.
Write buffer programming is supported only in the main flash array or the SSR ASO.
The write buffer programming operation is initiated by first writing two unlock cycles. This is followed by a third
write cycle of the write to buffer command with the sector address (SA), in which programming is to occur. Next,
the system writes the number of word locations minus 1. This tells the device how many write buffer addresses
are loaded with data and therefore when to expect the program buffer to flash confirm command. The sector
address must match in the write to buffer command and the write word count command. The sector to be
programmed must be unlocked (unprotected).
The system then writes the starting address / data combination. This starting address is the first address / data
pair to be programmed, and selects the write-buffer-line address. The sector address must match the write to
buffer sector address or the operation will abort and return to the initiating state. All subsequent address / data
pairs must be in sequential order. All write buffer addresses must be within the same line. If the system attempts
to load data outside this range, the operation will abort and return to the initiating state.
The counter decrements for each data load operation. Note that while counting down the data writes, every write
is considered to be data being loaded into the write buffer. No commands are possible during the write buffer
loading period. The only way to stop loading the write buffer is to write with an address that is outside the line of
the programming operation. This invalid address will immediately abort the write to buffer command.
Once the specified number of write buffer locations has been loaded, the system must then write the program
buffer to flash command at the sector address. The device then goes busy. The embedded program algorithm
automatically programs and verifies the data for the correct data pattern. The system is not required to provide
any controls or timings during these operations. If an incorrect number of write buffer locations have been loaded
the operation will abort and return to the initiating state. The abort occurs when anything other than the program
buffer to flash is written when that command is expected at the end of the word count.
The write-buffer embedded programming operation can be suspended using the program suspend command.
When the embedded program algorithm is complete, the EAC then returns to the EAC standby or erase suspend
standby state where the programming operation was started.
The system can determine the status of the program operation by using data polling status, reading the status
register, or monitoring the RY/BY# output. See “Status register” on page 36 for information on these status bits.
See “Data Polling Status” on page 38 for information on these status bits. See Figure 4 for a diagram of the
programming operation.
The write buffer programming sequence will be aborted under the following conditions:
• Load a word count value greater than the buffer size (255).
• Write an address that is outside the line provided in the write to buffer command.
• The program buffer to flash command is not issued after the write word count number of data words is loaded.
When any of the conditions that cause an abort of write buffer command occur the abort will happen immediately
after the offending condition, and will indicate a program fail in the status register at bit location 4 (PSB = 1) due
to write buffer abort bit location 3 (WBASB = 1). The next successful program operation will clear the failure status
or a clear status register may be issued to clear the PSB status bit.
The write buffer programming sequence can be stopped by the following: Hardware reset or power cycle.
However, these using either of these methods may leave the area being programmed in an intermediate state
with invalid or unstable data values. In this case the same area will need to be reprogrammed with the same data
or erased to ensure data values are properly programmed or erased.
Datasheet
25
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Write “Write to Buffer”
command Sector Address
Write “Word Count”
to program - 1 (WC)
Sector Address
Write Starting Address/Data
Yes
WC = 0?
Write to a different
Sector Address
No
ABORT Write to
Buffer Operation?
Yes
Write to Buffer ABORTED.
Must write “Write-to-Buffer
ABORT RESET”
command sequence to
return to READ mode.
No
Write next Address/Data pair
(Note 4)
WC = WC - 1
Write Program Buffer to Flash
Confirm, Sector Address
Read DQ7-DQ0 with
Addr = LAST LOADED ADDRESS
Yes
DQ7 = Data?
No
No
No
DQ1 = 1?
DQ5 = 1?
Yes
Yes
Read DQ7-DQ0 with
Addr = LAST LOADED ADDRESS
Yes
DQ7 = Data?
No
FAIL or ABORT
(Note 2)
Figure 4
PASS
Write buffer programming operation with data polling status
Notes
1. DQ7 should be rechecked even if DQ5 = 1 because DQ7 may change simultaneously with DQ5.
2. If this flowchart location was reached because DQ5 = 1, then the device FAILED. If this flowchart location was
reached because DQ1 = 1, then the Write Buffer operation was ABORTED. In either case the proper RESET
command must be written to the device to return the device to READ mode.
Write-Buffer-Programming-Abort-Rest if DQ1 = 1, either Software RESET or
Write-Buffer-Programming-Abort-Reset if DQ5 = 1.
3. See Table 41 for the command sequence as required for write buffer programming.
4. When sector address is specified, any address in the selected sector is acceptable. However, when loading
write-buffer address locations with data, all addresses must fall within the selected write-buffer page.
Datasheet
26
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Write “Write to Buffer”
command Sector Address
Write “Word Count”
to program - 1 (WC)
Sector Address
Write Starting Address/Data
Yes
WC = 0?
Write to a different
Sector Address
No
ABORT Write to
Buffer Operation?
Yes
Write to Buffer ABORTED.
Must write “Write-to-Buffer
ABORT RESET”
command sequence to
return to READ mode.
No
(Note 2)
Write next Address/Data pair
WC = WC - 1
Write Program Buffer to Flash
Confirm, Sector Address
Read Status Register
DRB
SR[7] = 0?
Yes
No
PSB
SR[4] = 0?
Yes
No
Program Fail
Yes
Program Successful
WBASB
SR[3] = 1?
No
SLSB
SR[1] = 0?
Yes
No
Program aborted during
Write to Buffer command
Figure 5
Sector Locked Error
Program Fail
Write buffer programming operation with status register
Notes
5. See Table 41 for the command sequence as required for write buffer programming.
6. When sector address is specified, any address in the selected sector is acceptable. However, when loading
write-buffer address locations with data, all addresses must fall within the selected write-buffer page.
Datasheet
27
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 13
Write buffer programming command sequence
Sequence
Address
Data
Comment
Issue Unlock Command 1
555/AAA
AA
Issue Unlock Command 2
2AA/555
55
Issue Write to Buffer Command at sector
address
SA
0025h
Issue number of locations at sector
address
SA
WC
WC = number of words to program – 1
Starting
address
PD
Selects Write-Buffer-Page and loads first
Address/Data pair.
Load next Address / Data pair
WBL
PD
All addresses must be within the selected
write-buffer-page boundaries, and have to be
loaded in sequential order.
Load last Address/Data pair
WBL
PD
All addresses must be within the selected
write-buffer-page boundaries, and have to be
loaded in sequential order.
SA
0029h
This command must follow the last write buffer
location loaded, or the operation will abort.
Example: WC of 0 = 1 words to pgm
WC of 1 = 2 words to pgm
Load starting Address / Data pair
Issue Write Buffer Program Confirm at
sector address
Device goes busy.
Legend:
SA = Sector address (Non-sector address bits are don’t care. Any address within the sector is sufficient.)
WBL = Write buffer location (Must be within the boundaries of the Write-Buffer-Line specified by the starting
address.)
WC = Word count
PD = Program data
Datasheet
28
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.4.2
Program Suspend / Program Resume commands
The Program Suspend command allows the system to interrupt an embedded programming operation so that
data can read from any non-suspended line. When the Program Suspend command is written during a
programming process, the device halts the programming operation within tPSL (program suspend latency) and
updates the status bits. Addresses are don’t-cares when writing the Program Suspend command.
There are two commands available for program suspend. The legacy combined Erase / Program suspend
command (B0h command code) and the separate Program Suspend command (51h command code). There are
also two commands for Program resume. The legacy combined Erase / Program resume command (30h
command code) and the separate Program Resume command (50h command code). It is recommended to use
the separate program suspend and resume commands for programming and use the legacy combined command
only for erase suspend and resume.
After the programming operation has been suspended, the system can read array data from any non-suspended
Line. The Program Suspend command may also be issued during a programming operation while an erase is
suspended. In this case, data may be read from any addresses not in Erase Suspend or Program Suspend.
After the Program Resume command is written, the device reverts to programming and the status bits are
updated. The system can determine the status of the program operation by reading the status register or using
data polling. Refer to “Status register” on page 36 for information on these status bits. Refer to “Data Polling
Status” on page 38 for more information.
Accesses and commands that are valid during Program Suspend are:
• Read to any other non-erase-suspended sector
• Read to any other non-program-suspended line
• Status Read command
• Exit ASO or Command Set Exit
• Program Resume command
The system must write the Program Resume command to exit the Program Suspend mode and continue the
programming operation. Further writes of the Program Resume command are ignored. Another Program
Suspend command can be written after the device has resumed programming.
Program operations can be interrupted as often as necessary but in order for a program operation to progress to
completion there must be some periods of time between resume and the next suspend command greater than
or equal to tPRS in “Embedded algorithm controller (EAC)” on page 21.
Program suspend and resume is not supported while entered in an ASO. While in program suspend entry into ASO
is not supported.
5.4.3
Blank Check
The Blank Check command will confirm if the selected main flash array sector is erased. The Blank Check
command does not allow for reads to the array during the Blank Check. Reads to the array while this command
is executing will return unknown data.
To initiate a Blank Check on a sector, write 33h to address 555h in the sector, while the EAC is in the standby state
The Blank Check command may not be written while the device is actively programming or erasing or suspended.
Use the status register read to confirm if the device is still busy and when complete if the sector is blank or not.
Bit 7 of the status register will show if the device is performing a Blank Check (similar to an erase operation).
Bit 5 of the status register will be cleared to ‘0’ if the sector is erased and set to ‘1’ if not erased.
As soon as any bit is found to not be erased, the device will halt the operation and report the results.
Once the Blank Check is completed, the EAC will return to the Standby State.
Datasheet
29
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.4.4
Erase methods
5.4.4.1
Chip Erase
The chip erase function erases the entire main flash memory array. The device does not require the system to
preprogram prior to erase. The Embedded Erase algorithm automatically programs and verifies the entire
memory for an all 0 data pattern prior to electrical erase. After a successful chip erase, all locations within the
device contain FFFFh. The system is not required to provide any controls or timings during these operations. The
chip erase command sequence is initiated by writing two unlock cycles, followed by a set up command. Two
additional unlock write cycles are then followed by the chip erase command, which in turn invokes the
Embedded Erase algorithm. When WE# goes HIGH, at the end of the 6th cycle, the RY/BY# goes LOW.
When the embedded erase algorithm is complete, the EAC returns to the standby state. Note that while the
embedded erase operation is in progress, the system can not read data from the device. The system can
determine the status of the erase operation by reading RY/BY#, the status register or using data polling. Refer to
“Status register” on page 36 for information on these status bits. Refer to “Data Polling Status” on page 38 for
more information.
Once the chip erase operation has begun, only a status read, hardware reset or power cycle are valid. All other
commands are ignored. However, a hardware reset or power cycle immediately terminates the erase operation
and returns to read mode after tRPH time. If a chip erase operation is terminated, the chip erase command
sequence must be reinitiated once the device has returned to the idle state to ensure data integrity.
See Table 16, “Asynchronous Write Operations” on page 90 and “Alternate CE# Controlled Write operations” on page 98 for parameters and timing diagrams.
Sectors protected by the ASP DYB and PPB lock bits will not be erased. See “ASP” on page 15. If a sector is
protected during chip erase, chip erase will skip the protected sector and continue with next sector erase. The
status register erase status bit and sector lock bit are not set to ‘1’ by a failed erase on a protected sector.
5.4.4.2
Sector Erase
The sector erase function erases one sector in the memory array. The device does not require the system to
preprogram prior to erase. The embedded erase algorithm automatically programs and verifies the entire sector
for an all 0 data pattern prior to electrical erase. After a successful sector erase, all locations within the erased
sector contain FFFFh. The system is not required to provide any controls or timings during these operations. The
sector erase command sequence is initiated by writing two unlock cycles, followed by a set up command. Two
additional unlock write cycles are then followed by the address of the sector to be erased, and the sector erase
command. When WE# goes HIGH, at the end of the 6th cycle, the RY/BY# goes LOW.
The system can determine the status of the erase operation by reading the status register or using data polling.
Refer to “Status register” on page 36 for information on these status bits. Refer to “Data Polling Status” on
page 38 for more information.
Once the sector erase operation has begun, the Status Register Read and Erase Suspend commands are valid. All
other commands are ignored. However, note that a hardware reset immediately terminates the erase operation
and returns to read mode after tRPH time. If a sector erase operation is terminated, the sector erase command
sequence must be reinitiated once the device has reset operation to ensure data integrity.
See “Embedded algorithm controller (EAC)” on page 21 for parameters and timing diagrams.
Sectors protected by the ASP DYB and PPB lock bits will not be erased. See “ASP” on page 15.
Datasheet
30
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Write Unlock Cycles:
Address 555h, Data AAh
Address 2AAh, Data 55h
Unlock Cycle 1
Unlock Cycle 2
Write Sector Erase Cycles:
Address 555h, Data 80h
Address 555h, Data AAh
Address 2AAh, Data 55h
Sector Address, Data 30h
Command Cycle 1
Command Cycle 2
Command Cycle 3
Specify first sector for erasure
Perform Write Operation
Status Algorithm
Yes
Status may be obtained by Status Register Polling
or Data Polling methods.
Done?
No
Erase Error?
No
Error condition (Exceeded Timing Limits)
Yes
PASS. Device returns
to reading array.
Figure 6
Datasheet
FAIL. Write reset command
to return to reading array.
Sector Erase operation
31
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.4.5
Erase Suspend / Erase Resume
The Erase Suspend command allows the system to interrupt a sector erase operation and then read data from,
or program data to, the main flash array. This command is valid only during sector erase or program operation.
The Erase Suspend command is ignored if written during the chip erase operation.
When the Erase Suspend command is written during the sector erase operation, the device requires a maximum
of tESL (erase suspend latency) to suspend the erase operation and update the status bits.
After the erase operation has been suspended, the part enters the erase-suspend mode. The system can read
data from or program data to the main flash array. Reading at any address within erase-suspended sectors
produces undetermined data. The system can determine if a sector is actively erasing or is erase-suspended by
reading the status register or using data polling. Refer to “Status register” on page 36 for information on these
status bits. Refer to “Data Polling Status” on page 38 for more information.
After an erase-suspended program operation is complete, the EAC returns to the erase-suspend state. The system
can determine the status of the program operation by reading the status register, just as in the standard program
operation.
If a program failure occurs during erase suspend the Clear or Reset commands will return the device to the erase
suspended state. Erase will need to be resumed and completed before again trying to program the memory array.
Accesses and commands that are valid during Erase Suspend are:
• Read to any other non-suspended sector
• Program to any other non-suspended sector
• Status Register Read
• Status Register Clear
• Enter DYB ASO
• DYB Set
• DYB Clear
• DYB Status Read
• Exit ASO or Command Set Exit
• Erase Resume command
To resume the sector erase operation, the system must write the Erase Resume command. The device will revert
to erasing and the status bits will be updated. Further writes of the Resume command are ignored. Another Erase
Suspend command can be written after the chip has resumed erasing.
Erase suspend and resume is not supported while entered in an ASO. While in erase suspend entry into ASO is not
supported.
Datasheet
32
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.4.6
ASO Entry and Exit
5.4.6.1
ID-CFI ASO
The system can access the ID-CFI ASO by issuing the ID-CFI Entry command sequence during Read Mode. This
entry command uses the Sector Address (SA) in the command to determine which sector will be overlaid and
which sector’s protection state is reported in word location 2h. See the detail description Table 42.
The ID-CFI ASO allows the following activities:
• Read ID-CFI ASO, using the same SA as used in the entry command.
• Read Sector Protection State at Sector Address (SA) + 2h. Location 2h provides volatile information on the
current state of sector protection for the sector addressed. Bit 0 of the word at location 2h shows the logical
NAND of the PPB and DYB bits related to the addressed sector such that if the sector is protected by either the
PPB = 0 or the DYB = 0 bit for that sector the state shown is protected. (1 = Sector protected, 0 = Sector
unprotected). This protection state is shown only for the SA selected when entering ID-CFI ASO. Reading other
SA provides undefined data. To read a different SA protection state ASO exit command must be used and then
enter ID-CFI ASO again with the new SA.
• ASO Exit.
The following is a C source code example of using the CFI Entry and Exit functions.
/* Example: CFI Entry command */
*( (UINT16 *)base_addr + 0x55 ) = 0x0098; /* write CFI entry command */
/* Example: CFI Exit command */
*( (UINT16 *)base_addr + 0x000 ) = 0x00F0; /* write cfi exit command */
5.4.6.2
Status Register ASO
The Status Register ASO contains a single word of registered volatile status for embedded algorithms. When the
Status Register Read command is issued, the current status is captured (by the rising edge of WE#) into the
register and the ASO is entered. The Status Register content appears on all word locations. The first read access
exits the Status Register ASO (with the rising edge of CE# or OE#) and returns to the address space map in use
when the Status Register Read command was issued. Write commands will not exit the Status Register ASO state.
5.4.6.3
Secure Silicon Region ASO
The system can access the Secure Silicon Region by issuing the Secure Silicon Region Entry command sequence
during Read Mode. This entry command uses the Sector Address (SA) in the command to determine which sector
will be overlaid.
The Secure Silicon Region ASO allows the following activities:
• Read Secure Silicon Regions.
• Programming the customer Secure Silicon Region is allowed using the Word or Write Buffer Programming
commands.
• ASO Exit using legacy Secure Silicon Exit command for backward software compatibility.
• ASO Exit using the common exit command for all ASO - alternative for a consistent exit method.
Datasheet
33
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.4.6.4
Lock Register ASO
The system can access the lock register by issuing the Lock Register Entry command sequence during Read Mode.
This entry command does not use a sector address from the entry command. The lock register appears at word
location 0 in the device address space. All other locations in the device address space are undefined.
The Lock Register ASO allows the following activities:
• Read Lock Register, using device address location 0.
• Program the customer Lock Register using a modified Word Programming command.
• ASO Exit using legacy Command Set Exit command for backward software compatibility.
• ASO Exit using the common exit command for all ASO - alternative for a consistent exit method.
5.4.6.5
Password ASO
The system can access the Password ASO by issuing the Password Entry command sequence during Read Mode.
This entry command does not use a sector address from the entry command. The password appears at word
locations 0 to 3 in the device address space. All other locations in the device address space are undefined.
The Password ASO allows the following activities:
• Read Password, using device address location 0 to 3.
• Program the password using a modified Word Programming command.
• Unlock the PPB lock bit with the Password Unlock command.
• ASO Exit using Legacy Command Set Exit command for backward software compatibility.
• ASO Exit using the Common Exit command for all ASO - alternative for a consistent exit method.
5.4.6.6
PPB ASO
The system can access the PPB ASO by issuing the PPB Entry command sequence during Read Mode. This entry
command does not use a sector address from the entry command. The PPB bit for a sector appears in bit 0 of all
word locations in the sector.
The PPB ASO allows the following activities:
• Read PPB protection status of a sector in bit 0 of any word in the sector.
• Program the PPB bit using a modified Word Programming command.
• Erase all PPB bits with the PPB Erase command.
• ASO Exit using Legacy Command Set Exit command for backward software compatibility.
• ASO Exit using the common exit command for all ASO - alternative for a consistent exit method.
5.4.6.7
PPB Lock ASO
The system can access the PPB Lock ASO by issuing the PPB Lock Entry command sequence during Read Mode.
This entry command does not use a sector address from the entry command. The global PPB Lock bit appears in
bit 0 of all word locations in the device.
The PPB Lock ASO allows the following activities:
• Read PPB Lock protection status in bit 0 of any word in the device address space.
• Set the PPB Lock bit using a modified Word Programming command.
• ASO Exit using Legacy Command Set Exit command for backward software compatibility.
• ASO Exit using the Common Exit command for all ASO - alternative for a consistent exit method.
Datasheet
34
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.4.6.8
DYB ASO
The system can access the DYB ASO by issuing the DYB Entry command sequence during Read Mode. This entry
command does not use a sector address from the entry command. The DYB bit for a sector appears in bit 0 of all
word locations in the sector.
The DYB ASO allows the following activities:
• Read DYB protection status of a sector in bit 0 of any word in the sector.
• Set the DYB bit using a modified Word Programming command.
• Clear the DYB bit using a modified Word Programming command.
• ASO Exit using Legacy Command Set Exit command for backward software compatibility.
• ASO Exit using the Common Exit command for all ASO - alternative for a consistent exit method.
5.4.6.9
Software (Command) Reset / ASO exit
Software reset is part of the command set (see Table 41) that also returns the EAC to standby state and must be
used for the following conditions:
• Exit ID/CFI mode
• Clear timeout bit (DQ5) for data polling when timeout occurs
Software Reset does not affect EA mode. Reset commands are ignored once programming or erasure has begun,
until the operation is complete. Software Reset does not affect outputs; it serves primarily to return to Read Mode
from an ASO mode or from a failed program or erase operation.
Software Reset may cause a return to Read Mode from undefined states that might result from invalid command
sequences. However, a Hardware Reset may be required to return to normal operation from some undefined
states.
There is no software reset latency requirement. The reset command is executed during the tWPH period.
5.4.6.10
ECC Status ASO
The system can access the ECC Status ASO by issuing the ECC Status entry command sequence during Read
Mode. The contents of the ECC Status ASO indicates, for the selected ECC page, whether ECC protection has
corrected an error in the eight-bit error correction code or the 16 Words of data in the ECC page.
The ECC Status ASO allows the following activities:
• Read ECC Status for the selected page.
Datasheet
35
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.5
Status monitoring
There are three methods for monitoring EA status. Previous generations of the S29GL flash family used the
methods called Data Polling and Ready/Busy# (RY/BY#) signal. These methods are still supported by the S29GL-S
family. One additional method is reading the status register.
5.5.1
Status register
The status of program and erase operations is provided by a single 16-bit status register. The status is receiver by
writing the Status Register Read command followed by a read access. When the Status Register Read command
is issued, the current status is captured (by the rising edge of WE#) into the register and the ASO is entered. The
contents of the status register is aliased (overlaid) on the full memory address space. Any valid read (CE# and OE#
low) access while in the Status Register ASO will exit the ASO (with the rising edge of CE# or OE# for tCEPH/tOEPH
time) and return to the address space map in use when the Status Register Read command was issued.
The status register contains bits related to the results - success or failure - of the most recently completed
embedded algorithms (EA):
• Erase Status (bit 5),
• Program Status (bit 4),
• Write Buffer Abort (bit 3),
• Sector Locked Status (bit 1),
• RFU (bit 0).
and, bits related to the current state of any in process EA:
• Device Busy (bit 7),
• Erase Suspended (bit 6),
• Program Suspended (bit 2),
The current state bits indicate whether an EA is in process, suspended, or completed.
The upper 8 bits (bits 15:8) are reserved. These have undefined HIGH or LOW value that can change from one
status read to another. These bits should be treated as don’t care and ignored by any software reading status.
The Soft Reset command will clear to 0 bits [5, 4, 1, 0] of the status register if Status Register bit 3 = 0. It will not
affect the current state bits. The Clear Status Register Command will clear to 0 the results related bits of the status
register but will not affect the current state bits.
Datasheet
36
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 14
Bit #
Status Register
15:8
7
6
5
Erase
Suspend
Status Bit
Erase
Status Bit
DRB
ESSB
ESB
PSB
WBASB
PSSB
SLSB
0
0
0
0
0
0
0
Invalid
Invalid
Invalid
Invalid
Invalid
Invalid
Invalid
0 = No
Program in
suspension
1 = Program
in
suspension
0 = Sector
not locked
during
operation
1 = Sector
locked
error
X
Bit
Reserved Device
description
Ready
Bit
Bit name
Reset status
X
1
Busy status
Invalid
0
Ready status
X
1
4
3
Program Write Buffer
Status Bit
Abort
Status Bit
0 = Program
0=
0 = No Erase 0 = Erase
successful Program not aborted
in
Suspension 1 = Erase successful 1 = Program
aborted
fail
1=
1 = Erase in
during
Program
Suspension
Write to
fail
Buffer
command
2
Program
Suspend
Status Bit
1
0
Sector Reserved
Lock
Status Bit
Notes
7. Bits 15 thru 8, and 0 are reserved for future use and may display as ‘0’ or ‘1’. These bits should be ignored
(masked) when checking status.
8. Bit 7 is 1 when there is no Embedded Algorithm in progress in the device.
9. Bits 6 thru 1 are valid only if Bit 7 is ‘1’.
10.All bits are put in their reset status by cold reset or warm reset.
11.Bits 5, 4, 3, and 1 are cleared to ‘0’ by the Clear Status Register command or Reset command.
12.Upon issuing the Erase Suspend Command, the user must continue to read status until DRB becomes ‘1’.
13.ESSB is cleared to ‘0’ by the Erase Resume command.
14.ESB reflects success or failure of the most recent erase operation.
15.PSB reflects success or failure of the most recent program operation.
16.During erase suspend, programming to the suspended sector, will cause program failure and set the Program
status bit to ‘1’.
17.Upon issuing the Program Suspend command, the user must continue to read status until DRB becomes ‘1’.
18.PSSB is cleared to ‘0’ by the Program Resume command.
19.SLSB indicates that a program or erase operation failed because the sector was locked.
20.SLSB reflects the status of the most recent program or erase operation.
Datasheet
37
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.5.2
Data Polling Status
During an active embedded algorithm the EAC switches to the Data Polling ASO to display EA status to any read
access. A single word of status information is aliased in all locations of the device address space. In the status
word there are several bits to determine the status of an EA. These are referred to as DQ bits as they appear on
the data bus during a read access while an EA is in progress. DQ bits 15 to 8, DQ4, and DQ0 are reserved and
provide undefined data. Status monitoring software must mask the reserved bits and treat them as don't care.
Table 15 and the following subsections describe the functions of the remaining bits.
5.5.2.1
DQ7: Data# Polling
The Data# Polling bit, DQ7, indicates to the host system whether an embedded algorithm is in progress or has
completed. Data# Polling is valid after the rising edge of the final WE# pulse in the program or erase command
sequence. Note that the Data# Polling is valid only for the last word being programmed in the write-buffer-page
during Write Buffer Programming. Reading Data# Polling status on any word other than the last word to be
programmed in the write-buffer-page will return false status information.
During the embedded program algorithm, the device outputs on DQ7 the complement of the data bit
programmed to DQ7. This DQ7 status also applies to programming during Erase Suspend. When the embedded
program algorithm is complete, the device outputs the data bit programmed to bit 7 of the last word
programmed. In case of a Program Suspend, the device allows only reading array data. If a program address falls
within a protected sector, Data# Polling on DQ7 is active for approximately 20 µs, then the device returns to
reading array data.
During the embedded erase or blank check algorithms, Data# Polling produces a ‘0’ on DQ7. When the algorithm
is complete, or if the device enters the Erase Suspend mode, Data# Polling produces a ‘1’ on DQ7. This is
analogous to the complement / true datum output described for the Embedded Program algorithm: the erase
function changes all the bits in a sector to ‘1’; prior to this, the device outputs the complement or ‘0’. The system
must provide an address within the sector selected for erasure to read valid status information on DQ7.
After an erase command sequence is written, if the sector selected for erasing is protected, Data# Polling on DQ7
is active for approximately 100 µs, then the device returns to reading array data.
When the system detects DQ7 has changed from the complement to true data, it can read valid data at
DQ15–DQ0 on the following read cycles. This is because DQ7 may change asynchronously with DQ6–DQ0 while
Output Enable (OE#) is asserted Low. This is illustrated in Figure 29. Table 15 shows the outputs for Data# polling
on DQ7. Figure 4 shows the Data# polling algorithm use in Write Buffer Programming.
Valid DQ7 data polling status may only be read from:
• the address of the last word loaded into the write buffer for a write buffer programming operation;
• the location of a single word programming operation;
• or a location in a sector being erased or blank checked;
• or a location in any sector during chip erase.
Datasheet
38
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
START
Read DQ7-DQ0
-
DQ7 = Data?
Yes
No
No
DQ5 = 1?
Yes
Read DQ 7 -DQ0
DQ7 = Data?
Yes
No
FAIL
Figure 7
Data# Polling algorithm
5.5.2.2
DQ6: Toggle Bit I
PASS
Toggle Bit I on DQ6 indicates whether an embedded program or erase algorithm is in progress or complete, or
whether the device has entered the Program Suspend or Erase Suspend mode. Toggle Bit I may be read at any
address, and is valid after the rising edge of the final WE# pulse in the command sequence (prior to the program
or erase operation).
During an embedded program or erase algorithm operation, successive read cycles to any address cause DQ6 to
toggle. (The system may use either OE# or CE# to control the read cycles). When the operation is complete, DQ6
stops toggling.
After an erase command sequence is written, if the sector selected for erasing is protected, DQ6 toggles for
approximately 100 µs, then the EAC returns to standby (Read Mode). If the selected sector is not protected, the
embedded erase algorithm erases the unprotected sector.
The system can use DQ6 and DQ2 together to determine whether a sector is actively erasing or erase-suspended.
When the device is actively erasing (that is, the embedded erase algorithm is in progress), DQ6 toggles. When the
device enters the Program Suspend mode or Erase Suspend mode, DQ6 stops toggling. However, the system
must also use DQ2 to determine which sectors are erasing, or erase-suspended. Alternatively, the system can use
DQ7 (see “DQ7: Data# Polling” on page 38).
DQ6 also toggles during the erase-suspend-program mode, and stops toggling once the embedded program
algorithm is complete.
Table 15 shows the outputs for Toggle Bit I on DQ6. Figure 8 shows the toggle bit algorithm in flowchart form,
and the “Reading Toggle Bits DQ6/DQ2” on page 40 explains the algorithm. Figure 8 shows the toggle bit timing
diagrams. Figure 4 shows the differences between DQ2 and DQ6 in graphical form. See also “DQ2: Toggle Bit II”
on page 40.
Note
21.DQ7 should be rechecked even if DQ5 = 1 because DQ7 may change simultaneously with DQ5.
Datasheet
39
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.5.2.3
DQ3: Sector Erase Timer
After writing a sector erase command sequence, the system may read DQ3 to determine whether or not erasure
has begun. See “Sector Erase” on page 30 for more details.
After the sector erase command is written, the system should read the status of DQ7 (Data# Polling) or DQ6
(Toggle Bit I) to ensure that the device has accepted the command sequence, and then read DQ3. If DQ3 is ‘1’, the
Embedded Erase algorithm has begun; all further commands (except Erase Suspend) are ignored until the erase
operation is complete. Table 15 shows the status of DQ3 relative to the other status bits.
5.5.2.4
DQ2: Toggle Bit II
Toggle Bit II on DQ2, when used with DQ6, indicates whether a particular sector is actively erasing (that is, the
Embedded Erase algorithm is in progress), or whether that sector is erase-suspended. Toggle Bit II is valid after
the rising edge of the final WE# pulse in the command sequence.
DQ2 toggles when the system reads at addresses within the sector selected for erasure. (The system may use
either OE# or CE# to control the read cycles). But DQ2 cannot distinguish whether the sector is actively erasing
or is erase-suspended. DQ6, by comparison, indicates whether the device is actively erasing, or is in Erase
Suspend, but cannot distinguish if the sector is selected for erasure. Thus, both status bits are required for sector
and mode information. Refer to Table 15 to compare outputs for DQ2 and DQ6. Figure 7 shows the toggle bit
algorithm in flowchart form, and the “Reading Toggle Bits DQ6/DQ2” on page 40 explains the algorithm. See
also Figure 8 shows the toggle bit timing diagram. Figure 4 shows the differences between DQ2 and DQ6 in
graphical form.
5.5.2.5
Reading Toggle Bits DQ6/DQ2
Refer to Figure 7 for the following discussion. Whenever the system initially begins reading toggle bit status, it
must read DQ7–DQ0 at least twice in a row to determine whether a toggle bit is toggling. Typically, the system
would note and store the value of the toggle bit after the first read. After the second read, the system would
compare the new value of the toggle bit with the previous value. If the toggle bit is not toggling, the device has
completed the program or erases operation. The system can read array data on DQ15–DQ0 on the following read
cycle.
However, if after the initial two read cycles, the system determines that the toggle bit is still toggling, the system
also should note whether the value of DQ5 is HIGH (see “DQ5: Exceeded Timing Limits” on page 41). If it is, the
system should then determine again whether the toggle bit is toggling, since the toggle bit may have stopped
toggling just as DQ5 went HIGH. If the toggle bit is no longer toggling, the device has successfully completed the
program or erase operation. If it is still toggling, the device did not complete the operation successfully, and the
system must write the reset command to return to reading array data.
The remaining scenario is that the system initially determines that the toggle bit is toggling and DQ5 has not gone
HIGH. The system may continue to monitor the toggle bit and DQ5 through successive read cycles, determining
the status as described in the previous paragraph. Alternatively, it may choose to perform other system tasks. In
this case, the system must start at the beginning of the algorithm when it returns to determine the status of the
operation (top of Figure 8).
Datasheet
40
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
START
Read DQ7 -DQ0
Read DQ7 -DQ0 (Note 1)
Toggle Bit
= Toggle?
No
Yes
No
DQ5 = 1?
Yes
Read DQ7 -DQ0 Twice (Notes 1, 2)
Toggle Bit
= Toggle?
No
Yes
Erase/Program
Operation Not
Complete
Figure 8
Toggle bit program
5.5.2.6
DQ5: Exceeded Timing Limits
Erase/Program
Operation Complete
DQ5 indicates whether the program or erase time has exceeded a specified internal pulse count limit. Under these
conditions DQ5 produces a ‘1’. This is a failure condition that indicates the program or erase cycle was not
successfully completed. The system must issue the reset command to return the device to reading array data.
When a timeout occurs, the software must send a reset command to clear the timeout bit (DQ5) and to return the
EAC to read array mode. In this case, it is possible that the flash will continue to communicate busy for up to 2 µs
after the reset command is sent.
Notes
22.Read toggle bit twice to determine whether or not it is toggling. See text.
23.Recheck toggle bit because it may stop toggling as DQ5 changes to ‘1’. See text.
Datasheet
41
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.5.2.7
DQ1: Write-to-Buffer Abort
DQ1 indicates whether a Write-to-Buffer operation was aborted. Under these conditions DQ1 produces a ‘1’. The
system must issue the Write-to-Buffer-Abort-Reset command sequence to return the EAC to standby (Read Mode)
and the status register failed bits are cleared. See “Write buffer programming” on page 25 for more details.
Table 15
Data Polling status
DQ7[24]
DQ6
DQ5[25]
DQ3
DQ2[24]
DQ1[26]
RY/BY#
DQ7#
Toggle
0
N/A
No
Toggle
0
0
Reading within Erasing
Sector
0
Toggle
0
1
Toggle
N/A
0
Reading Outside
erasing Sector
0
Toggle
0
1
No
Toggle
N/A
0
Operation
Standard
Mode
Program
Suspend
Mode[27]
Embedded Program
Algorithm
Reading within
Program Suspended
Sector
Reading within
Non-Program
Suspended Sector
Erase
Suspend
Mode
INVALID INVALID INVALID INVALID INVALID INVALID
(Not
(Not
(Not
(Not
(Not
(Not
allowed) allowed) allowed) allowed) allowed) allowed)
1
Data
Data
Data
Data
Data
Data
1
Reading within Erase
Suspended Sector
1
No
Toggle
0
N/A
Toggle
N/A
1
Reading within
Non-Erase Suspend
Sector
Data
Data
Data
Data
Data
Data
1
Programming within
Non-Erase Suspended
Sector
DQ7#
Toggle
0
N/A
N/A
N/A
0
DQ7#
Toggle
0
N/A
No
Toggle
0
0
Exceeded Timing Limits
DQ7#
Toggle
1
N/A
N/A
0
0
ABORT State
DQ7#
Toggle
0
N/A
N/A
1
0
Write-toBUSY State
Buffer[26, 28]
Notes
24.DQ7 and DQ2 require a valid address when reading status information. Refer to the appropriate subsection
for further details.
25.DQ5 switches to ‘1’ when an Embedded Program or Embedded Erase operation has exceeded the maximum
timing limits. See “DQ5: Exceeded Timing Limits” on page 41 for more information.
26.DQ1 indicates the Write-to-Buffer abort status during Write-Buffer-Programming operations.
27.Data are invalid for addresses in a Program Suspended Line. All addresses other than the program
suspended line can be read for valid data.
28.Applies only to program operations.
Datasheet
42
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.6
Error types and clearing procedures
There are three types of errors reported by the embedded operation status methods. Depending on the error
type, the status reported and procedure for clearing the error status is different. Following is the clearing of error
status:
• If an ASO was entered before the error the device remains entered in the ASO awaiting ASO read or a command
write.
• If an erase was suspended before the error the device returns to the erase suspended state awaiting flash array
read or a command write.
• Otherwise, the device will be in standby state awaiting flash array read or a command write.
5.6.1
Embedded operation error
If an error occurs during an embedded operation (program, erase, blank check, or password unlock) the device
(EAC) remains busy. The RY/BY# output remains LOW, data polling status continues to be overlaid on all address
locations, and the status register shows ready with valid status bits. The device remains busy until the error status
is detected by the host system status monitoring and the error status is cleared.
During embedded algorithm error status the data polling status will show the following:
• DQ7 is the inversion of the DQ7 bit in the last word loaded into the write buffer or last word of the password in
the case of the password unlock command. DQ7 = 0 for an erase or blank check failure
• DQ6 continues to toggle
• DQ5 = 1; Failure of the embedded operation
• DQ4 is RFU and should be treated as don’t care (masked)
• DQ3 = 1 to indicate embedded sector erase in progress
• DQ2 continues to toggle, independent of the address used to read status
• DQ1 = 0; Write buffer abort error
• DQ0 is RFU and should be treated as don’t care (masked)
During embedded algorithm error status the Status Register will show the following:
• SR[7] = 1; Valid status displayed
• SR[6] = X; May or may not be erase suspended during the EA error
• SR[5] = 1 on erase or blank check error; else = 0
• SR[4] = 1 on program or password unlock error; else = 0
• SR[3] = 0; Write buffer abort
• SR[2] = 0; Program suspended
• SR[1] = 0; Protected sector
• SR[0] = X; RFU, treat as don’t care (masked)
When the embedded algorithm error status is detected, it is necessary to clear the error status in order to return
to normal operation, with RY/BY# HIGH, ready for a new read or command write. The error status can be cleared
by writing:
• Reset command
• Status Register Clear command
Datasheet
43
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Commands that are accepted during embedded algorithm error status are:
• Status Register Read
• Reset command
• Status Register Clear command
5.6.2
Protection error
If an embedded algorithm attempts to change data within a protected area (program, or erase of a protected
sector or OTP area) the device (EAC) goes busy for a period of 20 to 100 µs then returns to normal operation.
During the busy period the RY/BY# output remains LOW, data polling status continues to be overlaid on all
address locations, and the status register shows not ready with invalid status bits (SR[7] = 0).
During the protection error status busy period the data polling status will show the following:
• DQ7 is the inversion of the DQ7 bit in the last word loaded into the write buffer. DQ7 = 0 for an erase failure
• DQ6 continues to toggle, independent of the address used to read status
• DQ5 = 0; to indicate no failure of the embedded operation during the busy period
• DQ4 is RFU and should be treated as don’t care (masked)
• DQ3 = 1 to indicate embedded sector erase in progress
• DQ2 continues to toggle, independent of the address used to read status
• DQ1 = 0; Write buffer abort error
• DQ0 is RFU and should be treated as don’t care (masked)
Commands that are accepted during the protection error status busy period are:
• Status Register Read
When the busy period ends the device returns to normal operation, the data polling status is no longer overlaid,
RY/BY# is High, and the status register shows ready with valid status bits. The device is ready for flash array read
or write of a new command.
After the protection error status busy period the Status Register will show the following:
• SR[7] = 1; Valid status displayed
• SR[6] = X; May or may not be erase suspended after the protection error busy period
• SR[5] = 1 on erase error, else = 0
• SR[4] = 1 on program error, else = 0
• SR[3] = 0; Program not aborted
• SR[2] = 0; No Program in suspension
• SR[1] = 1; Error due to attempting to change a protected location
• SR[0] = X; RFU, treat as don’t care (masked)
Commands that are accepted after the protection error status busy period are:
• Any command
Datasheet
44
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.6.3
Write buffer abort
If an error occurs during a Write to Buffer command the device (EAC) remains busy. The RY/BY# output remains
LOW, data polling status continues to be overlaid on all address locations, and the status register shows ready
with valid status bits. The device remains busy until the error status is detected by the host system status
monitoring and the error status is cleared.
During write to buffer abort (WBA) error status the Data Polling status will show the following:
• DQ7 is the inversion of the DQ7 bit in the last word loaded into the write buffer
• DQ6 continues to toggle, independent of the address used to read status
• DQ5 = 0; to indicate no failure of the programming operation. WBA is an error in the values input by the Write
to Buffer command before the programming operation can begin
• DQ4 is RFU and should be treated as don’t care (masked)
• DQ3 is don’t care after program operation as no erase is in progress. If the Write Buffer Program operation was
started after an erase operation had been suspended then DQ3 = 1. If there was no erase operation in progress
then DQ3 is a don’t care and should be masked.
• DQ2 does not toggle after program operation as no erase is in progress. If the Write Buffer Program operation
was started after an erase operation had been suspended then DQ2 will toggle in the sector where the erase
operation was suspended and not in any other sector. If there was no erase operation in progress then DQ2 is
a don’t care and should be masked.
• DQ1 = 1: Write buffer abort error
• DQ0 is RFU and should be treated as don’t care (masked)
During embedded algorithm error status the Status Register will show the following:
• SR[7] = 1; Valid status displayed
• SR[6] = X; May or may not be erase suspended during the WBA error status
• SR[5] = 0; Erase successful
• SR[4] = 1; Programming related error
• SR[3] = 1; Write buffer abort
• SR[2] = 0; No Program in suspension
• SR[1] = 0; Sector not locked during operation
• SR[0] = X; RFU, treat as don’t care (masked)
When the WBA error status is detected, it is necessary to clear the error status in order to return to normal
operation, with RY/BY# HIGH, ready for a new read or command write. The error status can be cleared and device
returned to normal operation by writing:
• Write Buffer Abort Reset command
- Clears the status register and returns to normal operation
• Status Register Clear command
Commands that are accepted during embedded algorithm error status are:
• Status Register Read
• Write Buffer Abort Reset command
• Status Register Clear command
Datasheet
45
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.7
Embedded Algorithm Performance table
Table 16
Embedded algorithm characteristics (–40°C to +85°C)
Parameter
Sector Erase time 128 kbyte
Single Word Programming time[33]
Typ[29]
Max[30]
275
1100
ms Includes pre-programming prior to
erasure[32]
Unit
Comments
125
400
µs
2-byte[33]
125
750
µs
32-byte[33]
160
750
64-byte[33]
175
750
128-byte[33]
198
750
256-byte[33]
239
750
512-byte
340
750
Effective Write Buffer Program 512-byte
operation per word
1.33
–
Sector Programming time 128 kB (full Buffer
Programming)
108
192
ms Note 34
Erase Suspend/Erase Resume (tESL)
–
40
µs
Program Suspend/Program Resume (tPSL)
–
40
µs
Erase Resume to next Erase Suspend (tERS)
100
–
µs
Minimum of 60 ns but typical
periods are needed for Erase to
progress to completion.
Program Resume to next Program Suspend
(tPRS)
100
–
µs
Minimum of 60 ns but typical
periods are needed for Program to
progress to completion.
Blank Check
6.2
8.5
ms
–
256
Buffer Programming time
NOP (Number of Program-operations, per
line)
µs
Notes
29.Typical program and erase times assume the following conditions: 25°C, 3.0 V VCC, 10,000 cycle, and a
random data pattern.
30.Under worst case conditions of 90°C, VCC = 2.70 V, 100,000 cycles, and a random data pattern.
31.Effective write buffer specification is based upon a 512-byte write buffer operation.
32.In the pre-programming step of the Embedded Erase algorithm, all words are programmed to 0000h before
Sector and Chip erasure.
33.Not 100% tested.
34.System-level overhead is the time required to execute the bus-cycle sequence for the program command.
See Table 41 for further information on command definitions.
Datasheet
46
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 17
Embedded algorithm characteristics (–40°C to +105°C)
Parameter
Sector Erase time 128 kbyte
Single Word Programming time[39]
Buffer Programming time
2-byte[39]
Typ[35]
Max[36]
275
1100
ms Includes pre-programming prior to
erasure[38]
125
400
µs
µs
150
1050
32-byte
[39]
200
1050
64-byte
[39]
Unit
Comments
220
1050
128-byte
[39]
250
1050
256-byte
[39]
320
1050
512-byte
420
1050
Effective Write Buffer Program 512-byte
operation per word
1.64
–
Sector Programming time 128 kB (full Buffer
Programming)
108
269
ms Note 40
Erase Suspend/Erase Resume (tESL)
–
50
µs
Program Suspend/Program Resume (tPSL)
–
50
µs
Erase Resume to next Erase Suspend (tERS)
100
–
µs
Minimum of 60 ns but typical
periods are needed for Erase to
progress to completion.
Program Resume to next Program Suspend
(tPRS)
100
–
µs
Minimum of 60 ns but typical
periods are needed for Program to
progress to completion.
Blank Check
7.6
9.0
ms
–
1 per 16
word
NOP (Number of Program-operations, per
line)
µs
Notes
35.Typical program and erase times assume the following conditions: 25°C, 3.0 V VCC, 10,000 cycle, and a
random data pattern.
36.Under worst case conditions of 105°C, VCC = 2.70 V, 100,000 cycles, and a random data pattern.
37.Effective write buffer specification is based upon a 512-byte write buffer operation.
38.In the pre-programming step of the Embedded Erase algorithm, all words are programmed to 0000h before
Sector and Chip erasure.
39.Not 100% tested.
40.System-level overhead is the time required to execute the bus-cycle sequence for the program command.
See Table 41 for further information on command definitions.
Datasheet
47
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
5.7.1
Command State Transitions
Table 18
Read Command State Transition
Current State
Command and
Condition
Read
Software Reset /
ASO Exit
Status Register
Read Enter
Status Register
Clear
Unlock 1
Blank Check
CFI Entry
Address
RA
xh
x555h
x555h
x555h
(SA)555h
(SA)55h
Data
RD
xF0h
x70h
x71h
xAAh
x33h
x98h
–
READ
READ
READSR (READ)
READ
READUL1
–
CFI
READ
Read Protect =
False
READSR
BLCK
–
Table 19
(return)
–
–
–
–
–
Read Unlock Command State Transition
Read
Status
Register
Read
Enter
Unlock 2
Word
Program
Entry
Write
to
Buffer
Enter
Erase
Enter
ID
(Auto-sel
ect)
Entry
SSR
Entry
Address
RA
x555h
x2AAh
x555h
(SA)xh
x555h
(SA)555h
(SA)555h
x555h
Data
RD
x70h
x55h
xA0h
x25h
x80h
x90h
x88h
x40h
READUL1
–
READUL1
READSR
(READ)
READUL2
–
–
–
–
–
READUL2
Read Protect
= True
READUL2
READSR
(READ)
–
–
–
–
CFI
PG1
WB
ER
Current
State
Command
and
Condition
Read Protect
= False
Lock
Password
Register ASO Entry
Entry
PPB
Entry
PPB
Lock
Entry
DYB
ASO
Entry
x555h
x555h
x555h
x555h
x60h
xC0h
x50h
xE0h
–
–
–
–
–
–
–
PP
–
–
–
SSR
LR
PPBLB
DYB
Read Protect
= False and
LR(8) = 0
Table 20
Current
State
–
PPB
Erase State Command Transition
Command
and
Condition
Read
Software
Reset / ASO
Exit
Status
Register
Read Enter
Status
Register
Clear
Unlock 1
Unlock 2
Chip Erase
Start
Sector Erase
Start
Erase
Suspend
Enhanced
Method [41]
Address
RA
xh
x555h
x555h
x555h
x2AAh
x555h
(SA)xh
xh
Data
RD
xF0h
x70h
x71h
xAAh
x55h
x10h
x30h
xB0h
ER
–
ER
–
READSR
(READ)
-–
ERUL1
–
–
–
–
ERUL1
–
ERUL1
–
READSR
(READ)
–
–
ERUL2
–
–
–
ERUL2
–
ERUL2
–
READSR
(READ)
–
–
–
CER
SER
–
CER [42]
–
CER
–
ERSR (CER)
–
–
–
–
–
–
SER [42]
SR(7) = 0
SER
–
ERSR (SER)
–
–
–
–
–
ESR (ES)
–
–
–
–
–
–
–
–
–
–
SR(7) = 1
BLCK [42]
SR(7) = 0
READ
BLCK
SR(7) = 1
ERSR
–
–
READ
ERSR (BLCK)
READ
(return)
–
–
READ
–
–
Notes
41.Also known as Erase Suspend/Program Suspend Legacy Method.
42.State will automatically move to READ state at the completion of the operation.
Datasheet
48
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 21
Erase Suspend State Command Transition
Command and
Condition
Current State
Software Reset /
ASO Exit
Status Register
Read Enter
Status Register
Clear
Unlock 1
Sector Erase Start
Address
RA
xh
x555h
x555h
x555h
(SA)xh
Data
RD
xF0h
x70h
x71h
xAAh
x30h
–
ESR
–
ERSR (ESR)
–
–
–
SR(7) = 0
ES
ES
ESSR (ES)
ES
ESUL1
ESR [43]
ES
Read
–
SR(7) = 1
ESSR
–
Table 22
Current
State
SER
(return)
–
–
–
–
–
Erase Suspend Unlock State Command Transition
Write-toErase
BufferResume
Abort
Enhanced
Reset
Method [44]
Start
Command
and
Condition
Read
Software
Reset /
ASO Exit
Status
Register
Read
Enter
Unlock 1
Word
Program
Entry
Write to
Buffer
Enter
Address
RA
xh
x555h
x2AAh
x555h
(SA)xh
x555h
xh
x555h
NOT
x555h
xh
NOT
x2AAh
xh
Data
RD
xF0h
x70h
x55h
xA0h
x25h
xF0h
x30h
xE0h
xh
NOT
xF0h
xh
NOT
x55h
–
ESUL1
–
ESSR (ES)
ESUL2
–
–
–
–
–
–
–
ESUL1
DYB ASO
Entry
NOT a valid “Write-to-Buffer-Abort
Reset” Command
SR(3) = 1
–
–
ESPG
ESPG
–
–
DQ(1) = 1
ESUL2
–
ESUL2
ES
ESSR (ES)
–
ESPG1
ES_WB
–
SER
Read
Protect =
False
–
–
–
ESPG
ESPG
ESDYB
SR(3) = 1
–
ES
–
DQ(1) = 1
Table 23
Current
State
Erase Suspend - DYB State Command Transition
Command
and
Condition
Read
Software Reset
/ ASO Exit
Status
Register Read
Enter
Status
Register Clear
Command Set
Exit Entry
Command Set
Exit
DYB Set/Clear
Entry
Password
Word Count
Address
RA
xh
x555h
x555h
xh
xh
xh
xh
Data
RD
xF0h
x70h
x71h
x90h
x00h
xA0h
x03h
ESDYB
–
ESDYB
ES
ESSR (ESDYB)
ESDYB
ESDYBEXT
–
ESDYBSET
–
ESDYBSET
–
ESDYBSET
–
–
–
–
–
–
–
ESDYBEXT
–
ESDYBEXT
–
–
–
–
ES
–
ES
Notes
43.State will automatically move to ES state by tESL.
44.Also known as Erase Resume/Program Resume Legacy Method.
Datasheet
49
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 24
Current
State
ES_WB
Erase Suspend - Program Command State Transition
Command and
Condition
Read
Software
Reset /
ASO Exit
Status Register
Read Enter
Status Register
Clear
Unlock 1
Erase Suspend
Enhanced
Method [45]
ProgramSuspend
Enhanced Method
Write Data
xh
Address
RA
xh
x555h
x555h
x555h
xh
xh
Data
RD
xF0h
x70h
x71h
xAAh
xB0h
x51h
xh
WC > 256 or SA
SA
ES_WB
–
–
–
–
–
–
ESPG
WC 256 and SA
= SA
ES_WB_D
WC < 0 or Write
Buffer Write
Buffer
ES_WB_D
ES_WB_D
–
–
–
–
–
–
ESPG
WC > 0 and Write
Buffer = Write
Buffer
ES_WB_D
ESPG1
–
ESPG1
–
–
–
–
–
–
ESPG
ESPG
SR(7) = 0
ESPG
–
ESPGSR (ESPG)
–
–
ESPSR (ESPG)
ESPSR (ESPG)
ESPG
ES
ESUL1
–
–
–
–
(return)
SR(7) = 1
ESPGSR
Table 25
Current
State
–
ES
(return)
–
–
Erase Suspend - Program Suspend Command State Transition
Command and
Condition
Read
Software
Reset /
ASO Exit
Status Register
Read Enter
Status Register
Clear
Unlock 1
Unlock 2
Erase Resume
Enhanced Method [46]
Program
Resume
Enhanced
Method
Address
RA
xh
x555h
x555h
x555h
x2AAh
xh
xh
Data
RD
xF0h
x70h
x71h
xAAh
x55h
x30h
x50h
ESPSR [47]
–
ESPSR
–
ESPGSR (ESPSR)
–
–
–
–
–
ESPS
–
ESPS
ESPS
ESPSSR (ESSP)
ESPS
ESPSUL1
–
ESPG
ESPG
–
ESPSSR
–
(return)
–
–
–
–
–
–
ESPSUL1
–
ESPSUL1
–
ESPSSR (ESPS)
–
–
ESPSUL2
–
–
ESPSUL2
–
ESPSUL2
–
ESPSSR (ESPS)
–
–
–
ESPG
ESPG
Notes
45.Also known as Erase Suspend/Program Suspend Legacy Method.
46.Also known as Erase Resume/Program Resume Legacy Method.
47.State will automatically move to ESPS state by tPSL.
Datasheet
50
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 26
Current State
WB
Program State Command Transition
Command
and
Condition
Read
Software
Reset /
ASO Exit
Status
Register
Read Enter
Status
Register
Clear
Unlock 1
Program
Buffer to
flash
(confirm)
Erase
Suspend
Enhanced
Method [48]
Program
Suspend
Enhanced
Method
Write Data
xh
Address
RA
xh
x555h
x555h
x555h
(SA)xh
xh
xh
Data
RD
xF0h
x70h
x71h
xAAh
x29h
xB0h
x51h
xh
WC > 256 or SA
SA
WB
–
–
–
–
-–
–
–
PG
WC 256 and
SA = SA
WB_D
Write Buffer
Write Buffer
WB_D
WB_D
–
–
–
–
–
–
–
PG
WC = 0
PBF
WC > 0 and
Write Buffer =
Write Buffer
WB_D
PBF
–
–
–
–
–
–
PG
–
–
PG
PG1
–
PG1
–
–
–
–
–
–
–
PG
SR(7) = 0
PG
–
PGSR (PG)
–
–
–
PSR (PG)
PSR (PG)
PG
READ
WBUL1
–
–
PG
[49]
SR(7) = 1
READ
SR(7) = 1 and
SR(1) = 0
Table 27
Current State
WBUL1
Program Unlock State Command Transition
Command and
Condition
Read
Software Reset
/ ASO Exit
Status
Register Read
Enter
Unlock 2
NOT a valid “Write-to-Buffer-Abort Reset” Command
Address
RA
xh
x555h
x2AAh
NOT x555h
xh
NOT x2AAh
xh
Data
RD
xF0h
x70h
x55h
xh
NOT xF0h
xh
NOT x55h
–
WBUL1
–
–
WBUL2
–
–
SR(3) = 1
–
–
PG
PG
–
–
–
–
DQ(1) = 1
WBUL2
–
WBUL2
READ
–
–
SR(3) = 1
–
–
PG
PG
–
–
DQ(1) = 1
PGSR
–
(return)
–
–
–
Notes
48.Also known as Erase Suspend/Program Suspend Legacy Method.
49.State will automatically move to READ state at the completion of the operation.
Datasheet
51
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 28
Program Suspend State Command Transition
Command and
Condition
Read
Status Register
Read Enter
Status Register
Clear
Address
RA
x555h
x555h
xh
xh
Data
RD
x70h
x71h
x30h
x50h
PSR [51]
–
PSR
PGSR (PSR)
–
–
–
PS
–
PS
PSSR (PS)
PS
PG
PG
PSSR
–
(return)
–
–
–
–
Current State
Table 29
Current
State
Erase Resume Enhanced
Method [50]
Program Resume Enhanced
Method
Lock Register State Command Transition
Command and
Condition
Read
Software Reset
/ ASO Exit
Status
Register Read
Enter
Status
Register Clear
Command Set
Exit Entry
Command Set
Exit
PPB Lock Bit
Set Entry
Password
Word Count
Address
RA
xh
x555h
x555h
xh
xh
xh
Xh
x03h
Data
RD
xF0h
x70h
x71h
x90h
x00h
xA0h
LR
–
LR
READ
LRSR (LR)
LR
LREXT
–
LRPG1
–
LRPG1
–
LRPG1
–
–
–
–
–
–
–
LRPG
–
LRPG
–
LRSR (LRPG)
–
–
–
–
–
LRSR
–
(return)
–
–
–
–
–
–
–
LREXT
–
LREXT
–
–
–
–
READ
–
READ
Table 30
CFI State Command Transition
Current State
Command and Condition
Read
Software Reset / ASO Exit
Status Register Read Enter
Status Register Clear
Address
RA
xh
x555h
x555h
Data
RD
xF0h
x70h
x71h
CFI
–
CFI
READ
CFISR (CFI)
CFI
CFISR
–
(return)
–
–
–
Table 31
Secure Silicon Sector State Command Transition
Command and
Condition
Current State
SSR
Table 32
Current
State
SSRUL1
Read
Software Reset / ASO Exit
Status Register Read Enter
Status Register Clear
Unlock 1
x555h
Address
RA
xh
x555h
x555h
Data
RD
xF0h
x70h
x71h
xAAh
–
SSR
READ
SSRSR (SSR)
SSR
SSRUL1
Secure Silicon Sector Unlock State Command Transition
Command
and
Condition
Read
Software
Reset / ASO
Exit
Status
Register
Read Enter
Unlock 2
Word
Program
Entry
Write to
Buffer
Enter
Command
Set Exit
Entry
Address
RA
xh
x555h
x2AAh
x555h
(SA)xh
x555h
NOT
x555h
xh
NOT
x2AAh
xh
NOT x55h
NOT a valid “Write-to-Buffer-Abort Reset”
Command
Data
RD
xF0h
x70h
x55h
xA0h
x25h
x90h
xh
NOT xF0h
xh
–
SSRUL1
READ
SSRSR (SSR)
SSRUL2
–
–
–
–
–
–
–
SSRPG
SSRPG
–
–
DQ(1) = 1
SR(3) = 1
SSRUL2
–
SSRUL2
SSR
–
–
SSRPG1
SSR_WB
DQ(1) = 1
SSREXT
–
–
SSRPG
SSRPG
SR(3) = 1
Notes
50.Also known as Erase Resume/Program Resume Legacy Method.
51.State will automatically move to PS state by tPSL.
Datasheet
52
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 33
Secure Silicon Sector Program State Command Transition
Command and
Condition
Current State
Read
Software Reset /
ASO Exit
Status Register
Read Enter
Status Register
Clear
Unlock 1
Command Set Exit
Address
RA
xh
x555h
x555h
x555h
xh
Data
RD
xF0h
x70h
x71h
xAAh
x00h
SSRPG1
–
SSRPG1
–
–
SSRPG1
–
–
SSR_WB
WC > 256 or SA SA
SSR_WB
–
–
–
–
–
SSR_WB_D
–
–
–
–
–
SSRPG
–
SSRSR (SSRPG)
–
–
–
WC 256 and
SA = SA
SSR_WB_D
WC < 0 or Write
Buffer Write Buffer
WC > 0 and Write
Buffer = Write Buffer
SSRPG
SR(7) = 0
SR(7) = 1
SSR
SR(7) = 1 and DQ(1) =
0
READ
DQ(1) = 1
–
–
SSRUL1
SR(3) = 1
SSRSR
–
(return)
–
–
–
–
–
SSREXT
–
SSREXT
–
SSRSR (SSR)
–
–
READ
Table 34
Current
State
Password Protection Command State Transition
Command
and
Condition
Read
Software
Reset /
ASO Exit
Status
Register
Read Enter
Status
Register
Clear
Password
ASO Unlock
Enter
Password
ASO Unlock
Start
Command
Set Exit
Entry
Command
Set Exit
Program
Entry
Password
Word Count
Address
RA
xh
x555h
x555h
0h
0h
xh
xh
xh
Xh
Data
RD
xF0h
x70h
x71h
x25h
x29h
x90h
x00h
xA0h
x03h
PP
–
PP
READ
PPSR (PP)
PP
PPWB25
–
PPEXT
–
PPPG1
–
PPWB25
–
PPWB25
–
–
–
–
–
–
–
–
PPD
–
–
–
–
–
–
–
–
–
PPD
WC > 0
PPD
WC 0
-
PPPG1
–
PPPG1
–
–
–
–
–
–
–
–
–
PPPG
–
PPPG
–
PPSR
(PPPG)
–
–
–
–
–
–
–
PPSR
–
(return)
–
–
–
–
–
–
–
–
–
PPEXT
–
PPEXT
–
–
–
–
–
–
READ
–
–
Datasheet
PPPG
53
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 35
Current
State
Non-Volatile Protection Command State Transition
Command
and
Condition
Read
Software
Reset /
ASO Exit
Status
Register
Read Enter
Status
Register
Clear
Command
Set Exit
Entry
Command
Set Exit
Program
Entry
DYB Set
Start
All PPB
Erase Enter
All PPB
Erase Start
Address
RA
xh
x555h
x555h
xh
xh
xh
(SA)xh
Xh
0h
Data
RD
xF0h
x70h
x71h
x90h
x00h
xA0h
x00h
x80h
x30h
PPB
–
PPB
READ
PPBSR (PPB)
PPB
PPBEXT
–
PPBPG1
–
PPBPG1
–
PPBPG1
–
PPBPG1
READ
–
–
–
PPBPG
–
PPB
–
PPBER
PPBPG
SR(7) = 0
PPBPG
–
PPBSR
(PPBPG)
–
–
–
–
–
–
–
–
–
–
–
–
–
SR(7) = 1
PPBER
READ
SR(7) = 0
PPBER
–
SR(7) = 1
READ
PPBSR
(PPBER)
READ
–
READ
PPBSR
–
(return)
–
–
–
–
–
–
–
–
–
PPBEXT
–
PPBEXT
–
–
–
–
READ
-
-
–
–
Table 36
Current State
PPB Lock Bit Command State Transition
Command and
Condition
Read
Software Reset /
ASO Exit
Status Register
Read Enter
Status Register
Clear
Command Set
Exit Entry
Command Set
Exit
Program Entry
Address
RA
xh
x555h
x555h
xh
xh
xh
Data
RD
xF0h
x70h
x71h
x90h
x00h
xA0h
–
PPBLB
READ
PPBLBSR
(PPBLB)
PPBLB
PPBLBEXT
–
PPBLBSET
PPBLB
PPBLBSR
–
(return)
–
–
–
–
–
–
PPBLBSET
–
PPBLBSET
–
–
–
–
PPBLB
–
PPBLBEXT
–
–
–
–
READ
–
LR(2) = 0 and
LR(5) = 0
PPBLBEXT
Table 37
Current State
–
Volatile Sector Protection Command State Transition
Command
and
Condition
Read
Software
Reset /
ASO Exit
Status
Register
Read Enter
Status
Register
Clear
Command
Set Exit
Entry
Command
Set Exit
Program
Entry
DYB Set Start
DYB Clear
Start
Address
RA
xh
x555h
x555h
xh
xh
xh
(SA)xh
(SA)xh
Data
RD
xF0h
x70h
x71h
x90h
x00h
xA0h
x00h
x01h
DYB
–
DYB
READ
DYBSR (DYB)
DYB
DTBEXT
–
DYBSET
–
–
DYBSR
–
(return)
–
–
–
–
–
–
–
–
DYBSET
–
DYBSET
–
–
–
–
–
–
DYB
DYB
DYBEXT
–
DYBEXT
–
–
–
–
READ
–
–
–
Datasheet
54
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 38
State Transition definitions
Current state
Command transition
Definition
BLCK
Table 20
Blank Check
CER
Table 20
Chip Erase Start
CFI
Table 30
ID (Autoselect)
CFISR
Table 30
ID (Autoselect) - Status Register Read
DYB
Table 37
DYB ASO
DYBEXT
Table 37
DYB ASO - Command Exit
DYBSET
Table 37
DYB ASO - Set
DYBSR
Table 37
DYB ASO - Status Register Read
ER
Table 20
Erase Enter
ERSR
Table 20
Erase - Status Register Read
ERUL1
Table 20
Erase - Unlock Cycle 1
ERUL2
Table 20
Erase - Unlock Cycle 2
ES
Table 21
Erase Suspended
ESDYB
Table 23
Erase Suspended - DYB ASO
ESDYBEXT
Table 23
Erase Suspended - DYB Command Exit
ESDYBSET
Table 23
Erase Suspended - DYB Set/Clear
ESPG
Table 24
Erase Suspended - Program
ESPGSR
Table 24
Erase Suspended - Program - Status Register Read
ESPG1
Table 24
Erase Suspended - Word Program
ESPS
Table 25
Erase Suspended - Program Suspended
ESPSR
Table 25
Erase Suspended - Program Suspend
ESPSSR
Table 25
Erase Suspended - Program Suspend - Status Register Read
ESPSUL1
Table 25
Erase Suspended - Program Suspend - Unlock 1
ESPSUL2
Table 25
Erase Suspended - Program Suspend - Unlock 2
ESR
Table 21
Erase Suspend Request
ESSR
Table 21
Erase Suspended - Status Register Read
ESUL1
Table 22
Erase Suspended - Unlock Cycle 1
ESUL2
Table 22
Erase Suspended - Unlock Cycle 2
ES_WB
Table 24
Erase Suspended - Write to Buffer
ES_WB_D
Table 24
Erase Suspended - Write to Buffer Data
LR
Table 29
Lock Register
LREXT
Table 29
Lock Register - Command Exit
LRPG
Table 29
Lock Register - Program
LRPG1
Table 29
Lock Register - Program Start
LRSR
Table 29
Lock Register - Status Register Read
PBF
Table 26
Page Buffer Full
PG
Table 26
Program
PGSR
Table 27
Program - Status Register Read
PG1
Table 26
Word Program
Datasheet
55
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Embedded operations
Table 38
State Transition definitions (Continued)
Current state
Command transition
Definition
PP
Table 34
Password ASO
PPB
Table 35
PPB
PPBER
Table 35
PPB - Erase
PPBEXT
Table 35
PPB - Command Exit
PPBLB
Table 36
PPB Lock Bit
PPBLBEXT
Table 36
PPB Lock Bit - Command Exit
PPBLBSET
Table 36
PPB Lock Bit - Set
PPBLBSR
Table 36
PPB Lock Bit - Status Register Read
PPBPG
Table 35
PPB - Program
PPBPG1
Table 35
PPB - Program Request
PPBSR
Table 35
PPB - Status Register Read
PPD
Table 34
Password ASO - Data
PPEXT
Table 34
Password ASO - Command Exit
PPPG
Table 34
Password ASO - Program
PPPG1
Table 34
Password ASO - Program Request
PPSR
Table 34
Password ASO - Status Register Read
PS
Table 28
Program Suspended
PSR
Table 28
Program Suspend Request
PSSR
Table 28
Program Suspended - Status Register Read
PPWB25
Table 34
Password ASO - Unlock
READ
Table 18
Read Array
READSR
Table 18
Read Status Register
READUL1
Table 19
Read - Unlock Cycle 1
READUL2
Table 19
Read - Unlock Cycle 2
SER
Table 20
Sector Erase Start
SSR
Table 31
Secure Silicon
SSREXT
Table 33
Secure Silicon - Command Exit
SSRPG
Table 33
Secure Silicon - Program
SSRPG1
Table 33
Secure Silicon - Word Program
SSRSR
Table 33
Secure Silicon - Status Register Read
SSRUL1
Table 32
Secure Silicon - Unlock Cycle 1
SSRUL2
Table 32
Secure Silicon - Unlock Cycle 2
SSR_WB
Table 33
Secure Silicon - Write to Buffer
SSR_WB_D
Table 33
Secure Silicon - Write to Buffer - Write Data
WB
Table 26
Write to Buffer
WBUL1
Table 27
Write Buffer - Unlock Cycle 1
WBUL2
Table 27
Write Buffer - Unlock Cycle 2
WB_D
Table 26
Write to Buffer Write Data
Datasheet
56
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Data integrity
6
Data integrity
6.1
Erase endurance
Table 39
Erase endurance
Parameter
Minimum
Unit
Program/Erase cycles per main Flash array sectors
100K
P/E cycle
Program/Erase cycles per PPB array or non-volatile register array
100K
P/E cycle
6.2
Data retention
Table 40
Data retention
Minimum
time
Unit
10K program/erase cycles
20
Years
100K program/erase cycles
2
Years
Parameter
Data retention time
Test conditions
Contact Infineon Sales or an FAE representative for additional information on the data integrity. An application
note is available at https://www.infineon.com/cms/en/product/memories/nor-flash/#!documents.
Note
52.Each write command to a non-volatile register causes a P/E cycle on the entire non-volatile register array.
OTP bits and registers internally reside in a separate array that is not P/E cycled.
Datasheet
57
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
Software interface reference
7.1
Command summary
Table 41
Command definitions
Command Sequence
[53]
Cycles
7
Bus Cycles [54, 55, 56, 57]
First
Second
Addr
Data
1
RA
RD
Reset/ASO Exit[59, 60]
1
XXX
F0
Status Register Read
2
555
70
Status Register Clear
1
555
71
Read[58]
Addr
Data
XXX
RD
Third
Fourth
Addr
Data
Addr
Fifth
Data
Sixth
Seventh
Addr
Data
Addr
Data
Word Program
4
555
AA
2AA
55
555
A0
PA
PD
Write to Buffer
6
555
AA
2AA
55
SA
25
SA
WC
WBL
PD
WBL
PD
Program Buffer to Flash (confirm)
1
SA
29
Write-to-Buffer-Abort Reset[61]
3
555
AA
2AA
55
555
F0
Chip Erase
6
555
AA
2AA
55
555
80
555
AA
2AA
55
555
10
2AA
55
555
80
555
AA
2AA
55
SA
30
2AA
55
(SA)
555
90
WBL
PD
WBL
PD
Sector Erase
6
555
AA
Erase Suspend/Program Suspend
Legacy Method[62]
1
XXX
B0
1
XXX
30
Program Suspend Enhanced
Method
1
XXX
51
Program Resume Enhanced
Method
1
XXX
50
Blank Check
1
(SA)
555
33
ID (Autoselect) Entry
3
555
AA
CFI Enter[64]
1
(SA)
55
98
Addr
Data
Erase Suspend Enhanced Method
Erase Resume/Program Resume
Legacy Method[63]
ID-CFI (Autoselect) ASO
Erase Resume Enhanced Method
ID-CFI Read
1
RA
RD
Reset/ASO Exit [59, 60]
1
XXX
F0
SSR Entry
3
555
AA
Read[58]
1
RA
RD
Word Program
4
555
AA
Write to Buffer
6
555
AA
Program Buffer to Flash
(confirm)
1
SA
29
Write-to-Buffer-Abort Reset[61]
3
555
AA
2AA
55
555
F0
SSR Exit[61]
4
555
AA
2AA
55
555
90
1
XXX
F0
Secure Silicon Region (SSR) ASO
Secure Silicon Region Command Definitions
Reset/ASO Exit
Datasheet
[59, 60]
2AA
55
(SA)
555
88
2AA
55
555
A0
PA
PD
2AA
55
SA
25
SA
WC
XX
0
58
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
Command definitions (Continued)
Command Sequence [53]
Cycles
Table 41
Bus Cycles [54, 55, 56, 57]
First
Addr
Second
Data
Addr
Third
Data
Addr
Fourth
Data
Addr
Data
Fifth
Sixth
Seventh
Addr
Data
Addr
Data
Addr
Data
2
PWD2
3
PWD3
0
29
Lock Register ASO
Lock Register Command Set Definitions
Lock Register Entry
3
555
AA
2AA
55
Program[65]
2
XXX
A0
XXX
PD
Read[65]
1
0
RD
Command Set Exit[60, 66]
2
XXX
90
XXX
0
Reset/ASO Exit [59, 60]
1
XXX
F0
555
40
Password ASO
Password Protection Command Set Definitions
Password ASO Entry
3
555
AA
2AA
55
Program[67]
2
XXX
A0
PWA x
PWDx
555
60
Read[68]
4
0
PWD0
1
PWD1
2
PWD2
3
PWD3
Unlock
7
0
25
0
3
0
PWD0
1
PWD1
Command Set Exit[60, 66]
2
XXX
90
XXX
0
Reset/ASO Exit[59, 60]
1
XXX
F0
PPB Entry
3
555
AA
2AA
[69]
2
XXX
A0
SA
0
All PPB Erase[69]
2
XXX
80
0
30
PPB Read[69]
1
SA
RD (0)
Command Set Exit[60, 66]
2
XXX
90
XXX
0
Reset/ASO Exit[59, 60]
1
XXX
F0
PPB (Non-Volatile Sector Protection)
Non-Volatile Sector Protection Command Set Definitions
PPB Program
55
555
C0
PPB Lock Bit
Global Non-Volatile Sector Protection Freeze Command Set Definitions
PPB Lock Entry
3
555
AA
2AA
55
PPB Lock Bit Cleared
2
XXX
A0
XXX
0
PPB Lock Status Read[69]
1
XXX
RD (0)
Command Set Exit[60, 66]
2
XXX
90
XXX
0
Reset/ASO Exit[60]
1
XXX
F0
DYB ASO Entry
3
555
AA
2AA
55
DYB Set[69]
2
XXX
A0
SA
0
DYB Clear[69]
2
XXX
A0
SA
1
DYB Status Read[69]
1
SA
RD (0)
Command Set Exit[60, 66]
2
XXX
90
XXX
0
Reset/ASO Exit[60]
1
XXX
F0
ECC ASO Entry
3
555
AA
ECC Status Read
1
RA
RD
Command Set Exit[60, 66]
1
XXX
F0
555
50
DYB (Volatile Sector Protection) ASO
Volatile Sector Protection Command Set Definitions
555
E0
ECC ASO
Command Set Definitions ECC
Datasheet
2AA
55
555
59
75
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
Legend:
X = Don't care.
RA = Address of the memory to be read.
RD = Data read from location RA during read operation.
PA = Address of the memory location to be programmed.
PD = Data to be programmed at location PA.
SA = Address of the sector selected. Address bits AMAX–A16 uniquely select any sector.
WBL = Write Buffer Location. The address must be within the same Line.
WC = Word Count is the number of write buffer locations to load minus 1.
PWAx = Password address for word0 = 00h, word1 = 01h, word2 = 02h, and word3 = 03h.
PWDx = Password data word0, word1, word2, and word3.
Notes
53.See Table 49 for description of bus operations.
54.All values are in hexadecimal.
55.Except for the following, all bus cycles are write cycle: read cycle during Read, ID/CFI Read (Manufacturing
ID / Device ID), Indicator Bits, Secure Silicon Region Read, SSR Lock Read, and 2nd cycle of Status Register
Read.
56.Data bits DQ15–DQ8 are don’t care in command sequences, except for RD, PD, WC and PWD.
57.Address bits AMAX–A11 are don’t cares for unlock and command cycles, unless SA or PA required. (AMAX is the
Highest Address pin.).
58.No unlock or command cycles required when reading array data.
59.The Reset command is required to return to reading array data when device is in the ID-CFI (autoselect)
mode, or if DQ5 goes High (while the device is providing status data).
60.If any of the Entry commands was issued, an Exit command must be issued to reset the device into read
mode.
61.Issue this command sequence to return to READ mode after detecting device is in a Write-to-Buffer-Abort
state. IMPORTANT: the full command sequence is required if resetting out of ABORT.
62.The system can read and program/program suspend in non-erasing sectors, or enter the ID-CFI ASO, when
in the Erase Suspend mode. The Erase Suspend command is valid only during a sector erase operation.
63.The Erase Resume/Program Resume command is valid only during the Erase Suspend/Program Suspend
modes.
64.Command is valid when device is ready to read array data or when device is in ID-CFI (autoselect) mode.
65.All Lock Register bits are one-time programmable. The program state = 0 and the erase state = 1. Also, both
the Persistent Protection Mode Lock Bit and the Password Protection Mode Lock Bit cannot be programmed
at the same time or the Lock Register Bits Program operation aborts and returns the device to read mode.
Lock Register bits that are reserved for future use are undefined and may be 0’s or 1’s.
66.The Exit command returns the device to reading the array.
67.For PWDx, only one portion of the password can be programmed per each A0 command. Portions of the
password must be programmed in sequential order (PWD0–PWD3).
68.The password portion can be entered or read in any order as long as the entire 64-bit password is entered
or read.
69.Protected State = 00h, Unprotected State = 01h. The sector address for DYB set, DYB clear, or PPB Program
command may be any location within the sector - the lower order bits of the sector address are don’t care.
Datasheet
60
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
7.2
Device ID and Common Flash Interface (ID-CFI) ASO Map
The Device ID portion of the ASO (word locations 0h to 0Fh) provides manufacturer ID, device ID, Sector
Protection State, and basic feature set information for the device.
ID-CFI Location 02h displays sector protection status for the sector selected by the sector address (SA) used in
the ID-CFI enter command. To read the protection status of more than one sector it is necessary to exit the ID ASO
and enter the ID ASO using the new SA. The access time to read location 02h is always tACC and a read of this
location requires CE# to go High before the read and return Low to initiate the read (asynchronous read access).
Page mode read between location 02h and other ID locations is not supported. Page mode read between ID
locations other than 02h is supported.
For additional information see “ID-CFI ASO” on page 33.
Table 42
ID (Autoselect) address map
Description
Address
Manufacture ID
(SA) + 0000h
0001h
Device ID
(SA) + 0001h
227Eh
Protection
verification
(SA) + 0002h
Sector Protection State (1= Sector protected, 0 = Sector
unprotected). This protection state is shown only for the SA selected
when entering ID-CFI ASO. Reading other SA provides undefined
data. To read a different SA protection state ASO exit command must
be used and then enter ID-CFI ASO again with the new SA.
Indicator Bits
(SA) + 0003h
DQ15–DQ08 = 1 (Reserved)
DQ7 - Factory Locked Secure Silicon Region
1 = Locked,
0 = Not Locked
DQ6 - Customer Locked Secure Silicon Region
1 = Locked
0 = Not Locked
DQ5 = 1 (Reserved)
DQ4 - WP# Protects
0 = lowest address Sector
1 = highest address Sector
DQ3–DQ0 = 1 (Reserved)
RFU
(SA) + 0004h
Reserved
(SA) + 0005h
Reserved
(SA) + 0006h
Reserved
(SA) + 0007h
Reserved
(SA) + 0008h
Reserved
(SA) + 0009h
Reserved
(SA) + 000Ah
Reserved
(SA) + 000Bh
Reserved
Datasheet
Read data
61
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
Table 42
ID (Autoselect) address map (Continued)
Description
Address
Lower software bits
(SA) + 000Ch
Bit 0 - Status Register Support
1 = Status Register Supported
0 = Status Register not supported
Bit 1 - DQ polling Support
1 = DQ bits polling supported
0 = DQ bits polling not supported
Bit 3–2 - Command Set Support
11 = reserved
10 = reserved
01 = Reduced Command Set
00 = Classic Command set
Bits 4–15 - Reserved = 0
Upper software bits
(SA) + 000Dh
Reserved
Device ID
(SA) + 000Eh
2228h = 1 Gb
2223h = 512 Mb
2222h = 256 Mb
2221h = 128 Mb
Device ID
(SA) + 000Fh
2201h
Table 43
Read data
CFI query identification string
Word address
Data
(SA) + 0010h
(SA) + 0011h
(SA) + 0012h
0051h
0052h
0059h
Query Unique ASCII string “QRY”
(SA) + 0013h
(SA) + 0014h
0002h
0000h
Primary OEM Command Set
(SA) + 0015h
(SA) + 0016h
0040h
0000h
Address for Primary Extended Table
(SA) + 0017h
(SA) + 0018h
0000h
0000h
Alternate OEM Command Set
(00h = none exists)
(SA) + 0019h
(SA) + 001Ah
0000h
0000h
Address for Alternate OEM Extended Table
(00h = none exists)
Datasheet
Description
62
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
Table 44
CFI system interface string
Word address
Data
(SA) + 001Bh
0027h
VCC Min. (erase/program) (D7–D4: volts, D3–D0: 100 mV)
(SA) + 001Ch
0036h
VCC Max. (erase/program) (D7–D4: volts, D3–D0: 100 mV)
(SA) + 001Dh
0000h
VPP Min. voltage (00h = no VPP pin present)
(SA) + 001Eh
0000h
VPP Max. voltage (00h = no VPP pin present)
(SA) + 001Fh
0008h
Typical timeout per single word write 2N µs
(SA) + 0020h
0009h
Typical timeout for max
multi-byte program, 2N µs
(00h = not supported)
(SA) + 0021h
0008h
Typical timeout per individual block erase 2N ms
(SA) + 0022h
0012h (1 Gb)
0011h (512 Mb)
0010h (256 Mb)
000Fh (128 Mb)
(SA) + 0023h
0001h
Max. timeout for single word write 2N times typical
(SA) + 0024h
0002h
Max. timeout for buffer write 2N times typical
(SA) + 0025h
0003h
Max. timeout per individual block erase 2N times typical
(SA) + 0026h
0003h
Max. timeout for full chip erase 2N times typical
(00h = not supported)
Datasheet
Description
Typical timeout for full chip erase 2N ms (00h = not supported)
63
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
Table 45
CFI device geometry definition
Word Address
Data
Description
Device Size = 2N byte
(SA) + 0027h
001Bh (1 Gb)
001Ah (512 Mb)
0019h (256 Mb)
0018h (128 Mb)
(SA) + 0028h
0001h
(SA) + 0029h
0000h
(SA) + 002Ah
0009h
(SA) + 002Bh
0000h
(SA) + 002Ch
0001h
Number of Erase Block Regions within device
1 = Uniform Device, 2 = Boot Device
(SA) + 002Dh
00XXh
(SA) + 002Eh
000Xh
(SA) + 002Fh
0000h
(SA) + 0030h
000Xh
Erase Block Region 1 Information (refer to JEDEC JESD68-01 or
JEP137 specifications)
00FFh, 0003h, 0000h, 0002h = 1 Gb
00FFh, 0001h, 0000h, 0002h = 512 Mb
00FFh, 0000h, 0000h, 0002h = 256 Mb
007Fh, 0000h, 0000h, 0002h = 128 Mb
(SA) + 0031h
0000h
(SA) + 0032h
0000h
(SA) + 0033h
0000h
(SA) + 0034h
0000h
(SA) + 0035h
0000h
(SA) + 0036h
0000h
(SA) + 0037h
0000h
(SA) + 0038h
0000h
(SA) + 0039h
0000h
(SA) + 003Ah
0000h
(SA) + 003Bh
0000h
(SA) + 003Ch
0000h
(SA) + 003Dh
FFFFh
Reserved
(SA) + 003Eh
FFFFh
Reserved
(SA) + 003Fh
FFFFh
Reserved
Datasheet
Flash Device Interface Description
0 = ×8-only, 1 = ×16-only, 2 = ×8/×16 capable
Max. number of byte in multi-byte write = 2N
(00 = not supported)
Erase Block Region 2 Information (refer to CFI publication 100)
Erase Block Region 3 Information (refer to CFI publication 100)
Erase Block Region 4 Information (refer to CFI publication 100)
64
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
Table 46
CFI primary vendor-specific extended query
Word address
Data
(SA) + 0040h
0050h
(SA) + 0041h
0052h
(SA) + 0042h
0049h
(SA) + 0043h
0031h
Major version number, ASCII
(SA) + 0044h
0035h
Minor version number, ASCII
(SA) + 0045h
001Ch
Address Sensitive Unlock (Bits 1–0)
00b = Required
01b = Not required
Process Technology (Bits 5–2)
0000b = 0.23 µm Floating Gate
0001b = 0.17 µm Floating Gate
0010b = 0.23 µm MIRRORBIT™
0011b = 0.13 µm Floating Gate
0100b = 0.11 µm MIRRORBIT™
0101b = 0.09 µm MIRRORBIT™
0110b = 0.09 µm Floating Gate
0111b = 0.065 µm MIRRORBIT™ Eclipse
1000b = 0.065 µm MIRRORBIT™
1001b = 0.045 µm MIRRORBIT™
(SA) + 0046h
0002h
Erase Suspend
0 = Not supported
1 = Read Only
2 = Read and Write
(SA) + 0047h
0001h
Sector Protect
00 = Not supported
X = Number of sectors in smallest group
(SA) + 0048h
0000h
Temporary Sector Unprotect
00 = Not supported
01 = Supported
(SA) + 0049h
0008h
Sector Protect/Unprotect Scheme
04 = High Voltage method
05 = Software Command Locking method
08 = Advanced Sector Protection method
(SA) + 004Ah
0000h
Simultaneous Operation
00 = Not supported
X = Number of banks
(SA) + 004Bh
0000h
Burst Mode type
00 = Not supported
01 = Supported
(SA) + 004Ch
0003h
Page Mode type
00 = Not supported
01 = 4 Word Page
02 = 8 Word Page
03 = 16 Word Page
(SA) + 004Dh
0000h
ACC (Acceleration) Supply Minimum
00 = Not supported
D7–D4: Volt
D3–D0: 100 mV
Datasheet
Description
Query-unique ASCII string “PRI”
65
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
Table 46
CFI primary vendor-specific extended query (Continued)
Word address
Data
(SA) + 004Eh
0000h
(SA) + 004Fh
0004h (Bottom)
0005h (Top)
(SA) + 0050h
0001h
Program Suspend
00 = Not supported
01 = Supported
(SA) +0051h
0000h
Unlock Bypass
00 = Not supported
01 = Supported
(SA) + 0052h
0009h
Secured Silicon Sector (Customer OTP Area) Size 2N (bytes)
(SA) + 0053h
008Fh
Software Features
bit 0: status register polling (1 = supported, 0 = not supported)
bit 1: DQ polling (1 = supported, 0 = not supported)
bit 2: new program suspend/resume commands
(1 = supported, 0 = not supported)
bit 3: word programming (1 = supported, 0 = not supported)
bit 4: bit-field programming (1 = supported, 0 = not supported)
bit 5: autodetect programming (1 = supported, 0 = not supported)
bit 6: RFU
bit 7: multiple writes per Line (1 = supported, 0 = not supported)
(SA) + 0054h
0005h
Page Size = 2N bytes
(SA) + 0055h
0006h
Erase Suspend Timeout Maximum < 2N (µs)
(SA) + 0056h
0006h
Program Suspend Timeout Maximum < 2N (µs)
(SA) + 0057h
to
(SA) + 0077h
FFFFh
Reserved
(SA) + 0078h
0006h
Embedded Hardware Reset Timeout Maximum < 2N (µs)
Reset with Reset Pin
(SA) + 0079h
0009h
Non-Embedded Hardware Reset Timeout Maximum < 2N (µs)
Power on Reset
Datasheet
Description
ACC (Acceleration) Supply Maximum
00 = Not Supported
D7–D4: Volt
D3–D0: 100 mV
WP# Protection
00h = Flash device without WP Protect (No Boot)
01h = Eight 8 kB Sectors at TOP and Bottom with WP (Dual Boot)
02h = Bottom Boot Device with WP Protect (Bottom Boot)
03h = Top Boot Device with WP Protect (Top Boot)
04h = Uniform, Bottom WP Protect (Uniform Bottom Boot)
05h = Uniform, Top WP Protect (Uniform Top Boot)
06h = WP Protect for all sectors
07h = Uniform, Top and Bottom WP Protect
66
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Software interface reference
7.3
Device ID and Common Flash Interface (ID-CFI) ASO Map
Table 47
Device ID and common flash interface (ID-CFI) ASO map
Word
address
Data field
# of bytes
Data
format
Example
of actual
data
(SA) + 0080h
Size of Electronic Marking
1
Hex
19
0013h
(SA) + 0081h Revision of Electronic Marking
1
Hex
1
0001h
(SA) + 0082h
Fab Lot #
7
Ascii
(SA) + 0089h
Wafer #
1
Hex
23
0017h
(SA) + 008Ah
Die X Coordinate
1
Hex
10
000Ah
(SA) + 008Bh
Die Y Coordinate
1
Hex
15
000Fh
(SA) + 008Ch
Class Lot#
7
Ascii
(SA) + 0093h
Reserved for future
13
n/a
Hex read out of example
data
LD87270 004Ch, 0044h, 0038h, 0037h,
0032h, 0037h, 0030h
BR33150 0042h, 0052h, 0033h, 0033h,
0031h, 0035h, 0030h
n/a
undefined
Fab Lot # + Wafer # + Die X Coordinate + Die Y Coordinate gives a unique ID for each device.
Datasheet
67
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Signal descriptions
8
Signal descriptions
8.1
Address and data configuration
Address and data are connected in parallel (ADP) via separate signal inputs and I/Os.
8.2
Input/Output summary
Table 48
I/O summary
Symbol
Type
Description
RESET#
Input
Hardware Reset. At VIL, causes the device to reset control logic to its
standby state, ready for reading array data.
CE#
Input
Chip Enable. At VIL, selects the device for data transfer with the host
memory controller.
OE#
Input
Output Enable. At VIL, causes outputs to be actively driven. At VIH,
causes outputs to be high impedance (High-Z).
WE#
Input
Write Enable. At VIL, indicates data transfer from host to device. At
VIH, indicates data transfer is from device to host.
AMAX–A0
Input
Address inputs.
A25–A0 for S29GL01GS
A24–A0 for S29GL512S
A23–A0 for S29GL256S
A22–A0 for S29GL128S
DQ15–DQ0
Input/Output
WP#
Input
RY/BY#
Data inputs and outputs
Write Protect. At VIL, disables program and erase functions in the
lowest or highest address 64-kword (128-kB) sector of the device. At
VIH, the sector is not protected. WP# has an internal pull up; When
unconnected WP# is at VIH.
Output - open drain Ready/Busy. Indicates whether an Embedded Algorithm is in
progress or complete. At VIL, the device is actively engaged in an
Embedded Algorithm such as erasing or programming. At High-Z, the
device is ready for read or a new command write - requires external
pull-up resistor to detect the High-Z state. Multiple devices may have
their RY/BY# outputs tied together to detect when all devices are
ready.
VCC
Power Supply
Core power supply
VIO
Power Supply
Versatile IO power supply.
VSS
Power Supply
Power supplies ground
NC
No Connect
Not Connected internally. The pin/ball location may be used in
printed circuit board (PCB) as part of a routing channel.
RFU
No Connect
Reserved for Future Use. Not currently connected internally but the
pin/ball location should be left unconnected and unused by PCB
routing channel for future compatibility. The pin/ball may be used by
a signal in the future.
DNU
Reserved
Do Not Use. Reserved for use by Infineon. The pin/ball is connected
internally. The input has an internal pull down resistance to VSS. The
pin/ball can be left open or tied to VSS on the PCB.
Datasheet
68
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Signal descriptions
8.3
Versatile I/O feature
The maximum output voltage level driven by, and input levels acceptable to, the device are determined by the
VIO power supply. This supply allows the device to drive and receive signals to and from other devices on the same
bus having interface signal levels different from the device core voltage.
8.4
Ready/Busy# (RY/BY#)
RY/BY# is a dedicated, open drain output pin that indicates whether an Embedded Algorithm, Power-On Reset
(POR), or Hardware Reset is in progress or complete. The RY/BY# status is valid after the rising edge of the final
WE# pulse in a command sequence, when VCC is above VCC minimum during POR, or after the falling edge of
RESET#. Since RY/BY# is an open drain output, several RY/BY# pins can be tied together in parallel with a pull up
resistor to VIO.
If the output is Low (Busy), the device is actively erasing, programming, or resetting. (This includes programming
in the Erase Suspend mode). If the output is High (Ready), the device is ready to read data (including during the
Erase Suspend mode), or is in the standby mode.
Table 15 shows the outputs for RY/BY# in each operation.
If an Embedded algorithm has failed (Program / Erase failure as result of max pulses or Sector is locked),
RY/BY# will stay LOW (busy) until status register bits 4 and 5 are cleared and the reset command is issued. This
includes Erase or Programming on a locked sector.
8.5
Hardware Reset
The RESET# input provides a hardware method of resetting the device to standby state. When RESET# is driven
LOW for at least a period of tRP, the device immediately:
• terminates any operation in progress,
• exits any ASO,
• tristates all outputs,
• resets the status register,
• resets the EAC to standby state.
• CE# is ignored for the duration of the reset operation (tRPH).
• To meet the Reset current specification (ICC5) CE# must be held HIGH.
To ensure data integrity any operation that was interrupted should be reinitiated once the device is ready to
accept another command sequence.
Datasheet
69
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Signal protocols
9
Signal protocols
The following sections describe the host system interface signal behavior and timing for the 29GL-S family flash
devices.
9.1
Interface states
Table 49 describes the required value of each interface signal for each interface state.
Table 49
Interface states
Interface state
VCC
VIO
Power-Off with Hardware Data
Protection
< VLKO
VCC
X
X
X
Power-On (Cold) Reset
VCC min
VIO min
VCC
X
X
Hardware (Warm) Reset
VCC min
VIO min
VCC
L
Interface Standby
VCC min
Automatic Sleep[70, 71]
VIO min
VCC
VCC min
Read with Output Disable[72]
RESET# CE#
OE# WE#
AMAX–A0
DQ15–DQ0
X
X
High-Z
X
X
X
High-Z
X
X
X
X
High-Z
H
H
X
X
X
High-Z
VIO min
VCC
H
L
X
X
Valid
Output
available
VCC min
VIO min
VCC
H
L
H
H
Valid
High-Z
Random Read
VCC min
VIO min
H
L
L
H
Valid
Output valid
Page Read
VCC min
VIO min
VCC
H
L
L
H
Write
VCC min
VIO min
VCC
H
L
H
L
AMAX–A4 Output valid
valid
A3–A0
modified
Valid
Input valid
Legend:
L = VIL
H = VIH
X = either VIL or VIH
L/H = rising edge
H/L = falling edge
Valid = all bus signals have stable L or H level
Modified = valid state different from a previous valid state
Available = read data is internally stored with output driver controlled by OE#
Notes
70.WE# and OE# can not be at VIL at the same time.
71.Automatic Sleep is a read/write operation where data has been driven on the bus for an extended period,
without CE# going HIGH and the device internal logic has gone into standby mode to conserve power.
72.Read with Output Disable is a read initiated with OE# HIGH.
Datasheet
70
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Signal protocols
9.2
Power-Off with Hardware Data Protection
The memory is considered to be powered off when the core power supply (VCC) drops below the lock-out voltage
(VLKO). When VCC is below VLKO, the entire memory array is protected against a program or erase operation. This
ensures that no spurious alteration of the memory content can occur during power transition. During a power
supply transition down to Power-Off, VIO should remain less than or equal to VCC.
If VCC goes below VRST (Min) then returns above VRST (Min) to VCC minimum, the Power-On Reset interface state
is entered and the EAC starts the Cold Reset Embedded Algorithm.
9.3
Power Conservation Modes
9.3.1
Interface Standby
Standby is the default, low power, state for the interface while the device is not selected by the host for data
transfer (CE# = HIGH). All inputs are ignored in this state and all outputs except RY/BY# are high impedance.
RY/BY# is a direct output of the EAC, not controlled by the Host Interface.
9.3.2
Automatic Sleep
The automatic sleep mode reduces device interface energy consumption to the sleep level (ICC6) following the
completion of a random read access time. The device automatically enables this mode when addresses remain
stable for tACC + 30 ns. While in sleep mode, output data is latched and always available to the system. Output of
the data depends on the level of the OE# signal but, the automatic sleep mode current is independent of the OE#
signal level. Standard address access timings (tACC or tPACC) provide new data when addresses are changed. ICC6
in “DC characteristics” on page 78 represents the automatic sleep mode current specification.
Automatic sleep helps reduce current consumption especially when the host system clock is slowed for power
reduction. During slow system clock periods, read and write cycles may extend many times their length versus
when the system is operating at high speed. Even though CE# may be LOW throughout these extended data
transfer cycles, the memory device host interface will go to the Automatic Sleep current at tACC + 30 ns. The device
will remain at the Automatic Sleep current for tASSB. Then the device will transition to the standby current level.
This keeps the memory at the Automatic Sleep or standby power level for most of the long duration data transfer
cycles, rather than consuming full read power all the time that the memory device is selected by the host system.
However, the EAC operates independent of the automatic sleep mode of the host interface and will continue to
draw current during an active Embedded Algorithm. Only when both the host interface and EAC are in their
standby states is the standby level current achieved.
Datasheet
71
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Signal protocols
9.4
Read
9.4.1
Read with Output Disable
When the CE# signal is asserted LOW, the host system memory controller begins a read or write data transfer.
Often there is a period at the beginning of a data transfer when CE# is LOW, address is valid, OE# is HIGH, and WE#
is HIGH. During this state a read access is assumed and the Random Read process is started while the data outputs
remain at high impedance. If the OE# signal goes LOW, the interface transitions to the Random Read state, with
data outputs actively driven. If the WE# signal is asserted LOW, the interface transitions to the Write state. Note,
OE# and WE# should never be LOW at the same time to ensure no data bus contention between the host system
and memory.
9.4.2
Random (Asynchronous) Read
When the host system interface selects the memory device by driving CE# LOW, the device interface leaves the
Standby state. If WE# is HIGH when CE# goes LOW, a random read access is started. The data output depends on
the address map mode and the address provided at the time the read access is started.
The data appears on DQ15–DQ0 when CE# is LOW, OE# is LOW, WE# remains HIGH, address remains stable, and
the asynchronous access times are satisfied. Address access time (tACC) is equal to the delay from stable
addresses to valid output data. The chip enable access time (tCE) is the delay from stable CE# to valid data at the
outputs. In order for the read data to be driven on to the data outputs the OE# signal must be LOW at least the
output enable time (tOE) before valid data is available.
At the completion of the random access time from CE# active (tCE), address stable (tACC), or OE# active (tOE),
whichever occurs latest, the data outputs will provide valid read data from the currently active address map
mode. If CE# remains LOW and any of the AMAX to A4 address signals change to a new value, a new random read
access begins. If CE# remains LOW and OE# goes HIGH the interface transitions to the Read with Output Disable
state. If CE# remains LOW, OE# goes HIGH, and WE# goes LOW, the interface transitions to the Write state. If CE#
returns HIGH, the interface goes to the Standby state. Back to Back accesses, in which CE# remains LOW between
accesses, requires an address change to initiate the second access. See “Asynchronous Read operations” on
page 85.
9.4.3
Page Read
After a Random Read access is completed, if CE# remains LOW, OE# remains LOW, the AMAX to A4 address signals
remain stable, and any of the A3 to A0 address signals change, a new access within the same page begins. The
Page Read completes much faster (tPACC) than a Random Read access.
Datasheet
72
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Signal protocols
9.5
Write
9.5.1
Asynchronous Write
When WE# goes Low after CE is LOW, there is a transition from one of the read states to the Write state. If WE# is
LOW before CE# goes LOW, there is a transition from the Standby state directly to the Write state without
beginning a read access.
When CE# is LOW, OE# is HIGH, and WE# goes LOW, a write data transfer begins. Note, OE# and WE# should never
be LOW at the same time to ensure no data bus contention between the host system and memory. When the
asynchronous write cycle timing requirements are met the WE# can go HIGH to capture the address and data
values in to EAC command memory.
Address is captured by the falling edge of WE# or CE#, whichever occurs later. Data is captured by the rising edge
of WE# or CE#, whichever occurs earlier.
When CE# is LOW before WE# goes LOW and stays LOW after WE# goes HIGH, the access is called a WE# controlled
Write. When WE# is HIGH and CE# goes HIGH, there is a transition to the Standby state. If CE# remains LOW and
WE# goes HIGH, there is a transition to the Read with Output Disable state.
When WE# is LOW before CE# goes LOW and remains LOW after CE# goes HIGH, the access is called a CE#
controlled Write. A CE# controlled Write transitions to the Standby state.
If WE# is LOW before CE# goes LOW, the write transfer is started by CE# going LOW. If WE# is LOW after CE# goes
HIGH, the address and data are captured by the rising edge of CE#. These cases are referred to as CE# controlled
write state transitions.
Write followed by Read accesses, in which CE# remains LOW between accesses, requires an address change to
initiate the following read access.
Back to Back accesses, in which CE# remains LOW between accesses, requires an address change to initiate the
second access.
The EAC command memory array is not readable by the host system and has no ASO. The EAC examines the
address and data in each write transfer to determine if the write is part of a legal command sequence. When a
legal command sequence is complete the EAC will initiate the appropriate EA.
9.5.2
Write Pulse “Glitch” Protection
Noise pulses of less than 5 ns (typical) on WE# will not initiate a write cycle.
9.5.3
Logical Inhibit
Write cycles are inhibited by holding OE# at VIL, or CE# at VIH, or WE# at VIH. To initiate a write cycle, CE# and WE#
must be LOW (VIL) while OE# is HIGH (VIH).
Datasheet
73
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Electrical specifications
10
Electrical specifications
10.1
Absolute maximum ratings
Table 50
Absolute maximum ratings
Storage temperature plastic packages
–65°C to +150°C
Ambient temperature with power applied
–65°C to +125°C
Voltage with respect to ground
All pins other than RESET# [73]
–0.5 V to (VIO + 0.5 V)
RESET#[73]
–0.5 V to (VCC + 0.5 V)
Output short circuit current[74]
100 mA
VCC
–0.5 V to +4.0 V
VIO
–0.5 V to +4.0 V
10.2
Latchup characteristics
This product complies with JEDEC standard JESD78C latchup testing requirements.
10.3
Thermal resistance
Table 51
Thermal resistance
Parameter
Theta JA
Theta JB
Theta JC
Description
Thermal resistance
(junction to ambient)
Thermal resistance
(junction to board)
Thermal resistance
(junction to case)
Part number
LAA064
LAE064
TS056
VBU056
Unit
S29GL01GS
19.8
27.3
38
–
°C/W
S29GL512S
22.2
30.4
44
30.2
S29GL256S
24.1
33
46
34.47
S29GL128S
25.2
34.1
56.7
35.94
S29GL01GS
6.5
5.7
30
–
S29GL512S
10.5
8.4
41
8.14
S29GL256S
11.7
12.2
54.7
12.1
S29GL128S
13
13.70
60
13.64
S29GL01GS
5.19
6.0
11.2
–
S29GL512S
6.8
7.5
15
8
S29GL256S
7.4
10.1
18
10.11
S29GL128S
10.3
9.74
18
11.36
Notes
73.Minimum DC voltage on input or I/O pins is –0.5 V. During voltage transitions, input or I/O pins may
undershoot VSS to –2.0 V for periods of up to 20 ns. See Figure 11. Maximum DC voltage on input or I/O pins
is VCC + 0.5 V. During voltage transitions, input or I/O pins may overshoot to VCC + 2.0 V for periods up to
20 ns. See Figure 12.
74.No more than one output may be shorted to ground at a time. Duration of the short circuit should not be
greater than one second.
75.Stresses above those listed under Absolute maximum ratings may cause permanent damage to the device.
This is a stress rating only; functional operation of the device at these or any other conditions above those
indicated in the operational sections of this data sheet is not implied. Exposure of the device to absolute
maximum rating conditions for extended periods may affect device reliability.
Datasheet
74
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Electrical specifications
10.4
Operating ranges
10.4.1
Temperature ranges
Table 52
Temperature ranges
Parameter
Ambient temperature
Symbol
TA
Spec
Device
Min
Max
Industrial (I)
–40
+85
Industrial plus (V)
–40
+105
Automotive, AEC-Q100 grade 3 (A)
–40
+85
Automotive, AEC-Q100 grade 2 (B)
–40
+105
10.4.2
Power supply voltages
Table 53
Power supply voltages
VCC
2.7 V to 3.6 V
VIO
1.65 V to VCC + 200 mV
Unit
°C
Operating ranges define those limits between which the functionality of the device is guaranteed.
10.4.3
Power-up and power-down
During power-up or power-down VCC must always be greater than or equal to VIO (VCC VIO).
The device ignores all inputs until a time delay of tVCS has elapsed after the moment that VCC and VIO both rise
above, and stay above, the minimum VCC and VIO thresholds. During tVCS the device is performing power on reset
operations.
During power-down or voltage drops below VCC Lockout maximum (VLKO), the VCC and VIO voltages must drop
below VCC Reset (VRST) minimum for a period of tPD for the part to initialize correctly when VCC and VIO again rise
to their operating ranges. See Figure 10. If during a voltage drop the VCC stays above VLKO maximum the part will
stay initialized and will work correctly when VCC is again above VCC minimum. If the part locks up from improper
initialization, a hardware reset can be used to initialize the part correctly.
Normal precautions must be taken for supply decoupling to stabilize the VCC and VIO power supplies. Each device
in a system should have the VCC and VIO power supplies decoupled by a suitable capacitor close to the package
connections (this capacitor is generally on the order of 0.1 µF). At no time should VIO be greater then 200 mV above
VCC (VCC VIO – 200 mV).
Table 54
Power-up/power-down voltage and timing
Symbol
Parameter
VCC
VCC power supply
VLKO
VCC level below which re-initialization is required
VRST
VCC and VIO Low voltage needed to ensure initialization will occur
tVCS
tPD
[76]
VCC and VIO minimum to first access
[76]
[76]
Duration of VCC VRST(min)
[76]
Min
Max
Unit
2.7
3.6
V
2.25
2.5
V
1.0
–
V
300
–
µs
15
–
µs
Note
76.Not 100% tested.
Datasheet
75
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Electrical specifications
P o w e r S u p p ly
V o lta g e
V cc (m a x)
V cc (m in )
V IO (m a x)
V IO (m in)
V cc
tVC S
V IO
F u ll D e vice A ccess
tim e
Figure 9
Power-up
V C C a n d V IO
V C C (m a x)
N o D e vice A cce ss A llo w e d
V C C (m in )
tVC S
V L K O (m a x)
F u ll D e vice
A ccess
A llo w e d
V R S T (m in )
tP D
tim e
Figure 10
Datasheet
Power-down and voltage drop
76
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Electrical specifications
10.4.4
Input signal overshoot
20 ns
20 ns
VIL max
VIL min
–2 .0 V
20 n s
Figure 11
Maximum negative overshoot waveform
20 ns
VIO + 2.0 V
VIH max
VIH min
20 ns
Figure 12
Datasheet
20 ns
Maximum positive overshoot waveform
77
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Electrical specifications
10.5
DC characteristics
Table 55
DC characteristics (–40°C to +85°C)
Parameter
Description
Test conditions
Min
Typ[77]
Max
Unit
ILI
Input load current
VIN = VSS to VCC,
VCC = VCC max
–
+0.02
±1.0
µA
ILO
Output leakage current
VOUT = VSS to VCC,
VCC = VCC max
–
+0.02
±1.0
µA
ICC1
VCC active read current
CE# = VIL, OE# = VIH,
address switching @ 5 MHz,
VCC = VCC max
–
55
60
mA
ICC2
VCC intra-page read current
CE# = VIL, OE# = VIH,
address switching @ 33 MHz,
VCC = VCC max
–
9
25
mA
ICC3
VCC active erase/program
current[77, 78]
CE# = VIL, OE# = VIH,
VCC = VCC max
–
45
100
mA
ICC4
VCC standby current
–
70
100
µA
ICC5
VCC reset current[77, 79]
CE#, RESET#, OE# = VIH,
VIH = VIO. VIL = VSS,
VCC = VCC max
–
10
20
mA
ICC6
Automatic sleep mode[80]
CE# = VIH, RESET# = VIL,
VCC = VCC max
VIH = VIO, VIL = VSS ,
VCC = VCC max, tACC + 30 ns
–
3
6
mA
VIH = VIO, VIL = VSS,
VCC = VCC max, tASSB
–
100
150
µA
RESET# = VIO, CE# = VIO,
OE# = VIO, VCC = VCC max,
–
53
80
mA
–0.5
–
0.3 × VIO
V
0.7 × VIO
–
VIO + 0.4
V
–
–
0.15 × VIO
V
0.85 × VIO
–
–
V
ICC7
VCC current
during power up[77, 81]
VIL
Input low voltage[82]
VIH
Input high voltage
VOL
Output low voltage
VOH
Output high voltage[82]
VLKO
Low VCC lock-out voltage
2.25
–
2.5
V
VRST
Low VCC power on reset
voltage[77]
–
1.0
–
V
[82]
[82, 84]
[77]
IOL = 100 µA for DQ15–DQ0;
IOL = 2 mA for RY/BY#
IOH = 100 µA
Notes
77.Not 100% tested.
78.ICC active while Embedded Algorithm is in progress.
79.If an embedded operation is in progress at the start of reset, the current consumption will remain at the
embedded operation specification until the embedded operation is stopped by the reset. If no embedded
operation is in progress when reset is started, or following the stopping of an embedded operation, ICC5 will
be drawn during the remainder of tRPH. After the end of tRPH the device will go to standby mode until the next
read or write.
80.Automatic sleep mode enables the lower power mode when addresses remain stable for the specified
designated time.
81.During power-up there are spikes of current demand, the system needs to be able to supply this current to
insure the part initializes correctly.
82.VIO = 1.65 V to VCC or 2.7 V to VCC depending on the model.
83.VCC = 3 V and VIO = 3 V or 1.8 V. When VIO is at 1.8 V, I/O pins cannot operate at >1.8 V.
84.The recommended pull-up resistor for RY/BY# output is 5k to 10k Ohms.
Datasheet
78
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Electrical specifications
Table 56
Parameter
DC characteristics (–40°C to +105°C)
Description
Test conditions
Min
Typ[85]
Max
Unit
ILI
Input load current
VIN = VSS to VCC,
VCC = VCC max
–
+0.02
±1.0
µA
ILO
Output leakage current
VOUT = VSS to VCC,
VCC = VCC max
–
+0.02
±1.0
µA
ICC1
VCC active read current
CE# = VIL, OE# = VIH,
address switching @ 5 MHz,
VCC = VCC max
–
55
60
mA
ICC2
VCC intra-page read current
CE# = VIL, OE# = VIH,
address switching @ 33 MHz,
VCC = VCC max
–
9
25
mA
ICC3
VCC active erase/program
current[85, 86]
CE# = VIL, OE# = VIH,
VCC = VCC max
–
45
100
mA
ICC4
VCC standby current
–
70
200
µA
ICC5
VCC reset current[85, 87]
CE#, RESET#, OE# = VIH,
VIH = VIO, VIL = VSS,
VCC = VCC max
–
10
20
mA
ICC6
Automatic sleep mode[88]
CE# = VIH, RESET# = VIL,
VCC = VCC max
VIH = VIO, VIL = VSS ,
VCC = VCC max, tACC + 30 ns
–
3
6
mA
VIH = VIO, VIL = VSS,
VCC = VCC max, tASSB
–
100
200
µA
RESET# = VIO, CE# = VIO,
OE# = VIO, VCC = VCC max
–
53
80
mA
–0.5
–
0.3 × VIO
V
0.7 × VIO
–
VIO + 0.4
V
–
–
0.15 × VIO
V
0.85 × VIO
–
–
V
ICC7
VCC current during
power-up[85, 89]
VIL
Input low voltage[90]
VIH
Input high voltage
VOL
Output low voltage
VOH
Output high voltage[90]
VLKO
Low VCC lock-out voltage
2.25
–
2.5
V
VRST
Low VCC power on reset
voltage[85]
–
1.0
–
V
[90]
[90, 92]
[85]
IOL = 100 µA for DQ15–DQ0;
IOL = 2 mA for RY/BY#
IOH = 100 µA
Notes
85.Not 100% tested.
86.ICC active while embedded algorithm is in progress.
87.If an embedded operation is in progress at the start of reset, the current consumption will remain at the
embedded operation specification until the embedded operation is stopped by the reset. If no embedded
operation is in progress when reset is started, or following the stopping of an embedded operation, ICC7 will
be drawn during the remainder of tRPH. After the end of tRPH the device will go to standby mode until the
next read or write.
88.Automatic sleep mode enables the lower power mode when addresses remain stable for the specified
designated time.
89.During power-up there are spikes of current demand, the system needs to be able to supply this current to
insure the part initializes correctly.
90.VIO = 1.65 V to VCC or 2.7 V to VCC depending on the model.
91.VCC = 3 V and VIO = 3 V or 1.8 V. When VIO is at 1.8 V, I/O pins cannot operate at >1.8 V.
92.The recommended pull-up resistor for RY/BY# output is 5k to 10k Ohms.
Datasheet
79
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Electrical specifications
10.6
Capacitance characteristics
Table 57
Connector capacitance for FBGA (LAA) package
Parameter
symbol
Parameter description
Test setup
Typ
Max
Unit
VIN = 0
8
9
pF
VOUT = 0
5
7
pF
VIN = 0
4
8
pF
VOUT = 0
3
4
pF
Test setup
Typ
Max
Unit
VIN = 0
7
8
pF
VOUT = 0
5
6
pF
VIN = 0
3
7
pF
VOUT = 0
3
4
pF
Test setup
Typ
Max
Unit
VIN = 0
7
8
pF
VOUT = 0
5
6
pF
VIN = 0
3
7
pF
VOUT = 0
3
4
pF
CIN
Input capacitance
COUT
Output capacitance
CIN2
Control pin capacitance
RY/BY#
Output capacitance
Table 58
Connector capacitance for FBGA (LAE) package
Parameter
symbol
Parameter description
CIN
Input capacitance
COUT
Output capacitance
CIN2
Control pin capacitance
RY/BY#
Output capacitance
Table 59
Connector capacitance for TSOP package
Parameter
symbol
Parameter description
CIN
Input capacitance
COUT
Output capacitance
CIN2
Control pin capacitance
RY/BY#
Output capacitance
Notes
93.Sampled, not 100% tested.
94.Test conditions TA = 25°C, f = 1.0 MHz.
95.Sampled, not 100% tested.
96.Test conditions TA = 25°C, f = 1.0 MHz.
97.Sampled, not 100% tested.
98.Test conditions TA = 25°C, f = 1.0 MHz.
Datasheet
80
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
11
Timing specifications
11.1
Key to switching waveforms
Table 60
Key to switching waveforms
Waveform
Inputs
Outputs
Steady
Changing from H to L
Changing from L to H
11.2
Don’t care, any change permitted
Changing, state unknown
Does not apply
Center line is high impedance state (High-Z)
AC test conditions
Device
Under
Test
CL
Figure 13
Test setup
Table 61
Test specification
Parameter
All speeds
Units
30
pF
1.5
ns
0.0–VIO
V
Input timing measurement reference levels
VIO/2
V
Output timing measurement reference levels
VIO/2
V
Output load capacitance, CL
Input rise and fall times[99]
Input pulse levels
VIO
0.0 V
Figure 14
Input
0.5 VIO
Measurement Level
0.5 VIO
Output
Input waveforms and measurement levels
Note
99.Measured between VIL max and VIH min.
Datasheet
81
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
11.3
Power-on reset (POR) and warm reset
Normal precautions must be taken for supply decoupling to stabilize the VCC and VIO power supplies. Each device
in a system should have the VCC and VIO power supplies decoupled by a suitable capacitor close to the package
connections (this capacitor is generally on the order of 0.1 µF).
Table 62
Power ON and Reset parameters
Parameter
Description
Limit
Value
Unit
Setup Time to first access[100, 101]
Min
300
µs
Setup Time to first access[100, 101]
Min
300
µs
tVCS
VCC
tVIOS
VIO
tRPH
RESET# LOW to CE# LOW
Min
35
µs
tRP
RESET# Pulse Width
Min
200
ns
tRH
Time between RESET# (HIGH) and CE# (LOW)
Min
50
ns
tCEH
CE# Pulse Width High
Min
20
ns
Notes
100.Not 100% tested.
101.Timing measured from VCC reaching VCC minimum and VIO reaching VIO minimum to VIH on Reset and VIL on
CE#.
102.RESET# Low is optional during POR. If RESET is asserted during POR, the later of tRPH, tVIOS, or tVCS will
determine when CE# may go LOW. If RESET# remains LOW after tVIOS, or tVCS is satisfied, tRPH is measured
from the end of tVIOS, or tVCS. RESET must also be HIGH tRH before CE# goes LOW.
103.VCC VIO - 200 mV during power-up.
104.VCC and VIO ramp rate can be non-linear.
105.Sum of tRP and tRH must be equal to or greater than tRPH.
Datasheet
82
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
11.3.1
Power-on (Cold) Reset (POR)
During the rise of power supplies the VIO supply voltage must remain less than or equal to the VCC supply voltage.
VIH also must remain less than or equal to the VIO supply.
The Cold Reset Embedded Algorithm requires a relatively long, hundreds of µs, period (tVCS) to load all of the EAC
algorithms and default state from non-volatile memory. During the Cold Reset period all control signals including
CE# and RESET# are ignored. If CE# is LOW during tVCS the device may draw higher than normal POR current
during tVCS but the level of CE# will not affect the Cold Reset EA. CE# or OE# must transition from HIGH to LOW
after tVCS for a valid read or write operation. RESET# may be HIGH or LOW during tVCS. If RESET# is LOW during
tVCS it may remain LOW at the end of tVCS to hold the device in the Hardware Reset state. If RESET# is HIGH at the
end of tVCS the device will go to the Standby state.
When power is first applied, with supply voltage below VRST then rising to reach operating range minimum,
internal device configuration and warm reset activities are initiated. CE# is ignored for the duration of the POR
operation (tVCS or tVIOS). RESET# LOW during this POR period is optional. If RESET# is driven LOW during POR it
must satisfy the Hardware Reset parameters tRP and tRPH. In which case the Reset operations will be completed
at the later of tVCS or tVIOS or tRPH.
During Cold Reset the device will draw ICC7 current.
tVCS
VCC
tVIOS
VIO
RESET#
tRH
tCEH
CE#
Figure 15
Datasheet
Power-up diagram
83
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
11.3.2
Hardware (Warm) Reset
During Hardware Reset (tRPH) the device will draw ICC5 current.
When RESET# continues to be held at VSS, the device draws CMOS standby current (ICC4). If RESET# is held at VIL,
but not at VSS, the standby current is greater.
If a Cold Reset has not been completed by the device when RESET# is asserted LOW after tVCS, the Cold Reset# EA
will be performed instead of the Warm RESET#, requiring tVCS time to complete.
See Figure 16.
After the device has completed POR and entered the Standby state, any later transition to the Hardware Reset
state will initiate the Warm Reset Embedded Algorithm. A Warm Reset is much shorter than a Cold Reset, taking
tens of µs (tRPH) to complete. During the Warm Reset EA, any in progress Embedded Algorithm is stopped and the
EAC is returned to its POR state without reloading EAC algorithms from non-volatile memory. After the Warm
Reset EA completes, the interface will remain in the Hardware Reset state if RESET# remains LOW. When RESET#
returns HIGH the interface will transit to the Standby state. If RESET# is HIGH at the end of the Warm Reset EA,
the interface will directly transit to the Standby state.
If POR has not been properly completed by the end of tVCS, a later transition to the Hardware Reset state will cause
a transition to the Power-on Reset interface state and initiate the Cold Reset Embedded Algorithm. This ensures
the device can complete a Cold Reset even if some aspect of the system Power-On voltage ramp-up causes the
POR to not initiate or complete correctly. The RY/BY# pin is LOW during cold or warm reset as an indication that
the device is busy performing reset operations.
Hardware Reset is initiated by the RESET# signal going to VIL.
tRP
RESET#
tRH
tRPH
tCEH
CE#
Figure 16
Datasheet
Hardware Reset
84
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
11.4
AC characteristics
11.4.1
Asynchronous Read operations
Table 63
Read Operation VIO = VCC = 2.7 V to 3.6 V (–40°C to +85°C)
Parameter
JEDEC
tAVAV
Description
Std
tRC
Speed option
Test setup
Read Cycle Time[106]
128 Mb, 256 Mb
Min
512 Mb, 1 Gb
tAVQV
tELQV
tACC
tCE
tPACC
Address to Output Delay CE# = VIL
OE# = VIL
128 Mb, 256 Mb
Chip Enable to Output
Delay
128 Mb, 256 Mb
Max
512 Mb, 1 Gb
OE# = VIL
Max
512 Mb, 1 Gb
Page Access Time
128 Mb, 256 Mb
Max
512 Mb, 1 Gb
90
100
110
90
100
–
–
100
110
90
100
–
–
100
110
90
100
–
–
100
110
15
20
–
–
15
20
Unit
ns
ns
ns
ns
tGLQV
tOE
Output Enable to Output Delay
Max
25
ns
tAXQX
tOH
Output Hold time from addresses,
CE# or OE#, Whichever Occurs First
Min
0
ns
tEHQZ
tDF
Chip Enable or Output Enable to
Output High-Z[106]
Max
15
ns
tOEH
Output Enable Hold
Time[106]
Read
Min
0
ns
Toggle
and Data#
Polling
Min
10
ns
Typ
5
µs
Max
8
µs
tASSB
Automatic Sleep
to Standby time[106]
CE# = VIL,
address stable
Note
106.Not 100% tested.
Datasheet
85
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
Table 64
Read Operation VIO = 1.65 V to VCC, VCC = 2.7 V to 3.6 V (–40°C to +85°C)
Parameter
JEDEC
tAVAV
Description
Std
tRC
Speed options
Test setup
Read Cycle time[107]
128 Mb, 256 Mb
Min
512 Mb, 1 Gb
tAVQV
tELQV
tACC
tCE
tPACC
Address to Output Delay CE# = VIL
OE# = VIL
128 Mb, 256 Mb
Chip Enable to Output
Delay
128 Mb, 256 Mb
Max
512 Mb, 1 Gb
OE# = VIL
Max
512 Mb, 1 Gb
Page Access time
128 Mb, 256 Mb
Max
512 Mb, 1 Gb
100
110
120
100
110
–
–
110
120
100
110
–
–
110
120
100
110
–
–
110
120
25
30
–
–
25
30
Unit
ns
ns
ns
ns
tGLQV
tOE
Output Enable to Output Delay
Max
35
ns
tAXQX
tOH
Output Hold time from addresses,
CE# or OE#, Whichever Occurs First
Min
0
ns
tEHQZ
tDF
Chip Enable or Output Enable to
Output High-Z[107]
Max
20
ns
tOEH
Output Enable Hold
Time[107]
Read
Min
0
ns
Toggle
and Data#
Polling
Min
10
ns
Typ
5
µs
Max
8
µs
tASSB
Automatic Sleep
to Standby time[107]
CE# = VIL,
address stable
Note
107.Not 100% tested.
Datasheet
86
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
Table 65
Read Operation VIO = VCC = 2.7 V to 3.6 V (–40°C to +105°C)
Parameter
JEDEC
tAVAV
Description
Std
tRC
Speed Option
Test Setup
Read Cycle time[108]
128 Mb, 256 Mb
Min
512 Mb, 1 Gb
tAVQV
tELQV
tACC
tCE
tPACC
Address to Output Delay CE# = VIL
OE# = VIL
128 Mb, 256 Mb
Chip Enable to Output
Delay
128 Mb, 256 Mb
Max
512 Mb, 1 Gb
OE# = VIL
Max
512 Mb, 1 Gb
Page Access time
128 Mb, 256 Mb
Max
512 Mb, 1 Gb
100
110
120
100
110
–
–
110
120
100
110
–
–
110
120
100
110
–
–
110
120
15
20
–
–
15
20
Unit
ns
ns
ns
ns
tGLQV
tOE
Output Enable to Output Delay
Max
25
ns
tAXQX
tOH
Output Hold time from addresses,
CE# or OE#, Whichever Occurs First
Min
0
ns
tEHQZ
tDF
Chip Enable or Output Enable to
Output High-Z[108]
Max
15
ns
tOEH
Output Enable Hold
time[108]
Read
Min
0
ns
Toggle
and Data#
Polling
Min
10
ns
Typ
5
µs
Max
8
µs
tASSB
Automatic Sleep
to Standby time[108]
CE# = VIL,
address stable
Note
108.Not 100% tested.
Datasheet
87
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
Table 66
Read Operation VIO = 1.65 V to VCC, VCC = 2.7 V to 3.6 V (–40°C to +105°C)
Parameter
JEDEC
tAVAV
Description
Std
tRC
Speed Option
Test Setup
Read Cycle time[109]
128 Mb, 256 Mb
Min
512 Mb, 1 Gb
tAVQV
tELQV
tACC
tCE
tPACC
Address to Output Delay CE# = VIL
OE# = VIL
128 Mb, 256 Mb
Chip Enable to Output
Delay
128 Mb, 256 Mb
Max
512 Mb, 1 Gb
OE# = VIL
Max
512 Mb, 1 Gb
Page Access time
128 Mb, 256 Mb
Max
512 Mb, 1 Gb
110
120
130
110
120
–
–
120
130
110
120
–
–
120
130
110
120
–
–
120
130
25
30
–
–
25
30
Unit
ns
ns
ns
ns
tGLQV
tOE
Output Enable to Output Delay
Max
35
ns
tAXQX
tOH
Output Hold time from addresses,
CE# or OE#, Whichever Occurs First
Min
0
ns
tEHQZ
tDF
Chip Enable or Output Enable to
Output High-Z[109]
Max
20
ns
tOEH
Output Enable Hold
time[109]
Read
Min
0
ns
Toggle
and Data#
Polling
Min
10
ns
Typ
5
µs
Max
8
µs
tASSB
Automatic Sleep
to Standby time [109]
CE# = VIL,
address stable
Note
109.Not 100% tested.
Datasheet
88
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
tACC
tOH
tCE
tOH
Amax-A0
tDF
CE#
tDF
tOE
tOH
OE#
DQ15-DQ0
Figure 17
Back to Back Read (tACC) Operation timing diagram
tRC
tACC
tOH
Amax-A0
tCE
CE#
tOE
tOH
tDF
OE#
DQ15-DQ0
Figure 18
Back to Back Read Operation (tRC) timing diagram
tACC
Amax-A4
A3-A0
tCE
CE#
tOE
OE#
tPACC
DQ15-DQ0
Figure 19
Page Read timing diagram
Notes
110.Back to Back operations, in which CE# remains Low between accesses, requires an address change to
initiate the second access.
111.Word Configuration: Toggle A0, A1, A2, and A3.
Datasheet
89
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
11.4.2
Asynchronous Write Operations
Table 67
Write Operations
Parameter
JEDEC
VIO = 2.7 V to VIO = 1.65 V
Unit
VCC
to VCC
Description
Std
tAVAV
tWC
Write Cycle time[112]
Min
60
ns
tAVWL
tAS
Address Setup time
Min
0
ns
tASO
Address setup time to OE# LOW during toggle bit
polling
Min
15
ns
tAH
Address Hold time
Min
45
ns
tAHT
Address Hold time From CE# or OE# HIGH during
toggle bit polling
Min
0
ns
tDVWH
tDS
Data Setup time
Min
30
ns
tWHDX
tDH
Data Hold time
Min
0
ns
tOEPH
Output Enable HIGH during toggle bit polling or
following status register read.
Min
20
ns
tGHWL
tGHWL
Read Recovery time Before Write
(OE# HIGH to WE# LOW)
Min
0
ns
tELWL
tCS
CE# Setup time
Min
0
ns
tWHEH
tCH
CE# Hold time
Min
0
ns
tWLWH
tWP
WE# Pulse Width
Min
25
ns
tWHWL
tWPH
WE# Pulse Width HIGH
Min
20
ns
tWLAX
Note
112.Not 100% tested.
Datasheet
90
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
tWC
Amax-A0
tAS
tAH
tCS
tCH
CE#
OE#
tWP
tWPH
WE#
tDS
tDH
DQ15-DQ0
Figure 20
Back to Back Write Operation timing diagram
tWC
Amax-A0
tAS
tAH
tCS
CE#
OE#
tWP
tWPH
WE#
tDS
tDH
DQ15-DQ0
Figure 21
Datasheet
Back to Back (CE#VIL) Write Operation timing diagram
91
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
tAH
tAS
tSR_W
tACC
tOH
Amax-A0
tOH
tCS
tDF
CE#
tOH
tOEH
tOE
tDF
OE#
tWP
WE#
tDH
tDS
DQ15-DQ0
Figure 22
Write to Read (tACC) Operation timing diagram
tAH
tAS
tSR_W
tACC
tOH
Amax-A0
tOH
tCS
tCH
tCE
tDF
CE#
tOH
tOEH
tOE
tDF
OE#
tWP
WE#
tDH
tDS
DQ15-DQ0
Figure 23
Datasheet
Write to Read (tCE) Operation timing diagram
92
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
tAS
tACC
tOH
tAH
Amax-A0
tCE
tCH
CE#
tGHWL
tOH
tOE
tDF
OE#
tWP
WE#
tDS
tDH
DQ15-DQ0
Figure 24
Read to Write (CE# VIL) Operation timing diagram
tAS
tACC
tOH
tAH
Amax-A0
tOH
tCE
tDF
tCS
tCH
CE#
tGHWL
tOH
tOE
tDF
OE#
tWP
WE#
tDH
tDS
DQ15-DQ0
Figure 25
Datasheet
Read to Write (CE# Toggle) Operation timing diagram
93
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
Table 68
Erase/Program Operations
Parameter
JEDEC
Std
tWHWH1
tWHWH1
tWHWH2
VIO = 2.7 V
to VCC
Description
VIO = 1.65 V
Unit
to VCC
Write Buffer Program Operation
Typ
Note 113
µs
Effective Write Buffer Program Operation per
Word
Typ
Note 113
µs
Program Operation per Word or Page
Typ
Note 113
µs
Typ
Note 113
ms
Max
80
ns
[114]
tWHWH2
Sector Erase Operation
tBUSY
Erase/Program Valid to RY/BY# Delay
tSR/W
Latency between Read and Write operations
Min
10
ns
tESL
Erase Suspend Latency
Max
Note 113
µs
tPSL
Program Suspend Latency
Max
Note 113
µs
tRB
RY/BY# Recovery Time
Min
0
µs
[115]
Notes
113.See Table 16 and Table 17 for specific values.
114.Not 100% tested.
115.Upon the rising edge of WE#, must wait tSR/W before switching to another address.
Datasheet
94
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
Program Command Sequence (last two cycles)
tAS
tWC
Addresses
Read Status Data (last two cycles)
555h
PA
PA
PA
tAH
CE#
tCH
OE#
tWHWH1
tWP
WE#
tWPH
tCS
tDS
tDH
PD
A0h
Data
Status
DOUT
tBUSY
tRB
RY/BY#
Figure 26
Program Operation timing diagram
Erase Command Sequence (last two cycles)
tAS
tWC
Addresses
Read Status Data (last two cycles)
2AAh
VA
SA
VA
555h for chip erase
tAH
CE#
tCH
OE#
tWP
WE#
tWPH
tCS
tWHWH2
tDS
tDH
Data
55h
In
Progress
30h
Complete
10 for Chip Erase
tBUSY
tRB
RY/BY#
Figure 27
Chip/Sector Erase Operation timing diagram
Notes
116.PA = program address, PD = program data, DOUT is the true data at the program address.
117.SA = sector address (for sector erase), VA = valid address for reading status data.
Datasheet
95
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
Table 69
ASO Entry timing
Parameter
Description
tASOSTART
Falling edge of CE# or address change whichever comes last
tASOEND
Rising edge of CE# or Rising edge of WE# whichever comes first
tASOENTRY
25 ns < tASOENTRY < 50 ns or tASOENTRY > 150 ns
First command cycle to enter ASO
Addresses
tASOSTART
CE#
tASOEND
WE#
tASOENTRY
Figure 28
ASO Entry timing
tRC
Addresses
VA
VA
VA
tACC
tCE
CE#
tCH
tOE
OE#
tOEH
tDF
WE#
tOH
High Z
DQ7
Complement
Complement
True
Valid Data
Status Data
Status Data
True
Valid Data
High Z
DQ6–DQ0
tBUSY
RY/BY#
Figure 29
Data# Polling timing diagram (during embedded algorithms)
Notes
118.If this timing cannot be achieved, perform the following steps immediately after ASO Exit and before
resuming normal processing: read one word from each of 64 unique 32 byte-aligned pages.
119.Applicable to any ASO entry command.
120.VA = Valid address. Illustration shows first status cycle after command sequence, last status read cycle, and
array data read cycle.
Datasheet
96
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
tAHT
tAS
Addresses
tAHT
tASO
CE#
tCEPH
tOEH
WE#
tOEPH
OE#
tDH
DQ2 and DQ6
tOE
Valid Data
Valid
Status
Valid
Status
Valid
Status
(first read)
(second read)
(stops toggling)
Valid Data
RY/BY#
Figure 30
Toggle Bit timing diagram (during embedded algorithms)
Enter
Embedded
Erasing
WE#
Erase
Suspend
Erase
Enter Erase
Suspend Program
Erase
Suspend
Program
Erase Suspend
Read
Erase
Resume
Erase Suspend
Read
Erase
Erase
Complete
DQ6
DQ2
Figure 31
DQ2 vs. DQ6 relationship diagram
Notes
121.DQ6 will toggle at any read address while the device is busy. DQ2 will toggle if the address is within the
actively erasing sector.
122.The system may use OE# or CE# to toggle DQ2 and DQ6. DQ2 toggles only when read at an address within
the erase-suspended sector.
Datasheet
97
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
11.4.3
Alternate CE# Controlled Write operations
Table 70
Alternate CE# Controlled Write operations
Parameter
JEDEC
VIO = 2.7 V to VIO = 1.65 V
Unit
VCC
to VCC
Description
Std
tAVAV
tWC
Write Cycle time[123]
Min
60
ns
tAVWL
tAS
Address Setup time
Min
0
ns
tASO
Address Setup time to OE# LOW during toggle bit
polling
Min
15
ns
tAH
Address Hold time
Min
45
ns
tAHT
Address Hold time From CE# or OE# HIGH during
toggle bit polling
Min
0
ns
tDVWH
tDS
Data Setup time
Min
30
ns
tWHDX
tDH
Data Hold time
Min
0
ns
tCEPH
CE# HIGH during toggle bit polling
Min
20
ns
t0EPH
OE# HIGH during toggle bit polling
Min
20
ns
tGHEK
tGHEL
Read Recovery time Before Write
(OE# HIGH to WE# LOW)
Min
0
ns
tWLEL
tWS
WE# Setup time
Min
0
ns
tELWH
tWH
WE# Hold time
Min
0
ns
tELEH
tCP
CE# Pulse Width
Min
25
ns
tEHEL
tCPH
CE# Pulse Width HIGH
Min
20
ns
tWLAX
Note
123.Not 100% tested.
Datasheet
98
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Timing specifications
tWC
Amax-A0
tAS
tAH
tCP
tCPH
CE#
OE#
tWS
tWH
WE#
tDS
tDH
DQ15-DQ0
Figure 32
Back to Back (CE#) Write operation timing diagram
tWC
tAS
tACC
Amax-A0
tAH
tCE
tDF
CE#
tOEH
tOE
OE#
tWS
tWH
WE#
tDH
tDS
tOH
DQ15-DQ0
Figure 33
Datasheet
(CE#) Write to Read operation timing diagram
99
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Physical interface
12
Physical interface
12.1
56-pin TSOP
12.1.1
Connection diagram
NC for GL128S
Figure 34
A23
A22
A15
A14
A13
A12
A11
A10
A9
A8
A19
A20
WE#
RESET#
A21
WP#
RY/BY#
A18
A17
A7
A6
A5
A4
A3
A2
A1
RFU
DNU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
56-Pin TSOP
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
A24
A25
A16
RFU
VSS
DQ15
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
VCC
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
OE#
VSS
CE#
A0
RFU
VIO
NC for GL256S, GL128S
NC for GL512S, GL256S, GL128S
56-pin standard TSOP
Notes
124.Pin 28, Do Not Use (DNU), a device internal signal is connected to the package connector. The connector
may be used by Cypress for test or other purposes and is not intended for connection to any host system
signal. Do not use these connections for PCB Signal routing channels. Though not recommended, the ball
can be connected to VCC or VSS through a series resistor.
125.Pin 27, 30, and 53 Reserved for Future Use (RFU).
Datasheet
100
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Physical interface
12.1.2
Package diagram
SYMBOL
DIMENSIONS
MIN.
NOM.
MAX.
2.
PIN 1 IDENTIFIER FOR STANDARD PIN OUT (DIE UP).
3.
PIN 1 IDENTIFIER FOR REVERSE PIN OUT (DIE DOWN): INK OR LASER MARK.
1.00
1.05
4.
TO BE DETERMINED AT THE SEATING PLANE
0.20
0.23
A2
0.95
b1
0.17
0.22
b
0.17
c1
0.10
0.16
c
0.10
0.21
D
20.00 BASIC
18.40 BASIC
E
14.00 BASIC
5.
DIMENSIONS D1 AND E DO NOT INCLUDE MOLD PROTRUSION. ALLOWABLE
MOLD PROTRUSION ON E IS 0.15mm PER SIDE AND ON D1 IS 0.25mm PER SIDE.
6.
DIMENSION b DOES NOT INCLUDE DAMBAR PROTRUSION. ALLOWABLE DAMBAR
PROTRUSION SHALL BE 0.08mm TOTAL IN EXCESS OF b DIMENSION AT MAX.
MATERIAL CONDITION. DAMBAR CANNOT BE LOCATED ON LOWER RADIUS OR
THE FOOT. MINIMUM SPACE BETWEEN PROTRUSION AND AN ADJACENT LEAD
TO BE 0.07mm .
7.
THESE DIMENSIONS APPLY TO THE FLAT SECTION OF THE LEAD BETWEEN
0.10mm AND 0.25mm FROM THE LEAD TIP.
8.
LEAD COPLANARITY SHALL BE WITHIN 0.10mm AS MEASURED FROM THE
SEATING PLANE.
0.50 BASIC
0.50
0
0°
R
0.08
0.60
0.70
8
0.20
56
-C- . THE SEATING PLANE IS
DEFINED AS THE PLANE OF CONTACT THAT IS MADE WHEN THE PACKAGE
LEADS ARE ALLOWED TO REST FREELY ON A FLAT HORIZONTAL SURFACE.
0.27
D1
L
DIMENSIONS ARE IN MILLIMETERS (mm).
0.15
0.05
N
1.
1.20
A
A1
e
NOTES:
9. DIMENSION "e" IS MEASURED AT THE CENTERLINE OF THE LEADS.
10. JEDEC SPECIFICATION NO. REF: MO-142(D)EC.
002-15549 *B
Figure 35
Datasheet
56-pin TSOP (18.4 × 14.0 × 1.2 mm) package outline, 002-15549
101
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Physical interface
12.2
64-ball FBGA
12.2.1
Connection diagram
TOP VIEW
PRODUCT Pinout
A
B
C
D
E
F
G
H
NC for GL256S, GL128S
-
NC for GL128S
NC for GL512S, GL256S, GL128S
8
NC
A22
A23
Vio
VSS
A24
A25
NC
7
A13
A12
A14
A15
A16
RFU
DQ15
VSS
6
A9
A8
A10
A11
DQ7
DQ14
DQ13
DQ6
5
WE#
RESET#
A21
A19
DQ5
DQ12
VCC
DQ4
4
RY/BY#
WP#
A18
A20
DQ2
DQ10
DQ11
DQ3
3
A7
A17
A6
A5
DQ0
DQ8
DQ9
DQ1
2
A3
A4
A2
A1
A0
CE#
OE#
VSS
1
NC
NC
NC
NC
DNU
Vio
RFU
NC
Figure 36
64-ball fortified ball grid array
Notes
126.Ball E1, Do Not Use (DNU), a device internal signal is connected to the package connector. The connector
may be used by Cypress for test or other purposes and is not intended for connection to any host system
signal. Do not use these connections for PCB Signal routing channels. Though not recommended, the ball
can be connected to VCC or VSS through a series resistor.
127.Balls F7 and G1, Reserved for Future Use (RFU).
128.Balls A1, A8, C1, D1, H1, and H8, No Connect (NC).
Datasheet
102
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Physical interface
12.2.2
Package diagram – LAE064
NOTES:
DIMENSIONS
SYMBOL
MIN.
NOM.
MAX.
A
-
-
1.40
A1
0.40
-
-
A2
0.60
-
-
D
9.00 BSC.
E
9.00 BSC.
D1
7.00 BSC.
E1
7.00 BSC.
MD
8
ME
8
N
64
1.
DIMENSIONING AND TOLERANCING PER ASME Y14.5M-1994 .
2.
ALL DIMENSIONS ARE IN MILLIMETERS .
3.
BALL POSITION DESIGNATION PER JEP95 SECTION 3, SPP-020 (RECTANGULAR) OR SPP-010 (SQUARE).
4.
e
5.
SYMBOL "MD" IS THE BALL ROW MATRIX SIZE IN THE "D" DIRECTION.
REPRESENTS THE SOLDER BALL GRID PITCH .
SYMBOL "ME" IS THE BALL COLUMN MATRIX SIZE IN THE "E" DIRECTION.
N IS THE TOTAL NUMBER OF SOLDER BALLS.
6
DIMENSION "b" IS MEASURED AT THE MAXIMUM BALL DIAMETER IN A PLANE PARALLEL
TO DATUM C .
7
"SD" AND "SE" ARE MEASURED WITH RESPECT TO DATUMS A AND B AND DEFINE THE
POSITION OF THE CENTER SOLDER BALL IN THE OUTER ROW.
Øb
eD
0.50
0.60
0.70
WHEN THERE IS AN ODD NUMBER OF SOLDER BALLS IN THE OUTER ROW, "SD" OR "SE" = 0.
1.00 BSC.
eE
1.00 BSC.
SD/SE
0.50 BSC.
WHEN THERE IS AN EVEN NUMBER OF SOLDER BALLS IN THE OUTER ROW, "SD" = eD/2 AND "SE" = eE/2.
8.
"+" INDICATES THE THEORETICAL CENTER OF DEPOPULATED BALLS.
9
A1 CORNER TO BE IDENTIFIED BY CHAMFER, LASER OR INK MARK, METALLIZED
MARK INDENTATION OR OTHER MEANS.
10.
JEDEC SPECIFICATION NO. REF : N/A
002-15537 *A
Figure 37
Datasheet
64-ball FBGA (9.0 × 9.0 × 1.4 mm) package outline, 002-15537
103
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Physical interface
12.2.3
Package diagram – LAA064
NOTES:
DIMENSIONS
SYMBOL
MIN.
NOM.
MAX.
A
-
-
1.40
A1
0.40
-
-
A2
0.60
-
-
D
13.00 BSC.
E
11.00 BSC.
D1
7.00 BSC.
E1
7.00 BSC.
1.
DIMENSIONING AND TOLERANCING PER ASME Y14.5M-1994 .
2.
ALL DIMENSIONS ARE IN MILLIMETERS .
3.
BALL POSITION DESIGNATION PER JEP95 SECTION 3, SPP-020 (RECTANGULAR) OR SPP-010 (SQUARE).
4.
e
5.
SYMBOL "MD" IS THE BALL ROW MATRIX SIZE IN THE "D" DIRECTION.
SYMBOL "ME" IS THE BALL COLUMN MATRIX SIZE IN THE "E" DIRECTION.
N IS THE TOTAL NUMBER OF SOLDER BALLS.
6
8
MD
ME
8
N
64
REPRESENTS THE SOLDER BALL GRID PITCH .
DIMENSION "b" IS MEASURED AT THE MAXIMUM BALL DIAMETER IN A PLANE PARALLEL
TO DATUM C .
7
"SD" AND "SE" ARE MEASURED WITH RESPECT TO DATUMS A AND B AND DEFINE THE
POSITION OF THE CENTER SOLDER BALL IN THE OUTER ROW.
Øb
0.50
0.60
0.70
WHEN THERE IS AN ODD NUMBER OF SOLDER BALLS IN THE OUTER ROW, "SD" OR "SE" = 0.
eD
1.00 BSC.
eE
1.00 BSC.
SD/SE
0.50 BSC.
WHEN THERE IS AN EVEN NUMBER OF SOLDER BALLS IN THE OUTER ROW, "SD" = eD/2 AND "SE" = eE/2.
8.
"+" INDICATES THE THEORETICAL CENTER OF DEPOPULATED BALLS.
9
A1 CORNER TO BE IDENTIFIED BY CHAMFER, LASER OR INK MARK, METALLIZED
MARK INDENTATION OR OTHER MEANS.
002-15536 **
Figure 38
Datasheet
64-ball FBGA (13.0 × 11.0 × 1.4 mm) package outline, 002-15536
104
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Physical interface
12.3
56-ball FBGA
12.3.1
Connection diagram
TOP VIEW
Product Pinout
A
B
C
D
512 Mb & 256 Mb Only
8
E
F
G
H
512 Mb Only
Supports WP# only,
not WP#/ACC
A15
A21
A22
A16
RFU/A24
VSS
A11
A12
A13
A14
RFU
DQ15
DQ7
DQ14
A8
A19
A9
A10
DQ6
DQ13
DQ12
DQ5
WE#
RFU/A23
A20
DQ4
VIO
RFU
WP#
RESET# RY/BY#
DQ3
VCC
DQ11
7
6
5
4
3
NC
NC
A18
A17
DQ1
DQ9
DQ10
DQ2
A7
A6
A5
A4
VSS
OE#
DQ0
DQ8
A3
A2
A1
A0
CE#
DNU
2
1
Figure 39
56-ball fortified ball grid array
Notes
129.Ball G1, Do Not Use (DNU), a device internal signal is connected to the package connector. The connector
may be used by Cypress® for test or other purposes and is not intended for connection to any host system
signal. Do not use these connections for PCB Signal routing channels. Though not recommended, the ball
can be connected to VCC or VSS through a series resistor.
130.Balls E7, F8, and H5, Reserved for Future Use (RFU).
131.Balls A3 and B3, No Connect (NC).
Datasheet
105
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Physical interface
12.3.2
Package diagram - VBU056
NOTES:
DIMENSIONS
SYMBOL
A
A1
MIN.
NOM.
-
-
1.00
0.17
-
-
D
DIMENSIONING AND TOLERANCING PER ASME Y14.5M-1994 .
2.
ALL DIMENSIONS ARE IN MILLIMETERS .
3.
BALL POSITION DESIGNATION PER JEP95, SECTION 3, SPP-010/020.
4.
e
5.
SYMBOL "MD" IS THE BALL ROW MATRIX SIZE IN THE "D" DIRECTION.
REPRESENTS THE SOLDER BALL GRID PITCH .
9.00 BSC.
E
7.00 BSC.
D1
5.60 BSC.
E1
5.60 BSC.
SYMBOL "ME" IS THE BALL COLUMN MATRIX SIZE IN THE "E" DIRECTION.
n IS THE TOTAL NUMBER OF POPULATED SOLDER BALLS FOR MATRIX SIZE MD AND ME.
6
DIMENSION "b" IS MEASURED AT THE MAXIMUM BALL DIAMETER IN A PLANE PARALLEL TO DATUM C.
7
"SD" AND "SE" ARE MEASURED WITH RESPECT TO DATUMS A AND B AND DEFINE THE
8
MD
ME
8
n
56
Øb
1.
MAX.
0.33
-
eD/eE
0.80 BSC.
SD/SE
0.40 BSC.
POSITION OF THE CENTER SOLDER BALL IN THE OUTER ROW.
WHEN THERE IS AN ODD NUMBER OF SOLDER BALLS IN THE OUTER ROW, "SD" OR "SE" = 0.
0.45
WHEN THERE IS AN EVEN NUMBER OF SOLDER BALLS IN THE OUTER ROW, "SD" = eD/2 and "SE" = eE/2.
8.
"+" INDICATES THE THEORETICAL CENTER OF DEPOPULATED BALLS.
9
A1 CORNER TO BE IDENTIFIED BY CHAMFER, LASER OR INK MARK, METALLIZED
MARK INDENTATION OR OTHER MEANS.
002-15551 **
Figure 40
Datasheet
56-ball FBGA (9.0 × 7.0 × 1.0 mm) package outline, 002-15551
106
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Ordering information
13
Ordering information
13.1
Ordering code definitions
The ordering part number for the General Market device is formed by a valid combination of the following:
S29GL01GS
10
D
H
I
01
0
Packing type
0 = Tray
3 = 13” tape and reel
Model number (VIO and VCC range)
01 = VIO = VCC = 2.7 V to 3.6 V, highest address sector protected
02 = VIO = VCC = 2.7 V to 3.6 V, lowest address sector protected
V1 = VIO = 1.65 V to VCC, VCC = 2.7 V to 3.6 V, highest address sector protected
V2 = VIO = 1.65 V to VCC, VCC = 2.7 V to 3.6 V, lowest address sector protected
Temperature range / grade
I = Industrial (–40°C to +85°C)
V = Industrial Plus (–40°C to +105°C)
A = Automotive, AEC-Q100 Grade 3 (–40°C to +85°C)
B = Automotive, AEC-Q100 Grade 2 (–40°C to +105°C)
Package materials set
A = Leaded (Sn/Pb) balls - BGA only
F = Halogen-free, Lead (Pb)-free[132]
H = Halogen-free, Lead (Pb)-free[132]
Package type
D = Fortified ball-grid array package (LAE064) 9 mm x 9 mm
F = Fortified ball-grid array package (LAA064) 13 mm x 11 mm
G = Fortified ball-grid array package (VBU056) 9 mm x 7 mm
S = 70-pin shrink small outline package
T = Thin small outline package (TSOP) standard pinout
Speed option
90 = 90 ns random access time
10 = 100 ns random access time
11 = 110 ns random access time
12= 120 ns random access time
Device number/description
S29GL01GS, S29GL512S, S29GL256S, S29GL128S
3.0 V Core, with VIO option, 1024, 512, 256, 128 Mb Page-Mode Flash Memory,
Manufactured on 65-nm MIRRORBIT™ Eclipse Process Technology
Note
132.Halogen-free definition is in accordance with IEC 61249-2-21 specification.
Datasheet
107
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Ordering information
13.2
Valid combinations — standard
Table 71 lists the configurations planned to be available in volume. The table will be updated as new
combinations are released. Contact your local sales representative to confirm availability of specific
combinations and to check on newly released combinations.
Table 71
S29GL-S valid combinations — standard
S29GL-S valid combinations — standard
Ordering part number
(yy = Model number,
x = Packing type)
Base OPN
Speed
(ns)
Package and temperature
Model
number
Packing
type
S29GL01GS
100
DHI, FAI, FHI, TFI[133]
01, 02
0, 3[134]
110
DHV, TFV[133]
01, 02
S29GL01GS11DHVyyx
S29GL01GS11TFVyyx
DHI, FHI, TFI[133]
V1, V2
S29GL01GS11DHIyyx
S29GL01GS11FHIyyx
S29GL01GS11TFIyyx
120
DHV, TFV[133]
V1, V2
S29GL01GS12DHVyyxx
S29GL01GS12TFVyyxx
100
DHI, FAI, FHI, GHI, SFI, TFI[133]
01, 02
110
GHI[133]
01, 02
S29GL512S11GHIyyx
01, 02
S29GL512S11DHVyyx
S29GL512S11TFVyyx
DHI, FHI, TFI[133]
V1, V2
S29GL512S11DHIyyx
S29GL512S11FHIyyx
S29GL512S11TFIyyx
120
DHV, TFV[133]
V1, V2
S29GL512S12DHVyyxx
S29GL512S12TFVyyxx
90
DHI, FHI, GHI, TFI[133]
01, 02
100
DHV, TFV[133]
01, 02
S29GL256S10DHVyyx
S29GL256S10TFVyyx
DHI, FAI, FHI, TFI[133]
V1, V2
S29GL256S10DHIyyx
S29GL256S10FAIyyx
S29GL256S10FHIyyx
S29GL256S10TFIyyx
DHV, TFV[133]
V1, V2
S29GL256S11DHVyyxx
S29GL256S11TFVyyxx
S29GL512S
[133]
DHV, TFV
S29GL256S
110
Datasheet
108
0, 3[134]
0, 3[134]
S29GL01GS10DHIyyx
S29GL01GS10FAIyyx
S29GL01GS10FHIyyx
S29GL01GS10TFIyyx
S29GL512S10DHIyyx
S29GL512S10FAIyyx
S29GL512S10FHIyyx
S29GL512S10GHIyyx
S29GL512S10SFIyyx
S29GL512S10TFIyyx
S29GL256S90DHIyyx
S29GL256S90FHIyyx
S29GL256S90GHIyyx
S29GL256S90TFIyyx
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Ordering information
Table 71
S29GL-S valid combinations — standard (Continued)
S29GL-S valid combinations — standard
Ordering part number
(yy = Model number,
x = Packing type)
Base OPN
Speed
(ns)
Package and temperature
Model
number
Packing
type
S29GL128S
90
DHI, FAI, FHI, GHI, TFI[133]
01, 02
0, 3[134]
100
DHV, TFV[133]
01, 02
S29GL128S10DHVyyx
S29GL128S10TFVyyx
DHI, FAI, FHI, TFI[133]
V1, V2
S29GL128S10DHIyyx
S29GL128S10FAIyyx
S29GL128S10FHIyyx
S29GL128S10TFIyyx
DHV, TFV, FHV[133]
V1, V2
S29GL128S11DHVyyx
S29GL128S11TFVyyx
S29GL128S11FHVyyx
110
S29GL128S90DHIyyx
S29GL128S90FAIyyx
S29GL128S90FHIyyx
S29GL128S90GHIyyx
S29GL128S90TFIyyx
Notes
133.Additional speed, package, and temperature options maybe offered in the future. Check with your local
sales representative for availability.
134.Package Type 0 is standard option.
Datasheet
109
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Ordering information
13.3
Valid combinations — automotive grade / AEC-Q100
Table 72 and Table 73 list configurations that are automotive grade / AEC-Q100 qualified and are planned to be
available in volume. The table will be updated as new combinations are released. Contact your local sales
representative to confirm availability of specific combinations and to check on newly released combinations.
Production part approval process (PPAP) support is only provided for AEC-Q100 grade products.
Products to be used in end-use applications that require ISO/TS-16949 compliance must be AEC-Q100 grade
products in combination with PPAP. Non–AEC-Q100 grade products are not manufactured or documented in full
compliance with ISO/TS-16949 requirements.
AEC-Q100 grade products are also offered without PPAP support for end-use applications that do not require
ISO/TS-16949 compliance.
Table 72
S29GL-S valid combinations — Automotive grade (–40°C to +85°C)
S29GL-S valid combinations — Automotive grade (–40°C to +85°C)
Base OPN
Speed
(ns)
S29GL01GS 100, 110
S29GL512S
S29GL256S
S29GL128S
Package and temperature
Model
number
Packing
type
DHA, FHA, TFA[135]
01, 02
0, 3[136]
Ordering part number
(yy = Model number,
x = Packing Type)
S29GL01GS10DHAyyx
S29GL01GS10FHAyyx
S29GL01GS10TFAyyx
S29GL01GS11DHAyyx
S29GL01GS11FHAyyx
S29GL01GS11TFAyyx
110
V1, V2
S29GL01GS11DHAyyx
S29GL01GS11FHAyyx
S29GL01GS11TFAyyx
100
01, 02
S29GL512S10DHAyyx
S29GL512S10FHAyyx
S29GL512S10TFAyyx
110
V1, V2
S29GL512S11DHAyyx
S29GL512S11FHAyyx
S29GL512S11TFAyyx
90
01, 02
S29GL256S90DHAyyx
S29GL256S90FHAyyx
S29GL256S90TFAyyx
100
V1, V2
S29GL256S10DHAyyx
S29GL256S10FHAyyx
S29GL256S10TFAyyx
90
01, 02
S29GL128S90DHAyyx
S29GL128S90FHAyyx
S29GL128S90TFAyyx
100
V1, V2
S29GL128S10DHAyyx
S29GL128S10FHAyyx
S29GL128S10TFAyyx
Notes
135.Additional speed, package, and temperature options maybe offered in the future. Check with your local
sales representative for availability.
136.Package Type 0 is standard option.
Datasheet
110
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Ordering information
Table 73
S29GL-S valid combinations — automotive grade (–40°C to +105°C)
S29GL-S valid combinations — Automotive grade (–40°C to +105°C)
Base OPN
Speed
(ns)
Package and temperature
Model
number
Packing
type
S29GL01GS
110
DHB, FHB, TFB, GHB[137]
01, 02
0, 3[138]
S29GL512S
S29GL256S
S29GL128S
Ordering part number
(yy = Model number,
x = Packing Type)
S29GL01GS11DHByyx
S29GL01GS11FHByyx
S29GL01GS11TFByyx
120
V1, V2
S29GL01GS12DHByyx
S29GL01GS12FHByyx
S29GL01GS12TFByyx
110
01, 02
S29GL512S11DHByyx
S29GL512S11FHByyx
S29GL512S11GHByyx
S29GL512S11TFByyx
120
V1, V2
S29GL512S12DHByyx
S29GL512S12FHByyx
S29GL512S12GHByyx
S29GL512S12TFByyx
100
01, 02
S29GL256S10DHByyx
S29GL256S10FHByyx
S29GL256S10TFByyx
S29GL256S10GHByyx
110
V1, V2
S29GL256S11DHByyx
S29GL256S11FHByyx
S29GL256S11TFByyx
100
01, 02
S29GL128S10DHByyx
S29GL128S10FHByyx
S29GL128S10TFByyx
S29GL128S10GHByyx
110
V1, V2
S29GL128S11DHByyx
S29GL128S11FHByyx
S29GL128S11TFByyx
Notes
137.Additional speed, package, and temperature options maybe offered in the future. Check with your local
sales representative for availability.
138.Package Type 0 is standard option.
Datasheet
111
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Revision history
Revision histor y
Document
revision
Date
**
2011-02-11
Initial release.
2011-03-21
Global:
Modified document from “Advance Information” to “Preliminary”
OPN:
Added FBGA package offering for V1 & V2 Model Number
Removed KGD information, which is documented in a separate Supplement
Command Definitions Table:
Removed duplicated commands
Changed the number of command cycles for a CFI Enter from 3 to 1
Physical Interface:
Updated 56-pin TSOP pinout figure
Updated 64-ball FBGA pinout figure
Other Resources:
Added additional application notes in “Links to Application Notes”
Lock Register Table:
Changed the default value of bit 7 in the Lock register
2011-07-08
Performance Summary:
Updated table: Typical Program and Erase Rates
Secure Silicon Region ASO:
Corrected table: Secure Silicon Region
DQ1: Write-to-Buffer Abort:
Corrected table: Data Polling Status
Embedded Algorithm Performance Table:
Updated table: Embedded Algorithm Characteristics
Command State Transitions:
Corrected tables: changed Software Reset/ASO Exit Data value to from
00F0h to xF0h
Corrected table: Erase Suspend Unlock State Command Transition
Corrected table: Erase Suspend - DYB State Command Transition
Corrected table: Program Unlock State Command Transition
Corrected table: Lock Register State Command Transition
Corrected table: Secure Silicon Sector Program State Command Transition
Corrected table: Password Protection Command State Transition
Corrected table: Non-Volatile Protection Command State Transition
Corrected table: PPB Lock Bit Command State Transition
Corrected table: Volatile Sector Protection Command State Transition
Device ID and Common Flash Interface (ID-CFI) ASO Map:
Corrected table: Corrected CFI Primary Vendor-Specific Extended Query
description for Word Address (SA) + 0045h
*A
*B
Datasheet
Description of changes
112
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Revision history
Document
revision
*B
*C
*D
*E
Datasheet
Date
Description of changes
2011-07-08
DC Characteristics:
Updated VIL Max
Updated Note
Power-On Reset (POR) and Warm Reset:
Updated table: added row to bottom of table
Power-On (Cold) Reset (POR):
Updated text
Updated figure: Power-Up Diagram
Hardware (Warm) Reset:
Updated figure: Hardware Reset
Asynchronous Write Operations:
Added figure: Back to Back (CE#VIL) Write Operation Timing Diagram
Updated table: Erase/Program Operations
Physical Diagram - LAA064:
Added figure
2011-10-03
Power-Up Write Inhibit:
Minor correction
PPB Password Protection Mode:
Minor correction
Embedded Algorithm Characteristics table:
Updated Buffer Programming Time maximum limits
Absolute Maximum Ratings table:
Added clarification
DC Characteristics table:
Output High Voltage clarification
Power-Up/Power-Down Voltage and Timing table:
Added clarification
Power-Up figure:
Added clarification
Power-On (Cold) Reset (POR):
Added clarification
Valid Combinations table:
Updated table
2011-12-14
Global:
Data sheet designation changed from Preliminary to Full Production
Sector Erase: Updated Typical Erase Time
Capacitance Characteristics:
Updated section
Ordering Information:
Corrected note designation in valid combination table
2012-03-16
Global:
Added 9 mm x 7 mm package
Added 105°C offering
Ordering Information:
Updated Valid Combinations
113
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Revision history
Document
revision
Date
Description of changes
*F
2012-12-21
Distinctive Characteristics:
Added In-Cabin temperature range
Status Register ASO:
Added clarification
Advanced Sector Protection Overview:
Updated figure
PPB Lock:
Added clarification
Persistent Protection Bits (PPB):
Added clarification
Dynamic Protection Bits (DYB):
Added clarification
PPB Password Protection Mode:
Added clarification
Chip Erase:
Added clarification
Sector Erase:
Added clarification
Erase Suspend / Erase Resume:
Added clarification
Status Register ASO:
Added clarification
Status Register:
Added clarification
DQ7: Data# Polling:
Added clarification
DQ1: Write-to-Buffer Abort:
Added clarification
Data Polling Status:
Updated table
Embedded Operation Error:
Added clarification
Protection Error:
Added clarification
Write Buffer Abort:
Added clarification
Performance Table:
Updated Embedded Algorithm Characteristics (-40°C to +105°C) table
Device ID and Common Flash Interface (ID-CFI) ASO Map:
Updated CFI Device Geometry Definition table
Updated CFI Primary Vendor-Specific Extended Query table
Asynchronous Read Operations:
Added Read Operation VIO = 1.65 (–40°C to +105°C) table
Asynchronous Write Operations:
Updated Read to Write (CE# VIL) figure
Updated Read to Write (CE# Toggle) figure
*G
2013-10-09
S29GL-S Valid Combinations Table:
Added VIO Models for Automotive In Cabin Temperature Range
*H
2015-08-13
Updated to Cypress template.
Datasheet
114
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Revision history
Document
revision
*I
*J
*K
*L
*M
Datasheet
Date
Description of changes
2016-03-04
Updated “Ordering information” on page 107:
Updated Table 71:
Updated part numbers.
Replaced “In Cabin” with “Industrial Plus” in Ordering Code Definitions
below Table 71.
Updated to new template.
2016-09-06
Updated “Timing specifications” on page 81:
Updated “AC characteristics” on page 85:
Updated “Asynchronous Write Operations” on page 90:
Updated Table 69.
Updated Figure 28.
2016-11-10
Added Automotive Grade related information in all instances across the
document.
Updated “Address space maps” on page 7:
Added “ECC status ASO” on page 13.
Updated “Embedded operations” on page 21:
Added “Automatic ECC” on page 23.
Updated “Command set” on page 24:
Added “ECC Status ASO” on page 35.
Updated “Data integrity” on page 57:
Added “Erase endurance” on page 57.
Added “Data retention” on page 57.
Updated “Software interface reference” on page 58:
Removed “Address and Data Configuration”.
Updated “Command summary” on page 58:
Updated Table 41 (to include ECC ASO Commands).
Updated “Electrical specifications” on page 74:
Added “Thermal resistance” on page 74.
Updated “Ordering information” on page 107:
Added “Valid combinations — automotive grade / AEC-Q100” on
page 110.
Updated “Other resources” on page 113:
Added “Cypress Flash Memory Roadmap” on page 113.
Updated “Links to software” on page 113:
Updated description.
Updated “Links to Application Notes” on page 113:
Updated description.
Removed “Specification Bulletins”.
Removed “Contacting Cypress”.
2017-05-03
Updated “Software interface reference” on page 58:
Added “Device ID and Common Flash Interface (ID-CFI) ASO Map” on
page 67.
Updated “Ordering information” on page 107:
Updated “Valid combinations — standard” on page 108:
Updated Table 71:
Updated part numbers.
Updated to new template.
2017-06-16
Updated “Software interface reference” on page 58:
Updated “Command summary” on page 58:
Updated Table 41:
Replaced “2” with “1” in “Cycles” column corresponding to “Command Set
Exit” under “ECC ASO” Command Sequence.
115
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Revision history
Document
revision
*N
*O
*P
*Q
*R
*S
Datasheet
Date
Description of changes
2017-07-21
Updated “Address space maps” on page 7:
Updated “ECC status ASO” on page 13:
Updated description.
Updated “ECC status” on page 13:
Updated description.
Updated Table 10 (Updated “Name” corresponding to Bit 2 and Bit 1).
Updated “Embedded operations” on page 21:
Updated “Command set” on page 24:
Updated “ASO Entry and Exit” on page 33:
Updated “ECC Status ASO” on page 35:
Updated description.
Completing Sunset Review.
2017-09-19
Updated “Ordering information” on page 107:
Updated “Valid combinations — standard” on page 108:
Updated Table 71:
Updated part numbers.
2018-03-30
Updated “Ordering information” on page 107:
Updated “Valid combinations — standard” on page 108:
Updated Table 71:
Updated part numbers.
Updated “Valid combinations — automotive grade / AEC-Q100” on
page 110:
Updated Table 73:
Updated part numbers.
Updated to new template.
2018-06-06
Updated “Electrical specifications” on page 74:
Updated “Thermal resistance” on page 74:
Updated Table 51:
Changed value of Theta Ja parameter from 20.4 °C/W to 27.3 °C/W
corresponding to “LAE064” package.
2018-06-21
Updated “Ordering information” on page 107:
Updated details corresponding to “F” and “H” under “Package Materials
Set” in the diagram.
Added a note “Halogen free definition is in accordance with IEC 61249-2-21
specification” and referred the same note in “F” and “H”.
2022-10-28
Updated Document Title to read as “S29GL01GS, S29GL512S, S29GL256S,
S29GL128S, 128 Mb / 256 Mb / 512 Mb / 1 Gb GL-S MIRRORBIT™ Flash Parallel,
3.0 V”.
Removed “Software Interface”.
Updated “Address space maps” on page 7:
Updated “Device ID and common flash interface (ID-CFI) ASO map —
automotive only” on page 10:
Updated “Common flash memory interface” on page 11:
Updated description.
Updated “Embedded operations” on page 21:
Updated “Command set” on page 24:
Updated “ASO Entry and Exit” on page 33:
Updated “ID-CFI ASO” on page 33:
Updated description.
116
001-98285 Rev. *S
2022-10-28
128 Mb/256 Mb/512 Mb/1 Gb GL-S MIRRORBIT™ Flash
Parallel, 3.0 V
Revision history
Document
revision
*S (cont.)
Datasheet
Date
2022-10-28
Description of changes
Updated “Data integrity” on page 57:
Updated “Data retention” on page 57:
Updated description.
Updated hyperlinks.
Removed “Hardware Interface”.
Updated “Electrical specifications” on page 74:
Updated “Thermal resistance” on page 74:
Updated Table 51.
Updated “Physical interface” on page 100:
Updated “56-pin TSOP” on page 100:
Updated “Package diagram” on page 101:
Replaced existing spec with 002-15549 *B.
Updated “64-ball FBGA” on page 102:
Updated “Package diagram – LAE064” on page 103:
Replaced existing spec with 002-15537 *A.
Updated “Package diagram – LAE064” on page 103:
Replaced existing spec with 002-15536 **.
Updated “56-ball FBGA” on page 105:
Updated “Package diagram - VBU056” on page 106:
Replaced existing spec with 002-15551 **.
Removed “Special handling instructions for FBGA package”.
Removed “Other resources”.
Migrated to Infineon template.
117
001-98285 Rev. *S
2022-10-28
Please read the Important Notice and Warnings at the end of this document
Trademarks
All referenced product or service names and trademarks are the property of their respective owners.
Edition 2022-10-28
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2022 Infineon Technologies AG.
All Rights Reserved.
Do you have a question about this
document?
Go to www.infineon.com/support
Document reference
001-98285 Rev. *S
IMPORTANT NOTICE
The information given in this document shall in no For further information on the product, technology,
event be regarded as a guarantee of conditions or delivery terms and conditions and prices please
contact your nearest Infineon Technologies office
characteristics (“Beschaffenheitsgarantie”).
(www.infineon.com).
With respect to any examples, hints or any typical
values stated herein and/or any information WARNINGS
regarding the application of the product, Infineon Due to technical requirements products may contain
Technologies hereby disclaims any and all dangerous substances. For information on the types
warranties and liabilities of any kind, including in question please contact your nearest Infineon
without limitation warranties of non-infringement of Technologies office.
intellectual property rights of any third party.
In addition, any information given in this document
is subject to customer’s compliance with its
obligations stated in this document and any
applicable legal requirements, norms and standards
concerning customer’s products and any use of the
product of Infineon Technologies in customer’s
applications.
The data contained in this document is exclusively
intended for technically trained staff. It is the
responsibility of customer’s technical departments
to evaluate the suitability of the product for the
intended application and the completeness of the
product information given in this document with
respect to such application.
Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized
representatives
of
Infineon
Technologies, Infineon Technologies’ products may
not be used in any applications where a failure of the
product or any consequences of the use thereof can
reasonably be expected to result in personal injury.
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Infineon:
S29GL128S10DHSS10 S29GL512S10FHI010 S29GL128S10FHI010 S29GL256S11DHIV20 S29GL256S90DHI010
S29GL01GS11TFI010 S29GL01GS11DHIV10 S29GL512S11TFI020 S29GL256S10TFIV10 S29GL512S11DHIV10
S29GL256S90TFI023 S29GL512S10TFI020 S29GL01GS10DHI020 S29GL128S11DHIV20 S29GL256S90DHI020
S29GL01GS10TFI020 S29GL256S10TFI020 S29GL512S12TFIV20 S29GL256S10DHIV10 S29GL128S10DHIV10
S29GL128S90DHI010 S29GL128S90FHI020 S29GL512S10TFI010 S29GL01GS11TFIV20 S29GL01GS12DHIV20
S29GL512S12DHIV20 S29GL256S10DHIV20 S29GL512S11TFIV20 S29GL01GS11FHI010 S29GL256S10DHI020
S29GL01GS11DHI020 S29GL128S11DHIV10 S29GL512S12TFIV10 S29GL256S90TFI020 S29GL128S11TFIV20
S29GL512S11DHI020 S29GL128S90TFI010 S29GL512S12DHIV10 S29GL128S10DHI020 S29GL128S90TFI020
S29GL01GS12DHIV10 S29GL128S90DHI020 S29GL128S10TFIV10 S29GL256S11TFIV10 S29GL512S11TFIV10
S29GL01GS10DHI010 S29GL256S11TFIV20 S29GL128S10TFIV20 S29GL01GS12TFIV10 S29GL512S10DHI020
S29GL01GS12TFIV20 S29GL01GS11DHI010 S29GL128S10DHI010 S29GL512S11DHIV20 S29GL128S11TFIV10
S29GL256S90TFI010 S29GL01GS11TFIV10 S29GL256S11DHIV10 S29GL512S11TFI010 S29GL256S10DHI010
S29GL512S10DHI010 S29GL128S10DHIV20 S29GL512S11DHI010 S29GL01GS11TFI020 S29GL256S10TFIV20
S29GL01GS11DHIV20 S29GL01GS10TFI010 S29GL256S10TFI010 S29GL256S90DHI023 S29GL256S11DHIV23
S29GL512S10TFI013 S29GL01GS12TFVV20 S29GL512S11DHV010 S29GL128S10GHIV20 S29GL128S90DHA010
S29GL512S10DHA020 S29GL512S11FAIV10 S29GL512S11FAIV20 S29GL128S10TFV010 S29GL128S90FAI010
S29GL512S11DHAV10 S29GL512S10DHA010 S29GL01GS11FAIV10 S29GL512S10FHI020
S29GL512S11FHIV20 S29GL256S10FHIV10 S29GL512S10TFA020 S29GL512S12TFVV20 S29GL01GS10FHI020
S29GL01GS10FHI010 S29GL256S10DHV010 S29GL512S12DHBV10 S29GL256S10DHV020 S29GL512S12FHIV20
S29GL512S11FHIV10 S29GL128S10TFB020 S29GL256S90FAI020 S29GL512S11TFA020 S29GL128S10FHSS10
S29GL256S90FHI010
