OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Features
•
Output voltage tolerance ≤ ±3% (±2% up to 50 mA)
•
150 mA current capability
•
Low-drop voltage
•
Very low current consumption: 40 µA
•
Overtemperature protection
•
Short-circuit proof
•
Suitable for use in automotive electronics
•
Reverse polarity proof
•
Green Product (RoHS compliant)
Potential applications
General automotive applications.
Product validation
Qualified for automotive applications. Product validation according to AEC-Q100/101.
Description
The OPTIREG™ Linear TLE4264-2 is a monolithic integrated low-drop fixed voltage regulator which can supply
loads up to 150 mA. It is functional compatible to the TLE4264, but has a reduced quiescent current of typ.
40 µA. The TLE4264-2 is especially designed for all applications which require very low quiescent currents. The
device is available in the small surface mounted PG-SOT223-4 package. The device is pin compatible to the
TLE4264. The regulator is designed to supply microprocessor systems under the severe condition of
automotive applications and is therefore equipped with additional protection against overload, short-circuit
and overtemperature. Of course the TLE4264-2 can be used in all other applications, wherever a stabilized
voltage is required.
An input voltage VI in the range of 5.5 V < VI < 45 V is regulated to VQ,nom = 5 V with an accuracy of ±3%. An
accuracy of ±2% is kept for a load current range up to 50 mA.
The device operates in the temperature range of Tj = -40°C to 150°C.
Type
Package
Marking

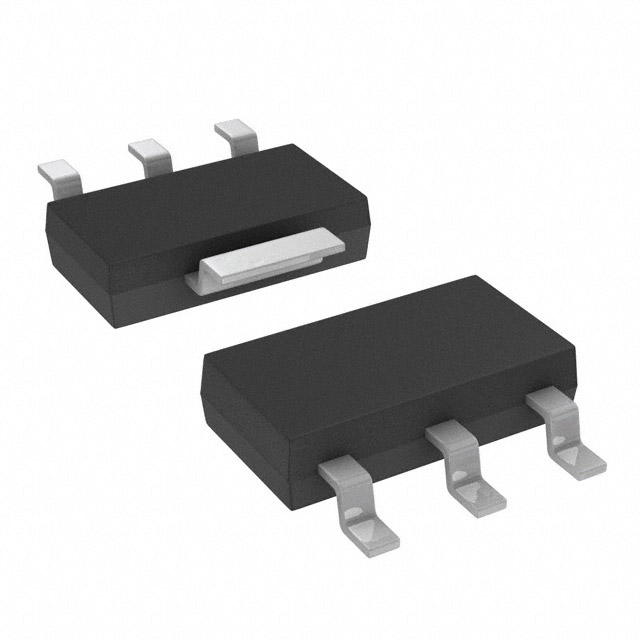

TLE4264-2G
PG-SOT223-4
4264-2
Datasheet
www.infineon.com/OPTIREG-Linear
1
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Table of contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Potential applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product validation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2
Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3
3.1
3.2
General product characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4
4.1
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Application circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5
Typical performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6
Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Datasheet
2
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Block diagram
1
Block diagram
Saturation
Control and
Protection
Circuit
Temperature
Sensor
Input
Ι
Q
Control
Amplifier
Adjustment
Output
Buffer
Bandgap
Reference
GND
GND
AEB02870
Figure 1
Datasheet
Block diagram
3
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Pin configuration
2
Pin configuration
GND
4
1
2
3
Ι
GND
Q
AEP02868
Figure 2
Pin configuration (top view)
Table 1
Pin definitions and functions
Pin
Symbol
Function
1
I
Input voltage
Block to ground directly with a ceramic capacitor.
2, 4
GND
Ground
3
Q
5-V output voltage
Block to ground with a capacitor CQ ≥ 10 µF, ESR ≤ 4 Ω.
Datasheet
4
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
General product characteristics
3
General product characteristics
3.1
Absolute maximum ratings
Table 2
Absolute maximum ratings
Parameter
Symbol
Values
Min.
Typ.
Max.
Unit
Note or
Test Condition
Input I
Input voltage
VI
-42
–
45
V
–
Input current
II
–
–
–
–
Limited internally
Output voltage
VQ
-0.3
–
32
V
–
Output current
IQ
–
–
–
IGND
50
–
–
mA
–
Junction temperature
Tj
–
–
150
°C
–
Storage temperature
Tstg
-50
–
150
°C
–
Rthj-a
–
–
164
K/W
PG-SOT223-41)
Rthj-a
–
–
81
K/W
PG-SOT223-4,
300 mm2 heat sink
area
Rthj-p
–
–
17
K/W
PG-SOT223-42)
Input voltage
VI
5.5
–
45
V
–
Junction temperature
Tj
-40
–
150
°C
–
Output Q
Limited internally
Ground GND
Current
Temperature
Thermal resistance
Junction-ambient
Junction-pin
Operating range
1) Package mounted on PCB 80 × 80 × 1.5mm3; 35 µ Cu; 5 µ Sn; Footprint only; zero airflow.
2) Measured to pin 4.
Datasheet
5
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
General product characteristics
3.2
Electrical characteristics
Table 3
Electrical characteristics
VI = 13.5 V; Tj = -40°C to 125°C, unless specified otherwise
Parameter
Symbol
Values
Min.
Typ.
Max.
Unit
Note or
Test Condition
Output voltage
VQ
4.85
5.0
5.15
V
IQ = 5 mA to 100 mA
VI = 6 V to 21 V
Output voltage
VQ
4.9
5.0
5.1
V
IQ = 5 mA to 50 mA
VI = 9 V to 16 V
Output-current limiting
IQ
150
200
500
mA
–
Current consumption
Iq = II - IQ
Iq
–
40
60
µA
IQ = 100 µA
Tj ≤ 85°C
Iq
–
40
70
µA
IQ = 100 µA
Current consumption
Iq = II - IQ
Iq
–
1.7
4
mA
IQ = 50 mA
Drop voltage
Vdr
–
0.22
0.5
V
IQ = 100 mA1)
Load regulation
∆VQ, lo
–
50
90
mV
IQ = 1 mA to 100 mA
VI = 13.5 V
Line regulation
∆VQ, li
–
5
30
mV
VI = 6 V to 28 V
IQ = 1 mA
Power supply ripple rejection
PSRR
–
68
–
dB
fr = 100 Hz
Vr = 0.5 Vpp
Output capacitor
CQ
10
–
–
µF
ESR ≤ 4 Ω at 10 kHz
1) Drop voltage = VI - VQ (measured where VQ has dropped 100 mV from the nominal value obtained at VI = 13.5 V).
Datasheet
6
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Functional description
4
Functional description
4.1
Application circuit
Ι
Input
5.5 to 45 V
470 μF
Q
TLE 4264-2
100 nF
Output
10 μF
GND
AES02871
Figure 3
Application circuit
The control amplifier compares a reference voltage, which is kept highly precise by resistance adjustment, to
a voltage that is proportional to the output voltage and drives the base of the series transistor via a buffer.
Saturation control, working as a function of load current, prevents any over-saturation of the power element.
The IC is additionally protected against overload, overtemperature and reverse polarity.
In the TLE4264-2 the output voltage is divided and compared to an internal reference of 2.5 V typical. The
regulation loop controls the output to achieve an output voltage of 5 V with an accuracy of ±3% at an input
voltage range of 5.5 V < VI < 45 V.
Figure 3 shows a typical application circuit. For stability of the control loop the TLE4264-2 output requires an
output capacitor CQ of at least 10 µF with a maximum permissible ESR of 4 Ω. Tantalum as well as multi layer
ceramic capacitors are suitable.
At the input of the regulator an input capacitor is necessary for compensating line influences (100 nF ceramic
capacitor recommended). A resistor of approx. 1 Ω in series with CI, can damp any oscillation occurring due
the input inductivity and the input capacitor.
In the application circuit shown in Figure 3 an additional electrolytic input capacitor of 470 µF is added in
order to buffer supply line influences. This capacitor is recommended, if the device is sourced via long supply
lines of several meters.
The TLE4264-2 can supply up to 150 mA. However for protection for high input voltage above 25 V, the output
current is reduced (SOA protection).
Datasheet
7
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Typical performance characteristics
5
Typical performance characteristics
Output voltage VQ versus
junction temperature Tj
VQ
Drop voltage Vdr versus
output current IQ
AED03344.VSD
5.15
V
Vdr
IQ = 5 mA
AED03343.VSD
400
mV
Tj = 125°C
350
5.10
300
Tj = 25°C
250
5.05
200
5.00
Tj = -40°C
150
100
4.95
50
4.90
-40
0
40
80
°C
0
160
Tj
0
20 40 60 80 100 120 mA 160
IQ
Output voltage VQ versus
input voltage VI
AED03345.VSD
10
VQ
V
RL = 50 Ω
8
6
4
2
0
0
2
4
6
8 V 10
VI
Datasheet
8
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Typical performance characteristics
Current consumption Iq versus
output current IQ
Iq
Current consumption Iq versus
output current IQ
AED03341.VSD
400
µA
Iq
350
6
250
5
200
4
150
3
100
2
50
1
0
2
4
6
8
0
10 12 mA 16
0
20 40 60 80 100 120 mA 160
IQ
IQ
Datasheet
7
300
0
AED03342.VSD
8
mA
9
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Package information
Package information
1.6 ±0.1
6.5 ±0.2
0.1 MAX.
4
2
B
0.5 MIN.
1
+0.2
acc. to
DIN 6784
7 ±0.3
3 ±0.1
3.5 ±0.2
A
15˚ MAX.
6
3
0.28 ±0.04
2.3
0.7 ±0.1
4.6
0.25
Figure 4
M
A
0.25
M
B
PG-SOT223-4 (Plastic small outline transistor)1)
Green Product (RoHS compliant)
To meet the world-wide customer requirements for environmentally friendly products and to be compliant
with government regulations the device is available as a green product. Green products are RoHS-Compliant
(i.e Pb-free finish on leads and suitable for Pb-free soldering according to IPC/JEDEC J-STD-020).
Further information on packages
https://www.infineon.com/packages
1) Dimensions in mm
Datasheet
10
Rev. 2.71
2019-10-29
OPTIREG™ Linear TLE4264-2
5-V low drop fixed voltage regulator
Revision history
7
Revision history
Revision Date
Changes
2,71
2019-10-29 Editorial change on page 9
2.7
2019-05-22 Updated layout and structure
Updated packaged drawing “PG-SOT223”
Editorial changes
2.6
2008-03-10 Simplified package name to PG-SOT223-4
No modification of released product
2.5
2007-03-20 Initial version of RoHS-compliant derivate of TLE 4264-2
Page 1: AEC certified statement added
Page 1 and Page 10: RoHS compliance statement and Green product feature added
Page 1 and Page 10: Package changed to RoHS compliant version
Legal Disclaimer updated
Datasheet
11
Rev. 2.71
2019-10-29
Trademarks
All referenced product or service names and trademarks are the property of their respective owners.
Edition 2019-10-29
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2019 Infineon Technologies AG.
All Rights Reserved.
Do you have a question about any
aspect of this document?
Email: erratum@infineon.com
Document reference
Z8F55276373
IMPORTANT NOTICE
The information given in this document shall in no
event be regarded as a guarantee of conditions or
characteristics ("Beschaffenheitsgarantie").
With respect to any examples, hints or any typical
values stated herein and/or any information regarding
the application of the product, Infineon Technologies
hereby disclaims any and all warranties and liabilities
of any kind, including without limitation warranties of
non-infringement of intellectual property rights of any
third party.
In addition, any information given in this document is
subject to customer's compliance with its obligations
stated in this document and any applicable legal
requirements, norms and standards concerning
customer's products and any use of the product of
Infineon Technologies in customer's applications.
The data contained in this document is exclusively
intended for technically trained staff. It is the
responsibility of customer's technical departments to
evaluate the suitability of the product for the intended
application and the completeness of the product
information given in this document with respect to
such application.
For further information on technology, delivery terms
and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com).
WARNINGS
Due to technical requirements products may contain
dangerous substances. For information on the types
in question please contact your nearest Infineon
Technologies office.
Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized representatives of Infineon Technologies,
Infineon Technologies’ products may not be used in
any applications where a failure of the product or any
consequences of the use thereof can reasonably be
expected to result in personal injury.
很抱歉,暂时无法提供与“TLE4264-2G”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 1000+7.26574
- 2000+7.04705
- 4000+6.83565
