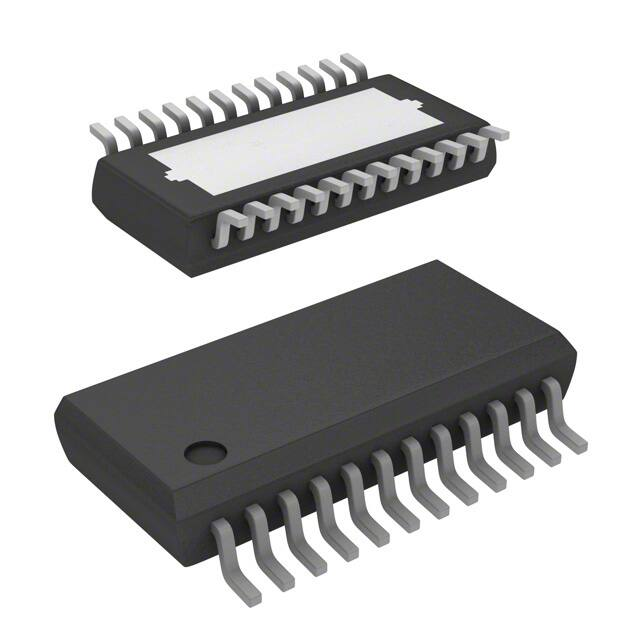

TLE7182EMXUMA1

Data Sheet, Rev 1.1, Sept. 2010 TLE7182EM H-Bridge and Dual Half Bridge Driver IC Automotive Power H-Bridge and Dual Half Bridge Driver IC TLE7182EM Table of Contents Table of Contents 1 Overview 3 2 Block Diagram 4 3 3.1 3.2 Pin Configuration 5 Pin Assignment 5 Pin Definitions and Functions 5 4 4.1 4.2 4.3 4.4 General Product Characteristics 7 Absolute Maximum Ratings 7 Functional Range 8 Thermal Resistance 9 Default State of Inputs 9 5 5.1 5.1.1 5.1.2 5.1.3 5.1.4 5.1.5 5.1.6 5.1.7 5.1.8 5.2 5.2.1 5.2.2 5.2.3 5.2.4 5.2.5 5.2.6 5.2.7 5.2.8 5.2.9 5.2.10 5.3 5.3.1 Description and Electrical Characteristics 10 MOSFET Driver 10 Driving MOSFET Output Stages 10 MOSFET Output Stages 10 Dead Time and Shoot Through Protection 11 Bootstrap Principle 11 100% D.C. charge pumps 12 Reverse polarity protection of motor bridge 12 Sleep mode 12 Electrical Characteristics 12 Protection and Diagnostic Functions 16 Short Circuit Protection 16 SCDL Pin Open Detection 16 Vs and VDH Over Voltage Warning 16 VS Under Voltage Shutdown 16 VREG Under Voltage Warning 16 Over Temperature Warning 17 Over Current Warning 17 Passive Gxx Clamping 17 ERR Pin 17 Electrical Characteristics 19 Shunt Signal Conditioning 21 Electrical Characteristics 21 6 6.1 6.2 Application Information 23 Layout Guide Lines 25 Further Application Information 25 7 Package Outlines 26 8 Revision History 27 Data Sheet 2 Rev 1.1, 2010-09-30 TLE7182EM H-Bridge and Dual Half Bridge Driver IC 1 Overview Features • • • • • • • • • • • • • • • • • Drives 4 N-Channel Power MOSFETs Separate control input for each MOSFET Unlimited D.C. switch on time of Low and Highside MOSFETs 0 …95% at 20kHz & 100% Duty cycle of High Side MOSFETs 0 ... 100 % Duty cycle of Low Side MOSFETs Additional output to drive a reverse polarity protection N-MOSFET Current sense OPAMP Low quiescent current mode PG-SSOP-24 Internal shoot through protection and minimum internal dead time option 1 bit diagnosis / ERR Over current warning based on current sense OPAMP with fixed warning level Analog adjustable Short Circuit Protection levels via SCDL pin with open pin detection and SCD deactivation Over temperature warning Over voltage warning Under voltage warning and shutdown Green Product (RoHS compliant) AEC Qualified Description The TLE7182EM is a H-bridge driver IC dedicated to control 4 N-channel MOSFETs typically forming the converter for a high current DC motor drives in the automotive sector. It incorporates several protection features such as over current and short circuit detection as well as under-, over voltage and over temperature diagnosis. The TLE7182EM perfectly fits for driving 2 valves or solenoids too. Typical applications are fans, pumps and electric power steering. The TLE7182EM is designed for a 12V power net. Table 1 Product Summary Specified operating voltage VSOP 7.0 V … 34 V Junction temperature Tj -40 °C .. 150°C Maximum output source resistance RSou 13.5 Ω Maximum output sink resistance RSink 9Ω IQVS 8 µA 1) maximum quiescent current 1) typical value at Tj=25°CC Type Package Marking TLE7182EM PG-SSOP-24 TLE7182EM Data Sheet 3 Rev 1.1, 2010-09-30 H-Bridge and Dual Half Bridge Driver IC TLE7182EM Block Diagram 2 Block Diagram VS VREG Charge pump HS2 Charge pump HS1 RPP VREG RPP VDH BH1 Floating HS driver Short circuit detection GH1 SH1 ____ ERR SCDL Diagnostic logic Under voltage Over voltage Over current Overtemperature Short circuit Reset ENA ___ IH1 IL1 ___ IH2 L E V E L Floating LS driver Short circuit detection S H I F T E R GL1 BH2 Floating HS driver Short circuit detection GH2 SH2 Input control Shoot through protection dead time Floating LS driver Short circuit detection IL2 GL2 SL ISO ISP ISN Shunt signal conditioning Over current detection GND Figure 1 Data Sheet Block diagram TLE7182EM 4 Rev 1.1, 2010-09-30 H-Bridge and Dual Half Bridge Driver IC TLE7182EM Pin Configuration 3 Pin Configuration 3.1 Pin Assignment BH2 GH2 SH2 GL2 VDH RPP Vs VREG ENA ISN ISP ISO 1 2 3 4 5 6 7 8 9 10 11 12 Figure 2 Pin Configuration 3.2 Pin Definitions and Functions # of Pins 24 23 22 21 20 19 18 17 16 15 14 13 BH1 GH1 SH1 GL1 SL GND SCDL ___ ERR IL1 ___ IH1 IL2 ___ IH2 Symbol Function 1 BH2 Pin for + terminal of the bootstrap capacitor of phase 2 2 GH2 Output pin for gate of high side MOSFET 2 3 SH2 Pin for source connection of high side MOSFET 2 4 GL2 Output pin for gate of low side MOSFET 2 5 VDH Voltage input common drain high side for short circuit detection 6 RPP charge pump output for reverse polarity protection of the motor bridge 7 VS Pin for supply voltage 8 VREG Output of supply for driver output stage - connect to a capacitor 9 ENA Input pin for reset of ERR registers, active switch off of external MOSFETs and low quiescent current mode, set HIGH to enable operation 10 ISN Input for OPAMP + terminal 11 ISP Input for OPAMP - terminal 12 ISO Output of OPAMP 13 IH2 Input for high side switch 2 (active low) 14 IL2 Input for low side switch 2 (active high) 15 IH1 Input for high side switch 1 (active low) 16 IL1 Input for low side switch 1 (active high) Data Sheet 5 Rev 1.1, 2010-09-30 H-Bridge and Dual Half Bridge Driver IC TLE7182EM Pin Configuration # of Pins Symbol Function 17 ERR Push pull output stage 18 SCDL Input pin for adjustable Short Circuit Detection function and SCD deactivation 19 GND Ground pin 20 SL Pin for common source of lowside MOSFETs 21 GL1 Output pin for gate of low side MOSFET 1 22 SH1 Pin for source connection of high side MOSFET 1 23 GH1 Output pin for gate of high side MOSFET 1 24 BH1 Pin for + terminal of the bootstrap capacitor of phase 1 Tab Tab should be connected to GND Data Sheet 6 Rev 1.1, 2010-09-30 H-Bridge and Dual Half Bridge Driver IC TLE7182EM General Product Characteristics 4 General Product Characteristics 4.1 Absolute Maximum Ratings Absolute Maximum Ratings 1) 40 °C ≤ Tj ≤ 150 °C; all voltages with respect to ground, positive current flowing into pin (unless otherwise specified) Pos. Parameter Symbol Limit Values Min. Max. Unit Conditions Voltages 4.1.1 Supply voltage at VS VVS -0.3 45 V – 4.1.2 Supply voltage at VS VVSRP -4.0 45 V RVS≥10Ω 4.1.3 Voltage range at VDH VVDH -0.3 55 V – 4.1.4 Voltage range at RPP -0.3 55 V – 4.1.5 maximum current at RPP -25 25 mA – 4.1.6 Voltage range at ENA -0.3 45 V – 4.1.7 Voltage range at SCDL -0.3 6 V – 4.1.8 Voltage range at IH1, IL1, IH2, IL2 -0.3 6 V – 4.1.9 Voltage range at ERR, ISO -0.3 6 V – 4.1.10 Voltage range at ISP, ISN -5.0 5.0 V – 4.1.11 Voltage range at VREG -0.3 15 V – 4.1.12 Voltage range at BHx -0.3 55 V – 4.1.13 Voltage range at GHx -0.3 55 V – 4.1.14 Voltage range at GHx -7.0 55 V tP
