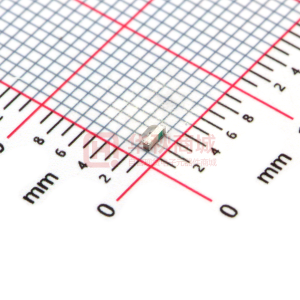

Technical Data Sheet Chip LED with Right Angle Lens
12-215/G6C-AL2M2B/3C
Features
․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain with in RoHS compliant version
Descriptions
․The 12-215 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc.
Applications
․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. ․Indoor signboard use.
Device Selection Guide
Chip Part No. Material 12-215/G6C-AL2M2B/3C AlGaInP Brilliant Yellow Green Water Clear Emitted Color Resin Color
Everlight Electronics Co., Ltd. Device No: DSE-0002327
http://www.everlight.com Prepared date: 14-Sep-2009
Rev 2
Page: 1 of 10
Prepared by: PAUL
12-215/G6C-AL2M2B/3C
Package Outline Dimensions
C L
1.7 2.1
R0.5
0.5
1.0
0.6
C L
0.8 Cathode Mask
1.3
0.8
0.3
1.5
0.3
Note: The tolerances unless mentioned is ±0.1mm, Unit = mm
Everlight Electronics Co., Ltd. Device No: DSE-0002327
http://www.everlight.com Prepared date: 14-Sep-2009
Rev 2
Page: 2 of 10
Prepared by: PAUL
0.35
0.9
12-215/G6C-AL2M2B/3C
Absolute Maximum Ratings (Ta=25℃)
Parameter Reverse Voltage Forward Current Peak Forward Current (Duty 1/10 @1KHz) Power Dissipation Electrostatic Discharge(HBM) Operating Temperature Storage Temperature Soldering Temperature Symbol VR IF IFP Pd ESD Topr Tstg Tsol Rating 5 25 60 60 2000 -40 ~ +85 -40~ +90 Unit V mA mA mW V ℃ ℃
Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec.
Electro-Optical Characteristics (Ta=25℃) Parameter
Luminous Intensity Peak Wavelength Dominant Wavelength Spectrum Radiation Bandwidth Viewing Angle Forward Voltage Reverse Current
Symbol
IV λp λd △λ 2θ1/2 VF IR
Min.
14.5 ---569.5 --------1.75 ----
Typ.
----575 ----20 130 --------
Max.
28.5 ---577.5 ------2.35 10
Unit
mcd nm nm
Condition
IF=20mA nm deg V μA VR=5V
Notes:
1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd. Device No: DSE-0002327 http://www.everlight.com Prepared date: 14-Sep-2009 Rev 2 Page: 3 of 10
Prepared by: PAUL
12-215/G6C-AL2M2B/3C
Bin Range Of Dom. Wavelength
Groups Bin C16 Min 569.5 571.5 573.5 575.5 Max 571.5 573.5 575.5 577.5 nm IF =20mA Unit Condition
A
C17 C18 C19
Bin Range Of Luminous Intensity
Bin L2 M1 M2 Min 14.5 18.0 22.5 Max 18.0 22.5 28.5 mcd IF =20mA Unit Condition
Bin Range Of Forward Voltage
Groups B Bin 0 1 2 Min 1.75 1.95 2.15 Max 1.95 2.15 2.35 V IF =20mA Unit Condition
Notes:
1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.1V
Everlight Electronics Co., Ltd. Device No: DSE-0002327
http://www.everlight.com Prepared date: 14-Sep-2009
Rev 2
Page: 4 of 10
Prepared by: PAUL
12-215/G6C-AL2M2B/3C
Electro-Optical Characteristics (Ta=25℃)
Everlight Electronics Co., Ltd. Device No: DSE-0002327
http://www.everlight.com Prepared date: 14-Sep-2009
Rev 2
Page: 5 of 10
Prepared by: PAUL
12-215/G6C-AL2M2B/3C
Label explanation
CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank
Reel Dimensions
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Everlight Electronics Co., Ltd. Device No: DSE-0002327 http://www.everlight.com Prepared date: 14-Sep-2009 Rev 2 Page: 6 of 10
Prepared by: PAUL
12-215/G6C-AL2M2B/3C
Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm
Moisture Resistant Packaging
Label
Aluminum moisture-proof bag
Desiccant
Label
Everlight Electronics Co., Ltd. Device No: DSE-0002327
http://www.everlight.com Prepared date: 14-Sep-2009
Rev 2
Page: 7 of 10
Prepared by: PAUL
12-215/G6C-AL2M2B/3C
Reliability Test Items And Conditions
The reliability of products shall be satisfied with items listed below. Confidence level:90% LTPD:10%
No. 1
Items Reflow Soldering
Test Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85% RH
Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS.
Ac/Re 0/1
2
Temperature Cycle
22 PCS.
0/1
3
Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity
300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs.
22 PCS.
0/1
4 5 6 7
22 PCS. 22 PCS. 22 PCS. 22 PCS.
0/1 0/1 0/1 0/1
Everlight Electronics Co., Ltd. Device No: DSE-0002327
http://www.everlight.com Prepared date: 14-Sep-2009
Rev 2
Page: 8 of 10
Prepared by: PAUL
12-215/G6C-AL2M2B/3C
Precautions For Use
1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile
3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board.
Everlight Electronics Co., Ltd. Device No: DSE-0002327
http://www.everlight.com Prepared date: 14-Sep-2009
Rev 2
Page: 9 of 10
Prepared by: PAUL
12-215/G6C-AL2M2B/3C
4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.
EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C
Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com
Everlight Electronics Co., Ltd. Device No: DSE-0002327
http://www.everlight.com Prepared date: 14-Sep-2009
Rev 2
Page: 10 of 10
Prepared by: PAUL
