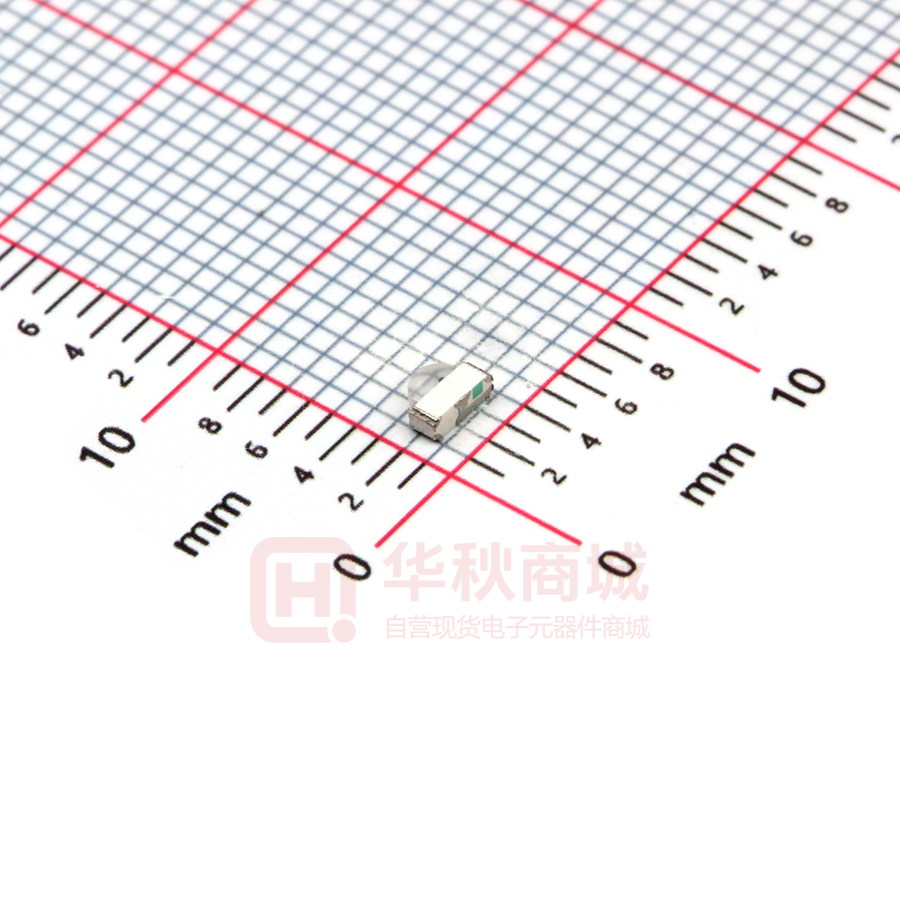

12-22/R6BHC-C30/2C

Technical Data Sheet Right Angle Lens Chip LEDs with Bi-Color (Multi-Color) 12-22/R6BHC-C30/2C Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Multi-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version. Descriptions ․The 12-22 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Chip Emitted Color Type Material R6 AlGaInP Brilliant Red BH InGaN Blue Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 Resin Color Water Clear Rev: 1 Page: 1 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Package Outline Dimensions Note: The tolerances unless mentioned is ±0.1mm Everlight Electronics Co., Ltd. Device No: DSE-0003690 ,Unit = mm http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 2 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF Peak Forward Current (Duty 1/10 @1KHz) Power Dissipation Electrostatic Discharge(HBM) R6:25 mA BH:25 R6:60 IFP mA BH:100 R6:60 Pd mW BH:95 ESD R6:2000 V BH:150 Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40~ +90 ℃ Soldering Temperature Tsol Everlight Electronics Co., Ltd. Device No: DSE-0003690 Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 3 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Electro-Optical Characteristics (Ta=25℃) Parameter Luminous Intensity Forward Voltage Reverse Current Typ. Max. Iv R6 22.5 ---- 45.0 BH 18.0 ---- 45.0 ----- 120 ----- deg ----- nm λp R6 BH λd Dominant Wavelength Spectrum Radiation Bandwidth Min. 2θ1/2 Viewing Angle Peak Wavelength Symbol △λ ----- R6 617.5 BH 465.0 R6 ----BH VF IR 632 468 --------- 475.0 20 25 ----- 1.55 ----- 2.15 BH 2.50 ----- 3.10 ----- ----- BH 10 50 Condition mcd 629.5 R6 R6 Unit nm IF=5mA nm V μA VR=5V Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength: ±1nm 3.Tolerance of Forward Voltage ±0.1V Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 4 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Bin Range Of Luminous Intensity R6 Bin Min Max M2 22.5 28.5 N 28.5 45.0 Bin Min Max M 18.0 28.5 N 28.5 45.0 Unit Condition mcd IF=5mA Unit Condition mcd IF=5mA Unit Condition nm IF=5mA Unit Condition nm IF=5mA Unit Condition V IF=5mA Unit Condition V IF=5mA BH Bin Range Of Dom. Wavelength R6 Group B Bin Min Max E4 617.5 621.5 E5 621.5 625.5 E6 625.5 629.5 Bin Min Max X 465.0 470.0 Y 470.0 475.0 BH Group Z Bin Range Of Forward Voltage R6 Group A Bin Min Max 00 1.55 1.75 0 1.75 1.95 1 1.95 2.15 Bin Min Max 9 2.50 2.70 10 2.70 2.90 11 2.90 3.10 BH Group R Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Dominant Wavelength: ±1nm 3.Tolerance of Forward Voltage ±0.1V Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 5 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Typical Electro-Optical Characteristics Curves R6 Ta=25°C Forward Current I (mA) Relative luminous intensity ( % ) Ta=25°C Wavelength λ(nm) Forward Voltage VF (V) Relative luminous intensity ( %) Relative luminous intensity ( % ) Ta=25°C Ambient Temperature Ta(°C ) Forward Current I (mA) Ta=25°C 10° 20° I (mA) 0° Forward Current 30° 40° 1.0 0.9 50° 0.8 60° 70° 0.7 Ambient Temperature Ta (°C ) Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 80° 90° 0.5 0.3 0.1 Rev: 1 0.2 0.4 0.6 Page: 6 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Typical Electro-Optical Characteristics Curves BH Ta=25°C Forward Current I (mA) Relative luminous intensity ( % ) Ta=25°C Wavelength λ(nm) Forward Voltage VF (V) Relative luminous intensity ( %) Relative luminous intensity ( % ) Ta=25°C 1000 100 10 1 -60 -40 -20 0 20 40 60 80 100 Forward Current I (mA) Forward Current I (mA) Ambient Temperature Ta(°C ) Ambient Temperature Ta (°C ) Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 7 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank Pb EVERLIGHT CPN : P N : XXXXXXXXXXXXX RoHS XXXXXXXXXXXXX CAT : XXX HUE : XXX REF : XXX QTY : XXX LOT NO : XXXXXXXXXX Reference : XXXXXXXX MADE IN TAIWAN Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 8 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 Desiccant Rev: 1 Label Page: 9 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% Test Sample Hours/Cycles Size No. Items Test Condition 1 Reflow Soldering Temp. : 260℃±5℃ Min. 5sec. 6 Min. 22 PCS. 0/1 Temperature Cycle H : +100℃ 15min ∫ 5 min L : -40℃ 15min 300 Cycles 22 PCS. 0/1 Thermal Shock H : +100℃ 5min ∫ 10 sec L : -10℃ 5min 300 Cycles 22 PCS. 0/1 Temp. : 100℃ 1000 Hrs. 22 PCS. 0/1 Temp. : -40℃ 1000 Hrs. 22 PCS. 0/1 2 3 4 5 High Temperature Storage Low Temperature Storage Ac/Re 6 DC Operating Life IF = 20 mA 1000 Hrs. 22 PCS. 0/1 7 High Temperature / High Humidity 85℃/ 85%RH 1000 Hrs. 22 PCS. 0/1 Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 10 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C Precautions For Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No: DSE-0003690 http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 11 of 12 Prepared by: Yang Junyu 12-22/R6BHC-C30/2C 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Everlight Electronics Co., Ltd. Device No: DSE-0003690 Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com http://www.everlight.com Prepared date:17-May.-2010 Rev: 1 Page: 12 of 12 Prepared by: Yang Junyu
