1383SYGD/S530-E2

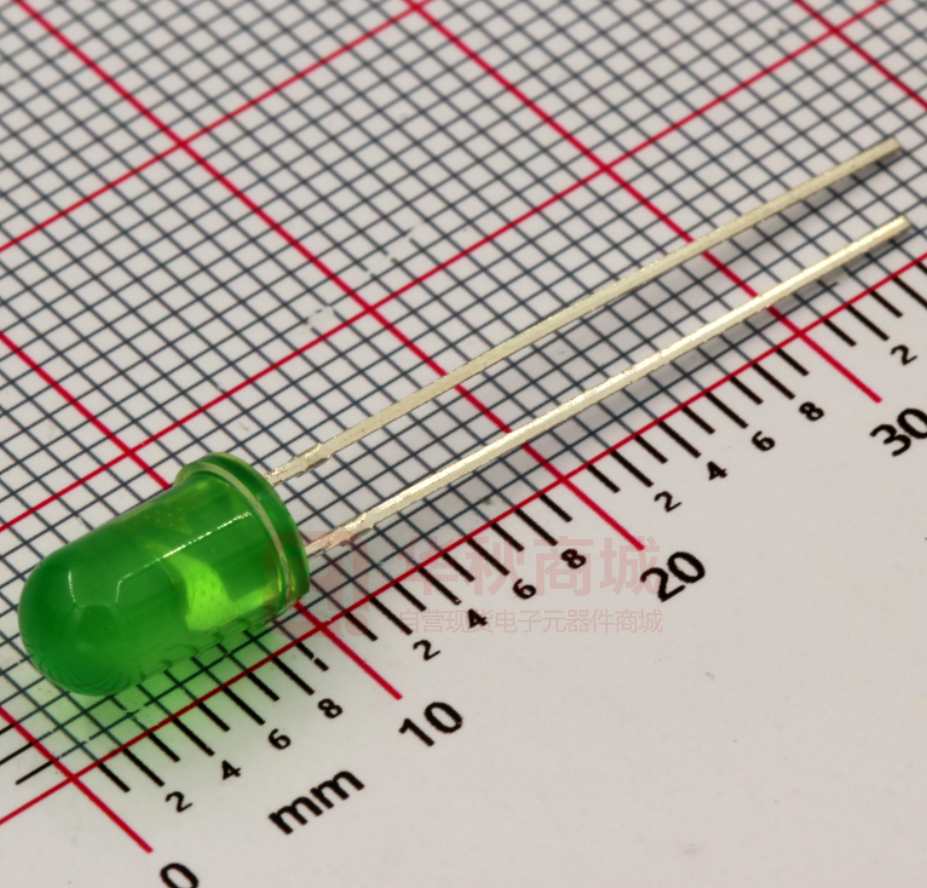

Technical Data Sheet 5.0mm Round Type LED Lamps 1383SYGD/S530-E2 █ Features : ● Choice of various viewing angles ● Available on tape and reel. ● Reliable and robust ● Pb free ● The product itself will remain within RoHS compliant version. █ Descriptions : ● The series is specially designed for applications requiring higher brightness ● The led lamps are available with different colors, intensities. █ Applications : ● TV set ● Monitor ● Telephone ● Computer PART NO. Material Emitted Color Lens Color 1383SYGD/S530-E2 AlGaInP Super Yellow Green Green Diffused EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: Device Number : Prepared date: 2005/9/5 Prepared by: CDLE-138-061 BG0506005,R0502516 1 Page: 1 of 6 Lan Feng Technical Data Sheet 5.0mm Round Type LED Lamps 1383SYGD/S530-E2 Package Dimensions Notes: 1. All dimensions are in millimetres 2. The height of flange must be less than 1.5mm(0.059"). 3. Without special declared,the tolerance is ±0.25mm. █ Absolute Maximum Ratings at Ta = 25℃ Parameter Symbol Rating Unit Forward Current IF 25 mA Operating Temperature Topr -40 to +85 ℃ Storage Temperature Tstg -40 to +100 ℃ Soldering Temperature Tsol 260 ± 5 ℃ Electrostatic Discharge ESD 2000 V Power Dissipation Pd 60 mW Reverse Voltage VR 5 V Note: *1:Soldering time ≦ 5 seconds. EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Device Number : Prepared date: CDLE-138-061 2005/9/5 Rev.: 1 Prepared by: Page: 2 of 6 Lan Feng Technical Data Sheet 5.0mm Round Type LED Lamps 1383SYGD/S530-E2 Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition Forward Voltage VF IF= 20 Reverse Current IR VR= Luminous Intensity Iv Viewing Angle Min. Typ. Max. Unit mA ／ 2.0 2.4 V 5 V ／ ／ 10 μA IF= 20 mA 100 200 ／ mcd 2θ1/2 IF= 20 mA ／ 25 ／ deg Peak Wavelength λp IF= 20 mA ／ 575 ／ nm Dominant Wavelength λd IF= 20 mA ／ 573 ／ nm Spectrum Radiation Bandwidth △λ IF= 20 mA ／ 20 ／ nm EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Device Number : CDLE-138-061 Prepared date: 2005/9/5 Rev.: 1 Prepared by: Page: 3 of 6 Lan Feng Technical Data Sheet 5.0mm Round Type LED Lamps 1383SYGD/S530-E2 █ Typical Electro-Optical Characteristic Curves: EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-138-061 http : //www.everlight.com Prepared date: 2005/9/5 Rev.: Prepared by: 1 Page: 4 of 6 Lan Feng Technical Data Sheet 5.0mm Round Type LED Lamps 1383SYGD/S530-E2 █ Reliability test items and conditions: The reliability of products shall be satisfied with items listed below. Confidence level：97% LTPD：3% Failure Judgment Ac/Re Criteria NO Item Test Conditions Test Hours/Cycle Sample Size 1 Solder Heat TEMP : 260℃ ± 5 ℃ 10 SEC 76 PCS 0/1 300 CYCLES 76 PCS 0/1 300 CYCLES 76 PCS 0/1 H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min 2 Temperature Cycle 3 Thermal Shock 4 High Temperature Storage TEMP : 100℃ 1000 HRS Iv≦Ivt*0.5 or Vf≧U 76 PCS or Vf≦L 5 Low Temperature Storage TEMP : -40℃ 1000 HRS 76 PCS 0/1 6 DC Operating Life 1000 HRS 76 PCS 0/1 7 High Temperature / High Humidity 1000 HRS 76 PCS 0/1 TEMP : 25℃ IF = 20mA 85℃ / 85% RH Note：Ivt：To test Iv value of the chip before the reliablility test Iv：The test value of the chip that has completed the reliablility test U：Upper Specification Limit L： Lower Specification Limit EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-138-061 http : //www.everlight.com Prepared date: 2005/9/5 Rev.: 1 Prepared by: Page: 5 of 6 Lan Feng 0/1 Technical Data Sheet 5.0mm Round Type LED Lamps 1383SYGD/S530-E2 Packing Quantity Specification 1.500PCS/1Bag，5Bags/1Box 2.10Boxes/1Carton Label Form Specification CPN: Customer's Production Number QTY: Packing Quantity CAT: Ranks HUE: Dominant Wavelength 1383SYGD/S530-E2 REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’sconsent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Device Number : Prepared date: CDLE-138-061 2005/9/5 'Rev.: 1 Prepared by: Page: 6 of 6 Lan Feng Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Everlight: 1383SYGD/S530-E2
