15-13D-R6GHBHC-A01-2T

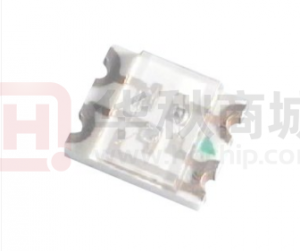

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet Full Color Chip LED 15-13D/R6GHBHC-A01/2T Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Multi-color type. ․Pb-free. ․ESD Protect. ․The product itself will remain within RoHS compliant version. Descriptions ․The 15-13D SMD Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Chip Type R6 GH BH Material AlGaInP InGaN InGaN Emitted Color Brilliant Red Brilliant Green Blue Water Clear Resin Color Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 1 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Package Outline Dimensions 3.2 B R 2.6 Anode Mark G 2.0 0.9 0.6 1.1 0.9 0.7 1.8 0.7 1.8 4.6 Note: The tolerances unless mentioned is ±0.1mm,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 2 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: 0.5 2.3 EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Absolute Maximum Ratings (Ta=25℃) Parameter Reverse Voltage Symbol VR Rating 5 R6:25 Forward Current IF GH:25 BH:25 Peak Forward Current (Duty 1/10 @1KHz) R6:60 IFP GH:100 BH:100 R6:60 Power Dissipation Pd GH:110 BH:110 R6:2000 Electrostatic Discharge(HBM) ESD GH:2000 BH:2000 Operating Temperature Storage Temperature Soldering Temperature Topr Tstg Tsol -40 ~ +85 -40 ~ +90 ℃ ℃ V mW mA mA Unit V Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 3 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Electro-Optical Characteristics (Ta=25℃) Parameter Symbol R6 Min. 90 112 45 ----- Typ. 140 180 70 120 632 Max. ----- Unit mcd Condition IF=20mA Luminous Intensity Iv GH BH Viewing Angle 2θ1/2 R6 ----- deg IF=20mA Peak Wavelength λp GH BH R6 ----- 518 468 624 ----- nm IF=20mA Dominant Wavelength λd GH BH R6 ----- 525 470 20 ----- nm IF=20mA Spectrum Radiation Bandwidth △λ GH BH R6 ----- 35 25 ----- nm IF=20mA 1.7 2.7 2.7 2.0 3.3 3.3 2.4 3.7 3.7 10 V IF=20mA Forward Voltage VF GH BH R6 Reverse Current IR GH BH ----- ----- 50 50 μA VR=5V Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 4 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Typical Electro-Optical Characteristics Curves R6 Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 5 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Typical Electro-Optical Characteristics Curves GH Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 6 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Typical Electro-Optical Characteristics Curves BH Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 7 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 8 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Desiccant Label Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 9 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. 1 Items Reflow Soldering Test Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85%RH Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS. Ac/Re 0/1 2 Temperature Cycle 22 PCS. 0/1 3 4 5 6 7 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs. 22 PCS. 22 PCS. 22 PCS. 22 PCS. 22 PCS. 0/1 0/1 0/1 0/1 0/1 Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 10 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T Precautions For Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 1~5 °C / Sec. 260°C. Max. 10 Sec. Max. 1~5 °C / Sec. Pre-heating 180~200°C 60 Sec. Max. Above 220°C 120 Sec. Max. 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 11 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase: EVERLIGHT ELECTRONICS CO.,LTD. 15-13D/R6GHBHC-A01/2T 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. Device No. : DSE-153-A01 http://www.everlight.com Prepared date: 07-Mar-2005 Rev. 1 Page: 12 of 12 Prepared by : Esther Yan Revision :1 Release Date:2008-09-20 00:15:55.0 Expired Period: Forever LifecyclePhase:
