19-137-R6GHBHC-A01-2T

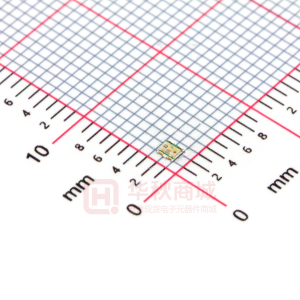

Technical Data Sheet 0.5mm Height Chip LED with Full Color 19-137/R6GHBHC-A01/2T Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Full-color type. ․Pb-free. ․ESD protection ․The product itself will remain within RoHS compliant version. Descriptions ․The 19-137 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Chip Type R6 GH BH Material AlGaInP InGaN InGaN Emitted Color Brilliant Red Brilliant Green Blue Water Clear Resin Color Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 1 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Package Outline Dimensions 1.6 G 2 1.6 1 3 4 Anode mark 1.1 1.0 B R 0.8 1 0.55 4 0.55 0.35 0.55 2 3 0.55 0.8 2.4 Note: The tolerance unless mentioned is ±0.1mm,unit is mm. Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 2 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Absolute Maximum Ratings (Ta=25℃) Parameter Reverse Voltage Symbol VR Rating 5 R6:25 Forward Current IF GH:25 BH:25 Peak Forward Current (Duty 1/10 @1KHz) R6:60 IFP GH:100 BH:100 R6:60 Power Dissipation Pd GH:110 BH:110 Electrostatic Discharge(HBM) Operating Temperature Storage Temperature Soldering Temperature ESD Topr Tstg Tsol 2000 -40 ~ +85 -40 ~ +90 V ℃ ℃ mW mA mA Unit V Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 3 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Electro-Optical Characteristics (Ta=25℃) Parameter Symbol R6 Luminous Intensity Iv GH BH Min. 72 112 28.5 ----- Typ. 100 180 50 120 632 Max. Unit Condition ----- mcd Viewing Angle 2θ1/2 R6 ----- deg Peak Wavelength λp GH BH R6 ----- 518 468 624 ----- nm Dominant Wavelength λd GH BH R6 ----- 525 470 20 ----- nm IF=20mA Spectrum Radiation Bandwidth △λ GH BH R6 ----- 35 35 ----- nm 1.7 2.7 2.7 ----- 2.0 3.3 3.3 ----- 2.4 3.7 3.7 10 NA NA μA VR=5V V Forward Voltage VF GH BH R6 Reverse Current IR GH BH Notes: Tolerance of Luminous Intensity ±11% Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 4 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Typical Electro-Optical Characteristics Curves R6 Spectrum Distribution Ta=25°C Relative luminous intensity (%) Forward Current F (mA) I Forward Current vs. Forward Voltage Ta=25°C Wavelength λ (nm) Luminous Intensity vs. Ambient Temperature Relative luminous intensity ( ) % Relative luminous intensity ( ) % Forward Voltage VF (V) Luminous Intensity vs. Forward Current Ta=25°C Ambient Temperature Ta (°C) Forward Current Derating Curve Radiation Diagram Ta=25°C Forward Current F (mA) I Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 5 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Typical Electro-Optical Characteristics Curves GH Spectrum Distribution Ta=25° Relative luminous intensity (%) 100 I (mA) 75 50 25 50 40 30 25 20 10 0 2.6 3.0 3.4 3.8 4.2 4.5 Forward Current vs. Forward Voltage Ta=25°C 0 400 450 500 550 600 Forward Current F Wavelength λ (nm) Luminous Intensity vs. Relative luminous intensity (%) Relative luminous intensity (%) 1000 Ambient Temperature 1000 Forward Voltage VF (V) Luminous Intensity vs Forward Current Ta=25°C f=1KHz Duty=1/10 100 100 10 10 1 -60 -40 -20 0 20 40 60 80 100 1 10 10 10 Ambient Temperature Ta (°C) Forward Current Derating Curve 50 IF(mA) 40 30 25 20 10 0.7 0 0 20 40 60 85 100 0.5 1.0 0.9 0.8 Forward Current IF(mA) Radiation Diagram 0° Ta=25°C 20° 30° 10° Forward Current 40° 50° 60° 70° 80° 90° 0.3 0.1 0.2 0.4 0.6 Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 6 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Typical Electro-Optical Characteristics Curves BH Spectrum Distribution Relative luminous intensity (%) Forward Current IF (mA) 100 75 Ta=25°C Forward Current vs. Forward Voltage Ta=25°C 50 40 30 25 20 10 0 2.6 50 25 0 400 450 500 550 600 3.0 3.4 3.8 4.2 4.5 Wavelength λ (nm) Luminous Intensity vs. Relative luminous intensity (%) 1000 Ambient Temperature Relative luminous intensity (%) 1000 Forward Voltage VF (V) Luminous Intensity vs. Forward Current Ta=25°C f=1KHz Duty=1/10 100 100 10 10 1 -60 -40 -20 0 20 40 60 80 100 1 10 10 1 10 2 Ambient Temperature Ta (°C) Forward Current Derating Curve Forward Current IF (mA) Forward Current IF (mA) Radiation Diagram 0° 10° Ta=25°C 20° 30° 50 40 30 25 20 10 0 0 20 1.0 0.9 0.8 0.7 40° 50° 60° 70° 80° 90° 0.5 0.3 0.1 0.2 0.4 0.6 40 60 85 100 Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 7 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Label Explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank Pb EVERLIGHT RoHS CAT : XXX HUE : XXX REF : XXX CPN : P N : XXXXXXXXXXXXX XXXXXXXXXXXXX QTY : XXX LOT NO : XXXXXXXXXX Reference : XXXXXXXX MADE IN TAIWAN Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 8 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel Note: The tolerance unless mentioned is ±0.1mm ,unit is mm. Moisture Resistant Packaging Label Aluminum moisture-proof bag Desiccant Label Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 9 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. 1 Items Reflow Soldering Test Condition Temp. : 260℃±5℃ Max. 10sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85% RH Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS. Ac/Re 0/1 2 Temperature Cycle 22 PCS. 0/1 3 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 300 Cycles 22 PCS. 0/1 4 5 6 7 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs. 22 PCS. 22 PCS. 22 PCS. 22 PCS. 0/1 0/1 0/1 0/1 Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 10 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T Precautions For Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30 deg C or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile A bo ve25 5°C 3 0sec.M ax . 2 60°C M ax. 1 0sec. M ax . 6°C /sec.M ax. 3° C /sec.M ax. P re-heating 1 50~ 200°C 60~ 120sec. A bove 217°C 60~ 15 0sec. 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 11 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase: 19-137/R6GHBHC-A01/2T 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. Device No. : DSE-0002500 http://www.everlight.com Prepared date: 30-Sep-2009 Rev. 2 Page: 12 of 12 Prepared by : Ashley Kuo Revision :2 Release Date:2009-10-02 21:48:08.0 Expired Period: Forever LifecyclePhase:
