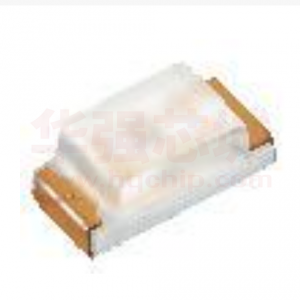

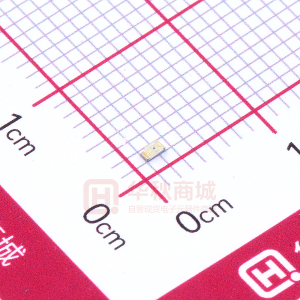

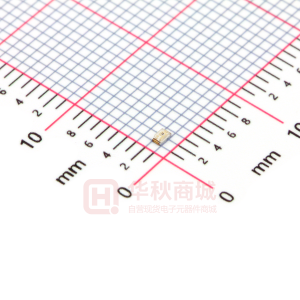

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet 0603 Package Chip LED (0.6 mm Height) 19-213SURC/S530-XX/TR8 Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version. Descriptions ․The 19-213 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․ Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Automotive: backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Chip Material AlGaInP Emitted Color Hyper Red Lens Color Water Clear Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 http://www.everlight.com Prepared date: 07-27-2005 Rev 2 Page: 1 of 9 Prepared by: Aihua chen EVERLIGHT ELECTRONICS CO.,LTD. 19-213SURC/S530-XX/TR8 Package Outline Dimensions - + Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 http://www.everlight.com Prepared date: 07-27-2005 Rev 2 Page: 2 of 9 Prepared by: Aihua chen EVERLIGHT ELECTRONICS CO.,LTD. 19-213SURC/S530-XX/TR8 Absolute Maximum Ratings (Ta=25℃) Parameter Reverse Voltage Forward Current Operating Temperature Storage Temperature Soldering Temperature Electrostatic Discharge Power Dissipation Peak Forward Current (Duty 1/10 @1KHz) Symbol VR IF Topr Tstg Tsol ESD Pd IFP Rating 5 25 -40 ~ +85 -40~ +90 260(for 5 second) 2000 60 60 Unit V mA ℃ ℃ ℃ V mW mA Electro-Optical Characteristics (Ta=25℃) Parameter Symbol *Chip Rank A2 A3 Luminous Intensity Min. 16 36 50 60 72 ------------------------- Typ. 38 54 78 98 119 120 632 624 20 2.0 ----- Max. ------------------------------------2.4 10 Unit Condition Iv A4 A5 A6 mcd Viewing Angle Peak Wavelength Dominant Wavelength 2θ1/2 λp λd △λ VF IR ------------------------- deg nm nm nm V μA IF=20mA Spectrum Radiation Bandwidth Forward Voltage Reverse Current VR=5V *19-213SURC/S530-XX/TR8 Chip Rank Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 http://www.everlight.com Prepared date: 07-27-2005 Rev 2 Page: 3 of 9 Prepared by: Aihua chen EVERLIGHT ELECTRONICS CO.,LTD. 19-213SURC/S530-XX/TR8 Typical Electro-Optical Characteristics Curves Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 http://www.everlight.com Prepared date: 07-27-2005 Rev 2 Page: 4 of 9 Prepared by: Aihua chen EVERLIGHT ELECTRONICS CO.,LTD. 19-213SURC/S530-XX/TR8 Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank xxxxxx xxxxxx RoHS xxxxxxxxxxxx xxxx xxxxxxxx Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 http://www.everlight.com Prepared date: 07-27-2005 Rev 2 Page: 5 of 9 Prepared by: Aihua chen EVERLIGHT ELECTRONICS CO.,LTD. 19-213SURC/S530-XX/TR8 Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moistue-proof bag Desiccant Label Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 http://www.everlight.com Prepared date: 07-27-2005 Rev 2 Page: 6 of 9 Prepared by: Aihua chen EVERLIGHT ELECTRONICS CO.,LTD. 19-213SURC/S530-XX/TR8 Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. 1 Items Reflow Soldering Test Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85%RH Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS. Ac/Re 0/1 2 Temperature Cycle 22 PCS. 0/1 3 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs. 22 PCS. 0/1 4 5 6 7 22 PCS. 22 PCS. 22 PCS. 22 PCS. 0/1 0/1 0/1 0/1 Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 http://www.everlight.com Prepared date: 07-27-2005 Rev 2 Page: 7 of 9 Prepared by: Aihua chen EVERLIGHT ELECTRONICS CO.,LTD. 19-213SURC/S530-XX/TR8 Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 The LEDs should be used within a year. 2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less. 2.5 The LEDs should be used within 168 hours (7 days) after opening the package. 2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 http://www.everlight.com Prepared date: 07-27-2005 Rev 2 Page: 8 of 9 Prepared by: Aihua chen EVERLIGHT ELECTRONICS CO.,LTD. 19-213SURC/S530-XX/TR8 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Everlight Electronics Co., Ltd. Device No: SZDSE-193-002 Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Rev 2 Page: 9 of 9 http://www.everlight.com Prepared date: 07-27-2005 Prepared by: Aihua chen
