19-213SYGC/S454/TR8

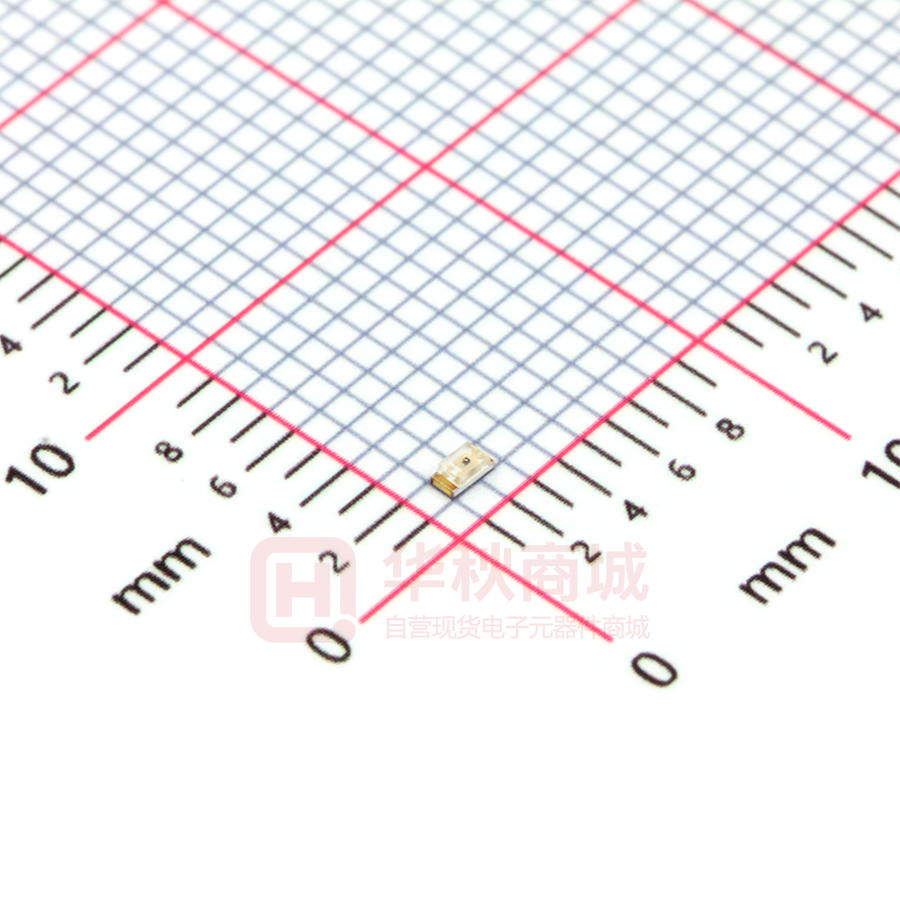

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet 0603 Package chip LED (0.6mm Height) 19-213SYGC/S454/TR8 Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. Descriptions ․The 19-213 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Automotive: backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. ․Indoor signboard use. Device Selection Guide Part No. 19-213SYGC/S454/TR8 Everlight Electronics Co., Ltd. Device No. : DSE-193-022 Chip Material Emitted Color AlGaInP Super Yellow Green http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Lens Color Water Clear Page: 1 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 Package Outline Dimensions - + Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-193-022 http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Page: 2 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +90 ℃ Electrostatic Discharge ESD 2000 V Power Dissipation Pd 60 mW IFP 60 mA Peak Forward Current (Duty 1/10 @1KHz) Reflow Soldering : 260 ℃ for 10 sec. Soldering Temperature Tsol Hand Soldering : 350 ℃ for 3 sec. Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Min. Typ. Max. Unit Luminous Intensity Iv 18.0 ----- 36.0 mcd Peak Wavelength λp ---- 575 ---- nm Dominant Wavelength λd 570.0 ----- 574.0 nm Spectrum Radiation Bandwidth △λ ---- 20 ---- nm Viewing Angle 2θ1/2 ---- 120 ---- deg Forward Voltage VF 1.85 ----- 2.15 V Reverse Current IR ---- ---- 10 μA Condition IF=10mA VR=5V Notes: 1.Tolerance of Luminous Intensity ±10% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. Device No. : DSE-193-022 http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Page: 3 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 Bin Range Of Dom. Wavelength Bin Min Max 1 570.0 571.0 2 571.0 572.0 3 572.0 573.0 4 573.0 574.0 Unit Condition nm IF=10mA Unit Condition mcd IF=10mA Unit Condition V IF=10mA Bin Range Of Luminous Intensity Bin Min Max M1 18.0 22.5 M2 22.5 28.5 N1 28.5 36.0 Bin Range Of Forward Voltage Bin Min Max 1 1.85 1.95 2 1.95 2.05 3 2.05 2.15 Notes: 1.Tolerance of Luminous Intensity ±10% 2.Tolerance of Dominant Wavelength ±1nm 3.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. Device No. : DSE-193-022 http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Page: 4 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 Typical Electro-Optical Characteristics Curves Everlight Electronics Co., Ltd. Device No. : DSE-193-022 http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Page: 5 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-193-022 http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Page: 6 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Everlight Electronics Co., Ltd. Device No. : DSE-193-022 http://www.everlight.com Prepared date: 02-Mar-2005 Desiccant Rev.1 Label Page: 7 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% Test Sample Hours/Cycles Size No. Items Test Condition 1 Reflow Soldering Temp. : 260℃±5℃ Min. 5sec. 6 Min. 22 PCS. 0/1 Temperature Cycle H : +100℃ 15min ∫ 5 min L : -40℃ 15min 300 Cycles 22 PCS. 0/1 Thermal Shock H : +100℃ 5min ∫ 10 sec L : -10℃ 5min 300 Cycles 22 PCS. 0/1 Temp. : 100℃ 1000 Hrs. 22 PCS. 0/1 Temp. : -40℃ 1000 Hrs. 22 PCS. 0/1 2 3 4 5 High Temperature Storage Low Temperature Storage Ac/Re 6 DC Operating Life IF = 20 mA 1000 Hrs. 22 PCS. 0/1 7 High Temperature / High Humidity 85℃/ 85%RH 1000 Hrs. 22 PCS. 0/1 Everlight Electronics Co., Ltd. Device No. : DSE-193-022 http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Page: 8 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package : The LEDs should be kept at 30℃ or less and 70%RH or less(Floor life). However, it's recommended that the LEDs should be used within 168 hours (7 days) after opening the package. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less. 2.5 The LEDs should be used within 168 hours (7 days) after opening the package. 2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No. : DSE-193-022 http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Page: 9 of 10 Prepared by: Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-213SYGC/S454/TR8 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Everlight Electronics Co., Ltd. Device No. : DSE-193-022 Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com http://www.everlight.com Prepared date: 02-Mar-2005 Rev.1 Page: 10 of 10 Prepared by: Jeff Tsai
