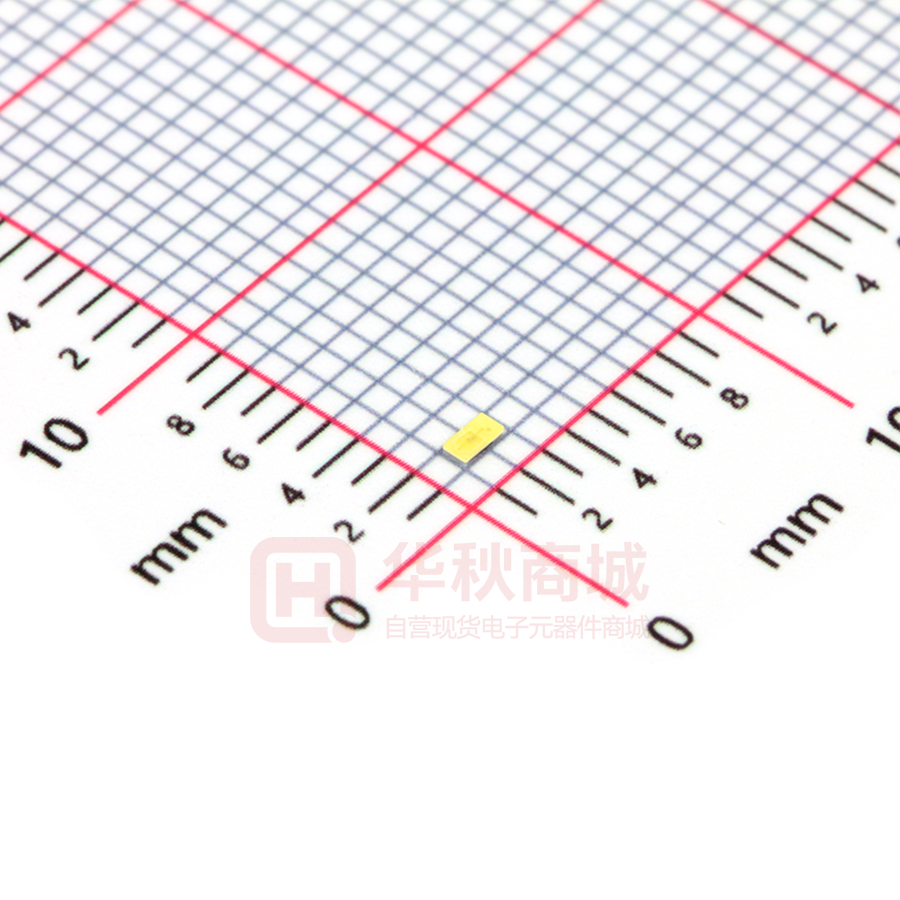

19-219UTD/S592/TR8

Technical Data Sheet 0603 Package Chip LED (0.2mm Height) 19-219UTD/S592/TR8 Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version. Descriptions ․The 19-219 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Part No. 19-219UTD/S592/TR8 Chip Material InGaN Emitted Color Resin Color Pure White Yellow Diffused Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 1 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Package Outline Dimensions 0.8 1.6 Polarity 0.2±0.05 Recommend soldering pad 1.5 0.35 0.70 0.70 0.70 0.65 Cathode pad 0.75 0.35 0.75 0.75 Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 2 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA IFP 100 mA Power Dissipation Pd 95 mW Electrostatic Discharge(HBM) ESD 150 V Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +90 ℃ Soldering Temperature Tsol Peak Forward Current (Duty 1/10 @1KHz) Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Min. Typ. Max. Unit Luminous Intensity Iv 112 ----- 285 mcd Viewing Angle 2θ1/2 ----- 130 ----- deg Forward Voltage VF 2.7 ----- 3.1 V Reverse Current IR ----- ----- 50 μA Condition IF=5mA VR=5V Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 3 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Bin Range Of Luminous Intensity Bin Min Max R1 112 140 R2 140 180 S1 180 225 S2 225 285 Unit Condition mcd IF=5mA Unit Condition V IF=5mA Bin Range Of Forward Voltage Bin Min Max 1 2.7 2.8 2 2.8 2.9 3 2.9 3.0 4 3.0 3.1 Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 4 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Chromaticity Coordinates Specifications for Bin Grading Bin Code A B C D CIE_x CIE_y Condition 0.255 0.245 0.255 0.2675 0.2675 0.255 0.270 0.280 0.280 0.270 0.285 0.2925 0.2925 0.285 0.300 0.305 0.220 0.245 0.255 0.235 0.235 0.255 0.270 0.250 0.250 0.270 0.285 0.265 0.265 0.285 0.300 0.280 IF=5mA Notes: 1.The C.I.E. 1931 chromaticity diagram ( Tolerance ±0.01). 2.The products are sensitive to static electricity and care must be fully taken when handling products. Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 5 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 CIE Chromaticity Diagram Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 6 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Typical Electro-Optical Characteristics Curves Forward Current vs. Forward Voltage Ta=25°C 100 Ta=25°C Forward Current IF (mA) Relative luminous intensity (%) Spectrum Distribution 75 50 25 0 400 500 600 700 800 Forward Voltage VF (V) Wavelength λ (nm) Luminous Intensity vs. Luminous Intensity vs. Forward Current Ta=25°C Relative luminous intensity (% ) Relative luminous intensity (% ) Ambient Temperature Ambient Temperature Ta (°C) Radiation Diagram Ta=25°C Forward Current I F (mA) Forward Current Derating Curve Forward Current I F (mA) Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 7 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Label Explanation CAT: Luminous Intensity Rank HUE: Chromaticity Coordinates Pb REF: Forward Voltage Rank CPN : P N : XXXXXXXXXXXXX EVERLIGHT RoHS XXXXXXXXXXXXX CAT : XXX HUE : XXX REF : XXX QTY : XXX LOT NO : XXXXXXXXXX Reference : XXXXXXXX MADE IN TAIWAN Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 8 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Desiccant Rev.3 Label Page: 9 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. Items 1 Reflow Soldering 2 Temperature Cycle 3 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 4 5 6 7 Test Condition Temp. : 260℃±5℃ Max. 10sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ 22 PCS. 0/1 300 Cycles 22 PCS. 0/1 300 Cycles 22 PCS. 0/1 22 PCS. 0/1 22 PCS. 0/1 1000 Hrs. 1000 Hrs. 22 PCS. 0/1 85℃/ 85%RH 1000 Hrs. 22 PCS. 0/1 Device No. : DSE-0001469 Prepared date: 17-Nov-2011 LifecyclePhase: 6 Min. 1000 Hrs. http://www.everlight.com :3 Ac/Re IF = 20 mA Everlight Electronics Co., Ltd. Revision Test Sample Hours/Cycles Size Rev.3 Page: 10 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 Precautions For Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 1~5 °C / Sec. 260°C. Max. 10 Sec. Max. 1~5 °C / Sec. Pre-heating 180~200°C 60 Sec. Max. Above 220°C 120 Sec. Max. 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 11 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever 19-219UTD/S592/TR8 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. http://www.everlight.com Device No. : DSE-0001469 Prepared date: 17-Nov-2011 Revision :3 LifecyclePhase: Rev.3 Page: 12 of 12 Prepared by: Ashley Kuo Release Date:2011-11-18 16:22:51.0 Expired Period: Forever
