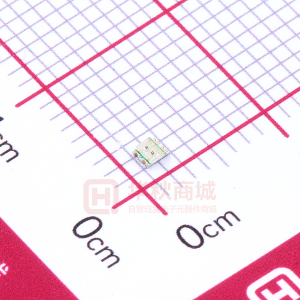

19-223-R6G6C-A01-2T

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet Chip LED with Bi-Color(Multi-Color) 19-223/R6G6C-A01/2T Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Multi-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version. Descriptions ․The 19-223 SMD Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․ Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Chip Emitted Color Type R6 G6 Material AlGaInP AlGaInP Brilliant Red Water Clear Brilliant Yellow Green Lens Color Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 1 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T Package Outline Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 2 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T Absolute Maximum Ratings (Ta=25℃) Parameter Reverse Voltage Forward Current Peak Forward Current IFP (Duty 1/10 @1KHz) Power Dissipation Pd G6:60 R6:2000 Electrostatic Discharge(HBM) Operating Temperature Storage Temperature Soldering Temperature ESD G6:2000 Topr Tstg Tsol -40 ~ +85 -40 ~ +90 ℃ ℃ V G6:60 R6:60 mW Symbol VR IF Rating 5 25 R6:60 mA Unit V mA Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. Electro-Optical Characteristics (Ta=25℃) Parameter Luminous Intensity G6 Viewing Angle 2θ1/2 λp Peak Wavelength G6 Dominant Wavelength λd R6 ----G6 Spectrum Radiation Bandwidth △λ R6 ----G6 Forward Voltage VF IR R6 G6 R6 G6 1.7 1.7 ----R6 ----575 624 573 20 20 2.0 2.0 ----IF=20mA ----nm 22.5 ----130 632 ----nm Symbol Iv R6 Min. 72.0 ----57.0 ----deg Typ. Max. 180 mcd Unit Condition ----2.4 2.4 10 10 nm V μA Reverse Current VR=5V Note: 1.Tolerance of Luminous Intensity ±11% http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 3 of 11 Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T R6 Bin Range Of Luminous Intensity Bin Q R Min 72.0 112 Max 112 mcd 180 IF=20mA Unit Condition G6 Bin Range Of Luminous Intensity Bin 1 2 Min 22.5 36.0 Max 36.0 mcd 57.0 IF=20mA Unit Condition Note: 1.Tolerance of Luminous Intensity ±11% Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 4 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T Typical Electro-Optical Characteristics Curves R6 Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 5 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T Typical Electro-Optical Characteristics Curves G6 Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 6 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank xxxxxx xxxxxx RoHS xxxxxxxxxxxx xxxx xxxxxxxx Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 7 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Desiccant Label Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 8 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. 1 Items Reflow Soldering Test Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85%RH Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS. Ac/Re 0/1 2 Temperature Cycle 22 PCS. 0/1 3 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs. 22 PCS. 0/1 4 5 6 7 22 PCS. 22 PCS. 22 PCS. 22 PCS. 0/1 0/1 0/1 0/1 Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 9 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 10 of 11 Prepared by: Xiaoyan EVERLIGHT ELECTRONICS CO.,LTD. 19-223/R6G6C-A01/2T 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. Device No: SZDSE-192-A25 http://www.everlight.com Prepared date: 7-Nov-2006 Rev 1 Page: 11 of 11 Prepared by: Xiaoyan
