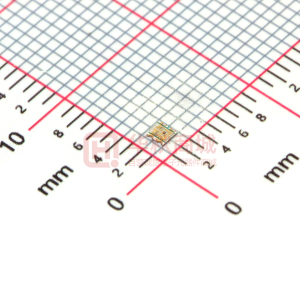

19-237-R6GHBHC-A04-2T

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet Full Color Chip LED 19-237/R6GHBHC-A04/2T Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Multi-color type. ․Pb-Free. Descriptions ․The 19-237 SMD Taping is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. Applications ․Automotive: backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Chip Type R6 GH BH Material AlGaInP InGaN InGaN Emitted Color Brilliant Red Brilliant Green Blue Water Clear Lens Color Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 1 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Package Outline Dimensions 1.6 Green Blue 2 1.6 1 3 4 Anode mark Red 1.1 1.0 0.35 0.8 For reflow soldering (propose) 1 0.55 4 0.55 0.35 0.55 2 3 0.55 0.8 2.4 Note: The tolerances unless mentioned is ±0.1mm,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 2 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Absolute Maximum Ratings (Ta=25℃) Parameter Reverse Voltage Symbol VR Rating 5 R6:25 Forward Current IF GH:25 BH:25 Operating Temperature Storage Temperature Soldering Temperature Topr Tstg Tsol -40 ~ +85 -40 ~ +90 260 (for 5 seconds) R6:60 Power Dissipation Pd GH:110 BH:110 Peak Forward Current (Duty 1/10 @1KHz) R6:60 IFP GH:100 BH:100 mA mW ℃ ℃ ℃ mA Unit V Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 3 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Electro-Optical Characteristics (Ta=25℃) Parameter Symbol R6 Min. 18.0 28.5 11.5 ----- Typ. 30.0 60.0 18.0 120 632 Max. Unit Condition Luminous Intensity Iv GH BH ----- mcd Viewing Angle 2θ1/2 R6 ----- deg Peak Wavelength λp GH BH R6 ----- 518 468 624 ----- nm Dominant Wavelength λd GH BH R6 ----- 525 470 20 ----- nm IF=5mA Spectrum Radiation Bandwidth △λ GH BH R6 ----- 35 35 ----- nm ----2.6 2.6 ----- 1.9 ------------- 2.2 3.0 3.0 10 50 50 μA VR=5V V Forward Voltage VF GH BH R6 Reverse Current IR GH BH Bin Range Of Forward Voltage Symbol GH BH Bin Code 1 2 1 2 Min. 2.60 2.80 2.60 2.80 Max. 2.80 3.00 2.80 3.00 V IF=5mA Unit Condition Notes: 1.Tolerance of Luminous Intensity ±10% 2.Tolerance of Forward Voltage ±0.1V Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 4 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Typical Electro-Optical Characteristics Curves R6 Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 5 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Typical Electro-Optical Characteristics Curves GH Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 6 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Typical Electro-Optical Characteristics Curves BH Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 7 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Label explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 8 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Carrier Tape Dimensions: Loaded quantity 2000 PCS per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moistue-proof bag Desiccant Label Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 9 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. 1 Items Reflow Soldering Test Condition Temp. : 260℃±5℃ Min. 5sec. H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min Temp. : 100℃ Temp. : -40℃ IF = 20 mA 85℃/ 85%RH Test Sample Hours/Cycles Size 6 Min. 300 Cycles 22 PCS. Ac/Re 0/1 2 Temperature Cycle 22 PCS. 0/1 3 Thermal Shock High Temperature Storage Low Temperature Storage DC Operating Life High Temperature / High Humidity 300 Cycles 1000 Hrs. 1000 Hrs. 1000 Hrs. 1000 Hrs. 22 PCS. 0/1 4 5 6 7 22 PCS. 22 PCS. 22 PCS. 22 PCS. 0/1 0/1 0/1 0/1 Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 10 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 The LEDs should be used within a year. 2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less. 2.5 The LEDs should be used within 168 hours (7 days) after opening the package. 2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 11 of 12 Prepared by : Jeff Tsai EVERLIGHT ELECTRONICS CO.,LTD. 19-237/R6GHBHC-A04/2T 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 280℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com Everlight Electronics Co., Ltd. Device No. : DSE-937-004 http://www.everlight.com Prepared date: 04-01-2004 Rev. 1.0 Page: 12 of 12 Prepared by : Jeff Tsai
