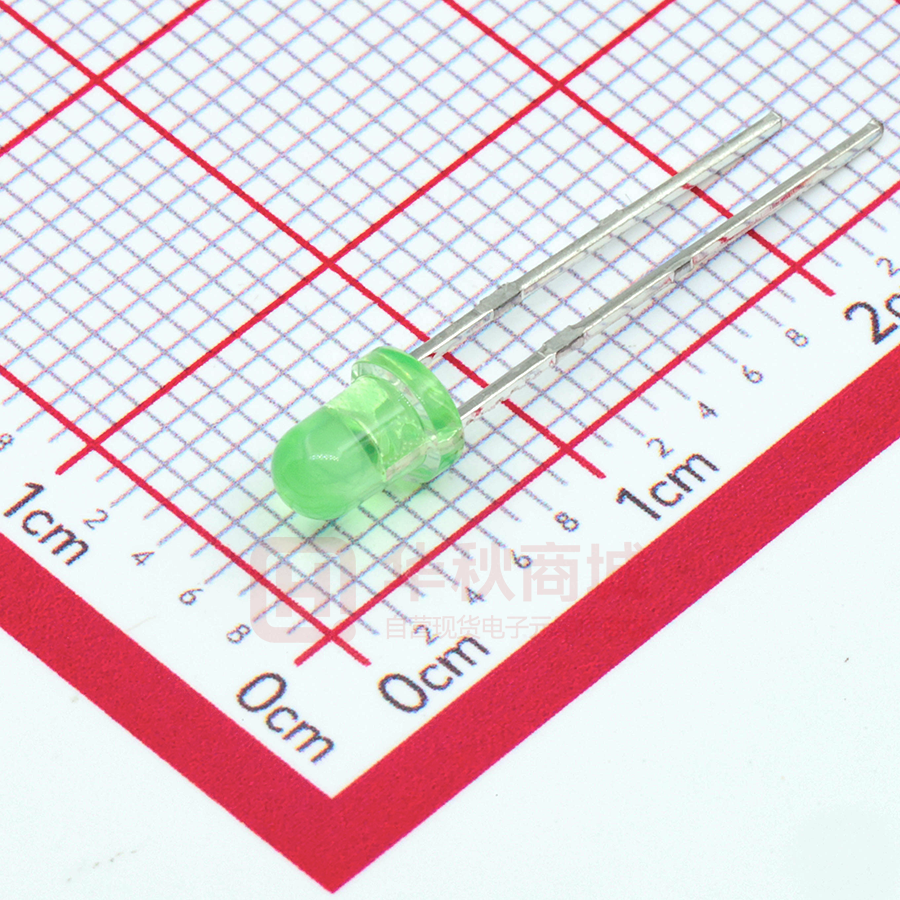

204-10SUGD/S400-A5

Technical Data Sheet 3.0mm Round Type LED Lamps 204-10SUGD/S400-A5 █ Features : ● Choice of various viewing angles ● Available on tape and reel. ● Reliable and robust ● Pb free The product itself will remain within RoHS compliant version. ● █ Descriptions : ● The series is specially designed for applications requiring higher brightness ● The led lamps are available with different colors, intensities. █ Applications : ● TV set ● Monitor ● Telephone ● Computer PART NO. 204-10SUGD/S400-A5 Material Emitted Color Lens Color InGaN Brilliant Green Green Diffused EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: Device Number : Prepared date: 2009/5/4 Prepared by: DLE-0001363 0 1 Page: 1 of 6 Li ming Technical Data Sheet 3.0mm Round Type LED Lamps 204-10SUGD/S400-A5 Package Dimensions Notes: 1. All dimensions are in millimetres 2. The height of flange must be less than 1.5mm(0.059"). 3. Without special declared,the tolerance is ±0.25mm. █ Absolute Maximum Ratings at Ta = 25℃ Parameter Symbol Rating Unit Forward Current IF 25 mA Operating Temperature Topr -40 to +85 ℃ Storage Temperature Tstg -40 to +100 ℃ Soldering Temperature Tsol 260 ℃ Electrostatic Discharge ESD 150 V Power Dissipation Pd 110 mW Peak Forward Current IF(Peak) 100 mA Reverse Voltage VR 5 V Note: *1:Soldering time ≦ 5 seconds. EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Device Number : Prepared date: DLE-0001363 2009/5/4 Rev.: 1 Page: 2 of 6 Prepared by: Li ming Technical Data Sheet 3.0mm Round Type LED Lamps 204-10SUGD/S400-A5 Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition Forward Voltage VF IF= 20 Reverse Current IR VR= Luminous Intensity Iv Viewing Angle Min. Typ. Max. Unit mA ／ 3.4 4.0 V 5 V ／ ／ 50 μA IF= 20 mA 500 1000 ／ mcd 2θ1/2 IF= 20 mA ／ 30 ／ deg Peak Wavelength λp IF= 20 mA ／ 525 ／ nm Dominant Wavelength λd IF= 20 mA ／ 530 ／ nm Spectrum Radiation Bandwidth △λ IF= 20 mA ／ 35 ／ nm EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Device Number :DLE-0001363 Prepared date: 2009/5/4 Rev.: 1 Prepared by: Li ming Page: 3 of 6 Technical Data Sheet 3.0mm Round Type LED Lamps 204-10SUGD/S400-A5 █ Typical Electro-Optical Characteristic Curves: EVERLIGHT ELECTRONICS CO.,LTD. Device Number : DLE-0001363 http : //www.everlight.com Prepared date: 2009/5/4 Rev.: Prepared by: 1 Page: 4 of 6 Li ming Technical Data Sheet 3.0mm Round Type LED Lamps 204-10SUGD/S400-A5 █ Reliability test items and conditions: The reliability of products shall be satisfied with items listed below. Confidence level：97% LTPD：3% NO Item Test Conditions Test Hours/Cycle 1 Solder Heat TEMP : 260℃ ± 5 ℃ 10 SEC Failure Judgment Criteria Ac/Re Sample Size 76 PCS 0/1 76 PCS 0/1 76 PCS 0/1 H : +100℃ 15min ∫ 5 min 300 CYCLES L : -40℃ 15min H : +100℃ 5min ∫ 10 sec 300 CYCLES L : -10℃ 5min 2 Temperature Cycle 3 Thermal Shock 4 High Temperature Storage TEMP : 100℃ 1000 HRS 76 PCS 5 Low Temperature Storage TEMP : -40℃ 1000 HRS 76 PCS 0/1 6 DC Operating Life 1000 HRS 76 PCS 0/1 7 High Temperature / High Humidity 1000 HRS 76 PCS 0/1 TEMP : 25℃ IF = 20mA 85℃ / 85% RH Iv≦Ivt*0.5 or Vf≧U or Vf≦L Note：Ivt：To test Iv value of the chip before the reliablility test Iv：The test value of the chip that has completed the reliablility test U：Upper Specification Limit L： Lower Specification Limit EVERLIGHT ELECTRONICS CO.,L Device Number : DLE-0001363 http : //www.everlight.com Prepared date: 2009/5/4 Rev.: 1 Prepared by: Page: 5 of 6 Li ming 0/1 Technical Data Sheet 3.0mm Round Type LED Lamps 204-10SUGD/S400-A5 Packing Quantity Specification 1.1000PCS/1Bag，4Bags/1Box 2.10Boxes/1Carton Label Form Specification Pb EVERLIGHT CPN: Customer's Production Number X P/N : Production Number QTY: Packing Quantity RoHS CAT: Ranks 204-10SUGD/S400-A5 HUE: Dominant Wavelength REF: Reference LOT No: Lot Number Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporatio Please don＇t reproduce or cause anyone to reproduce them without EVERLIGHT＇sconsent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Device Number : Prepared date: DLE-0001363 2009/5/4 Rev.: 1 Prepared by: Page: 6 of 6 Li ming
