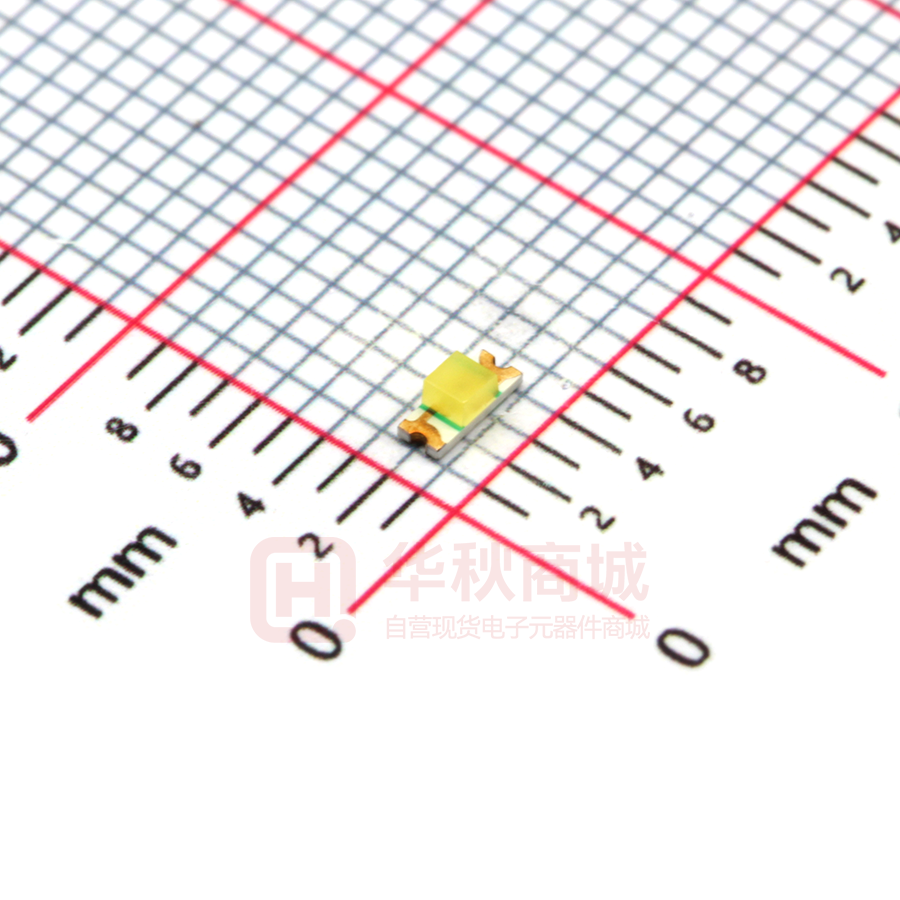

23-21B/T1D-CP2Q2TY/2A

Technical Data Sheet Reverse Package Chip LED 23-21B/T1D-CP2Q2TY/2A Features ․Package in 8mm tape on 7〞diameter reel. ․Compatible with automatic placement equipment. ․Compatible with infrared and vapor phase reflow solder process. ․Mono-color type. ․Pb-free. ․The product itself will remain within RoHS compliant version. Descriptions ․The 23-21B SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes them ideal for miniature applications. etc. 香港至恩科技有限公司　　 　　ｗｗｗ．ｔｏ－ｇｒａｃｅ．ｃｏｍ 公司授权代理销售ＬＩＴＥ－ＯＮ：光耦，贴片ＬＥＤ灯等 进口原装，现货供应，价格优势，技术支持 电话：０７５５－８３４６４９４８　传真：０７５５－８３４６４０７６ Applications ․Backlighting in dashboard and switch. ․Telecommunication: indicator and backlighting in telephone and fax. ․Flat backlight for LCD, switch and symbol. ․General use. Device Selection Guide Part No. 23-21B/T1D-CP2Q2TY/2A Everlight Electronics Co., Ltd. Device No. Chip Material InGaN Emitted Color Resin Color Pure White Yellow Diffused http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 1 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Package Outline Dimensions Note: The tolerances unless mentioned is ±0.1mm,Unit = mm Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 2 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Absolute Maximum Ratings (Ta=25℃ ℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current IF 25 mA Peak Forward Current (Duty 1/10 @1KHz) IFP 100 mA Power Dissipation Pd 95 mW Electrostatic Discharge(HBM) ESD 150 V Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +90 ℃ Soldering Temperature Tsol Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. Electro-Optical Characteristics (Ta=25℃ ℃) Parameter Symbol Min. Typ. Max. Unit Luminous Intensity Iv 57.0 ----- 112 mcd Viewing Angle 2θ1/2 ----- 140 ----- deg Forward Voltage VF 2.60 ----- 3.00 V Reverse Current IR ----- ----- 50 μA Condition IF=5mA VR=5V Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 3 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Bin Range Of Luminous Intensity Bin Min. Max. P2 57.0 72.0 Q1 72.0 90.0 Q2 90.0 112 Unit Condition mcd IF=5mA Unit Condition V IF=5mA Bin Range Of Forward Voltage Symbol T Bin Min. Max. 28 2.60 2.70 29 2.70 2.80 30 2.80 2.90 31 2.90 3.00 Notes: 1.Tolerance of Luminous Intensity ±11% 2.Tolerance of Forward Voltage ±0.05V Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 4 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Chromaticity Coordinates Specifications for Bin Grading Groups Bin Code 1 2 C 3 4 CIE_x CIE_y Condition 0.274 0.274 0.294 0.294 0.274 0.274 0.294 0.294 0.294 0.294 0.314 0.314 0.294 0.294 0.314 0.314 0.226 0.258 0.286 0.254 0.258 0.291 0.319 0.286 0.254 0.286 0.315 0.282 0.286 0.319 0.347 0.315 IF=5mA Notes: 1.The C.I.E. 1931 chromaticity diagram ( Tolerance ±0.01). 2.The products are sensitive to static electricity and care must be fully taken when handling products. Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 5 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A CIE Chromaticity Diagram Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 6 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Typical Electro-Optical Characteristics Curves Spectrum Distribution Forward Current vs. Forward Voltage Ta=25°C 40 30 Forward Current 75 50 25 0 400 500 600 700 25 20 10 0 2.6 800 Wavelength λ (nm) 2.8 3.4 3.8 4.2 Luminous Intensity vs. Luminous Intensity vs Ambient Temperature Forward Current 1000 100 10 1 -60 -40 -20 4.5 Forward Voltage (VF)-volts Relative luminous intensity (%) Relative luminous intensity (%) Ta=25°C 50 IF (mA) Relative luminous intensity (%) 100 1000 Ta=25°C f=1KHz Duty=1/10 100 10 0 20 40 60 80 100 1 0 10 1 2 10 10 Forward Current I F(mA) Ambient Temperature Ta (°C) Radiation Diagram Forward Current Derating Curve Ta=25°C 0° 10° 20° 50 Forward Current I (mA) F 30° 40 30 25 20 10 0 40° 1.0 0.9 50° 0.8 60° 70° 80° 90° 0.7 0 20 40 60 85 100 0.5 0.3 0.1 0.2 0.4 0.6 Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 7 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Label explanation CAT: Luminous Intensity Rank Pb HUE: Chromaticity Coordinates EVERLIGHT CPN : P N : XXXXXXXXXXXXX RoHS REF: Forward Voltage Rank XXXXXXXXXXXXX CAT : XXX HUE : XXX REF : XXX QTY : XXX LOT NO : XXXXXXXXXX Reference : XXXXXXXX MADE IN TAIWAN Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 8 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Carrier Tape Dimensions : Loaded quantity 2000 pcs per reel Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Everlight Electronics Co., Ltd. Device No.: Desiccant http://www.everlight.com Prepared date:3-Jul-2011 Label Rev. 1 Page: 9 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Reliability Test Items And Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% Test Sample Hours/Cycles Size No. Items Test Condition 1 Reflow Soldering Temp. : 260℃±5℃ Min. 5sec. 6 Min. 22 PCS. 0/1 Temperature Cycle H : +100℃ 15min ∫ 5 min L : -40℃ 15min 300 Cycles 22 PCS. 0/1 Thermal Shock H : +100℃ 5min ∫ 10 sec L : -10℃ 5min 300 Cycles 22 PCS. 0/1 Temp. : 100℃ 1000 Hrs. 22 PCS. 0/1 Temp. : -40℃ 1000 Hrs. 22 PCS. 0/1 2 3 4 5 High Temperature Storage Low Temperature Storage Ac/Re 6 DC Operating Life IF = 20 mA 1000 Hrs. 22 PCS. 0/1 7 High Temperature / High Humidity 85℃/ 85%RH 1000 Hrs. 22 PCS. 0/1 Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 10 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. Device No.: http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 11 of 12 Prepared by: Sam Feng 23-21B/T1D-CP2Q2TY/2A 4. Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Everlight Electronics Co., Ltd. Device No.: Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com http://www.everlight.com Prepared date:3-Jul-2011 Rev. 1 Page: 12 of 12 Prepared by: Sam Feng
