264-7ID

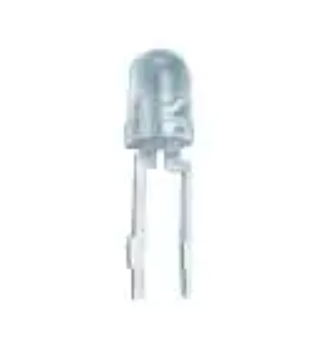

Technical Data Sheet 3.0mm Round Type LED Lamps 264-7ID █ Features : ● Choice of various viewing angles ● Available on tape and reel. Reliable and robust ● Pb free ● █ Descriptions : ● The series is specially designed for applications requiring higher brightness ● The led lamps are available with different colors, intensities, █ Applications : ● TV set ● Monitor ● Telephone ● Computer PART NO. Material Emitted Color Lens Color 264-7ID GaAsP/GaP Hi-Eff Red Red Diffused EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-026-018 http : //www.everlight.com Prepared date: 2004/6/23 0 Rev.: 4 Prepared by: Page: 1 of 6 Caixia wu Technical Data Sheet 3.0mm Round Type LED Lamps 264-7ID Package Dimensions Notes: 1.All dimensions are in millimetres 2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead. 3. Tolerances unless Dimension ±0.25mm. █ Absolute Maximum Ratings at Ta = 25℃ Parameter Symbol Rating Unit Forward Current IF 30 mA Operating Temperature Topr -40 to +85 ℃ Storage Temperature Tstg -40 to +100 ℃ Soldering Temperature Tsol 260 ± 5 ℃ Power Dissipation Pd 100 mW Peak Forward Current IF(Peak) 160 mA Reverse Voltage VR 5 V Note: *1:IFP Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10. *2:Soldering time ≦ 5 seconds. EVERLIGHT ELECTRONICS CO.,LTD. http//www.everlight.com Device Number : Prepared date: CDLE-026-018 2004/6/23 Rev.: 4 Prepared by: Page: 2 of 6 Caixia wu Technical Data Sheet 3.0mm Round Type LED Lamps 264-7ID Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition Forward Voltage VF IF= 20 mA Reverse Current IR VR= 5 Luminous Intensity Iv IF= Viewing Angle 2θ1/2 Peak Wavelength Min. Typ. Max. Unit 1.7 2.0 2.4 V V ／ ／ 10 μA 10 mA 4.0 10 ／ mcd IF= 20 mA ／ 60 ／ deg λp IF= 20 mA ／ 635 ／ nm Dominant Wavelength λd IF= 20 mA ／ 625 ／ nm Spectrum Radiation Bandwidth △λ IF= 20 mA ／ 45 ／ nm http : //www.everlight.com Rev.: EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-026-018 Prepared date: 2004/6/23 4 Page: 3 of 6 Prepared by: Caixia wu Technical Data Sheet 3.0mm Round Type LED Lamps 264-7ID █ Typical Electro-Optical Characteristic Curves: EVERLIGHT ELECTRONICS CO.,LTD http : //www.everlight.com Rev.: 4 Page: 4 of 6 Device Number : Prepared by: Caixia wu CDLE-026-018 Prepared date: 2004/6/23 Technical Data Sheet 3.0mm Round Type LED Lamps 264-7ID █ Reliability test items and conditions: Test Sample Ac/Re Hours/Cycle size NO Item Test Conditions 1 Solder Heat TEMP : 260℃ ± 5 ℃ 2 Temperature Cycle 3 Thermal Shock 4 High Temperature Storage TEMP : 100℃ 1000 HRS 76 PCS 0/1 5 Low Temperature Storage TEMP : -40℃ 1000 HRS 76 PCS 0/1 6 DC Operating Life 1000 HRS 76 PCS 0/1 7 High Temperature / High Humidity 1000 HRS 76 PCS 0/1 H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min TEMP : 25℃ IF = 20mA 85℃ / 85% RH SEC 76 PCS 0/1 300 CYCLES 76 PCS 0/1 300 CYCLES 76 PCS 0/1 EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: Device Number : CDLE-026-018 Prepared date: Prepared by: 2004/6/23 4 Page: 5 of 6 Caixia wu Technical Data Sheet 3.0mm Round Type LED Lamps 264-7ID Packing Quantity Specification 1.1000PCS/1Bag，4Bags/1Box 2.10Boxes/1Carton Label Form Specification CPN: Customer's Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks 264-7ID HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT ’sconsent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com EVERLIGHT ELECTRONICS CO.,LTD. http : //www.everlight.com Rev.: Device Number : Prepared date: Prepared by: CDLE-026-018 2004/6/23 4 Page: 6 of 6 Caixia wu
