334-15UTC/S400-X10

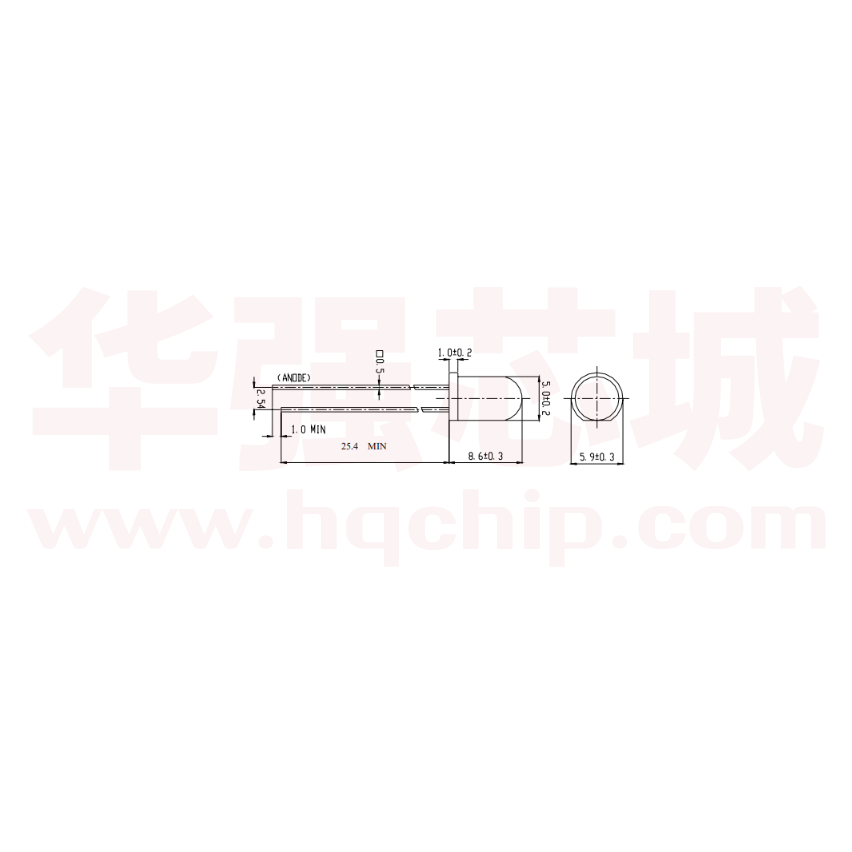

Technical Data Sheet 5.0 mm Round LED (T-1 3/4 ) 334-15UTC/S400-X10 Features ․Popular T-1 colorless 5mm package. ․High luminous power. ․Typical chromaticity coordinates x=0.29, y=0.28 according to CIE1931. ․Bulk, available taped on reel. ․Pb free . ․The product itself will remain within RoHS compliant version. Descriptions ․The series is designed for application required high luminous intensity. ․The phosphor filled in the reflector converts the blue emission of InGaN chip to ideal white. Applications ․Outdoor Displays ․Optical Indicators ․Backlighting ․Marker Lights Device Selection Guide Chip PART NO. 334-15UTC/S400-X10 Lens Color Material Emitted Color InGaN/Sapphire White Everlight Electronics Co., Ltd. http\\:www.everlight.com Device Number: CDLE-033-1901 Established date:2007/2/9 Water Clear Rev: 1 Page: 1 of 6 Established by:Yang 334-15UTC/S400-X10 Package Dimensions 25.4 MIN Notes: 1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified. 2.Lead spacing is measured where the lead emerges from the package. 3.Protruded resin under flange is 1.5mm Max. LED. Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Continuous Forward Current IF 25 mA Reverse Voltage VR 5 V Operating Temperature Topr -30 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Soldering Temperature (T=5 sec) Tsol 260 ± 5 ℃ Power Dissipation Pd 120 mW ESD 150 V Electrostatic Discharge Everlight Electronics Co., Ltd. http\\:www.everlight.com Device Number: CDLE-033-1901 Established date:2007/2/9 Rev: 1 Page: 2 of 6 Established by:Yang 334-15UTC/S400-X10 Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition Min. Typ. Max. Units Forward Voltage VF IF=20mA -- 3.2 4.0 V Reverse Current IR VR=5V -- -- 50 uA Luminous Intensity IV IF=20mA 8500 12000 -- mcd 2θ1/2 IF=20mA -- 20 -- deg x IF=20mA -- 0.29 -- y ------ -- 0.28 -- Viewing Angle Chromaticity Coordinates Luminous Intensity Combination (mcd at 20mA) IV Ranks Y Z Z1 Min. 8500 12750 19125 Max. 12750 19125 28688 Measurement Uncertainty of Luminous Intensity: ±15% Forward Voltage Combination (V at 20mA) VF Rank 1 2 3 Min. 2.8 3.2 3.6 Max. 3.2 3.6 4.0 *Measurement Uncertainty of Forward Voltage：±0.1V Everlight Electronics Co., Ltd. http\\:www.everlight.com Device Number: CDLE-033-1901 Established date:2007/2/9 Rev: 1 Page: 3 of 6 Established by:Yang 334-15UTC/S400-X10 CIE Chromaticity Diagram ] Color Ranks (IF=20mA，Ta=25℃) Measurement uncertainty of the color coordinates：±0.01 Note: The setting and inspection for this device please flow the area of x y chromaticity diagram. Take the upper and lower point for x-axis and y-axis and then put it same parts, x-axis divide into 9 section, y-axis divide into 6 section, total is 63 bins. Everlight Electronics Co., Ltd. http\\:www.everlight.com Device Number: CDLE-033-1901 Established date:2007/2/9 Rev: 1 Page: 4 of 6 Established by:Yang 334-15UTC/S400-X10 Typical Electro-Optical Characteristics Curves Relative Intensity vs. Wavelength Forward Current vs. Forward Voltage 25 Forward Current(mA) Relative Intensity(a.u.) 1.0 0.8 0.6 0.4 0.2 0.0 350 400 450 500 550 600 650 700 750 20 15 10 5 0 2.0 800 2.5 Wavelength(nm) Relative Intensity vs. Forward Current 4.0 4.5 30 Forward Current(mA) Relative Intensity(a.u.) 3.5 Forward Current vs. Ambient Temp. 1.5 1.0 0.5 0.0 3.0 Forward Voltage(V) 0 5 10 15 20 25 25 20 15 10 5 0 0 Forward Current(mA) 20 40 60 80 100 O Ambient Temperature Ta( C) Chromaticity Coordinate vs. Forward Current Relative Intensity vs. Angle Dispacemen Relative Intensity(a.u.) 0.300 0.290 x y 0.280 0.270 0.260 0 10 20 30 40 50 Forward Current(mA) Everlight Electronics Co., Ltd. http\\:www.everlight.com Device Number: CDLE-033-1901 Established date:2007/2/9 Rev: 1 Page: 5 of 6 Established by:Yang 334-15UTC/S400-X10 Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: IV&VF Rank HUE: Color Rank REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place EVERLIGHT CPN: P/N: 334-15UTC/S400-X10 QTY： LOT NO： CAT: HUE: REF: MADE IN TAIWAN Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. http\\:www.everlight.com Device Number: CDLE-033-1901 Established date:2007/2/9 Rev: 1 Page: 6 of 6 Established by:Yang
