339-1SURSYGW

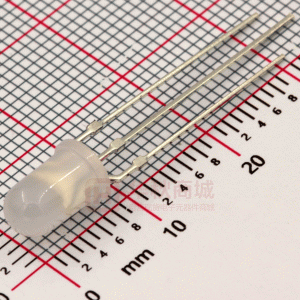

Technical Data Sheet 5.0mm Multi-Color Round Type LED Lamps 339-1SURSYGW/S530-A3 █ Features : ● Two chips are matched for uniform light output, wide viewing angle ● ● ● Long life-solid state reliability I.C. compatible/Low power consumption Pb free ● The product itself will remain within RoHS compliant version █ Descriptions : ● The 339-1 LED lamps contain two integral chips and is available as both bicolor and bipolar types. The Hyper Red and Super Yellow Green light is emitted by diodes of AlGaInP and AlGaInP respectively. ● ● Type of bipolar lamps are both White Diffused and Color Diffused while the bicolor are White Diffused █ Applications : ● ● ● ● TV set Monitor Telephone Computer Chip Material AlGaInP AlGaInP PART NO. 339-1SURSYGW/S530-A3 Emitted Color Hyper Red Super Yellow Green Lens Color White Diffused EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-033-1183 http : //www.everlight.com Prepared date 2006/3/13 Rev.: 1 Page: 1 of 7 Prepared by:Xiuzen Feng BG0310076,R0302970 Technical Data Sheet 5.0mm Multi-Color Round Type LED Lamps 339-1SURSYGW/S530-A3 Package Dimensions SYG SUR Notes: 1.All dimensions are in millimetres 2. An epoxy meniscus may extend about 1.5mm(0.059'') down to the lead. 3. Tolerances unless Dimension ±0.25mm. █ Absolute Maximum Ratings at Ta = 25℃ Parameter Forward Current Operating Temperature Storage Temperature Soldering Temperature Electrostatic Discharge Power Dissipation Topr Tstg Tsol ESD Pd Symbol IF SUR/S530 SYG/S530 Rating 25 25 ℃ ℃ ℃ Unit mA -40 to +85 -40 to +100 260 ± 5 2000 SUR/S530 SYG/S530 60 60 160 160 5 V mW Peak Forward Current Reverse Voltage IF(Peak) VR SUR/S530 SYG/S530 mA V Note: *1:IFP Conditions --Pulse Width ≦ 1msec and Duty ≦ 1/10. *2:Soldering time ≦ 5 seconds. EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-033-1183 http : //www.everlight.com Prepared date: 2006/3/13 Rev.: 1 Page: 2 of 7 Prepared by:Xiuzen Feng Technical Data Sheet 5.0mm Multi-Color Round Type LED Lamps 339-1SURSYGW/S530-A3 Electro-Optical Characteristics (Ta=25℃) Parameter Luminous Intensity Viewing Angle 2θ1/2 λp SUR/S530 SYG/S530 Dominant Wavelength Spectrum Radiation Bandwidth Forward Voltage VF △λ λd SUR/S530 SYG/S530 SUR/S530 SYG/S530 SUR/S530 SYG/S530 Reverse Current IR Iv Symbol SUR/S530 SYG/S530 Min. 25 16 ／ ／ ／ ／ ／ ／ ／ ／ ／ ／ Typ. 50 32 100 632 575 624 573 20 20 2.0 2.0 ／ Max. ／ ／ ／ ／ ／ ／ ／ ／ ／ 2.4 2.4 10 V nm nm deg nm Unit mcd I F= I F= I F= Condition 20 20 20 mA mA mA Peak Wavelength I F= 20 mA I F= I F= 20 20 5 mA mA V μA VR= EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-033-1183 http : //www.everlight.com Prepared date: 2006/3/13 REV.: 1 Page: 3 of 7 Prepared by:Xiuzen Feng Technical Data Sheet 5.0mm Multi-Color Round Type LED Lamps 339-1SURSYGW/S530-A3 Typical Electro-Optical Characteristic Curves: █ EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-033-1183 http : //www.everlight.com Prepared date: 2006/3/13 Rev.: 1 Page: 5 of 7 Prepared by:Xiuzen Feng Technical Data Sheet 5.0mm Multi-Color Round Type LED Lamps 339-1SURSYGW/S530-A3 Typical Electro-Optical Characteristic Curves: █ EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-033-1183 http : //www.everlight.com Prepared date: 2006/3/13 Rev.: 1 Page: 4 of 7 Prepared by:Xiuzen Feng Technical Data Sheet 5.0mm Multi-Color Round Type LED Lamps 339-1SURSYGW/S530-A3 █ Reliability test items and conditions: Test Hours/Cycle SEC 76 PCS NO 1 Item Solder Heat Test Conditions TEMP : 260℃ ± 5 ℃ H : +100℃ 15min ∫ 5 min L : -40℃ 15min H : +100℃ 5min ∫ 10 sec L : -10℃ 5min TEMP : 100℃ Ac/Re 0/1 2 Temperature Cycle 300 CYCLES 76 PCS 0/1 3 Thermal Shock 300 CYCLES 76 PCS 0/1 4 High Temperature Storage 1000 HRS 76 PCS 0/1 5 Low Temperature Storage TEMP : -40℃ TEMP : 25℃ IF = 20mA 85℃ / 85% RH 1000 HRS 76 PCS 0/1 6 7 DC Operating Life High Temperature / High Humidity 1000 HRS 1000 HRS 76 PCS 76 PCS 0/1 0/1 EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-033-1183 http : //www.everlight.com Prepared date: 2006/3/13 Rev.: 1 Page: 6 of 7 Prepared by:Xiuzen Feng Technical Data Sheet 5.0mm Multi-Color Round Type LED Lamps 339-1SURSYGW/S530-A3 Packing Quantity Specification 1.500PCS/1Bag，4Bags/1Box 2.10Boxes/1Carton Label Form Specification CPN: Customer's Production Number P/N : Production Number QTY: Packing Quantity 339-1SURSYGW/S530-A3 CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don＇t reproduce or cause anyone to reproduce them without EVERLIGHT ＇s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng Taipei 236 Taiwan R O C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www everlight com EVERLIGHT ELECTRONICS CO.,LTD. Device Number : CDLE-033-1183 http : //www.everlight.com Prepared date: 2006/3/13 Rev.: 1 Page: 7 of 7 Prepared by:Xiuzen Feng
