339-9USRUYSUGW/S1292

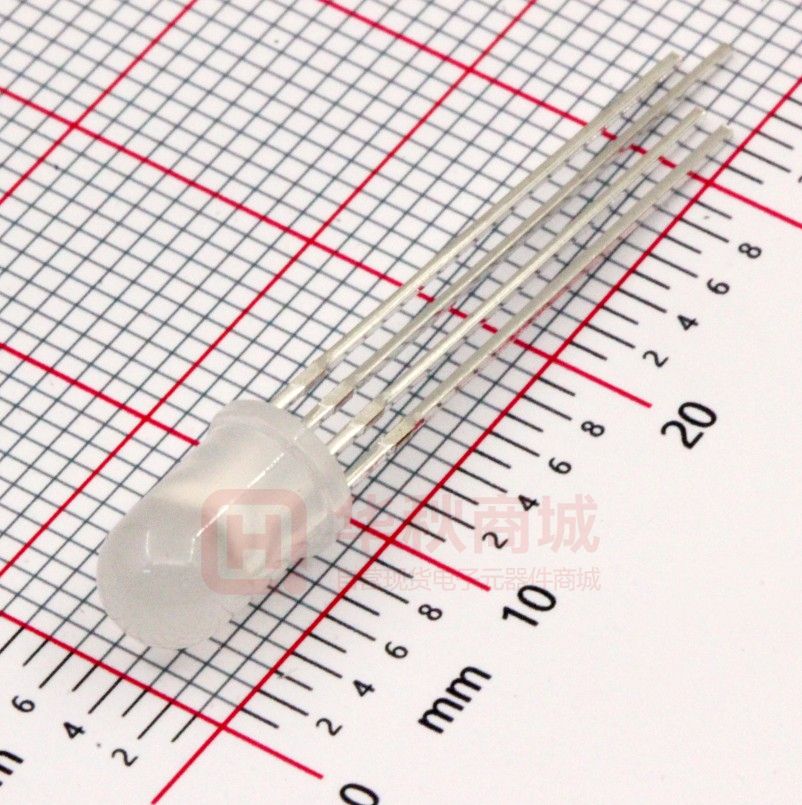

Lamp 339-9USRUYSUGW/S1292 Features ˙Popular T-1 3/4 round package. ˙High efficiency. ˙Built in red, yellow, and green chips. ˙Selected minimum intensities. ˙Available on tape and reel. ˙The product itself will remain within RoHS compliant version Descriptions ˙The series is specially designed for applications requiring higher brightness ˙The LED lamps are available with different colors, intensities, epoxy, colors, etc. Applications ˙Status indicators. ˙Commercial use. ˙Advertising Signs. ˙Computer 1 Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014 Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292 Device Selection Guide Chip Resin Color Materials Emitted Color AlGaInP Dark- Red AlGaInP Brilliant Yellow InGaN White diffused Brilliant Green Absolute Maximum Ratings (Ta=25℃) Parameter Symbol USR/UY SUG Units Forward Current Pulse Forward Current (Duty1/10@ 1KHz) Operating Temperature IF 50 30 mA IFP 100 100 mA Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Electrostatic Discharge ESD Soldering Temperature Tsol Power Dissipation Pd Reverse Voltage VR 2000 150 ℃ 260 120 V 110 5 mW V *Notes: Soldering time≦5 seconds. 2 Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292 Electro-Optical Characteristics (Ta=25℃) Parameter Luminous Intensity Symbol IV Color Min. Typ. Max. USR 140 --- 565 UY 140 --- 565 SUG 1125 --- 2850 USR Viewing Angle Peak Wavelength 2θ1/2 λp λD --- UY △λ 70 USR 640 UY --- VF 595 IR --- deg --IF=20mA USR 624 --- 638 UY 586 --- 594 SUG 525 --- 535 UY --- 15 --- 35 USR 1.6 2.0 2.4 UY 1.6 2.0 2.4 SUG 2.8 3.0 3.6 UY nm 20 USR Reverse Current mcd 522 SUG Forward Voltage 70 SUG USR Spectrum half-width Condition 70 SUG Dominant Wavelength Unit V 10 --- SUG --- 10 μA VR=5V 50 *Measurement Uncertainty of Luminous Intensity: ±10% *Measurement Uncertainty of Dominant Wavelength ±1.0nm *Measurement Uncertainty of Forward Voltage: ±0.1V 3 Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292 Typical Electro-Optical Characteristics Curves Relative Intensity vs. Angular Displacement (Ta=25℃) Radiation Angle Relative Intensity (%) Relative Intensity vs. Wavelength (Ta=25℃) Wavelength (nm) Relative Intensity vs. Forward Current (Ta=25℃) Forward Current (mA) Relative Intensity(mW/Sr) Forward Current vs. Forward Voltage (Ta=25℃) Relative Intensity (%) Forward Voltage (V) Forward Current (mA) Rrlative Intensity(a.u) Ambient Temp. 4 Forward Current vs. Ambient Temp. Forward Current (mA) Peak Emission Wavelength vs. Ambient Temp. Ambient Temperature Ta(℃) Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292 Package Dimensions Notes: ˙All dimensions are in millimeters,tolerance is 0.25mm except being specified. ˙Lead spacing is measured where the lead emerges from the package. ˙Protruded resin under flange is 1.5mm Max LED. 5 Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292 Moisture Resistant Packing Materials Label Explanation ‧CPN: Customer’s Product Number ‧P/N: Product Number ‧QTY: Packing Quantity ‧CAT: Ranks of Luminous Intensity and Forward Voltage ‧HUE: Rank of Dominant Wavelength ‧REF: Reference ‧LOT No: Lot Number Packing Specification ■ Anti-electrostatic bag ■ Inner Carton ■ Outside Carton Label Pb E L E C T R O S T A T IC E L E C T R O N A G N E T IC M A G N E T IC O R R A D IO A C T IV E R E L D S an ti-static fo r 7 5 0 ■ Packing Quantity 1. Min 200pcs to Max 500 PCS/1 Bag, 5 Bags/1 Inner Carton. 2. 10 Inner Cartons/1 Outside Carton 6 Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292 Notes 1. Lead Forming  During lead formation, the leads should be bent at a point at least 3mm from the base of the epoxy bulb.  Lead forming should be done before soldering.  Avoid stressing the LED package during leads forming. The stress to the base may damage the LED’s characteristics or it may break the LEDs.  Cut the LED leadframes at room temperature. Cutting the leadframes at high temperatures may cause failure of the LEDs.  When mounting the LEDs onto a PCB, the PCB holes must be aligned exactly with the lead position of the LED. If the LEDs are mounted with stress at the leads, it causes deterioration of the epoxy resin and this will degrade the LEDs. 2. Storage  The LEDs should be stored at 30°C or less and 70%RH or less after being shipped from Everlight and the storage life limits are 3 months. If the LEDs are stored for 3 months or more, they can be stored for a year in a sealed container with a nitrogen atmosphere and moisture absorbent material.  Please avoid rapid transitions in ambient temperature, especially, in high humidity environments where condensation can occur. 3. Soldering  Careful attention should be paid during soldering. When soldering, leave more then 3mm from solder joint to epoxy bulb, and soldering beyond the base of the tie bar is recommended.  Recommended soldering conditions: Hand Soldering 300℃ Max. (30W Temp. at tip of Max.) iron Soldering time Distance 7 3 sec Max. 3mm Min.(From solder joint to epoxy bulb) DIP Soldering 100℃ Max. (60 sec Preheat temp. Max.) Bath temp. & time 260 Max., 5 sec Max Distance 3mm Min. (From solder joint to epoxy bulb) Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292  Recommended soldering profile lam in ar w ave F luxing P rehead  Avoiding applying any stress to the lead frame while the LEDs are at high temperature particularly when soldering.  Dip and hand soldering should not be done more than one time  After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibration until the LEDs return to room temperature.  A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature.  Although the recommended soldering conditions are specified in the above table, dip or handsoldering at the lowest possible temperature is desirable for the LEDs.  Wave soldering parameter must be set and maintain according to recommended temperature and dwell time in the solder wave. 4. Cleaning  When necessary, cleaning should occur only with isopropyl alcohol at room temperature for a duration of no more than one minute. Dry at room temperature before use.  Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of ultrasonic cleaning on the LEDs depends on factors such as ultrasonic power and the assembled condition. Ultrasonic cleaning shall be pre-qualified to ensure this will not cause damage to the LED 8 Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292 5. Heat Management  Heat management of LEDs must be taken into consideration during the design stage of LED application. The current should be de-rated appropriately by referring to the de-rating curve found in each product specification.  The temperature surrounding the LED in the application should be controlled. Please refer to the data sheet de-rating curve. 6. ESD (Electrostatic Discharge)  Electrostatic discharge (ESD) or surge current (EOS) can damage LEDs.  An ESD wrist strap, ESD shoe strap or antistatic gloves must be worn whenever handling LEDs.  All devices, equipment and machinery must be properly grounded.  Use ion blower to neutralize the static charge which might have built up on surface of the LEDs plastic lens as a result of friction between LEDs during storage and handing. 7. ESD (Electrostatic Discharge)  The products are sensitive to static electricity or surge voltage. ESD can damage a die and its reliability. When handling the products, the following measures against electrostatic discharge are strongly recommended: Eliminating the charge Grounded wrist strap, ESD footwear, clothes, and floors Grounded workstation equipment and tools ESD table/shelf mat made of conductive materials  Proper grounding is required for all devices, equipment, and machinery used in product assembly. Surge protection should be considered when designing of commercial products.  If tools or equipment contain insulating materials such as glass or plastic, the following measures against electrostatic discharge are strongly recommended: Dissipating static charge with conductive materials Preventing charge generation with moisture Neutralizing the charge with ionizers 8. Directions for use  The LEDs should be operated with forward bias. The driving circuit must be designed so that the LEDs are not subjected to forward or reverse voltage while it is off. If reverse voltage is continuously applied to the LEDs, it may cause migration resulting in LED damage. 9 Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com DATASHEET Lamp 339-9USRUYSUGW/S1292 9. Other  Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification.  When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets.  These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. DISCLAIMER 1. EVERLIGHT reserves the right(s) on the adjustment of product material mix for the specification. 2. The product meets EVERLIGHT published specification for a period of twelve (12) months from date of shipment. 3. The graphs shown in this datasheet are representing typical data only and do not show guaranteed values. 4. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from the use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 5. These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in any form is prohibited without obtaining EVERLIGHT’s prior consent. 6. This product is not intended to be used for military, aircraft, automotive, medical, life sustaining or life saving applications or any other application which can result in human injury or death. Please contact authorized Everlight sales agent for special application request. 10 Copyright © 2012, Everlight All Rights Reserved. Release Date: 11.26.2014. Issue No: DLE-0003376_Rev.2 www.everlight.com
