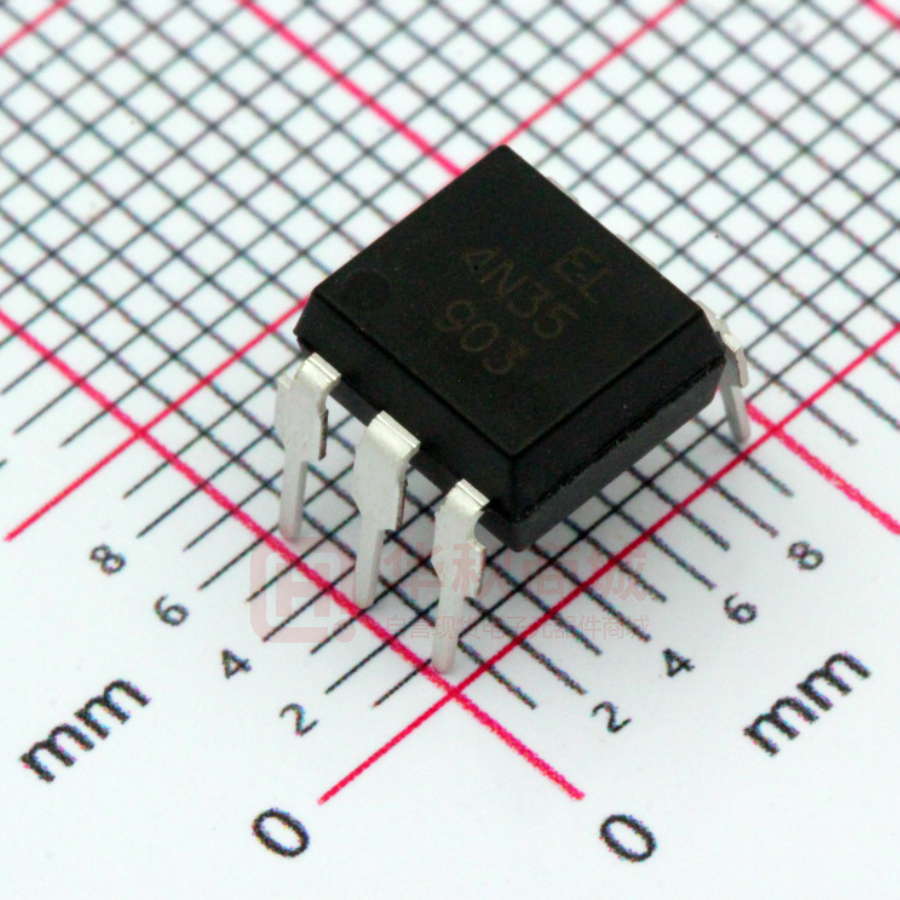

4N35

6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Features: • 4N2X series: 4N25, 4N26, 4N27, 4N28 • 4N3X series: 4N35, 4N36, 4N37, 4N38 • H11AX series: H11A1, H11A2, H11A3, H11A4, H11A5 • High isolation voltage between input and output (Viso=5000 V rms) • Creepage distance >7.62 mm • Operating temperature up to +110°C • Compact dual-in-line package • Pb free and RoHS compliant. • UL approved (No. E214129) • VDE approved (No. 132249) • SEMKO approved (No. 716108 /No. 716109) • NEMKO approval (No. P06206747) • DEMKO approval (No. 313924) • FIMKO approval (No. FI 22807) • CSA approved (No.1969132) 4N2X Series 4N3X Series H11AX Series Description The 4N2X, 4N3X, H11AX series of devices each consist of an infrared emitting diode optically coupled to a phototransistor. They are packaged in a 6-pin DIP package and available in wide-lead spacing and SMD option. Schematic Applications • Power supply regulators • Digital logic inputs • Microprocessor inputs 1. Anode 2. Cathode 3. No Connection 4. Emitter 5. Collector 6. Base Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 1 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Absolute Maximum Ratings (Ta=25°C) Parameter Forward current Peak forward current (t = 10µs) Input Reverse voltage Power dissipation (TA = 25°C) Derating factor (above 100°C) Collector-Emitter voltage Collector-Base voltage Output Emitter-Collector voltage Emitter-Base voltage Power dissipation (TA = 25°C) Derating factor (above 100°C) Total power dissipation Isolation voltage *1 Operating temperature Storage temperature Soldering temperature *2 VECO VEBO PC Symbol IF IFM VR PD 4N2X Series 4N3X Series H11AX Series Rating 50 1 6 70 3.8 Unit mA A V mW mW/°C V V V V mW mW/°C mW Vrms °C °C °C VCEO VCBO 80 80 7 7 150 9.0 Ptot Viso Topr Tstg Tsol 200 5000 -55~+110 -55~+125 260 Notes *1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2 & 3 are shorted together, and pins 4, 5 & 6 are shorted together. *2 For 10 seconds. Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 2 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Electrical Characteristics (Ta=25°C unless specified otherwise) Input Parameter Forward voltage Reverse current Input capacitance Symbol VF IR Cin Min. Typ.* 1.2 30 Max. 1.5 10 Unit V µA pF 4N2X Series 4N3X Series H11AX Series Condition IF = 10mA VR = 6V V = 0, f = 1MHz Output Parameter Collector-Base dark current 4N2X Collector-Emitter H11AX dark current 4N3X Collector-Emitter breakdown voltage Collector-Base breakdown voltage Emitter-Collector breakdown voltage Emitter-Base breakdown voltage Collector-Emitter capacitance * Typical values at Ta = 25°C ICEO BVCEO BVCBO BVECO BVEBO CCE 80 80 7 7 8 50 V V V V pF Symbol ICBO Min. Typ.* Max. 20 50 nA VCE = 60V, IF=0mA Ic=1mA IC=0.1mA IE=0.1mA IE=0.1mA VCE=0V, f=1MHz Unit nA Condition VCB = 10V VCE = 10V, IF=0mA Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 3 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Transfer Characteristics (Ta=25°C unless specified otherwise) Parameter 4N35, 4N36, 4N37 H11A1 Current transfer ratio H11A5 4N25, 4N26, 4N38, H11A2, H11A3 4N27, 4N28, H11A4 4N25, 4N26, 4N27, 4N28 Collector-Emitter saturation voltage 4N35, 4N36, 4N37 H11A1, H11A2, H11A3, H11A4, H11A5 4N38 VCE(sat) 0.4 CTR 20 Symbol Min. 100 50 30 Typ.* Max. % Unit 4N2X Series 4N3X Series H11AX Series Condition IF = 10mA, VCE = 10V 10 - - 0.5 0.3 V IF = 10mA, Ic = 0.5mA IF = 50mA, Ic = 2mA RIO CIO 10 11 0.2 1.0 Ω pF IF = 20mA, Ic = 4mA VIO = 500Vdc VIO = 0, f = 1MHz Isolation resistance Input-output capacitance 4N25, 4N26, 4N27, 4N28, H11A1, H11A2, H11A3, Turn-on time H11A4, H11A5 4N35, 4N36, 4N37, 4N38 4N25, 4N26, 4N27, 4N28, H11A1, H11A2, H11A3, H11A4 4N35, 4N36, 4N37, 4N38 * Typical values at Ta = 25°C Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 Ton 3 10 µs VCC = 10V, IF = 10mA, RL = 100Ω See Fig. 11 - 10 12 VCC = 10V, IC = 2mA, RL = 100Ω, See Fig. 11 VCC = 10V, IF = 10mA, RL = 100Ω See Fig. 11 µs Toff - 3 10 Turn-off time 9 12 VCC = 10V, IC = 2mA, RL = 100Ω, See Fig. 11 4 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Typical Performance Curves 4N2X Series 4N3X Series H11AX Series Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 5 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER 4N2X Series 4N3X Series H11AX Series VCC IF Input Pulse Output 10% 90% IC RL Input RIN RBE Output Pulse tr ton tf toff Figure 11. Switching Time Test Circuit & Waveforms Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 6 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Order Information Part Number 4N2X Series 4N3X Series H11AX Series 4NXXY(Z)-V or H11AXY(Z)-V Note XX X Y Z V = Part no. for 4NXX series (25, 26, 27, 28, 35, 36, 37 or 38) = Part no. for H11AX series (1, 2, 3, 4, or 5) = Lead form option (S, S1, M or none) = Tape and reel option (TA, TB or none). = VDE (optional) Option None M S (TA) S (TB) S1 (TA) S1 (TB) Standard DIP-6 Description Packing quantity 65 units per tube 65 units per tube 1000 units per reel 1000 units per reel 1000 units per reel 1000 units per reel Wide lead bend (0.4 inch spacing) Surface mount lead form + TA tape & reel option Surface mount lead form + TB tape & reel option Surface mount lead form (low profile) + TA tape & reel option Surface mount lead form (low profile) + TB tape & reel option Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 7 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Package Drawings (Dimensions in mm) 4N2X Series 4N3X Series H11AX Series Standard DIP Type Option M Type Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 8 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Option S Type 4N2X Series 4N3X Series H11AX Series Option S1 Type Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 9 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Recommended pad layout for surface mount leadform 4N2X Series 4N3X Series H11AX Series Device Marking EL 4N35 YW W V Notes EL 4N35 Y WW V denotes Everlight denotes Device Number denotes 1 digit Year code denotes 2 digit Week code denotes VDE (optional) Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 10 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Tape & Reel Packing Specifications Option TA 4N2X Series 4N3X Series H11AX Series Option TB Direction of feed from reel Direction of feed from reel Tape dimensions Dimension No. Dimension (mm) A 10.4±0.1 B 7.52±0.1 Do 1.5±0.1 D1 1.5+0.1/-0 E 1.75±0.1 F 7.5±0.1 Dimension No. Dimension (mm) Po 4.0±0.15 P1 16.0±0.1 P2 2.0±0.1 t 0.35±0.03 W 16.0±0.2 K 4.5±0.1 Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 11 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Solder Reflow Temperature Profile 4N2X Series 4N3X Series H11AX Series 260 °C (peak) >255 °C (30s Min) 217°C 200°C 1-3 °C/Sec Max 60 – 140 Sec 150°C 70 – 170 Sec 1-3 °C/Sec Max TIME (S) Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 12 http:\\www.everlight.com April 1, 2008 6 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER DISCLAIMER 4N2X Series 4N3X Series H11AX Series 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for use as outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT Corporation. Reproduction in any form is prohibited without the specific consent of EVERLIGHT. Everlight Electronics Co., Ltd. Document No：DPC-717-044 Rev. 3 13 http:\\www.everlight.com April 1, 2008
