61-238/RSGCBKC-B02/ET

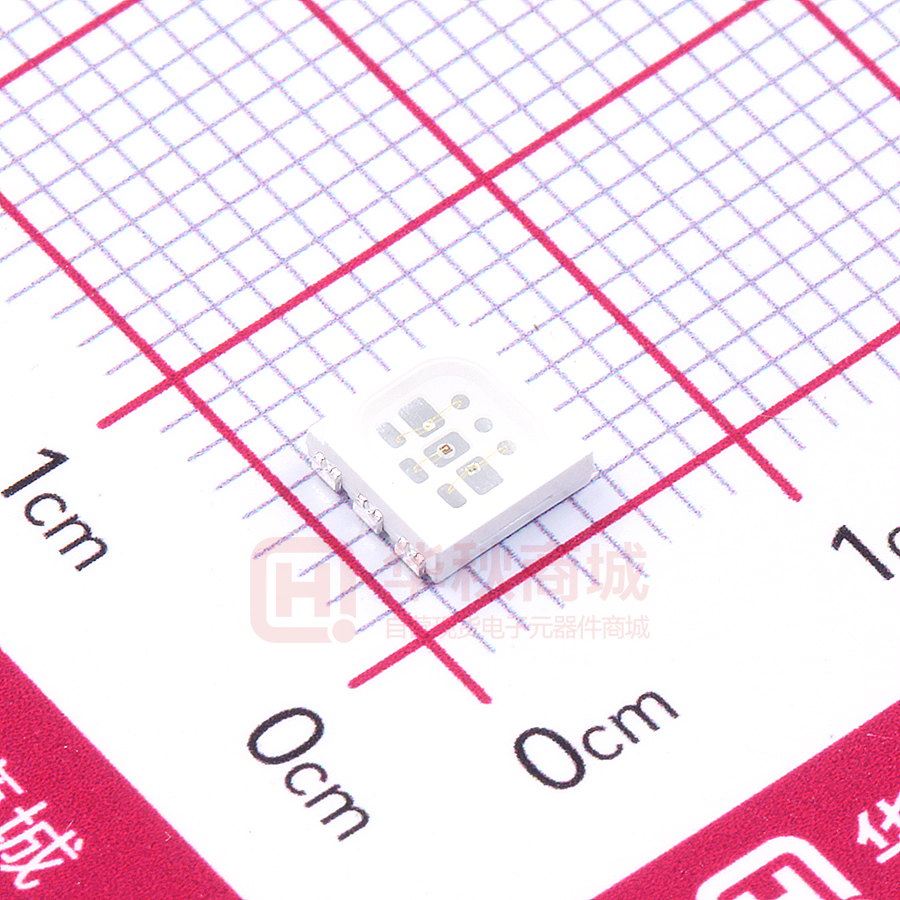

Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Features ․Super-luminosity chip LED. ․White SMT package. ․Built in Red, Green, and Blue chips. ․Lead frame package with individual 6 pins. ․Wide viewing angle. ․Soldering methods: IR reflow soldering. ․Pb-free. ․The product itself will remain within RoHS compliant version. Descriptions ․Due to the package design, 61-238 has wide viewing angle, and low power consumption. The white LED which was fabricated using blue LEDs and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence.The mixture of blue light and yellow light results in a white emission. And makes it ideal for light pipe application. Applications ․Amusement equipment. ․Information boards. ․Flashlight for digital camera of cellular phone. Device Selection Guide Chip Emitted Color Type Material RS AlGaInP Brilliant Red GC InGaN Brilliant Green BK InGaN Blue Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Resin Color Water Clear Rev. 1 Page: 1 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Package Outline Dimensions Green Red Blue Note: The tolerances unless mentioned is ±0.1mm; Unit = mm Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 2 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Absolute Maximum Ratings (Ta=25℃ ℃) Parameter Symbol Rating Unit Reverse Voltage VR 5 V Forward Current Peak Forward Current (Duty 1/10 @ 1KHZ) Power Dissipation IF IFP Pd RS 50 GC 30 BK 30 RS 100 GC 100 BK 100 RS 120 GC 110 BK 110 mA mW Electrostatic Discharge(HBM) ESD Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40~ +90 ℃ Soldering Temperature Tsol Everlight Electronics Co., Ltd Device No.: DSE-0008393 1000 mA V Reflow Soldering : 260 ℃ for 10 sec. Hand Soldering : 350 ℃ for 3 sec. http://www.everlight.com Rev. 1 Page: 3 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Electro-Optical Characteristics (Ta=25℃ ℃) Parameter Luminous Intensity Symbol Iv Viewing Angle Peak Wavelength Dominant Wavelength Spectrum Radiation Bandwidth Forward Voltage Reverse Current Min. Typ. Max. RS 450 ----- 900 GC 1120 ----- 1800 BK 225 ----- 450 ----- 120 ----- RS ----- 632 ----- GC ----- 518 ----- BK ----- 468 ----- RS 617.5 ----- 629.5 GC 520 ----- 530 BK 465 ----- 475 RS ----- 20 ----- GC ----- 35 ----- BK ----- 25 ----- RS 1.75 ----- 2.35 GC 2.75 ----- 3.65 BK 2.75 ----- 3.65 RS ----- ----- 10 GC ----- ----- 50 BK ----- ----- 50 2θ1/2 λp λd △λ VF IR Unit Condition mcd IF=20mA deg IF=20mA nm IF=20mA nm IF=20mA nm IF=20mA V IF=20mA µA VR=5V Notes: 1.Tolerance of Luminous Intensity: ±11% 2.Tolerance of Dominant Wavelength: ±1 nm 3.Tolerance of Forward Voltage: ±0.1V Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 4 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Bin Range of Luminous Intensity Symbol Bin Code Min. Max. U1 450 565 U2 565 715 V1 715 900 W1 1120 1420 W2 1420 1800 S2 225 285 T1 285 360 T2 360 450 RS GC BK Unit Condition mcd IF=20mA Unit Condition nm IF=20mA Bin Range of Dominant Wavelength Symbol Bin Code Min. Max. E4 617.5 621.5 E5 621.5 625.5 E6 625.5 629.5 X 520 525 Y 525 530 X 465 470 Y 470 475 RS GC BK Notes: 1.Tolerance of Luminous Intensity: ±11% 2.Tolerance of Dominant Wavelength: ±1 nm Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 5 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Bin Range of Forward Voltage Symbol Bin Code Min. Max. 0 1.75 1.95 1 1.95 2.15 2 2.15 2.35 5 2.75 3.05 6 3.05 3.35 7 3.35 3.65 5 2.75 3.05 6 3.05 3.35 7 3.35 3.65 RS GC BK Unit Condition V IF=20mA Note: Tolerance of Forward Voltage: ±0.1V Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 6 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Typical Electro-Optical Characteristics Curves (RS) Forward Current vs. Forward Voltage Spectrum Distribution Ta=25°C 50 Forward Current I F (mA) Relative luminous intensity (%) 100 75 50 25 0 550 600 650 700 Wavelength λ (nm) 40 30 20 10 0 1.2 750 1000 1000 Relative luminous intensity (%) Relative luminous intensity (%) 1.6 2.0 2.4 2.8 3.0 Forward Voltage VF (volts) Relative Luminous Intensity vs. Ambient Temperature 100 10 1 -60 -40 -20 Ta=25°C Relative Luminous Intensity vs. Forward Current Ta=25°C f=1KHz Duty=1/10 100 10 1 0 10 0 20 40 60 80 100 Ambient Temperature Ta(°C) Forward Current Derating Curve 2 1 10 10 Forward Current IF (mA) Radiation Diagram 0° 80 10° 20° Ta=25°C 30° Forward Current I F (mA) 70 60 50 1.0 40 0.9 0.8 30 20 40° 50° 60° 70° 80° 90° 0.7 10 0 0 20 40 60 80 100 0.5 0.3 0.1 0.2 0.4 0.6 Ambient Temperature Ta(°C) Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 7 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Typical Electro-Optical Characteristics Curves (GC) Forward Current vs. Forward Voltage Spectrum Distribution IF (mA) 75 50 25 0 450 500 550 600 40 30 20 10 0 2.4 650 2.6 Wavelength λ (nm) Relative luminous intensity (%) Relative luminous intensity (%) 1000 100 10 0 20 40 60 80 100 1000 3.6 4.0 Relative Luminous Intensity vs. Forward Current Ta=25°C 100 10 1 0 10 2 1 10 10 Forward Current IF(mA) Radiation Diagram 0° 10° 60 IF (mA) 3.2 f=1KHz Duty=1/10 Ambient Temperature Ta (°C) Forward Current 2.8 Forward Voltage VF (V) Relative Luminous Intensity vs. Ambient Temperature 1 -60 -40 -20 Ta=25°C 50 Forward Current Relative luminous intensity (%) Ta=25°C 100 Ta=25°C 20° 30° 50 40 40° 1.0 30 0.9 50° 20 0.8 60° 10 0.7 0 20 0 40 60 80 100 70° 80° 90° 0.5 0.3 0.1 0.2 0.4 0.6 Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 8 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Typical Electro-Optical Characteristics Curves (BK) Forward Current vs. Forward Voltage Spectrum Distribution IF (mA) 100 75 Forward Current Relative luminous intensity (%) Ta=25°C 50 25 0 350 400 450 500 40 30 20 10 0 2.4 550 2.6 Wavelength λ (nm) Relative luminous intensity (%) Relative luminous intensity (%) 1000 100 10 0 2.8 3.2 3.6 1000 Relative Luminous Intensity vs. Forward Current Ta=25°C f=1KHz Duty=1/10 100 10 1 0 10 20 40 60 80 100 2 1 10 10 Forward Current Ambient Temperature Ta (°C) IF(mA) Radiation Diagram 0° IF (mA) 60 Forward Current 4.0 Forward Voltage VF (V) Relative Luminous Intensity vs. Ambient Temperature 1 -60 -40 -20 Ta=25°C 50 10° Ta=25°C 20° 30° 50 40 40° 1.0 30 0.9 50° 20 0.8 60° 10 0.7 0 20 0 40 60 80 100 70° 80° 90° 0.5 0.3 0.1 0.2 0.4 0.6 Ambient Temperature Ta (°C) Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 9 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Label Explanation CAT: Luminous Intensity Rank HUE: Dom. Wavelength Rank REF: Forward Voltage Rank Pb EVERLIGHT CPN : P N : XXXXXXXXXXXXX RoHS XXXXXXXXXXXXX CAT : XXX HUE : XXX REF : XXX QTY : XXX LOT NO : XXXXXXXXXX Reference : XXXXXXXX MADE IN TAIWAN Reel Dimensions Note: Tolerance unless mentioned is ±0.1mm; Unit = mm Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 10 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Carrier Tape Dimensions: Loaded Quantity 800 pcs Per Reel Note: Tolerances unless mentioned is ±0.1mm; Unit = mm Moisture Resistant Packaging Label Aluminum moisture-proof bag Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Desiccant Rev. 1 Label Page: 11 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Reliability Test Items and Conditions The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% No. Items 1 Reflow Soldering Test Condition Test Sample Hours/Cycles Size 6 Min. 22 PCS. 0/1 300 Cycles 22 PCS. 0/1 Temp. : 260℃±5℃ Max. 10 sec. Ac/Re H : +100℃ 15min 2 Temperature Cycle ∫ 5 min L : -40℃ 15min H : +100℃ 5min 3 Thermal Shock ∫ 10 sec L : -10℃ 5min 300 Cycles 22 PCS. 0/1 4 High Temperature Storage Temp. : 100℃ 1000 Hrs. 22 PCS. 0/1 5 Low Temperature Storage Temp. : -40℃ 1000 Hrs. 22 PCS. 0/1 6 DC Operating Life IF = 20 mA 1000 Hrs. 22 PCS. 0/1 7 High Temperature / High Humidity 85℃/ 85%RH 1000 Hrs. 22 PCS. 0/1 Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 12 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET Precautions for Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package: The LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 168 hours under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 260°C Max. 10sec. Max. Above255°C 30sec.Max. 3°C/sec.Max. 6°C/sec.Max. Pre-heating Above 217°C 60~150sec. 150~200°C 60~120sec. 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd Device No.: DSE-0008393 http://www.everlight.com Rev. 1 Page: 13 of 14 Technical Data Sheet Top View LEDs 61-238/RSGCBKC-B02/ET 4. Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5. Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Everlight Electronics Co., Ltd Device No.: DSE-0008393 Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http://www.everlight.com http://www.everlight.com Rev. 1 Page: 14 of 14
