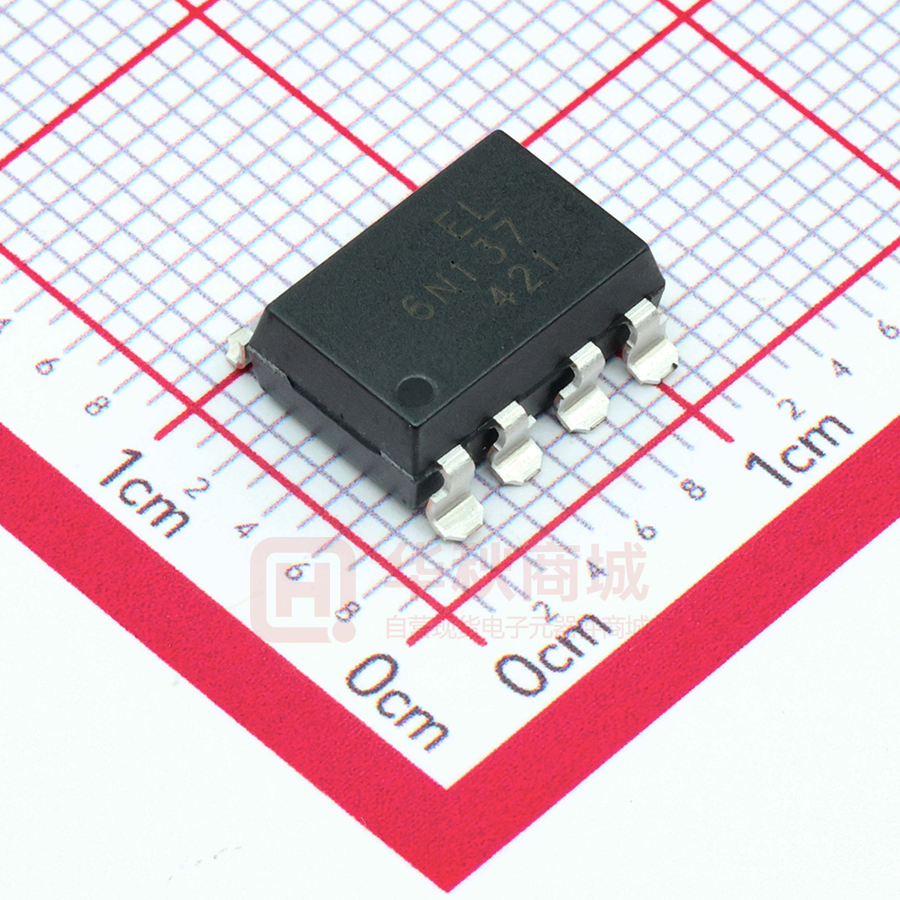

6N137S1(TA)

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Schematic Features • High speed 10Mbit/s • 10kV/μs min. common mode transient immunity (EL2611) • Guaranteed performance from -40 to 85℃ • Logic gate output • High isolation voltage between input and output (Viso=5000 V rms ) • Pb free and RoHS compliant. • UL and cUL approved(No. E214129) • VDE approved (No. 132249) • SEMKO approved • NEMKO approved • DEMKO approved • FIMKO approved A 0.1μF bypass capacitor must be connected between pins 8 and 5 *3 Pin Configuration 1, No Connection 2, Anode 3, Cathode 4. No Connection 5, Gnd 6, Vout 7, VE 8, VCC Description The 6N137, EL2601 and EL2611 are consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output. It is packaged in a 8-pin DIP package and available in wide-lead spacing and SMD options. Truth Table (Positive Logic) Applications • Ground loop elimination • LSTTL to TTL, LSTTL or 5 volt CMOS • Line receiver, data transmission • Data multiplexing • Switching power supplies • Pulse transformer replacement • Computer peripheral interface • High speed logic ground isolation 1 Input H L H L H L Enable H H L L NC NC Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) Output L H H H L H www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Forward current IF 50 mA Enable input voltage Not exceed VCC by more than 500mV VE 5.5 V Reverse voltage VR 5 V Power dissipation PD 100 mW Power dissipation PC 85 mW Output current IO 50 mA Output voltage VO 7.0 V Supply voltage VCC 7.0 V PO 100 mW Isolation voltage *1 VISO 5000 V rms Operating temperature TOPR -40 ~ +85 °C Storage temperature TSTG -55 ~ +125 °C Soldering temperature *2 TSOL 260 °C Input Output Output Power Dissipation Notes: *1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2, 3 & 4 are shorted together, and pins 5, 6, 7 & 8 are shorted together. *2 For 10 seconds. 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Electrical Characteristics (Ta=-40 to 85°C unless specified otherwise) Input Symbol Min. Typ. Max. Unit Forward voltage VF - 1.4 1.8 V IF = 10mA Reverse voltage VR 5.0 - - V IR = 10μA VF/TA - -1.8 - mV/°C IF =10mA CIN - 60 - pF VF=0, f=1MHz Parameter Symbol Min Typ. Max. Unit Condition High level supply current ICCH - 7 10 mA IF=0mA, VE=0.5V, VCC=5.5V Low level supply current ICCL - 9 13 mA IF=10mA, VCC=5.5V High level enable current IEH - - 0.6 -1.6 mA VE=2.0 V, VCC=5.5V Low level enable current IEL - - 0.8 -1.6 mA VE=0.5 V, VCC=5.5V VEH 2.0 - - V IF=10mA, VCC=5.5V VEL - - 0.8 V IF=10mA, VCC=5.5V Parameter Temperature coefficient of forward voltage Input capacitance Condition Output High level enable voltage Low level enable voltage*4 Transfer Characteristics (Ta=-40 to 85°C unless specified otherwise) Symbol Min Typ. Max. Unit Condition HIGH Level Output Current IOH - 2.1 100 uA VCC=5.5V, VO=5.5V, IF=250μA, VE=2.0V LOW Level Output Current VOL - 0.35 0.6 V VCC = 5.5V, IF=5mA, VE=2.0V,ICL=13mA Input Threshold Current IFT - 2.5 5 mA VCC= 5.5V, VO=0.6V, VE =2.0V,IOL=13mA Parameter 3 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Switching Characteristics (Ta=-40 to 85°C, VCC=5V, IF=7.5mA unless specified otherwise) Symbol Min Typ. Max. Unit Condition TPHL - 35 75 ns CL = 15pF, RL=350Ω, TA=25°C TPLH - 40 75 ns CL = 15pF, RL=350Ω, TA=25°C |Tphl – Tplh| - 5 35 ns CL = 15pF, RL=350Ω tr - 40 - ns CL = 15pF, RL=350Ω tf - 10 - ns CL = 15pF, RL=350Ω Parameter Propagation delay time to output High level*5 (Fig.12) Propagation delay time to output Low level*6 (Fig.12) Pulse width distortion 7 Output rise time* (Fig.12) Output fall time*8 (Fig.12) Switching Characteristics (Ta=-40 to 85°C, VCC=5V, IF=7.5mA unless specified otherwise) Symbol Min Typ. Max. Unit Condition tELH - 15 - ns IF = 7.5mA , VEH=3.5V, CL = 15pF, RL=350Ω tEHL - 15 - ns IF = 7.5mA , VEH=3.5V, CL = 15pF, RL=350Ω 6N137 - - - EL2601 5,000 - - Parameter Enable Propagation Delay Time to Output High Level*9 (Fig.13) Enable Propagation Delay Time to Output Low Level*10 (Fig.13) Common Mode Transient Immunity at Logic High *11 Common Mode Transient Immunity at Logic Low *12 4 V/µS CMH EL2611 10,000 - - EL2611 20,000 - - 6N137 - - - EL2601 5,000 - V/µS CML EL2611 10,000 - - EL2611 20,000 - - Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 IF = 0mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=10Vp-p (Fig.14) IF = 0mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=50Vp-p (Fig.14) IF = 0mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=400Vp-p (Fig.14) IF = 0mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=400Vp-p (Fig.15) IF = 7.5mA , VOL=0.8V, RL=350Ω, TA=25°C VCM=10Vp-p (Fig.14) IF = 7.5mA , VOL=0.8V, RL=350Ω, TA=25°C VCM=50Vp-p (Fig.14) IF = 7.5mA , VOL=0.8V, RL=350Ω, TA=25°C VCM=400Vp-p (Fig.14) IF = 7.5mA , VOH=0.8V, RL=350Ω, TA=25°C VCM=400Vp-p (Fig.15) 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Typical Electro-Optical Characteristics Curves 5 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series 6 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Fig. 12 Test circuit and waveforms for tPHL, tPLH, tr, and tf Fig. 13 Test circuit and waveform for tEHLand tELH Fig. 14 Test circuit Common mode Transient Immunity 7 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Fig. 15 Recommended drive circuit for EL2611 families for high-CMR Note *3 The VCC supply must be bypassed by a 0.1μF capacitor or larger. This can be either a ceramic or solid tantalum capacitor with good high frequency characteristic and should be connected as close as possible to the package VCC and GND pins *4. Enable Input – No pull up resistor required as the device has an internal pull up resistor. *5. tPLH– Propagation delay is measured from the 3.75mA level on the HIGH to LOW transition of the input current pulse to the 1.5 V level on the LOW to HIGH transition of the output voltage pulse. *6. tPHL– Propagation delay is measured from the 3.75mA level on the LOW to HIGH transition of the input current pulse to the 1.5 V level on the HIGH to LOW transition of the output voltage pulse. *7. tr– Rise time is measured from the 90% to the 10% levels on the LOW to HIGH transition of the output pulse. *8. tf– Fall time is measured from the 10% to the 90% levels on the HIGH to LOW transition of the output pulse. *9. tELH– Enable input propagation delay is measured from the 1.5V level on the HIGH to LOW transition of the input voltage pulse to the 1.5V level on the LOW to HIGH transition of the output voltage pulse. *10. tEHL– Enable input propagation delay is measured from the 1.5V level on the LOW to HIGH transition of the input voltage pulse to the 1.5V level on the HIGH to LOW transition of the output voltage pulse. *11 CMH– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in the HIGH state (i.e., VOUT > 2.0V). *12 CML– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in the LOW output state (i.e., VOUT < 0.8V). 8 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Order Information Part Number 6N137Y(Z)-V or EL26XXY(Z)-V Note X Y Z V = (01 or 11) for EL26 part no. = Lead form option (S, S1, M or none) = Tape and reel option (TA, TB or none). = VDE (optional) Option 9 Description Packing quantity None Standard DIP-8 45 units per tube M Wide lead bend (0.4 inch spacing) 45 units per tube S (TA) Surface mount lead form + TA tape & reel option 1000 units per reel S (TB) Surface mount lead form + TB tape & reel option 1000 units per reel S1 (TA) Surface mount lead form (low profile) + TA tape & reel option 1000 units per reel S1 (TB) Surface mount lead form (low profile) + TB tape & reel option 1000 units per reel Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Package Dimension (Dimensions in mm) Standard DIP Type Option M Type 10 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Option S Type Option S1 Type 11 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Recommended pad layout for surface mount leadform Notes. Suggested pad dimension is just for reference only. Please modify the pad dimension based on individual need. Device Marking Notes T EL 6N137 Y WW V 12 denotes Factory No code : made in China T : made in Taiwan denotes EVERLIGHT denotes Device Number denotes 1 digit Year code denotes 2 digit Week code denotes VDE (optional) Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Tape & Reel Packing Specifications Option TB Option TA Direction of feed from reel Direction of feed from reel Tape dimension 13 Dimension No. A B Do D1 E F Dimension(mm) 10.4±0.1 10.0±0.1 1.5+0.1-0 1.5±0.25 1.75±0.1 7.5±0.1 Dimension No. Po P1 P2 t W K Dimension(mm) 4.0±0.1 12.0±0.1 2.0±0.05 0.4±0.05 16.0±0.3 4.5±0.1 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Precautions for Use 1. Soldering Condition 1.1 (A) Maximum Body Case Temperature Profile for evaluation of Reflow Profile Note: Reference: IPC/JEDEC J-STD-020D Preheat Temperature min (Tsmin) 150 °C Temperature max (Tsmax) 200°C Time (Tsmin to Tsmax) (ts) Average ramp-up rate (Tsmax to Tp) 60-120 seconds 3 °C/second max Other Liquidus Temperature (TL) 217 °C Time above Liquidus Temperature (t L) 60-100 sec Peak Temperature (TP) 260°C Time within 5 °C of Actual Peak Temperature: T P - 5°C 30 s Ramp- Down Rate from Peak Temperature 6°C /second max. Time 25°C to peak temperature Reflow times 8 minutes max. 3 times 14 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series DISCLAIMER 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. The graphs shown in this datasheet are representing typical data only and do not show guaranteed values. 3. When using this product, please observe the absolute maximum ratings and the instructions for use outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 4. These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in any form is prohibited without the specific consent of EVERLIGHT. 5. This product is not intended to be used for military, aircraft, automotive, medical, life sustaining or life saving applications or any other application which can result in human injury or death. Please contact authorized Everlight sales agent for special application request. 6. Statements regarding the suitability of products for certain types of applications are based on Everlight’s knowledge of typical requirements that are often placed on Everlight products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Everlight’s terms and conditions of purchase, including but not limited to the warranty expressed therein. 15 Copyright © 2010, Everlight All Rights Reserved. Release Date : July 20, 2018. Issue No: DPC-0000120 Rev.8 Ver.:8 Release Date:07/01/2019 　 狀態:Approved(正式發行) www.everlight.com
