ALS-PDIC243-3C

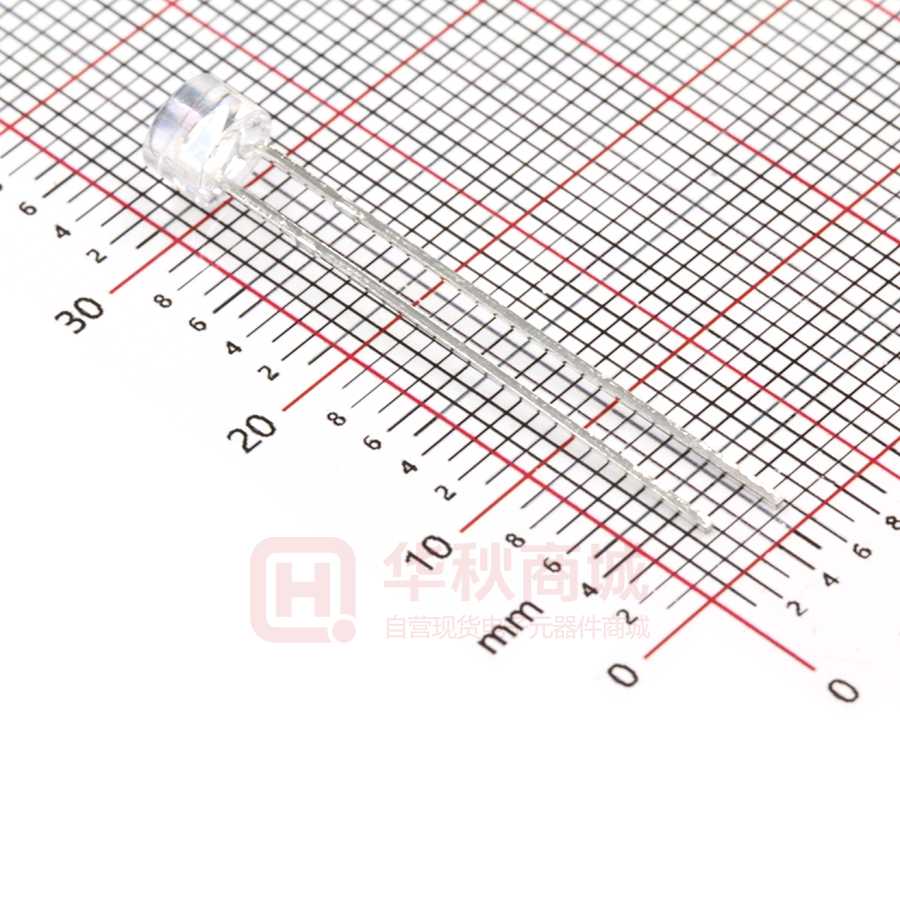

5mm T-1 3/4 ALS-PDIC243-3C Features ‧Excellent IR-Cut performance ‧Close responsively to the human eye spectrum ‧Light to Current, analog output ‧Good output linearity across wide illumination range ‧Low sensitivity variation across various light sources ‧Operation temperature performance, -40oC to 85oC ‧Wide supply voltage range, 1.8V to 5.5V ‧Size: 5mm Lamp (Flat lens) ‧RoHS compliant package Description The ALS-PDIC243-3C is an ambient light sensor, which incorporates a photodiode and a current amplifier IC in DIP package. EVERLIGHT ALS series products are a good effective solution to the power saving of display backlighting of mobile appliances, such as the mobile phones, NB and PDAs. Due to the high rejection ratio of infrared radiation, the spectral response of the ambient light sensor is close to human eyes. Also, it is very suitable to use ALS product for opto-switch application. Applications ‧Ambient light monitoring device for daylight and artificial light – CCD camera/CCTV security equipment, Street light ‧Detection of ambient light to control display backlighting Computing device – TFT LCD monitor for Notebook computer Consumer device – TFT LCD TV, video camera, digital camera, toys 1 Copyright © 2010, Everlight All Rights Reserved. Release Date : 8.5.2011. Issue No: DLS-0000020 www.everlight.com DATASHEET 5mm T-1 3/4 ALS-PDIC243-3C Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : 8.5.2011. Issue No: DLS-0000020 www.everlight.com DATASHEET 5mm T-1 3/4 ALS-PDIC243-3C Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Vcc -0.7~6.5 V Operating Temperature Range Topr -40 ~ +85 °C Storage Temperature Range Tstg -40 ~ +100 °C Soldering Temperature Range Tsol 260 °C Supply Voltage [N t 1] Recommended Operating Conditions (Ta=25℃) Parameter Symbol Min. Max. Unit Operating Temperature Topr -40 +85 °C Supply Voltage Vcc 1.8 5.5 V 3 Copyright © 2010, Everlight All Rights Reserved. Release Date : 8.5.2011. Issue No: DLS-0000020 www.everlight.com DATASHEET 5mm T-1 3/4 ALS-PDIC243-3C Electrical and Optical Characteristics (Ta=25℃) Parameter Symbol MIN TYP MAX. Unit ID 1 --- 100 nA VCC=3V, Ev= 0Lux IPH2 24 48 uA VCC=3V, Ev= 100Lux IPH3 240 480 uA VCC=3V, Ev= 1000Lux IPH4 --- 430 --- uA VCC=3V, Ev= 1000Lux IPH4 / IPH3 --- 1.2 --- --- VCC=3V, Ev= 1000Lux Peak Sensitivity Wavelength λp --- 560 --- nm Sensitivity Wavelength Range λ 390 --- 700 nm Rise time tr --- 0.36 --- ms Fall time tf --- 1.13 --- ms 2θ1/2 --- 143 --- Deg. Dark Current Light Current Photocurrent Ratio Angle of half Sensitivity Test Condition [Note1] [Note1] [Note2] VCC = 3 V RL = 27KΩ VCC = 3 V Note: 1. White Fluorescent light (Color Temperature = 6500K) is used as light source. However, White LED is substituted in mass production. 2. Illuminance by CIE standard illuminant-A / 2856K, incandescent lamp. 4 Copyright © 2010, Everlight All Rights Reserved. Release Date : 8.5.2011. Issue No: DLS-0000020 www.everlight.com DATASHEET 5mm T-1 3/4 ALS-PDIC243-3C Typical Electrical and Optical Characteristics Curves Fig.1 Light Current vs. Illuminance Fig.2 Output Voltage vs. Illuminance 10 Ta = 25 ℃ Vcc = 3V Output voltage (V) 1 0.1 0.01 Fluorence Fluorence Fluorence Fluorence 1E-3 1E-4 1 10 100 light R L = light R L = light R L = light R L = 1 KΩ 7.5 KΩ 27 KΩ 75 KΩ 1000 10000 Illuminance (Lux) Fig.3 Spectral Response Fig.4 Light current vs. Supply Voltage Fig.5 Light Current vs. Temperature Fig.6 Dark Current vs. Temperature 2.0 1.8 Relative light current 1.6 VCE = 3V EV = 100 Lux 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0.0 -60 -40 -20 0 20 40 60 80 100 Temperature (℃ ) 5 Copyright © 2010, Everlight All Rights Reserved. Release Date : 8.5.2011. Issue No: DLS-0000020 www.everlight.com DATASHEET 5mm T-1 3/4 ALS-PDIC243-3C Converting Photocurrent to Voltage Note: 1. The output voltage (Vout) is the product of photocurrent (IPH) and loading resistor (RL) 2. A right loading resistor shall be chosen to meet the requirement of maximum ambient light, and output saturation voltage: Vout(max.) = Iout(max.) × RL ≦Vout(saturation)＝Vcc－0.4V 6 Copyright © 2010, Everlight All Rights Reserved. Release Date : 8.5.2011. Issue No: DLS-0000020 www.everlight.com DATASHEET 5mm T-1 3/4 ALS-PDIC243-3C Packing Quantity Specification 1.500PCS/1Bag，5Bags/1Box 2.10Boxes/1Carton Label Format Pb EVERLIGHT CPN : P N : XXXXXXXXXXXXX RoHS XXXXXXXXXXXXX QTY : XXX LOT NO : XXXXXXXXXX CAT : XXX HUE : XXX REF : XXX CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place Reference : XXXXXXXX Note 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT Corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 7 Copyright © 2010, Everlight All Rights Reserved. Release Date : 8.5.2011. Issue No: DLS-0000020 www.everlight.com
