EL3022

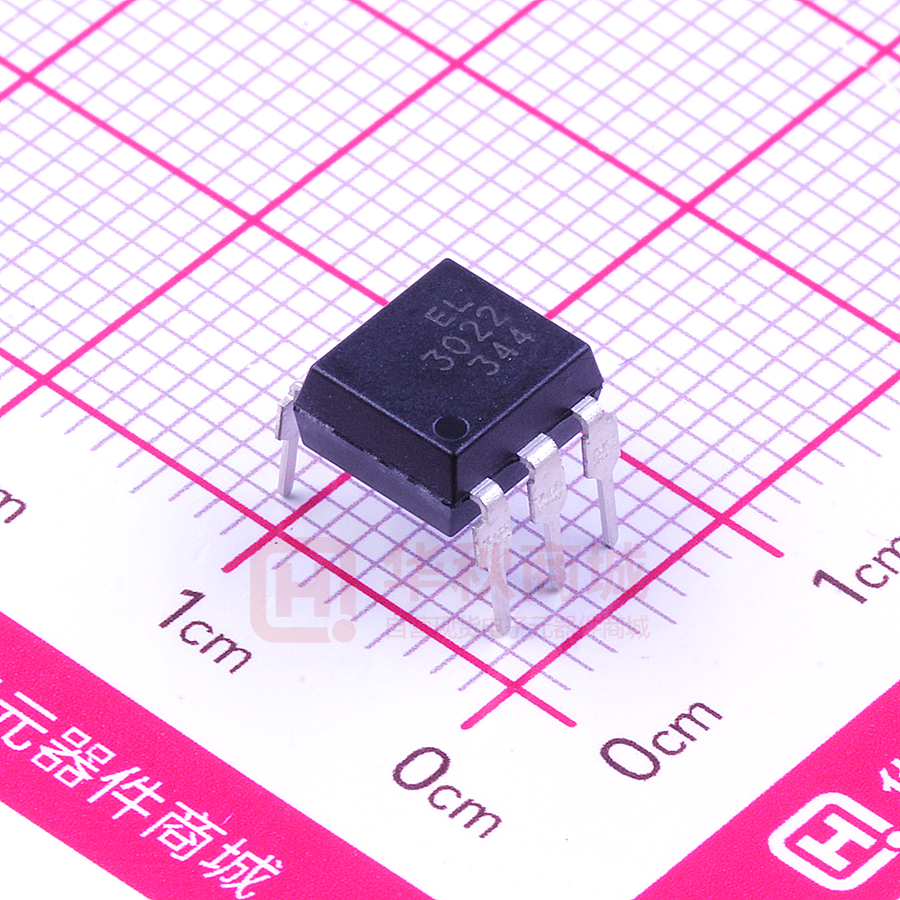

6 PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER EL301X, EL302X, EL305X Series Schematic Features: • Peak breakdown voltage - 250V: EL301X - 400V: EL302X - 600V: EL305X • High isolation voltage between input and output • Compact dual-in-line package • Pb free and RoHS compliant. • UL approved (No. E214129) • VDE approved (No.132249) • SEMKO approved • NEMKO approved • DEMKO approved • FIMKO approved • CSA approved (Viso=5000 V rms ) 1 6 2 5 3 4 Pin Configuration 1. Anode 2. Cathode 3. No Connection 4. Terminal 5. Substrate (do not connect) 6. Terminal Description The EL301X, EL302X and EL305X series of devices each consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon random phase photo Triac. They are designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 to 240 VAC operations. Applications






1 Solenoid/valve controls Lamp ballasts Static AC power switch Interfacing microprocessors to 115 to 240Vac peripherals Incandescent lamp dimmers Temperature controls Motor controls Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No: DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Absolute Maximum Ratings (Ta=25℃ ℃) Parameter Input Symbol Rating Unit Forward current IF 60 mA Reverse voltage VR 6 V 100 mW 3.8 mW /°C Power dissipation Derating factor (above Ta = 85°C) Output PD EL301X Off-state Output Terminal Voltage EL302X 250 VDRM EL305X Peak Repetitive Surge Current (pw=100µs,120pps) On-State RMS Current Power dissipation Derating factor (above Ta = 85°C) 400 V 600 ITSM 1 A IT(RMS) 100 mA 300 mW PC 7.4 ℃ mW/ PTOT 330 mW VISO 5000 Vrms Operating temperature TOPR -55 to 100 Storage temperature TSTG -55 to 125 TSOL 260 Total power dissipation Isolation voltage *1 2 Soldering Temperature* ℃ ℃ ℃ Notes: *1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2&3 are shorted together, and pins 4, 5 & 6 are shorted together. *2 For 10 seconds 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Electro-Optical Characteristics (Ta=25℃ ℃ unless specified otherwise) Input Symbol Min. Typ.* Max. Unit Forward Voltage VF - 1.18 1.5 V IF = 10mA Reverse Leakage current IR - - 10 µA VR = 6V Symbol Min. Typ.* Max. Unit Peak Blocking Current IDRM - - 100 nA Peak On-state Voltage VTM - - 2.5 V - 100 - Parameter Condition Output Parameter Critical Rate of EL301X Rise off-state EL302X Voltage EL305X dv/dt - - Min. Typ.* Max. VDRM = Rated VDRM IF = 0mA ITM=100mA peak, IF=Rated IFT VPEAK =Rated VDRM, V/µs 1000 Condition IF=0 (Fig. 8) VPEAK =400V, IF=0 (Fig. 8) Transfer Characteristics Parameter Symbol EL3020 LED Trigger Current EL3010 EL3021 EL3051 EL3011 EL3022 EL3052 EL3012 EL3023 EL3053 Holding Current Unit Condition mA Main terminal Voltage=3V 30 IFT IH - - 15 - - 10 - - 5 - 250 - µA * Typical values at Ta = 25°C 3 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Typical Electro-Optical Characteristics Curves 4 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Figure 8. Static dv/dt Test Circuit & Waveform D.U.T. 10 kΩ T1 A K CTEST VT RTEST 50 Ω High Voltage Pulse Source T2 Applied VT Waveform VPEAK 0.632 x VPEAK 0 τRC Measurement Method The high voltage pulse is set to the required VPEAK value and applied to the D.U.T. output side through the RC circuit above. LED current is not applied. The waveform VT is monitored using a x100 scope probe. By varying RTEST, the dv/dt (slope) is increased, until the D.U.T. is observed to trigger (waveform collapses). The dv/dt is then decreased until the D.U.T. stops triggering. At this point, τRC is recorded and the dv/dt calculated. dv/dt = 0.632 x VPEAK τRC For example, VPEAK = 400V for EL302X series. dv/dt = The dv/dt value is calculated as follows: 0.63 x 400 τRC 5 = 252 τRC Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Order Information Part Number EL301XY(Z)-V EL302XY(Z)-V EL305XY(Z)-V or or Note X = Part No. for EL301x (0, 1 or 2) X = Part No. for EL302x, EL305x (1, 2 or 3) Y = Lead form option (S, S1, M or none) Z = Tape and reel option (TA, TB or none). V = VDE safety approved (optional) 6 Option Description Packing quantity None Standard DIP-6 65 units per tube M Wide lead bend (0.4 inch spacing) 65 units per tube S (TA) Surface mount lead form + TA tape & reel option 1000 units per reel S (TB) Surface mount lead form + TB tape & reel option 1000 units per reel S1 (TA) Surface mount lead form (low profile) + TA tape & reel option 1000 units per reel S1 (TB) Surface mount lead form (low profile) + TB tape & reel option 1000 units per reel Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Package Dimension (Dimensions in mm) Standard DIP Type Option M Type 7 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Option S Type Option S1 Type 8 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Recommended pad layout for surface mount leadform Device Marking EL 3053 YWWV Notes EL 3053 Y WW V 9 denotes EVERLIGHT denotes Device Number denotes 1 digit Year code denotes 2 digit Week code denotes VDE (optional) Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Tape & Reel Packing Specifications Option TB Option TA Direction of feed from reel Direction of feed from reel Tape dimensions 10 Dimension No. A B Do D1 E F Dimension (mm) 10.4±0.1 7.5±0.1 1.5±0.1 1.5+0.1/-0 1.75±0.1 7.5±0.1 Dimension No. Po P1 P2 t W K Dimension (mm) 4.0±0.15 12±0.1 2.0±0.1 0.35±0.03 16.0±0.2 4.5±0.1 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series Precautions for Use 1. Soldering Condition 1.1 (A) Maximum Body Case Temperature Profile for evaluation of Reflow Profile Note: Reference: IPC/JEDEC J-STD-020D Preheat Temperature min (Tsmin) 150 °C Temperature max (Tsmax) 200°C Time (Tsmin to Tsmax) (ts) Average ramp-up rate (Tsmax to Tp) 60-120 seconds 3 °C/second max Other Liquidus Temperature (TL) 217 °C Time above Liquidus Temperature (t L) 60-100 sec Peak Temperature (TP) 260°C Time within 5 °C of Actual Peak Temperature: TP - 5°C 30 s Ramp- Down Rate from Peak Temperature 6°C /second max. Time 25°C to peak temperature Reflow times 8 minutes max. 3 times . 11 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com DATASHEET 6PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTO COUPLER EL301X, EL302X, EL305X series DISCLAIMER 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 12 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000059 Rev.5 www.everlight.com
