EL452(TA)-G

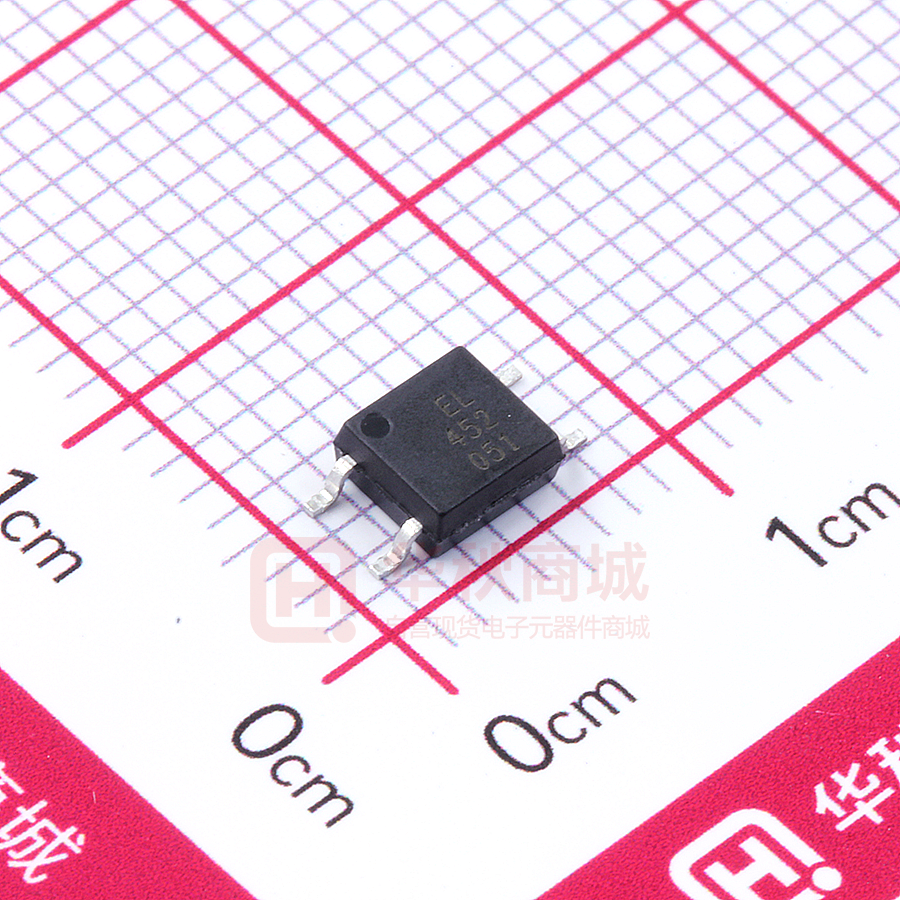

4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G Series Schematic Features: •Halogens free • High collect-Emitter voltage (VCEO = 350V) • Current transfer ratio (CTR: Min. 1000% at IF =1mA ,VCE =2V) • High isolation voltage between input and output (Viso=3750 V rms ) • Compact 4 Pin SOP with a 2.0 mm profile • Pb free and RoHS compliant. • UL & CUL approved • VDE approved • SEMKO approved • NEMKO approved • DEMKO approved • FIMKO approved Pin Configuration 1. Anode 2. Cathode 3. Emitter 4. Collector Description The EL452-G contains an infrared emitting diode, optically coupled to a high voltage darlington phototransistor. It is packaged in a 4-pin small outline SMD package. Applications • Telephone set, telephone exchangers • Sequence controllers • System appliances, measuring instruments • Signal transmission between circuits of different potentials and impedance 1 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series Absolute Maximum Ratings (Ta=25℃ ℃) Parameter Input Output Symbol Rating Unit Forward current IF 60 mA Peak forward current (t = 10µs) IFM 1 A Power dissipation PD 100 Power dissipation PC 150 mW Collector current IC 150 mA Collector-Emitter voltage VCEO 350 V Emitter-Collector voltage VECO 0.1 V PTOT 170 mW VISO 3750 V rms TOPR -55~+110 °C TSTG -55~+125 °C TSOL 260 °C Total power dissipation Isolation voltage *1 Operating temperature Storage temperature 2 Soldering Temperature* mW Notes: *1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1 & 2 are shorted together, and pins 3 & 4 are shorted together. *2 For 10 seconds 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series Electro-Optical Characteristics (Ta=25℃ ℃ unless specified otherwise) Input Parameter Symbol Min. Typ.* Max. Unit Condition Forward Voltage VF - 1.2 1.4 V IF = 10mA Reverse Current IR - - 10 µA VR = 4V Input capacitance Cin - 50 - pF V = 0, f = 1KHz Symbol Min. Typ.* Max. Unit ICEO - - 100 nA VCE = 200V, IF=0mA BVCEO 350 - - V Ic=0.1mA BVECO 0.1 - - V IE=0.01mA Output Parameter Collector-Emitter dark current Collector-Emitter breakdown voltage Emitter-Collector breakdown voltage Condition Transfer Characteristics Parameter Symbol Min. Typ.* Max. Unit Current Transfer ratio CTR 1000 2000 - % IF = 1mA ,VCE = 2V VCE(sat) - 1.2 1.5 V IF = 20mA , Ic = 100mA 10 - Ω VIO = 500Vdc, 40~60%R.H Collector-emitter saturation voltage Isolation resistance RIO 10 5×10 11 Condition fc - 7 - KHz VCE=2V, IC=2mA, RL=100Ω, -3db CIO - 0.6 - pF VIO = 0, f = 1MHz Rise time tr - 80 250 µs Fall time tf - 10 100 µs VCE=2V, IC=20mA, RL=100Ω Cut-off frequency Floating capacitance * Typical values at Ta = 25°C 3 Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series Typical Electro-Optical Characteristics Curves 4 Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series 5 Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series Order Information Part Number EL452(Y)-VG Note Y = Tape and reel option (TA, TB, or none). V = VDE safety (optional) G = Halogens free 6 Option Description Packing quantity None Standard SMD option 100 units per tube -V Standard SMD option + VDE 100 units per tube (TA) TA Tape & reel option 3000 units per reel (TB) TB Tape & reel option 3000 units per reel (TA)-V TA Tape & reel option + VDE 3000 units per reel (TB)-V TB Tape & reel option + VDE 3000 units per reel Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series Package Dimension (Dimensions in mm) Recommended pad layout for surface mount leadform 7 Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series Device Marking EL 452 YWWV Notes EL 452 Y WW V 8 denotes Everlight denotes Part Number denotes 1 digit Year code denotes 2 digit Week code denotes VDE approved (optional) Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series Tape & Reel Packing Specifications Option TA Option TB Direction of feed from reel Direction of feed from reel Tape dimensions 9 Dimension No. A B Do D1 E F Dimension(mm) 4.4 ± 0.1 7.4 ± 0.1 1.5 + 0.1/-0 1.5 ± 0.1 1.7 5± 0.1 7.5 ± 0.1 Dimension No. Po P1 P2 t W K Dimension(mm) 4.0 ± 0.15 8.0 ± 0.1 2.0 ± 0.1 0.25 ± 0.03 16.0 ± 0.2 2.4 ± 0.1 Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series Precautions for Use 1. Soldering Condition 1.1 (A) Maximum Body Case Temperature Profile for evaluation of Reflow Profile Note: Reference: IPC/JEDEC J-STD-020D Preheat Temperature min (Tsmin) 150 °C Temperature max (Tsmax) 200°C Time (Tsmin to Tsmax) (ts) Average ramp-up rate (Tsmax to Tp) 60-120 seconds 3 °C/second max Other Liquidus Temperature (TL) 217 °C Time above Liquidus Temperature (t L) 60-100 sec Peak Temperature (TP) 260°C Time within 5 °C of Actual Peak Temperature: TP - 5°C 30 s Ramp- Down Rate from Peak Temperature 6°C /second max. Time 25°C to peak temperature Reflow times 8 minutes max. 3 times . 10 Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com DATASHEET 4 PIN SOP HIGH VOLTAGE PHOTODARLINGTON PHOTOCOUPLER EL452-G series DISCLAIMER 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 11 Copyright © 2010, Everlight All Rights Reserved. Release Date : October 5, 2012. Issue No: DPC-0000055 Rev. 2 www.everlight.com
