ELR3223

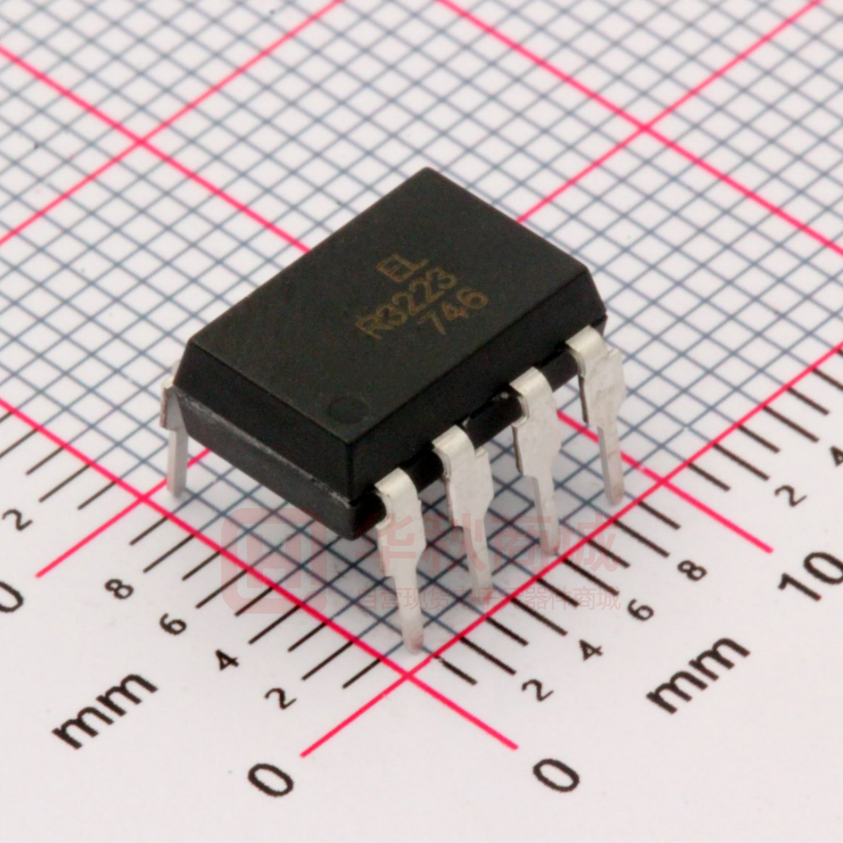

7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Features • Low trigger current IFT 10mA • Peak off state voltage 600V • Load current 0.3，0.6，0.9，1.2A • Wide operating temperature range of -40°C to 85°C • High isolation voltage between input and output (Viso=5000 Vrms) • Pb free and RoHS compliant • UL and cUL approved (No.E214129) • VDE approved (No.40028391) • NEMKO(approved) • FIMKO(approved) LED Anode 2 LED Cathode 1, 3, 4 Triac Gate 5 Triac T1 6 Triac T2,, 8 Description The ELRX223 series of devices are each consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon random phase photo triac and a main output triac. They are designed for interfacing between electronic controls and loads to control inductive for 115 to 240 VAC operations. They are packaged in 8pin DIP package and available in surface mount SMD option. Applications • • • • 1 Home appliances Industrial equipment Switching motors, fans, heaters, solenoids and valces. Power control such as lighting and temperature control Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Absolute Maximum Ratings (Ta=25℃, unless otherwise specified) Input Parameter Symbol Forward Current IF 60 mA VR 6 V IFP 1 A VDRM 600 V Reverse Voltage 1 Peak Forward Current* Output Repetitive peak OFF-state Voltage*2 ELR1223 RMS current ELR2223 3 surge current* 0.6 IT(RMS) 1.2 ELR0223 3 ELR2223 A 0.9 ELR3223 ELR1223 Non-repetitive Unit 0.3 ELR0223 ON-state Rating 6 ITSM A 9 12 ELR3223 Isolation Voltage*4 Viso 5000 Vrms Storage Temperature TSTG -40 to 125 ℃ Operating Temperature TOPR -40 to 85 ℃ Soldering Temperature*5 TSOL 260 ℃ Notes: *1 f =100Hz, Duty Cycle = 0.1% *2 Sine wave, 50 to 60Hz, IFT=0mA. *3 f=60Hz, one cycle. *4 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2, 3, 4 are shorted together, and pins 5, 6, 7, 8 are shorted together. *5 For 10 seconds 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Electro-Optical Characteristics (Ta=25℃) Parameter Input Output Symbol Min. Typ. Max. Unit Forward Voltage VF IF=20mA - 1.2 1.4 V Reverse Current IR VR=6V - - 10 uA IDRM IF=0mA, VDRM=600V - - 100 uA VTM IF = 10mA, ITM = MAX. - - 2.5 V 200 - - V/us Repetitive peak Off State Current On state Voltage Critical rate of rise of dV/dt OFF state voltage Holding Current Transfer Minimum Characteristics trigger Current 3 Condition VDRM=600V×1/ IH - - - 25 mA IFT VD=6V, RL=100Ω - - 10 mA - - 10 us - 5x1011 - Ω Turn On Time Ton Isolation Resistance RI-O IF = 20 mA, VD = 6V, RL = 100Ω , V I-O=500V DC, 40 to 60%RH Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Typical Electro-Optical Characteristics Curves Fig.1 ON-state Current vs. Ambient temperature Figure 2. On Voltage vs Ambient Temperature 1.6 1.5 1.5 ELR0223 1.4 On voltage, V ON-state current(A) 1.2 0.9 0.6 0.3 ELR1223 1.3 ELR2223 1.2 ELR3223 1.1 1.0 0.0 0 20 40 60 80 o Ambient temperature C -40 100 -20 0 20 40 60 80 100 o Ambient Temperature, TA ( C) Figure 4. LED Dropout Voltage vs Ambient Temperature Figure 3. Trigger LED Current vs Ambient Temperature o 1.5 Normalized @ 25 C 2.5 LED Dropout Voltage,VF (V) Normalized Trigger LED Current, IFT (mA) 3.0 2.0 1.5 1.0 IF=40mA 1.3 IF=30mA 1.2 IF=20mA IF=10mA 1.1 0.5 0.0 -40 IF=50mA 1.4 -20 0 20 40 60 1.0 -40 80 -20 0 40 60 80 Ambient Temperature, TA ( C) Figure 6. Off state leakage Current vs Load voltage Figure 5. Turn on time vs LED current Repetitive peak OFF-state current, Ileakage (A) 30 25 Turn on time, Ton (us) 20 o o Ambient Temperature, TA ( C) 20 15 10 5 1E-3 IF=0mA 1E-4 1E-5 1E-6 1E-7 1E-8 1E-9 1E-10 0 10 20 30 40 50 0 20 LED current,IF (mA) 4 Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 40 60 80 100 Load voltage, VL (V) rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Figure 7. Holding Current vs. Ambient Temperature 25 Holding Current, IH (mA) 20 ELR3223 15 ELR2223 10 ELR0223 5 ELR1223 0 -40 -20 0 20 40 o Ambient Temperature, TA ( C) 60 80 Order Information Part Number ELRX223Y(Z)-V Note X Y Z V 5 = (0or 1 or 2 or 3) for ELX223 part no. = Lead form option (S, S1, M or none) = Tape and reel option (TA, TB or none). = VDE (optional) Option None Description Standard DIP-8 45 units per tube M Wide lead bend (0.4 inch spacing) 45 units per tube S (TA) Surface mount lead form + TA tape & reel option 1000 units per reel S (TB) Surface mount lead form + TB tape & reel option 1000 units per reel S1 (TA) Surface mount lead form (low profile) + TA tape & reel option 1000 units per reel S1 (TB) Surface mount lead form (low profile) + TB tape & reel option 1000 units per reel Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 Packing quantity rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Package Dimension Standard DIP Type Option M Type 6 Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Option S Type Option S1 Type 7 Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Recommended pad layout for surface mount leadform Device Marking EL RX223 YWWV Notes EL RX223 Y WW V 8 denotes EVERLIGHT denotes Device Number(X = 0 or 1 or 2 or 3 for ELX223 part no.) denotes 1 digit Year code denotes 2 digit Week code denotes VDE (optional) Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Tape & Reel Packing Specifications Option TB Option TA Direction of feed from reel Direction of feed from reel Tape dimension 9 Dimension No. A B Do D1 E F Dimension(mm) 10.4±0.1 10.0±0.1 1.5+0.1/-0 1.5±0.25/-0 1.75±0.1 7.5±0.1 Dimension No. Po P1 P2 t W K Dimension(mm) 4.0±0.1 12.0±0.1 2.0±0.05 0.4±0.05 16.0±0.3/ 4.5±0.1 Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series Precautions for Use 1. Soldering Condition 1.1 (A) Maximum Body Case Temperature Profile for evaluation of Reflow Profile Note: Reference: IPC/JEDEC J-STD-020D Preheat Temperature min (Tsmin) 150 °C Temperature max (Tsmax) 200°C Time (Tsmin to Tsmax) (ts) Average ramp-up rate (Tsmax to Tp) 60-120 seconds 3 °C/second max Other Liquidus Temperature (TL) 217 °C Time above Liquidus Temperature (t L) 60-100 sec Peak Temperature (TP) 260°C Time within 5 °C of Actual Peak Temperature: TP - 5°C 30 s Ramp- Down Rate from Peak Temperature 6°C /second max. Time 25°C to peak temperature Reflow times 8 minutes max. 3 times 10 Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com DATASHEET 7PIN DIP PHOTO POWER TRIAC PHOTOCOUPLER ELRX223 Series DISCLAIMER 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. The graphs shown in this datasheet are representing typical data only and do not show guaranteed values. 3. When using this product, please observe the absolute maximum ratings and the instructions for use outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 4. These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in any form is prohibited without the specific consent of EVERLIGHT. 5. This product is not intended to be used for military, aircraft, automotive, medical, life sustaining or life saving applications or any other application which can result in human injury or death. Please contact authorized Everlight sales agent for special application request. 6. Statements regarding the suitability of products for certain types of applications are based on Everlight’s knowledge of typical requirements that are often placed on Everlight products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Everlight’s terms and conditions of purchase, including but not limited to the warranty expressed therein. 11 Copyright © 2010, Everlight All Rights Reserved. Release Date : Feb. 15 , 2017. Issue No: DPC-0000345 rev.3 www.everlight.com
