HIR204C

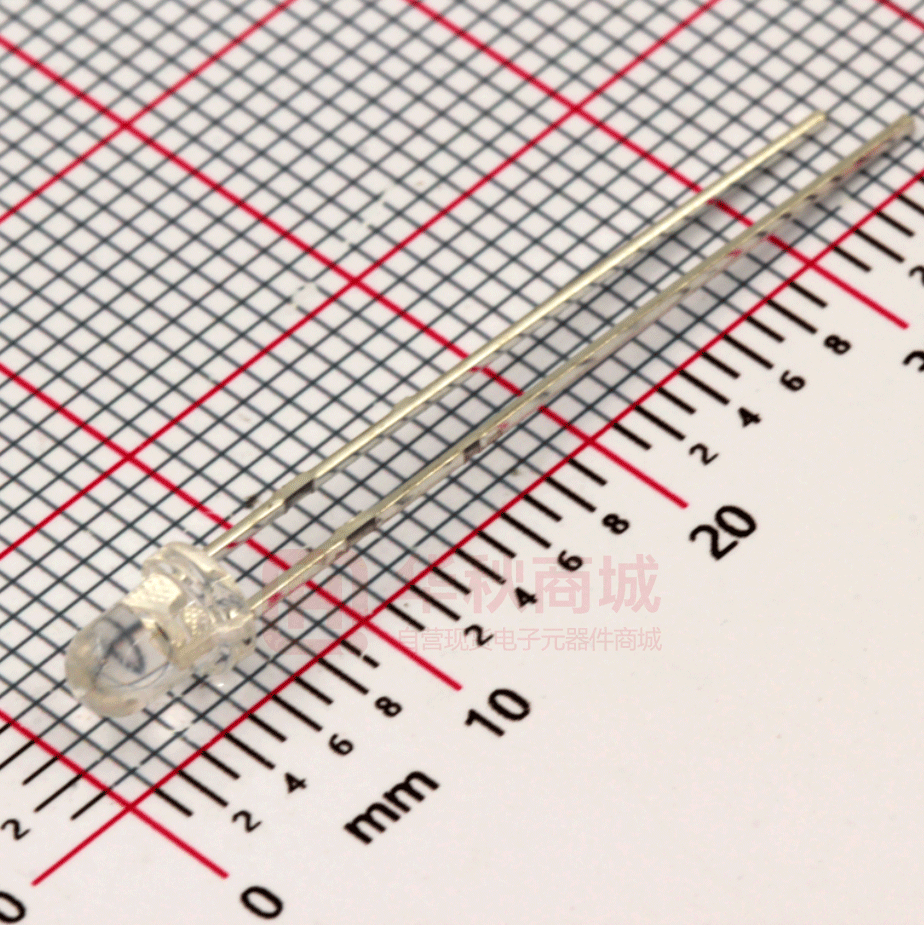

Technical Data Sheet 3mm Infrared LED, T-1 HIR204C/H0 Features ․High reliability ․High radiant intensity ․Peak wavelength λp=850nm ․2.54mm Lead spacing ․Low forward voltage ․Pb free ․The product itself will remain within RoHS compliant version. Descriptions ․EVERLIGHT’s infrared emitting diode(HIR204C/H0) is a high intensity diode , molded in a water clear plastic package. ․The device is spectrally matched with phototransistor , photodiode and infrared receiver module. Applications ․Free air transmission system ․Infrared remote control units with high power requirement ․Smoke detector ․Infrared applied system Device Selection Guide LED Part No. HIR Chip Material GaAlAs Lens Color Water clear Everlight Electronics Co., Ltd. Device No：DIH-020-053 http:\\www.everlight.com Prepared date：07-20-2005 Rev 3 Page: 1 of 7 Prepared by：JAINE TSAI HIR204C/H0 Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.25mm Absolute Maximum Ratings (Ta=25℃) Parameter Continuous Forward Current Peak Forward Current Reverse Voltage Operating Temperature Storage Temperature Soldering Temperature Power Dissipation at(or below) 25℃Free Air Temperature Symbol IF IFP VR Topr Tstg Tsol Pd Rating 100 1.0 5 -40 ~ +85 -40 ~ +85 260 150 Units mA A V ℃ ℃ ℃ mW Notes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%. *2:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. Device No：DIH-020-053 http:\\www.everlight.com Prepared date：07-20-2005 Rev 3 Page: 2 of 7 Prepared by：JAINE TSAI HIR204C/H0 Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition IF=20mA IF=100mA Radiant Intensity Ee Pulse Width≦100μs ,Duty≦1% Min. 4.0 ----- Typ. 8.9 30 380 850 45 1.45 Max. -----1.65 2.40 5.25 10 -- Units mW/sr IF=1A Pulse Width≦100μs ,Duty≦1%. Peak Wavelength Spectral Bandwidth λp Δλ IF=20mA IF=20mA IF=20mA IF=100mA nm nm Forward Voltage VF Pulse Width≦100μs ,Duty≦1% ----- 1.80 4.10 -40 V IF=1A Pulse Width≦100μs ,Duty≦1%. Reverse Current View Angle IR 2θ1/2 VR=5V IF=20mA μA deg Rank Condition：IF=20mA Unit：mW/sr Bin Number Min Max K 4.0 6.4 L 5.6 8.9 M 7.8 12.5 N 11.0 17.6 Everlight Electronics Co., Ltd. Device No：DIH-020-053 http:\\www.everlight.com Prepared date：07-20-2005 Rev 3 Page: 3 of 7 Prepared by：JAINE TSAI HIR204C/H0 Typical Electro-Optical Characteristics Curves Fig.1 Forward Current vs. Ambient Temperature 140 120 100 80 60 40 20 0 Fig.2 Spectral Distribution 100 80 60 40 20 0 IF=20mA Ta=25° C -40 -20 0 20 40 60 80 100 790 810 830 850 870 890 910 930 950 Fig.3 Peak Emission Wavelength Ambient Temperature 900 Fig.4 Forward Current vs. Forward Voltage 4 10 875 3 10 850 2 10 825 1 10 800 -25 0 25 50 75 100 0 1 2 3 4 5 6 7 8 Everlight Electronics Co., Ltd. Device No：DIH-020-053 http:\\www.everlight.com Prepared date：07-20-2005 Rev 3 Page: 4 of 7 Prepared by：JAINE TSAI HIR204C/H0 Typical Electro-Optical Characteristics Curves Fig.5 Relative Intensity vs. Forward Current Fig.6 Relative Radiant Intensity vs. Angular Displacement 1000 Ie-Radiant Intensity(mW/sr) -20 -10 0 10 20 30 100 1.0 0.9 40 50 60 70 80 0.6 0.4 0.2 0 0.2 0.4 0.6 10 0.8 0.7 2 0 10 0 10 1 10 10 3 10 4 IF-Forward Current (mA) Fig.7 Relative Intensity vs. Ambient Temperature(°C) Fig.8 Forward Voltage vs. Ambient Temperature(°C) 15 1.6 10 1.4 IF=20mA IF=20mA 5 1.2 0 25 50 75 100 120 1 25 50 75 100 120 Everlight Electronics Co., Ltd. Device No：DIH-020-053 http:\\www.everlight.com Prepared date：07-20-2005 Rev 3 Page: 5 of 7 Prepared by：JAINE TSAI HIR204C/H0 Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Conditions Test Hours/ Sample Cycles Sizes 10secs 22pcs 22pcs IR≧U×2 Ee≦L×0.8 VF≧U×1.2 U：Upper 22pcs 22pcs 22pcs 22pcs Specification Limit L：Lower Specification Limit 0/1 0/1 0/1 0/1 Failure Judgement Criteria Ac/Re 1 Solder Heat TEMP.：260℃±5℃ 0/1 0/1 2 Temperature Cycle H : +100℃ L : -40℃ 3 Thermal Shock H :+100℃ L :-10℃ 4 High Temperature Storage 5 Low Temperature Storage 15mins 300Cycles 5mins 15mins 5mins 300Cycles 10secs 5mins 1000hrs 1000hrs 1000hrs 1000hrs 22pcs 0/1 TEMP.：+100℃ TEMP.：-40℃ 6 DC Operating Life IF=20mA 7 High Temperature/ 85℃ / 85% R.H High Humidity Everlight Electronics Co., Ltd. Device No：DIH-020-053 http:\\www.everlight.com Prepared date：07-20-2005 Rev 3 Page: 6 of 7 Prepared by：JAINE TSAI HIR204C/H0 Packing Quantity Specification 1.1000PCS/1Bag，4Bags/1Box 2.10Boxes/1Carton Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place RoHS HIR204C/H0 Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. Device No：DIH-020-053 http:\\www.everlight.com Prepared date：07-20-2005 Rev 3 Page: 7 of 7 Prepared by：JAINE TSAI
