HIR26-21B/L423/CT

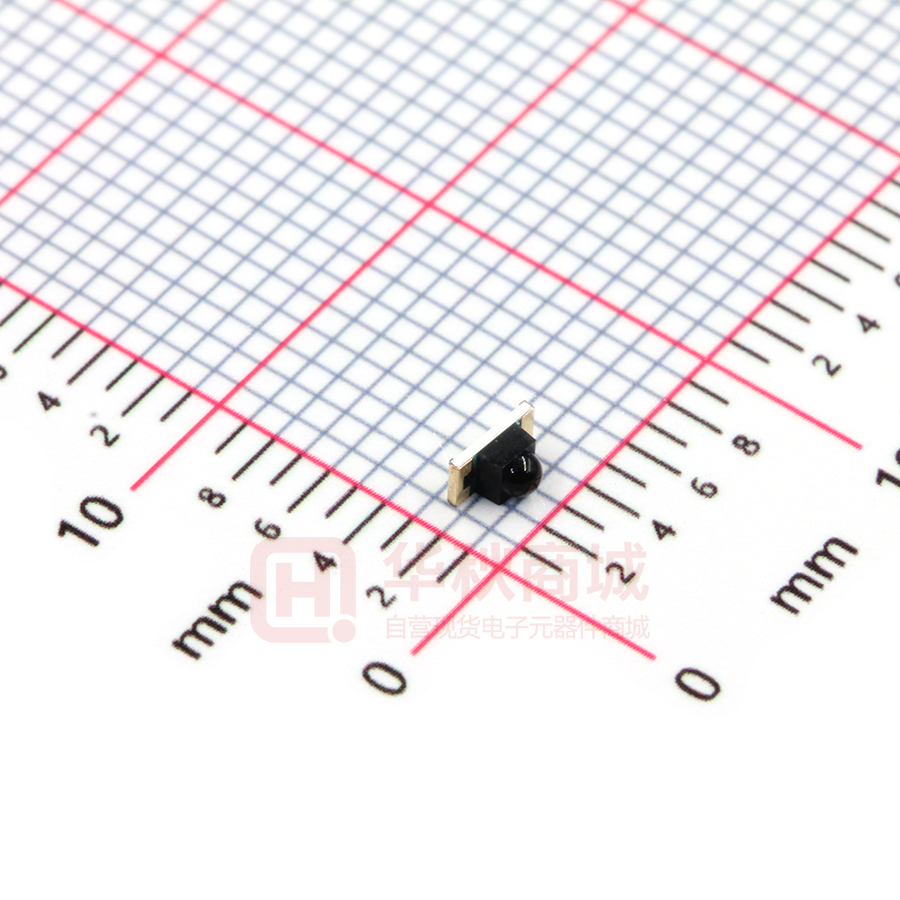

Technical Data Sheet 1.6mm Round Subminiature Chip LED HIR26-21B/L423/CT Features ․Small double-end package ․Low forward voltage ․Good spectral matching to Si photo detector ․Package in 8mm tape on 7〞diameter reel. ․Pb free ․The product itself will remain within RoHS compliant version. Descriptions ․HIR26-21B/L423/CT is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. The device is spectrally matched with silicon photodiode and phototransistor Applications ․PCB mounted infrared sensor ․Infrared remote control units with high power requirement ․Scanner ․Infrared applied system Device Selection Guide Part No. Chip Material Resin Color HIR GaAlAs Black Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 1 of 10 HIR26-21B/L423/CT Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 2 of 10 HIR26-21B/L423/CT Absolute Maximum Ratings (Ta=25℃ ℃) Parameter Symbol Rating Continuous Forward Current IF 50 Unit mA Peak Forward Current IFP 500 mA Reverse Voltage VR 5 V Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Tsol 260 ℃ Pd 130 mW *1 Soldering Temperature *2 Power Dissipation at(or below) 25℃Free Air Temperature Notes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%. *2:Soldering time≦5 seconds. Electro-Optical Characteristics (Ta=25℃ ℃) Parameter Symbol Radiant Intensity Ie Condition IF=20mA IF=70mA Pulse Width=100 μs Min. Typ. Max. 10 20 -- -- 75 -- Unit mW /sr Peak Wavelength λp IF=20mA -- 850 -- nm Spectral Bandwidth Δλ IF=20mA -- 30 -- nm 1.20 1.45 1.70 VF IF=20mA IF=70mA 1.40 1.60 2.00 VR=5V -- -- 10 μA IF=20mA -- 20 -- deg Forward Voltage Pulse Width=100 Reverse Current View Angle IR 2θ1/2 μs V Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 3 of 10 HIR26-21B/L423/CT Typical Electro-Optical Characteristics Curves Fig.1 Forward Current vs. Ambient Temperature Fig.2 Spectral Distribution Fig.3 Fig.4 Peak Emission Wavelength Ambient Temperature Forward Current vs. Forward Voltage Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 4 of 10 HIR26-21B/L423/CT Typical Electro-Optical Characteristics Curves Fig.5 Relative Radiant Intensity vs. Angular Displacement 0 1.0 30 R e le tiv e R a d ia n t In te n s ity 0.8 0.6 60 0.4 0.2 0.0 -90 -60 -30 90 0 View Angle(Degree) Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 5 of 10 HIR26-21B/L423/CT Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 After opening the package: The LED's floor life is 1 year under 30℃ or less and 60% RH or less. If unused LEDs remain, it should be stored in moisture proof packages. 2.4 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 6 of 10 HIR26-21B/L423/CT 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 7 of 10 HIR26-21B/L423/CT Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Conditions 1 REFLOW Soldering TEMP.：260℃±5℃ Max:10 secs 2 Temperature Cycle H : +100℃ L : -40℃ 3 Thermal Shock Test Hours/ Sample Failure Cycles Sizes Judgement Criteria Ac/Re 6Mins 0/1 22pcs 15mins 300Cycles 5mins 15mins 22pcs IR≧U×2 IE≦L×0.8 VF≧U×1.2 5mins 300Cycles 10secs 5mins 22pcs U：Upper 0/1 22pcs Specification Limit L：Lower 0/1 1000hrs 22pcs Specification Limit 0/1 1000hrs 22pcs 0/1 1000hrs 22pcs 0/1 H :+100℃ L :-10℃ 4 High Temperature Storage TEMP.：+100℃ 5 Low Temperature TEMP.：-40℃ 1000hrs 0/1 Storage 6 DC Operating Life IF=20mA/25℃ 7 High Temperature/ 85℃ / 85% R.H High Humidity Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 8 of 10 HIR26-21B/L423/CT Reel Dimensions Carrier Tape Dimensions: Loaded quantity 1500 PCS per reel : Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 9 of 10 HIR26-21B/L423/CT Label Form Specification Pb EVERLIGHT CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CPN : P N : XXXXXXXXXXXXX RoHS XXXXXXXXXXXXX CAT: Ranks HUE: Peak Wavelength EF: Reference LOT No: Lot Number CAT : XXX HUE : XXX REF : XXX QTY : XXX LOT NO : XXXXXXXXXX Reference : XXXXXXXX MADE IN TAIWAN: Production Place MADE IN TAIWAN Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 1 Device No Prepared date Prepared by:Haizheng Gao ：DIR-0000482 ：23-July-2011 Page: 10 of 10
