Technical Data Sheet

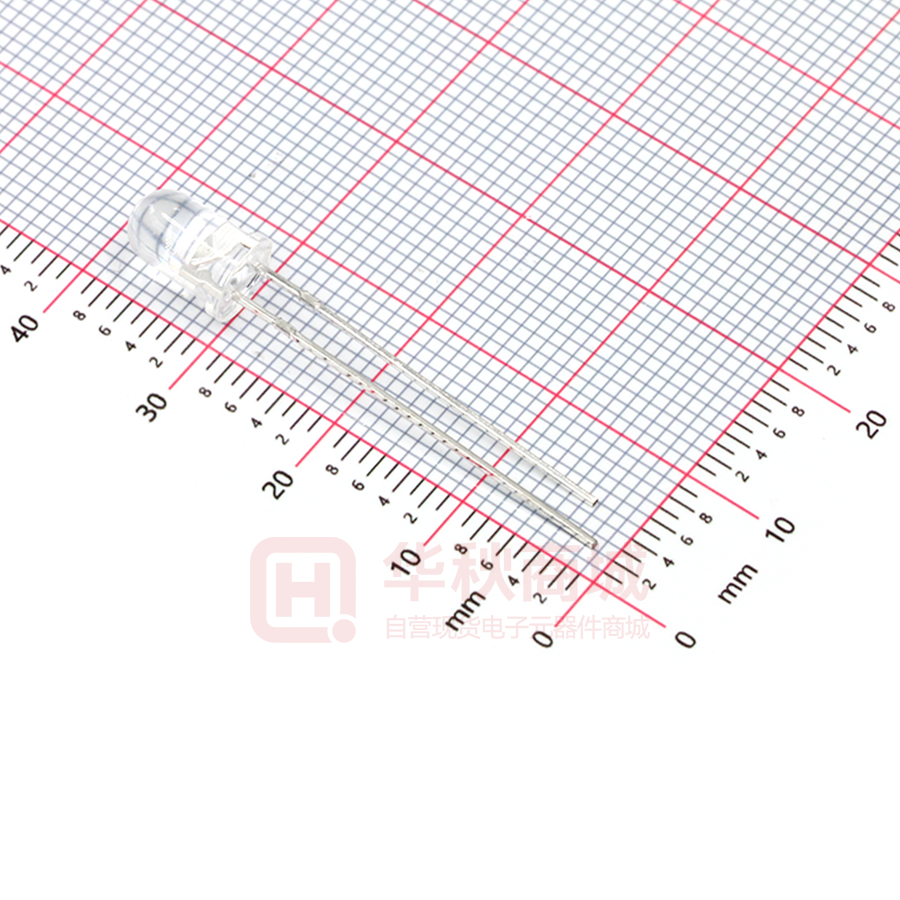

5mm Infrared LED , T-1 3/4
HIR333C-A
Features
․High reliability
․High radiant intensity
․Peak wavelength λp=850nm
․2.54mm Lead spacing
․Low forward voltage
․Pb free
․The product itself will remain within RoHS compliant version.
Descriptions
․EVERLIGHT’S Infrared Emitting Diode(HIR333C-A)
is a high intensity diode , molded in a water clear plastic
package.
․The device is spectrally matched with phototransistor , photodiode
and infrared receiver module.
Applications
․Free air transmission system
․Optoelectronic switch
․Floppy disk drive
․Infrared applied system
Device Selection Guide
LED Part No.
Chip
Material
Lens Color
HIR333C-A
GaAlAs
Water clear
Everlight Electronics Co., Ltd.
Device No
:DIH-033-017
http://www.everlight.com
Prepared date
:04-08-2008
Rev 2
:
Page: 1 of 7
Prepared by JAINETSAI
HIR333C-A
Package Dimensions
Notes: 1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.25mm
Absolute Maximum Ratings (Ta=25℃
℃)
Parameter
Symbol
Rating
IF
100
Units
mA
IFP
1.0
A
Reverse Voltage
VR
5
V
Operating Temperature
Topr
-40~+85
℃
Storage Temperature
Tstg
-40~ +100
℃
Tsol
260
℃
Pd
150
mW
Continuous Forward Current
Peak Forward Current
Soldering Temperature
*1
*2
Power Dissipation at(or below)
25℃Free Air Temperature
Notes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%.
*2:Soldering time≦5 seconds.
Everlight Electronics Co., Ltd.
Device No
:DIH-033-017
http://www.everlight.com
Prepared date
:04-08-2008
Rev 2
:
Page: 2 of 7
Prepared by JAINETSAI
HIR333C-A
Electro-Optical Characteristics (Ta=25℃
℃)
Parameter
Symbol
Radiant Intensity
IE
Peak Wavelength
λp
Spectral
Bandwidth
Δλ
Condition
IF=20mA
Min.
Typ.
Max.
7.8
15
--
IF=100mA
≦100μs ,Duty≦1%
IF=1A
Pulse Width≦100μs ,Duty≦1%.
--
140
--
--
980
--
IF=20mA
--
850
--
nm
IF=20mA
--
45
--
nm
1.45
1.65
Pulse Width
IF=20mA
IF=100mA
Forward Voltage
Reverse Current
View Angle
VF
IR
2θ1/2
Everlight Electronics Co., Ltd.
Device No
:DIH-033-017
≦100μs ,Duty≦1%
IF=1A
Pulse Width≦100μs ,Duty≦1%.
--
1.80
2.40
--
4.10
5.25
VR=5V
--
--
10
IF=20mA
--
17
--
Pulse Width
http://www.everlight.com
Prepared date
:04-08-2008
Rev 2
:
Units
mW/sr
V
μA
deg
Page: 3 of 7
Prepared by JAINETSAI
HIR333C-A
Typical Electro-Optical Characteristics Curves
Fig.1 Forward Current vs.
Ambient Temperature
Fig.2 Spectral Distribution
140
100
120
IF=20mA
Ta=25° C
80
100
60
80
60
40
40
20
20
0
0
-40 -20 0
Fig.3
20
40
60
80
100
Peak Emission Wavelength
Ambient Temperature
790 810 830 850 870 890 910 930 950
Fig.4
900
10
Forward Current
vs. Forward Voltage
4
875
3
10
850
2
10
825
800
-25
1
10
0
25
Everlight Electronics Co., Ltd.
Device No
:DIH-033-017
50
75
100
0
http://www.everlight.com
Prepared date
:04-08-2008
1
2
3
Rev 2
4
:
5
6
7
Page: 4 of 7
Prepared by JAINETSAI
8
HIR333C-A
Typical Electro-Optical Characteristics Curves
Fig.5 Relative Intensity vs.
Fig.6 Relative Radiant Intensity vs.
Forward Current
Angular Displacement
-20
1000
-10
0
10
20
30
100
10
1
0
10
10
1
2
10
10
3
10
1.0
40
0.9
50
0.8
0.7
60
4
Fig.7 Relative Intensity vs.
Ambient Temperature(°C)
0.6 0.4 0.2
1.6
20
1.4
10
1.2
0
1
50
Everlight Electronics Co., Ltd.
Device No
:DIH-033-017
75
0
0.2 0.4 0.6
Fig.8 Forward Current vs.
Ambient Temperature(°C)
30
25
70
80
100
120
IF=20mA
25
http://www.everlight.com
Prepared date
:04-08-2008
50
Rev 2
75
:
100
Page: 5 of 7
Prepared by JAINETSAI
120
HIR333C-A
Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.
Confidence level:90%
LTPD:10%
NO. Item
Test Conditions
Test Hours/ Sample Failure
Cycles
Sizes
Judgement
Ac/Re
Criteria
1 Solder Heat
TEMP.:260℃±5℃
2 Temperature Cycle H : +100℃
L : -40℃
3 Thermal Shock
10secs
15mins 50Cycles
22pcs
22pcs
5mins 50Cycles
10secs
5mins
L :-10℃
IR≧U×2
0/1
IE≦L×0.8
VF≧U×1.2
5mins
15mins
H :+100℃
0/1
22pcs
0/1
U:Upper
Specification
Limit
L:Lower
4 High Temperature
Storage
TEMP.:+100℃
1000hrs
22pcs
5 Low Temperature
Storage
TEMP.:-40℃
1000hrs
22pcs
1000hrs
22pcs
0/1
1000hrs
22pcs
0/1
6 DC Operating Life IF=20mA
7 High Temperature/ 85℃ / 85% R.H
Specification
Limit
0/1
0/1
High Humidity
Everlight Electronics Co., Ltd.
Device No
:DIH-033-017
http://www.everlight.com
Prepared date
:04-08-2008
Rev 2
:
Page: 6 of 7
Prepared by JAINETSAI
HIR333C-A
Packing Quantity Specification
1.500PCS/1Bag,5Bags/1Box
2.10Boxes/1Carton
Label Form Specification
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Peak Wavelength
RoHS
HIR333C-A
REF: Reference
LOT No: Lot Number
MADE IN TAIWAN: Production Place
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT
corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s
consent.
EVERLIGHT ELECTRONICS CO., LTD.
Office: No 25, Lane 76, Sec 3, Chung Yang Rd,
Tucheng, Taipei 236, Taiwan, R.O.C
Everlight Electronics Co., Ltd.
Device No
:DIH-033-017
Tel: 886-2-2267-2000, 2267-9936
Fax: 886-2267-6244, 2267-6189, 2267-6306
http://www.everlight.com
http://www.everlight.com
Prepared date
:04-08-2008
Rev 2
:
Page: 7 of 7
Prepared by JAINETSAI
