Technical Data Sheet

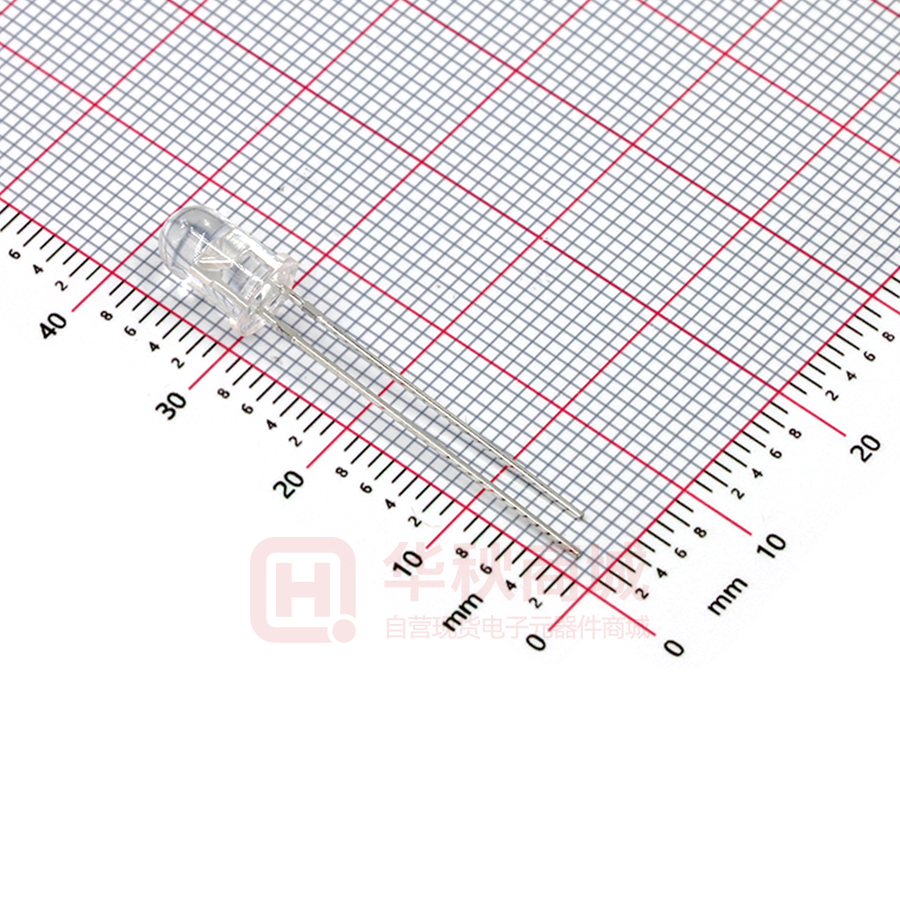

5mm Infrared LED, T-1 3/4
IR333C/H0-A
Features
․High reliability
․High radiant intensity
․Peak wavelength λp=940nm
․2.54mm Lead spacing
․Low forward voltage
․Pb free
․The product itself will remain within RoHS compliant version.
Descriptions
EVERLIGHT’s infrared emitting diode (IR333C/H0-A)
is a high intensity diode, molded in a water clear plastic
package.
The device is spectrally matched with phototransistor, photodiode
and infrared receive module.
Applications
․Free air transmission system
․Optoelectronic switch
․Floppy disk drive
․Infrared applied system
․Smoke detector
Device Selection Guide
LED Part No.
IR333C/H0-A
Everlight Electronics Co., Ltd.
Device No:CDIR-033-067
Chip
Material
GaAlAs
Lens Color
Water clear
http://www.everlight.com
Prepared date:2007/10/25
Rev. 1
Page: 1 of 7
Prepared by:wang qin
IR333C/H0-A
Package Dimensions
Notes: 1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.25mm
Absolute Maximum Ratings (Ta=25℃)
Parameter
Symbol
Rating
Continuous Forward Current
IF
100
Units
mA
Peak Forward Current
IFP
1.0
A
Reverse Voltage
VR
5
V
Operating Temperature
Topr
-40 ~ +85
℃
Storage Temperature
Tstg
-40 ~ +100
℃
(*2)
Tsol
260
℃
Power Dissipation at(or below)
25℃Free Air Temperature
Pd
150
mW
Soldering Temperature
(*1)
Notes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%.
*2:Soldering time≦5 seconds.
Everlight Electronics Co., Ltd.
Device No:CDIR-033-067
http://www.everlight.com
Prepared date:2007/10/25
Rev. 1
Page: 2 of 7
Prepared by:wang qin
IR333C/H0-A
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
Ie
Radiant Intensity
Condition
IF=20mA
Min.
5.6
7.8
--
IF=100mA
--
45
--
--
450
---
nm
--
nm
Pulse Width≦100μs and Duty≦1%
IF=1A
Pulse Width≦100μs and Duty≦1%
Typ. Max.
Peak Wavelength
λp
IF=20mA
--
Spectral Bandwidth
Δλ
IF=20mA
--
940
45
IF=20mA
--
1.2
1.5
IF=100mA
--
1.4
1.8
--
2.6
4.0
VR=5V
--
--
10
IF=20mA
--
40
--
Forward Voltage
VF
Pulse Width≦100μs and Duty≦1%
IF=1A
Pulse Width≦100μs and Duty≦1%
Reverse Current
View Angle
IR
2θ1/2
Units
mW/sr
V
μA
deg
Rank
Condition:IF=20mA
Unit:mW/sr
Bin Number
Min
Max
L
5.60
8.90
Everlight Electronics Co., Ltd.
Device No:CDIR-033-067
M
7.80
12.50
N
11.00
17.60
http://www.everlight.com
Prepared date:2007/10/25
P
15.00
24.00
Q
21.00
34.00
Rev. 1
R
30.00
48.00
Page: 3 of 7
Prepared by:wang qin
IR333C/H0-A
Typical Electro-Optical Characteristics Curves
Fig.1 Forward Current vs.
Ambient Temperature
140
Fig.2 Spectral Distribution
100
120
IF=50mA
Ta=25 C
80
100
60
80
60
40
40
20
20
0
0
-40 -20 0
Fig.3
20
40
60
80
100
Peak Emission Wavelength vs.
AmbientTemperature
Fig.4
Forward Current vs
Forward Voltage
4
10
980
960
10
3
940
10
2
920
900
-25
10
0
25
Everlight Electronics Co., Ltd.
Device No:CDIR-033-067
50
75
1
100
0
http://www.everlight.com
Prepared date:2007/10/25
1
Rev. 1
2
3
Page: 4 of 7
Prepared by:wang qin
4
IR333C/H0-A
Fig.5 Radiant Intensity vs.
Forward Current
Fig.6
Relative Radiant Intensity vs.
Angular Displacement
-20
Ie-Radiant Intensity(mW/sr)
1000
-10
0
10
20
30
100
10
0
10
0
1
10
2
10
10
3
10
4
1.0
40
0.9
50
0.8
0.7
60
70
80
0.6 0.4 0.2 0
0.2 0.4 0.6
IF-Forward Current (mA)
Everlight Electronics Co., Ltd.
Device No:CDIR-033-067
http://www.everlight.com
Prepared date:2007/10/25
Rev. 1
Page: 5 of 7
Prepared by:wang qin
IR333C/H0-A
Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.
Confidence level:90%
LTPD:10%
NO. Item
1 Solder Heat
Test Conditions
Test Hours/
Cycles
TEMP.:260℃±5℃
10secs
2 Temperature Cycle H : +100℃
L : -40℃
3 Thermal Shock
Sample
Sizes
22pcs
30mins 300Cycles
5mins
30mins
22pcs
5mins 300Cycles
10secs
5mins
22pcs
H :+100℃
L :-10℃
Ac/Re
0/1
IR≧U×2
Ie≦L×0.8
VF≧U×1.2
0/1
0/1
U:Upper
4 High Temperature
Storage
TEMP.:+100℃
1000hrs
22pcs
5 Low Temperature
Storage
TEMP.:-40℃
1000hrs
22pcs
6 DC Operating Life IF=20mA
7 High Temperature/ 85℃ / 85% R.H
Failure
Judgement
Criteria
1000hrs
22pcs
1000hrs
22pcs
Specificatio
n
Limit
L:Lower
Specificatio
n
Limit
0/1
0/1
0/1
0/1
High Humidity
Everlight Electronics Co., Ltd.
Device No:CDIR-033-067
http://www.everlight.com
Prepared date:2007/10/25
Rev. 1
Page: 6 of 7
Prepared by:wang qin
IR333C/H0-A
Packing Quantity Specification
1.500PCS/1Bag,5Bags/1Box
2.10Boxes/1Carton
Label Form Specification
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
AT: Ranks
HUE: Peak Wavelength
REF: Reference
LOT No: Lot Number
IR333C/H0-A
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instructions
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT
corporation. Please don’t reproduce or cause anyone to reproduce them without
EVERLIGHT’s consent.
EVERLIGHT ELECTRONICS CO., LTD.
Office: No 25, Lane 76, Sec 3, Chung Yang Rd,
Tucheng, Taipei 236, Taiwan, R.O.C
Everlight Electronics Co., Ltd.
Device No:CDIR-033-067
Tel: 886-2-2267-2000, 2267-9936
Fax: 886-2267-6244, 2267-6189, 2267-6306
http://www.everlight.com
http://www.everlight.com
Prepared date:2007/10/25
Rev. 1
Page: 7 of 7
Prepared by:wang qin
