EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DIR-042-134
REV :
1.2
PAGE : 1/8

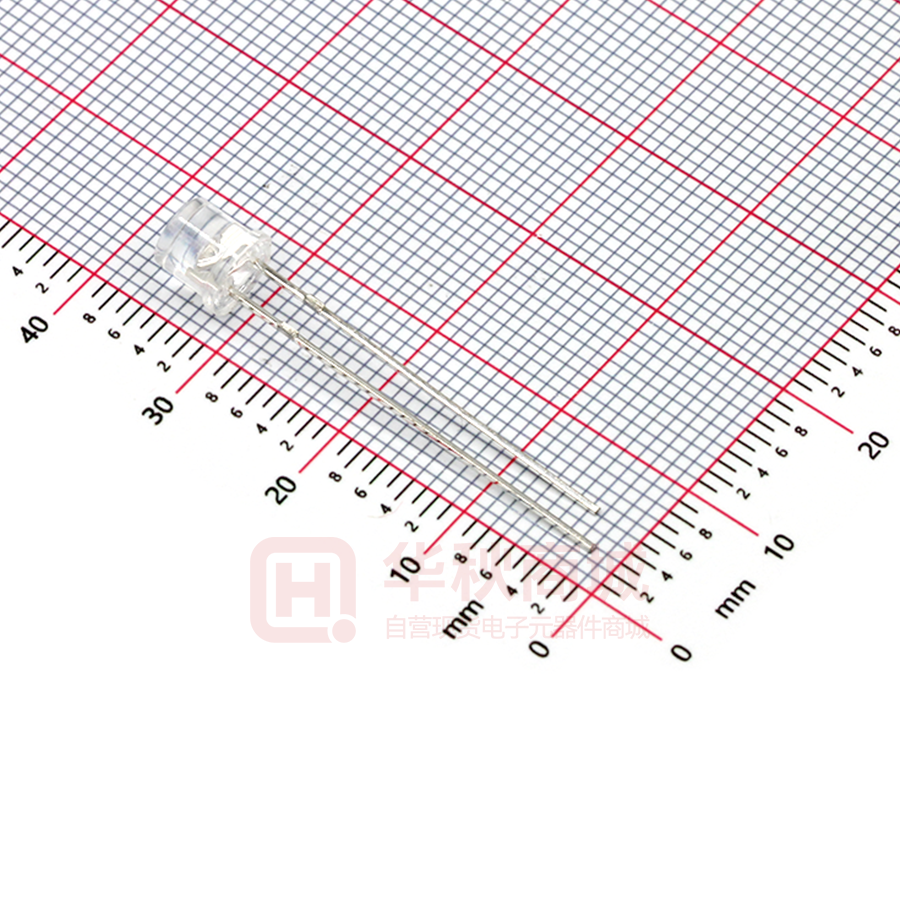

5mm Cylindrical Infrared LED, T-1 3/4
MODEL NO :
IR423C/L10
Features :
High radiant intensity
Peak wavelength p=940nm
View angle 85
High reliability
2.54mm Lead spacing
Description :
EVERLIGHT’s Infrared Emitting Diode (IR423C/L10) is a high intensity diode, molded
in a water clear plastic package.
The device is spectrally matched with phototransistor, photodiode and infrared receiver
module.
Applications :
Free air transmission system
Optoelectronic switch
Floppy disk drive
Infrared applied system
Smoke detector
CHIP
PART NO.
IR
MATERIAL
GaAlAs
LENS COLOR
Water clear
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DIR-042-134
REV :
PAGE :
5mm Cylindrical Infrared LED, T-1 3/4
MODEL NO :
IR423C/L10
Package Dimensions :
Notes :
1.All dimensions are in millimeter.
2.Protruded resin under flange 1.5 mm Max.
3.Lead spacing is measured where the lead emerge from the package.
4.Lens colorWater clear.
5.Above specification may be changed without notice. EVERLIGHT will reserve authority
on material change for above specification.
6.These specification sheets include materials protected under copyright of EVERLIGHT
corporation . Please don’t reproduce or cause anyone to reproduce them without
EVERLIGHT’s consent.
7.When using this product , please observe the absolute maximum ratings and the
instructions for use outlined in these specification sheets. EVERIGHT assumes no
responsibility for any damage resulting from use of the product which does not comply
with the absolute maximum ratings and the instructions included in these specification
sheets.
1.2
2/8
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DIR-042-134
REV :
1.2
PAGE : 3/8
5mm Cylindrical Infrared LED, T-1 3/4
MODEL NO :
IR423C/L10
Absolute Maximum Ratings at TA = 25
Parameter
Symbol
Rating
Unit
Continuous Forward Current
IF
50
mA
Peak Forward Current
Pulse width=100s, Duty cycle=1
Reverse Voltage
IFP
1.0
A
VR
5
V
Operating Temperature
Topr
-40 ~ +85
Storage Temperature
Soldering Temperature
Tstg
Tsol
-40 ~ +85
260
Pd
100
Power Dissipation at(or below)
25Free Air Temperature
Electronic Optical Characteristics :
Parameter
Symbol Min. Typ. Max.
Radiant Intensity
Ee
Peak Wavelength
Spectral
Bandwidth
P
Forward Voltage
Reverse Current
View Angle
VF
IR
2
1/2
1.15
----------------------------
2.0
11
110
940
45
-------------
1.2
1.4
2.6
---85
1.5
1.85
4.0
10
----
----
Unit
mW/sr
nm
nm
V
A
deg
Notice
4mm from mold
body less than
5 seconds
Condition
IF=20mA
IF=100mA,tp=100s, tP/T=0.01
IF=1A,tp=100s, tP/T=0.01
IF=20mA
IF=20mA
IF=20mA
IF=100mA,tp=100s, tP/T=0.01
IF=1A,tp=100s, tP/T=0.01
VR=5V
IF=20mA
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DIR-042-134
REV :
1.2
PAGE : 4/8
5mm Cylindrical Infrared LED, T-1 3/4
MODEL NO :
IR423C/L10
Typical Electrical/Optical/Characteristics Curves
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DIR-042-134
REV :
1.2
PAGE : 5/8
5mm Cylindrical Infrared LED, T-1 3/4
MODEL NO :
IR423C/L10
Typical Electrical/Optical/Characteristics Curves
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DIR-042-134
REV :
1.2
PAGE : 6/8
5mm Cylindrical Infrared LED, T-1 3/4
MODEL NO :
IR423C/L10
Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.
Confidence level:90%
LTPD:10%
NO.
Item
Test Conditions
Test
Sample
Failure
Ac/Re
Hours/
Size
Judgement
Cycles
Criteria
1
Solder Heat
TEMP : 260 ± 5
H : +85
2
5 secs
22 pcs
30 mins
Temperature Cycle
50 cycles
22 pcs
0/1
IR
2
0.8
VF
1.2
0/1
5 mins
3
L : -55
30 mins
H : +100
5 mins
Thermal Shock
50 cycles
22 pcs
10 secs
L : -10
U :Upper
specification
limit
L :Lower
specification
limit
0/1
5 mins
4
High Temperature TEMP. : +100
Storage
1000 hrs
22 pcs
0/1
5
Low Temperature TEMP. : -55
Storage
1000 hrs
22 pcs
0/1
6
DC Operating Life IF=20mA
1000 hrs
22 pcs
0/1
7
High Temperature / 85 / 85% R.H.
High Humidity
1000 hrs
22 pcs
0/1
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DIR-042-134
REV :
1.2
PAGE : 7/8
5mm Cylindrical Infrared LED, T-1 3/4
MODEL NO :
IR423C/L10
Test Method For Power :
Condition :
Test Item :
Unit : mW/sr
To Distinguish Intensity:
Condition:IF=20mA
UnitmW/sr
Bin Number
F
G
H
Min
1.15
1.40
2.00
Max
1.68
2.30
3.20
EVERLIGHT ELECTRONICS CO., LTD.
DEVICE NUMBER :
ECN :
DIR-042-134
REV :
1.2
PAGE : 8/8
5mm Cylindrical Infrared LED, T-1 3/4
MODEL NO :
IR423C/L10
Packing Specifications
Packing Quantity Specification
1. 500 Pcs/1Bag6 Bags/1Box
2. 10 Boxes/1Carton
IR423C/L10
CPN : Customer’s Production Number
P/N : Production Number
QTY : Packing Quantity
CAT : Ranks
HUE : Peak Wavelength
REF : Reference
LOT NO : Lot Number
MADE IN TAIWAN : Production place
