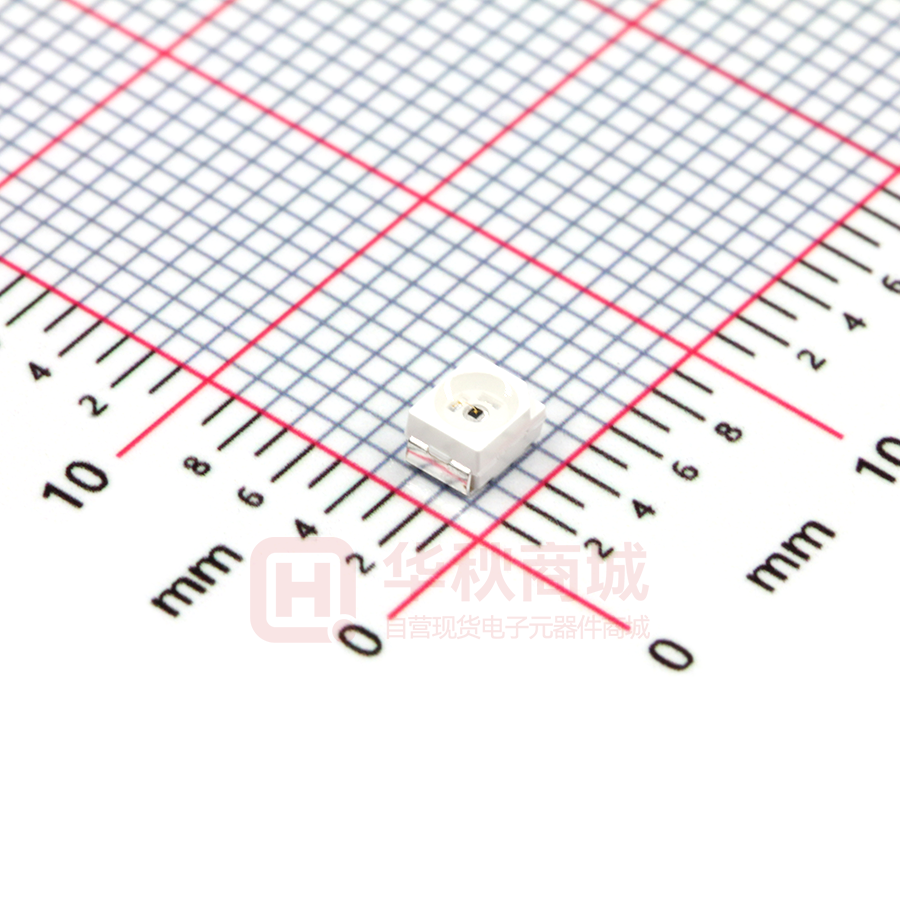

IR67-21C/TR8(GDB)

Technical Data Sheet Top Infrared LED IR67-21C/TR8 Features ․Compatible with infrared and vapor phase reflow solder process. ․Low forward voltage. ․View angle 120° ․Pb free ․The product itself will remain within RoHS compliant version. Descriptions ․IR67-21C/TR8 is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with flat top view lens. The device is spectrally matched with silicon photodiode and phototransistor. Applications ․Sensor ․Optoelectronic switch ․Camera ․VCR ․Video ․Smoke detector Device Selection Guide LED Part No. Chip Material Lens Color IR67-21C/TR8 GaAlAs Water clear Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 1 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai IR67-21C/TR8 Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Continuous Forward Current IF 65 Units mA Peak Forward Current IFP 1.0 A Reverse Voltage VR 5 V Operating Temperature Topr -40~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ *2 Tsol 260 ℃ Power Dissipation at(or below) 25℃Free Air Temperature Pd 130 mW Rthj-a 400 K/W *1 Soldering Temperature Temperature resistance junction ambient Notes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%. *2:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 2 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai IR67-21C/TR8 Electro-Optical Characteristics (Ta=25℃) Parameter Symbol IE Radiant Intensity Condition IF=20mA Min. Typ. Max. 1.0 1.5 -- IF=100mA 4 8 20 Pulse Width≦100μs ,Duty≦1% Units mW /sr IF=100mA -- 20 -- mW Peak Wavelength Po λp IF=20mA -- -- nm Spectral Bandwidth Δλ IF=20mA IF=20mA -- 940 45 nm -- 1.2 -1.5 IF=100mA -- 1.4 1.8 Total Radiated Power Forward Voltage VF Pulse Width≦100μs ,Duty≦1% V IR 2θ1/2 VR=5V -- -- 10 IF=20mA -- 120 -- μA deg Rise Time tr IF=100mA -- 800 -- ns Fall Time tr IF=100mA -- 400 --- ns Active chip area A ---- 0.09 mm2 L×W ---- 0.3×0.3 mm×mm Reverse Current View Angle Dimensions of the active chip area Rank Condition：IF=20mA Unit：mW/sr Bin Number G H Min 1.0 2.0 Max 2.5 3.5 Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 3 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai IR67-21C/TR8 Typical Electro-Optical Characteristics Curves Fig.1 Forward Current vs. Ambient Temperature Fig.2 Spectral Distribution 140 100 IF=20mA Ta=25°C 120 80 100 60 80 60 40 40 20 20 0 -40 -20 0 20 40 60 80 100 Fig.3 Peak Emission Wavelength Ambient Temperature 0 880 900 920 940 960 980 1000 1020 1040 Fig.4 Forward Current vs. Forward Voltage 4 10 980 960 3 10 940 2 10 920 900 -25 0 25 50 75 100 1 10 0 1 2 3 Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 4 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai 4 IR67-21C/TR8 Typical Electro-Optical Characteristics Curves Fig.5 Relative Radiant Intensity vs. Angular Displacement 0 1.0 10 20 30 0.9 40 0.8 50 Relative Radiant Intensity 0.7 0.6 60 0.5 0.4 70 0.3 0.2 80 0.1 0.0 -90 -80 -70 -60 -50 -40 -30 -20 -10 90 0 Angle(Degree) Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 5 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai IR67-21C/TR8 Precautions For Use 1. Over-current-proof Customer must apply resistors for protection , otherwise slight voltage shift will cause big current change ( Burn out will happen ). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the LEDs should be kept at 30℃ or less and 90%RH or less. 2.3 The LEDs should be used within a year. 2.4 After opening the package, the LEDs should be kept at 30℃ or less and 70%RH or less. 2.5 The LEDs should be used within 168 hours (7 days) after opening the package. 2.6 If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 6 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai IR67-21C/TR8 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 7 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai IR67-21C/TR8 Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Conditions Test Hours/ Sample Cycles Sizes 1 REFLOW Soldering TEMP.：260℃±5℃ 6Mins 10secs 15mins 50Cycles 2 Temperature Cycle H : +100℃ 5mins L : -40℃ 15mins 3 Thermal Shock H :+100℃ 4 High Temperature Storage TEMP.：+100℃ 5 Low Temperature Storage TEMP.：-40℃ 6 DC Operating Life IF=20mA 7 High Temperature/ 85℃ / 85% R.H 22pcs Ac/Re 0/1 22pcs IR≧U×2 Ie≦L×0.8 VF≧U×1.2 0/1 22pcs U：Upper 0/1 22pcs Specification Limit L：Lower 0/1 1000hrs 22pcs Specification Limit 0/1 1000hrs 22pcs 0/1 1000hrs 22pcs 0/1 5mins 50Cycles 10secs 5mins L :-10℃ Failure Judgement Criteria 1000hrs High Humidity Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 8 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai IR67-21C/TR8 Package Dimensions 1. Reel Dimensions Note: The tolerances unless mentioned is ±0.1mm ,Unit = mm 2. Carrier Tape Dimensions:(Quantity: 2000pcs/reel) Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 9 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai IR67-21C/TR8 Packing Procedure Label Aluminum moistue-proof bag Desiccant Label Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place RoHS IR67-21C/TR8 Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. http:\\www.everlight.com Rev 2 Page: 10 of 10 Device No：DTR-067-037 Prepared date：07-20-2007 Prepared by：Jaine Tsai
