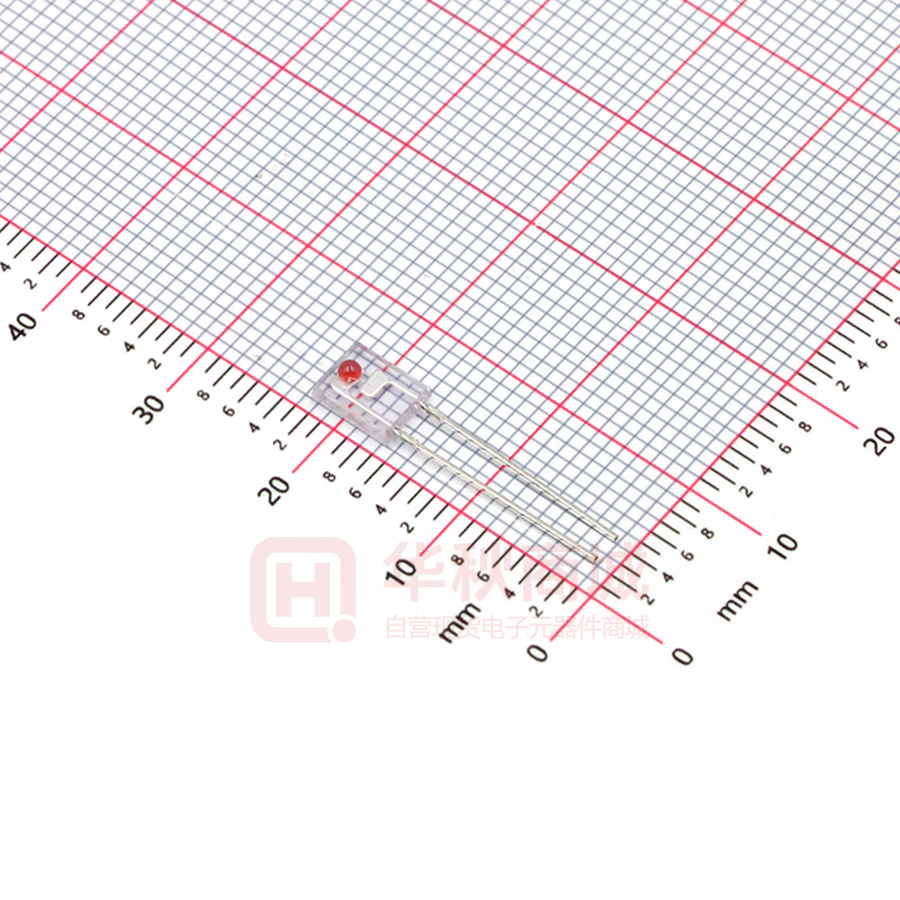

Side Face Infrared LED IR908-7C Features ․High reliability ․High radiant intensity ․Peak wavelength λp=940nm ․2.54mm Lead spacing ․Low forward voltage ․Pb free ․This product itself will remain within RoHS compliant version. Description ․EVERLIGHT’s Infrared Emitting Diode (IR908-7C) is a high intensity diode , molded in a water clear plastic package. ․The miniature side- facing device has a chip , that emits radiation from the side of the clear package. Applications ․Mouse ․Optoelectronic switch ․Infrared applied system 1 Copyright Revision :5 © LifecyclePhase: 2010, Everlight All Rights Reserved. Release Date : DEC.20.2011. Issue Release No: DIR-0000070_Rev.5 Date:2011-12-27 18:28:36.0 www.everlight.com Expired Period: Forever DATASHEET Side Face Infrared LED IR908-7C Device Selection Guide Chip Lens Color Materials GaAlAs Water Clear Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Continuous Forward Current IF 50 mA Peak Forward Current(*1) IFP 1.0 A Reverse Voltage VR 5 V Operating Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Soldering Temperature Power Dissipation at (or below) Tsol 260 ℃ Pd 75 mW 25℃Free Air Temperature Notes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%. 2 Copyright Revision :5 © LifecyclePhase: Date:2011-12-27 18:28:36.0 2010, Everlight All Rights Reserved. Release Date : DEC.21.2011. Issue Release No: DIR-0000070_Rev.5 www.everlight.com Expired Period: Forever DATASHEET Side Face Infrared LED IR908-7C Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition Min. Typ. Max. Units Ic(on) λp IF=4mA,VCE=3.5V IF=20mA 143 -- μA -- 940 1274 -- nm Spectral Bandwidth Δλ IF=20mA -- 45 -- nm Forward Voltage VF 1.2 -- 1.5 10 V VR=5V --- IF=20mA -- 60 -- Light Current Peak Wavelength Reverse Current View Angle IF=20mA IR 2θ1/2 μA De g Rank Ranks Symbol Min Typ Max Unit Test Condition E1 Ic(on) 143 --- 255 μA IF=4mA,VCE=3.5V E2 Ic(on) 214 --- 343 μA IF=4mA,VCE=3.5V E3 Ic(on) 286 --- 431 μA IF=4mA,VCE=3.5V E4 Ic(on) 357 --- 519 μA IF=4mA,VCE=3.5V E5 Ic(on) 428 --- 608 μA IF=4mA,VCE=3.5V E6 Ic(on) 500 --- 696 μA IF=4mA,VCE=3.5V E7 Ic(on) 571 --- 784 μA IF=4mA,VCE=3.5V Rough ranks Parameter Min Max Unit Test Condition 7-2 306 441 μA IF=4mA,VCE=3.5V 7-1 347 550 μA IF=4mA,VCE=3.5V 6-2 465 750 μA IF=4mA,VCE=3.5V 6-1 650 1274 μA IF=4mA,VCE=3.5V Test Method For IC(ON): Condition: IF=4mA,VCE=3.5V 3 Copyright Revision :5 © LifecyclePhase: Date:2011-12-27 18:28:36.0 2010, Everlight All Rights Reserved. Release Date : DEC.21.2011. Issue Release No: DIR-0000070_Rev.5 www.everlight.com Expired Period: Forever DATASHEET Side Face Infrared LED IR908-7C Typical Electro-Optical Characteristics Curves Forward Current vs. Ambient Temperature Spectral Distribution 70 100 60 IF=20mA Ta=25°C 80 50 60 40 30 40 20 20 10 0 0 -40 -20 0 20 40 60 80 100 Peak Emission Wavelength vs. Ambient Temperature Forward Current vs. Forward Voltage 10 980 960 10 4 3 940 10 2 920 900 -25 4 Copyright Revision :5 © LifecyclePhase: 1 10 0 25 50 75 100 0 1 2 3 4 Date:2011-12-27 18:28:36.0 2010, Everlight All Rights Reserved. Release Date : DEC.21.2011. Issue Release No: DIR-0000070_Rev.5 www.everlight.com Expired Period: Forever DATASHEET Side Face Infrared LED IR908-7C Forward Current vs. Ambient Temperature Relative Radiant Intensity vs. Angular Displacement -20 1.3 -10 0 10 20 30 1.2 IF=20mA 1.1 1.0 40 0.9 50 0.8 0.7 60 70 80 1 25 5 Copyright Revision :5 © LifecyclePhase: 50 75 100 120 0.6 0.4 0.2 0 0.2 0.4 0.6 Date:2011-12-27 18:28:36.0 2010, Everlight All Rights Reserved. Release Date : DEC.21.2011. Issue Release No: DIR-0000070_Rev.5 www.everlight.com Expired Period: Forever DATASHEET Side Face Infrared LED IR908-7C Package Dimension Note: Tolerances unless dimensions ±0.25mm 6 Copyright Revision :5 © LifecyclePhase: Date:2011-12-27 18:28:36.0 2010, Everlight All Rights Reserved. Release Date : DEC.21.2011. Issue Release No: DIR-0000070_Rev.5 www.everlight.com Expired Period: Forever DATASHEET Side Face Infrared LED IR908-7C Packing Quantity Specification 1. 1000PCS/1Bag,8Bag/1Box 2. 10Boxes/1Carton Label Form Specification Pb EVERLIGHT RoHS IR908-7C X ‧CPN: Customer’s Product Number ‧P/N: Product Number ‧QTY: Packing Quantity ‧CAT: Luminous Intensity Rank ‧HUE: Dom. Wavelength Rank ‧REF: Forward Voltage Rank ‧LOT No: Lot Number ‧X: Month ‧Reference: Identify Label Number Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instruction for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 7 Copyright Revision :5 © LifecyclePhase: Date:2011-12-27 18:28:36.0 2010, Everlight All Rights Reserved. Release Date : DEC.21.2011. Issue Release No: DIR-0000070_Rev.5 www.everlight.com Expired Period: Forever
