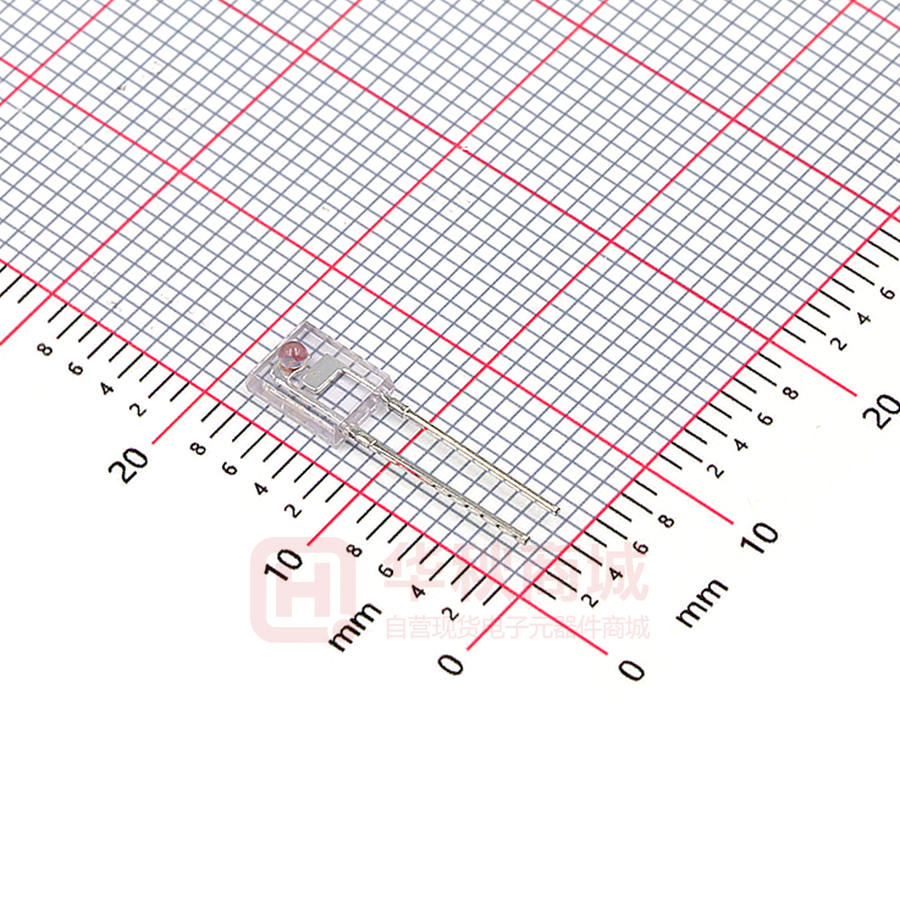

IR908-7C-F

Sidelooker Infrared LED IR908-7C-F Features ․High reliability ․High radiant intensity ․Peak wavelength λp=940nm ․2.54mm lead spacing ․Low forward voltage ․Pb free ․This product itself will remain within RoHS compliant version ․Compliance with EU REACH ․Compliance Halogen Free(Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm) Description ․EVERLIGHT’s Infrared emitting diode IR908-7C-F is a high intensity diode, molded in a plastic package ․The miniature side-facing device has a chip, that emits radiation from the side of the clear package Applications ․Mouse ․Optoelectronic switch ․Infrared applied system Device Selection Guide 1 Part Category Chip Material Lens Color IR GaAlAs Water Clear Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/19 Issue No: DIR-0000453 Rev.6 www.everlight.com Data Sheet Sidelooker Infrared LED IR908-7C-F Package Dimension Anode Cathode Notes: 1. All dimensions are in millimeters Notes: 2. Tolerances unless dimensions ±0.3mm Absolute Maximum Ratings (Ta=25℃) Parameter Symbol IF Continuous Forward Current Rating 50 Unit mA Reverse Voltage VR 5 V Operating Temperature Topr -25 ~ +85 ˚C Storage Temperature Tstg -40 ~ +85 ˚C Soldering Temperature *1 Tsol 260 ˚C Pd 75 mW Power Dissipation at (or below) 25˚C Free Air Temperature Notes: *1 Soldering time≦5 seconds 2 Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/19 Issue No: DIR-0000453 Rev.6 www.everlight.com Data Sheet Sidelooker Infrared LED IR908-7C-F Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Condition IC(ON) IF=4mA,VCE=3.5V Light Current Min. 143 Typ. -- Max. 1274 Units μA Peak Wavelength λp IF=20mA -- 940 -- nm Spectral Bandwidth Δλ IF=20mA -- 50 -- nm Forward Voltage VF IF=20mA -- 1.25 1.60 V Reverse Current IR VR=5V -- -- 10 μA 2θ1/2 IF=20mA -- 40 -- deg View Angle Rank Condition: IF=4mA, VCE=3.5V Symbol IC(ON) Condition IF=4mA VCE=3.5V Ranks Min. Max. E1 143 255 E2 214 343 E3 286 431 E4 357 519 E5 428 608 E6 500 696 E7 571 784 E8 643 872 E9 714 960 E10 785 1049 E11 857 1137 Ranks Min. Max. 7-2 306 441 7-1 347 550 6-2 465 750 6-1 650 1274 Unit μA Rough Ranks Symbol IC(ON) 3 Condition IF=4mA VCE=3.5V Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/19 Issue No: DIR-0000453 Rev.6 Unit μA www.everlight.com Data Sheet Sidelooker Infrared LED IR908-7C-F Test Method For IC(ON): Condition: IF=4mA, VCE=3.5V The intensity testing method for infrared emitting diode 4 Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/19 Issue No: DIR-0000453 Rev.6 www.everlight.com Data Sheet Sidelooker Infrared LED IR908-7C-F Typical Electro-Optical Characteristics Curves Fig.1 Forward Current vs. Ambient Temperature Fig.2 Spectral Distribution Fig.3 Forward Current vs. Forward Voltage Fig. 4 Relative Radiant Intensity vs. Angular Displacement Packing Quantity Specification 1000 pcs/bag, 10 bags/box 10 boxes/carton Label Form Specification 5 Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/19 Issue No: DIR-0000453 Rev.6 www.everlight.com Data Sheet Sidelooker Infrared LED IR908-7C-F ‧CPN: Customer Part Number ‧P/N: Part Number ‧QTY: Packing Quantity ‧CAT: Ranks ‧REF: Reference ‧LOT No: Lot Number Notes Lead Forming 1. During lead frame bending, the lead frame should be bent at a distance more than 3mm from bottom of the epoxy. Note: Must fix lead frame and do not touch epoxy before bending to avoid LEDs broken. 2. Lead forming should be done before soldering. 3. Avoid stressing the LED package during leads forming. The stress to the base may damage the LED’s characteristics or it may break the LEDs. 4. Cut the LED lead frame at room temperature. Cutting the lead frames at high temperatures may cause failure of the LEDs. 5. When mounting the LEDs onto a PCB, the PCB holes must be aligned exactly with the lead position of the LED. If the LEDs are mounted with stress at the leads, it causes deterioration of the epoxy resin and this will degrade the LEDs. Storage 1. The LEDs should be stored at 10~30°C and 70%RH or less after being shipped from Everlight and the storage life limits are 3 months. If the LEDs are stored for 3 months or more, they can be stored at 10°C~25°C and 20%RH~60%RH for a year in a sealed container with a nitrogen atmosphere. After opening the package, the devices must be stored at 10°C~25°C and 20%RH~60%RH, and suggested to be used within 24 hours or as soon as possible. Besides, suggest that the remaining devices seal in the package bag as soon as possible please. 2. Please avoid rapid transitions in ambient temperature, especially in high humidity environments where condensation can occur. 6 Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/19 Issue No: DIR-0000453 Rev.6 www.everlight.com Data Sheet Sidelooker Infrared LED IR908-7C-F Soldering 1. Careful attention should be paid during soldering. When soldering, leave more than 3mm from solder joint to epoxy bulb, and soldering beyond the base of the tie bar is recommended. 2. Recommended soldering conditions: Hand Soldering DIP Soldering Temp. at tip of iron 300°C Max. (30W Max.) Preheat temp. 100°C Max. (60 sec Max.) Soldering time Distance 3 sec Max. 3mm Min.(From solder joint to epoxy bulb) Bath temp. & time Distance 260 Max., 5 sec Max 3mm Min. (From solder joint to epoxy bulb) 3. Recommended soldering profile laminar wave Fluxing Prehead 4. Avoiding applying any stress to the lead frame while the LEDs are at high temperature particularly when soldering. 5. Dip and hand soldering should not be done more than one time 6. After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibration until the LEDs return to room temperature. 7. A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature. 8. Although the recommended soldering conditions are specified in the above table, dip or hand soldering at the lowest possible temperature is desirable for the LEDs. 9. Wave soldering parameter must be set and maintain according to recommended temperature and dwell time in the solder wave. Cleaning Do not clean the LEDs by the ultrasonic. Heat Management 1. Heat management of LEDs must be taken into consideration during the design stage of LED application. The current should be de-rated appropriately by referring to the de-rating curve found in each product specification. 2. The temperature surrounding the LED in the application should be controlled. Please refer to the data sheet de-rating curve. 7 Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/19 Issue No: DIR-0000453 Rev.6 www.everlight.com Data Sheet Sidelooker Infrared LED IR908-7C-F ESD (Electrostatic Discharge) 1. The products are sensitive to static electricity or surge voltage. ESD can damage a die and its reliability. 2. When handling the products, the following measures against electrostatic discharge are strongly recommended: Eliminating the charge Grounded wrist strap, ESD footwear, clothes and floors Grounded workstation equipment and tools ESD table/shelf mat made of conductive materials 3. Proper grounding is required for all devices, equipment, and machinery used in product assembly. Surge protection should be considered when designing of commercial products 4. If tools or equipment contain insulating materials such as glass or plastic, the following measures against electrostatic discharge are strongly recommended: Dissipating static charge with conductive materials Preventing charge generation with moisture Neutralizing the charge with ionizers Directions for use The LEDs should be operated with forward bias. The driving circuit must be designed so that the LEDs are not subjected to forward or reverse voltage while it is off. If reverse voltage is continuously applied to the LEDs, it may cause migration resulting in LED damage. DISCLAIMER 1. EVERLIGHT reserves the right(s) on the adjustment of product material mix for the specification. 2. The product meets EVERLIGHT published specification for a period of twelve (12) months from date of shipment. 3. The graphs shown in this datasheet are representing typical data only and do not show guaranteed values. 4. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from the use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 5. These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in any form is prohibited without obtaining EVERLIGHT’s prior consent. 6. This product is not intended to be used for military, aircraft, automotive, medical, life sustaining or life saving applications or any other application which can result in human injury or death. Please contact authorized Everlight sales agent for special application request. 8 Copyright © 2010, Everlight All Rights Reserved. Release Date: 2016/11/19 Issue No: DIR-0000453 Rev.6 www.everlight.com
