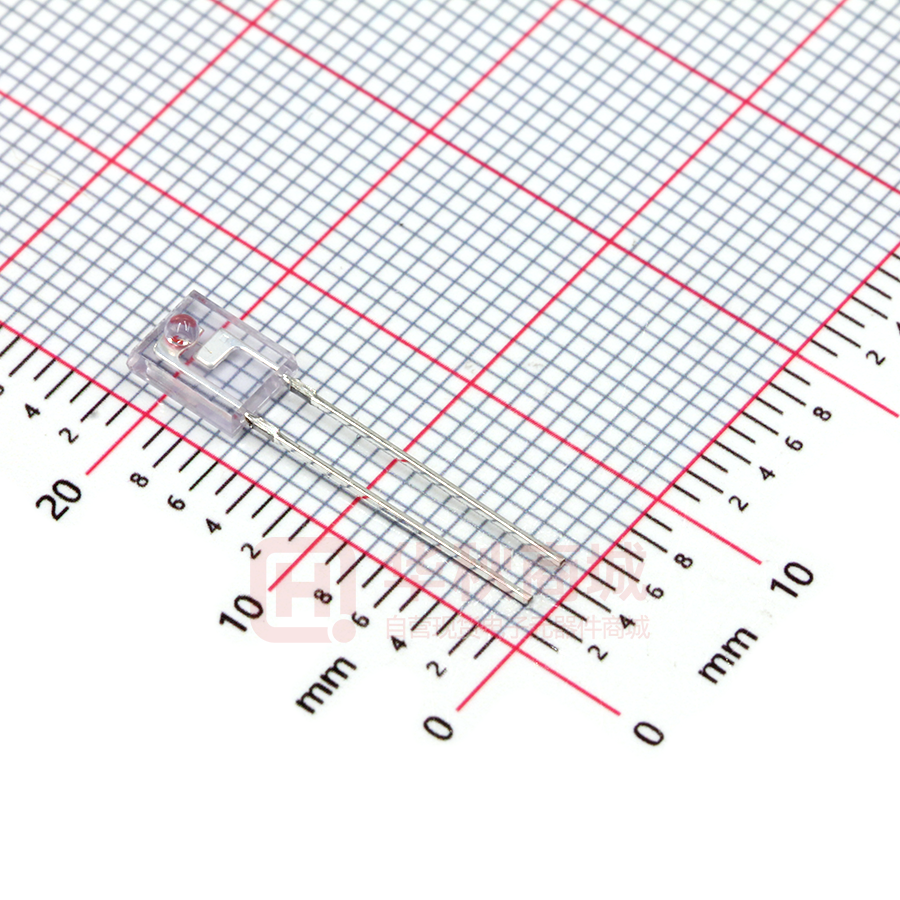

Technical Data Sheet Opto Interrupter ITR8102 █ Features ․Fast response time ․High analytic ․High sensitivity ․Pb free ․This product itself will remain within RoHS compliant version █ Descriptions The ITR8102 consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing The phototransistor receives radiation from the IR only .This is the normal situation. But when an object is in between , phototransistor could not receives the radiation. █ Applications ․Mouse Copier ․Switch Scanner ․Floppy disk driver ․Non-contact Switching ․For Direct Board █ Device Selection Guide Device No. IR908-7C PT908-7C Chip Material GaAlAs Silicon LENS COLOR Water Clear Water Clear Everlight Electronics Co., Ltd. Device No：CDRX-810-005 http:\\www.everlight.com Prepared date：2006/7/26 Rev 1 Page: 1 of 6 Prepared by： zhouhong ITR8102 █ Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.2mm 3.Lead spacing is measured where the lead emerge from the package 4.Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification 5.These specification sheets include materials protected under copyright of EVERLIGHT corporation . Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent 6.When using this product , please observe the absolute maximum ratings and the instructions for use outlined in these specification sheets. EVERIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. Everlight Electronics Co., Ltd. Device No：CDRX-810-005 http:\\www.everlight.com Prepared date：2006/7/26 Rev 1 Page: 2 of 6 Prepared by： zhouhong ITR8102 █ Absolute Maximum Ratings (Ta=25℃) Parameter Power Dissipation at(or below) 25℃ Free Air Temperature Input Reverse Voltage Forward Current Peak Forward Current (*1) Pulse width ≦100μs, Duty cycle=1% Collector Power Dissipation Output Collector Current Collector-Emitter Voltage Emitter-Collector Voltage Operating Temperature Storage Temperature Lead Soldering Temperature (*2) (1/16 inch form body for 5 seconds) (＊1) tw=100 μsec. , T=10 msec. Symbol Pd VR IF IFP PC IC B VCEO B VECO Topr Tstg Tsol (＊2) t=5 Sec Ratings 75 5 50 1 75 30 30 5 -25~+85 -40~+85 260 Unit mW V mA A mW mA V V ℃ ℃ ℃ █ Electro-Optical Characteristics (Ta=25℃) Parameter Forward Voltage Reverse Current Input Peak Wavelength View Angle Dark Current Output C-E Saturation Voltage Collect Current Transfer Rise time Characteristics Fall time Symbol VF IR λP 2θ1/2 ICEO VCE(sat) IC(ON) tr tf Min. Typ. ------------0.9 ----1.2 --940 60 ------- Max. 1.5 10 ----100 0.4 15 Unit V μA nm Deg nA V mA μsec μsec Conditions IF=20mA VR=5V IF=20mA IF=20mA VCE=20V,Ee=0mW/cm2 IC=2mA Ee=1mW/cm2 VCE=5V IF=20mA VCE=5V IC=1mA RL=1KΩ 15 15 ----- Everlight Electronics Co., Ltd. Device No：CDRX-810-005 http:\\www.everlight.com Prepared date：2006/7/26 Rev 1 Page: 3 of 6 Prepared by： zhouhong ITR8102 █ Typical Electrical/Optical/Characteristics Curves for IR Everlight Electronics Co., Ltd. Device No：CDRX-810-005 http:\\www.everlight.com Prepared date：2006/7/26 Rev 1 Page: 4 of 6 Prepared by： zhouhong ITR8102 █ Typical Electrical/Optical/Characteristics Curves for PT 1.0 Ta=25 C 0.8 0.6 0.4 0.2 0 100 300 500 700 900 1100 1300 Everlight Electronics Co., Ltd. Device No：CDRX-810-005 http:\\www.everlight.com Prepared date：2006/7/26 Rev 1 Page: 5 of 6 Prepared by： zhouhong ITR8102 █ Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Condition Test Hours/ Cycle Sample Size Failure Judgement Criteria Ac/Re 1 Solder Heat TEMP : 260℃ ± 5 ℃ 10sec 22 pcs 0/1 H : +100℃ 15 mins 5 min 2 Temperature Cycle L : -40℃ H : +100℃ 300 cycle IR≧U×2 22 pcs Ee≦L×0.8 VF≧U×1.2 U :Upper specification limit L :Lower specification limit 0/1 15 min 5 min 3 Thermal Shock L : -10℃ 10 sec 5 min 300 cycle 22 pcs 0/1 4 5 6 7 High Temperature Storage Low Temperature Storage DC Operating Life TEMP. : +100℃ TEMP. : -40℃ VCE=5V IF=20mA 1000 hrs 1000 hrs 1000 hrs 1000 hrs 22 pcs 22 pcs 22 pcs 22 pcs 0/1 0/1 0/1 0/1 High Temperature / 85℃ / 85% R.H. High Humidity EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. Device No：CDRX-810-005 http:\\www.everlight.com Prepared date：2006/7/26 Rev 1 Page: 6 of 6 Prepared by： zhouhong
