IRM-2036F14

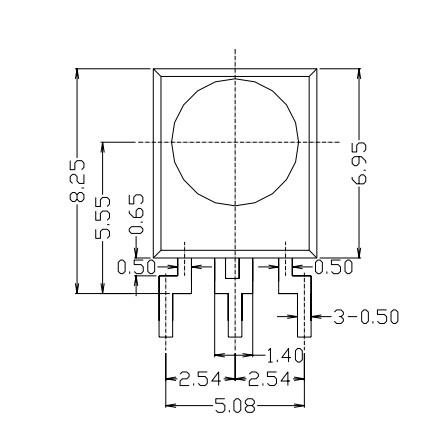

Technical Data Sheet Infrared Remote-control Receiver Module IRM-2036F14 █ Features : ‧High protection ability against EMI . ‧Circular lens to improve the receive characteristic. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧Long reception distance. ‧High sensitivity. █ Description : ‧The device is a miniature type infrared remote control system receiver which has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as an IR filter. The demodulated output signal can directly be decoded by a microprocessor. █ Applications : 1. Optical switch 2. Light detecting portion of remote control ‧AV instruments such as Audio, TV, VCR, CD, MD, etc. ‧Home appliances such as Air-conditioner, Fan , etc. ‧The other equipments with wireless remote control. ‧CATV set top boxes ‧Multi-media Equipment PART MATERIAL COLOR Chip Silicon --- Compound Epoxy Black Everlight Electronics Co., Ltd. Device No：DMO-020-346 http:\\www.everlight.com Prepared date：10-11-2004 Rev 1.0 Page: 1 of 8 Prepared by：David Huang IRM-2036F14 █ Package Dimensions : OUT GND Vcc ■ NOTES： 1. All dimensions are in millimeters. 2. In case of designation is tolerance ±0.3mm. █Absolute Maximum Ratings at TA = 25℃ Parameter Symbol Rating Unit Supply Voltage Vcc 0~6 V Operating Temperature Topr -25 ~ +80 ℃ Storage Temperature Tstg -40 ~ +85 ℃ Soldering Temperature Tsol 260 ℃ Everlight Electronics Co., Ltd. Device No：DMO-020-346 http:\\www.everlight.com Prepared date：10-11-2004 Notice 4mm from mold body less than 5 seconds Rev 1.0 Page: 2 of 8 Prepared by：David Huang IRM-2036F14 █Electronic Optical Characteristics : TA = 25℃ Parameter Symbol MIN. TYP. MAX. Unit Condition Supply Voltage Vcc 4.5 5 5.5 V DC voltage Supply Current Icc --- --- 3 mA No signal input B.P.F Center Frequency Fo --- 36 --- KHz Peak Wavelength λp --- 940 --- nm L0 12 --- --- L45 5 --- --- Half Angle(Horizontal) Θh --- 45 --- deg Half Angle(Vertical) Θv --- 45 --- deg High Level Pulse Width TH 400 --- 800 μs Reception Distance m Low Level Pulse Width TL 400 --- 800 μs High Level Output Voltage VH 4.5 --- --- V Low Level Output Voltage VL --- 0.2 0.5 V At the ray axis *1 At the ray axis *2 ■ Appendix of Page 3： *1:The ray receiving surface at a vertex and relation to the ray axis in the range of θ= 0° and θ=45°. *2:A range from 30cm to the arrival distance. Average value of 50 pulses. Everlight Electronics Co., Ltd. Device No：DMO-020-346 http:\\www.everlight.com Prepared date：10-11-2004 Rev 1.0 Page: 3 of 8 Prepared by：David Huang IRM-2036F14 ■ Test Method： The specified electro-optical characteristics is satisfied under the following Conditions at the controllable distance. cMeasurement place A place that is nothing of extreme light reflected in the room. dExternal light Project the light of ordinary white fluorescent lamps which are not high Frequency lamps and must be less then 10 Lux at the module surface. (Ee≦10Lux) eStandard transmitter A transmitter whose output is so adjusted as to Vo=400mVp-p and the output Wave form shown in Fig.-1.According to the measurement method shown in Fig.-2 the standard transmitter is specified. However , the infrared photodiode to be used for the transmitter should be λp=940nm,∆λ=50nm. Also, photodiode is used of PD438B(Vr=5V). (Standard light / Light source temperature 2856°K). fMeasuring system According to the measuring system shown in Fig.-3 ■ Block Diagram： Everlight Electronics Co., Ltd. Device No：DMO-020-346 http:\\www.everlight.com Prepared date：10-11-2004 Rev 1.0 Page: 4 of 8 Prepared by：David Huang IRM-2036F14 ■ Application Circuit： RC Filter should be connected closely between Vcc pin and GND pin. Fig.-1 Transmitter Wave Form D.U.T output Pulse Carrier frequency is adjusted to center frequency of each product. OUTPUT PULSE OF DEVICE IR TANSMITTER OUTPUT WAVE FORM Duty=0.5 Fig.-2 Measuring Method Fig.-3 Measuring System 20cm 10k L: Transmission Distance +5.0± 0.1V Vcc OUT θ θ 10uF D.U.T Standard Transmitter Vout Standard Transmitter 100k Vout Oscilloscope Everlight Electronics Co., Ltd. Device No：DMO-020-346 http:\\www.everlight.com Prepared date：10-11-2004 GND θ: Angle Of Horizontal & Vertical Direction Rev 1.0 Page: 5 of 8 Prepared by：David Huang IRM-2036F14 ■ TYPICAL ELECTRICAL/OPTICAL/CHARACTERISTICS CURVES Fig.-4 Relative Spectral Sensitivity vs. Wavelength Fig.-5 Relative Transmission Distance vs. Direction θ Fig.-6 Output Pulse Length vs. Arrival Distance Fig.-8 Relative Transmission Distance vs. Center Carrier Frequency Everlight Electronics Co., Ltd. Device No：DMO-020-346 Fig.-7 Arrival Distance vs. Supply Voltage Fig.-9 Arrival Distance vs. Ambient Temperature http:\\www.everlight.com Prepared date：10-11-2004 Rev 1.0 Page: 6 of 8 Prepared by：David Huang IRM-2036F14 █ Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level: 90% LTPD: 10% Failure Judgement Criteria Samples(n) Defective(c) Test Items Test Conditions Temperature cycle 1 cycle -40℃ +25℃ +85℃ (30min)(5min)(30min) 300 cycle test n=22,c=0 High temperature test Temp: +85℃ Vcc:6V 1000hrs n=22,c=0 Low temperature storage Temp: -40℃ 1000hrs L0≦ L×0.8 L45≦ L×0.8 n=22,c=0 High temperature High humidity Ta: 60℃,RH:90% Vcc:6V 1000hrs Solder heat Temp: 260±5℃ 10sec 4mm From the bottom of the package. Everlight Electronics Co., Ltd. Device No：DMO-020-346 http:\\www.everlight.com Prepared date：10-11-2004 L: Lower specification limit n=22,c=0 n=22,c=0 Rev 1.0 Page: 7 of 8 Prepared by：David Huang IRM-2036F14 Packing Quantity Specification 1. 1500PCS/1Box 2. 10Boxes/1Carton Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place IRM-2036F14 Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Tel: 886-2-2267-2000, 2267-9936 Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Fax: 886-2267-6244, 2267-6189, 2267-6306 Everlight Electronics Co., Ltd. Device No：DMO-020-346 http:\\www.everlight.com Prepared date：10-11-2004 Rev 1.0 Page: 8 of 8 Prepared by：David Huang
