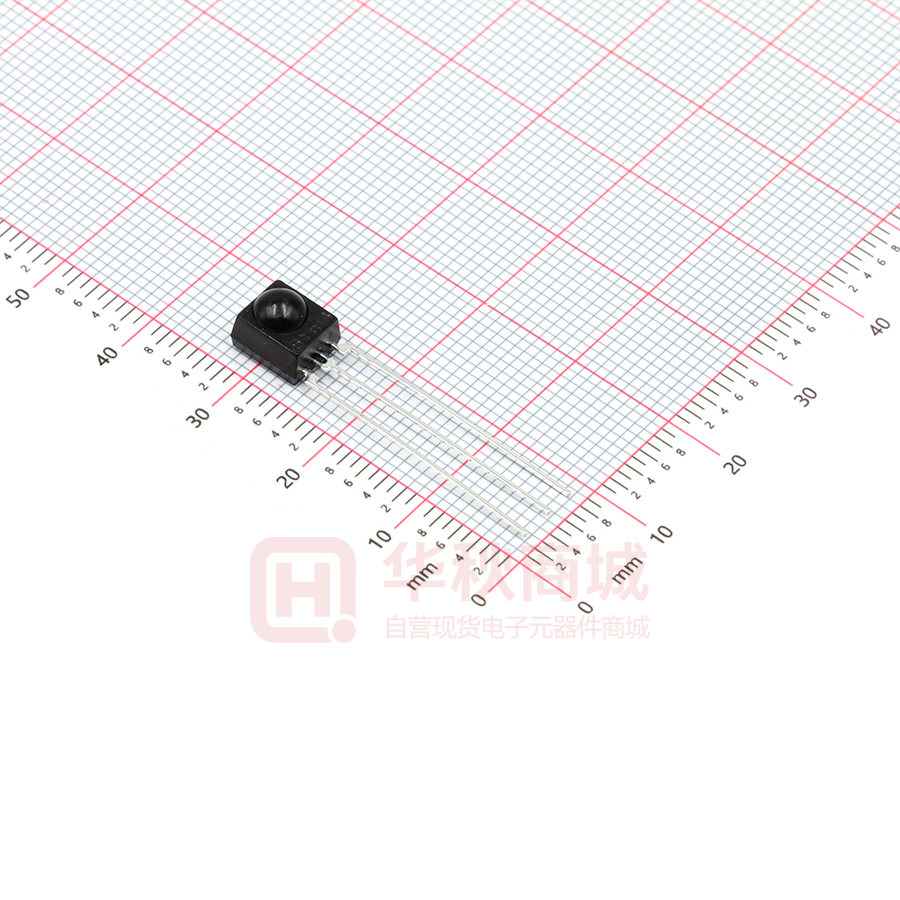

IRM-3638T

IRM-3638T

  • 厂商:

    EVERLIGHT(台湾亿光)

  • 封装:

    LED_6X5.6MM_TM

  • 描述:

    λp=940nm VF=2.7V View Angle=45 红外接收头 遥控器用

  • 数据手册
  • 价格&库存
IRM-3638T 数据手册
EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet Infrared Remote control Receiver Module Own Inner Shield IRM-36xxT SERIES Features • Photo detector and preamplifier in one package • Internal filter for PCM frequency • Improved inner shielding against electrical field disturbance • TTL and CMOS compatibility • Low power consumption • Improved immunity against ambient light • Suitable burst length ≧10 cycles/burst • Pb free • BiCMOS manufacture IC ; ESD HBM>4000V ; MM>250V • The product itself will remain within RoHS compliant version. Descriptions The IRM-36xxT is miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor.IRM-36xxT is the standard IR remote control receiver series, supporting all major transmission codes. Applications ․Light detecting portion of remote control ․AV instruments such as Audio, TV, VCR, CD, MD, etc. ․Home appliances such as Air-conditioner, Fan , etc. ․The other equipments with wireless remote control. ․CATV set top boxes ․Multi-media Equipment PART Chip Compound MATERIAL Silicon Epoxy COLOR Black Black Everlight Electronics Co., Ltd. : http:\\www.everlight.com : Rev 1 : Page: 1 of 10 Zhang Meijuan Device No SZDMO-036-077 Prepared date 2-Mar-2007 Prepared by EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES Package Dimensions Unit:mm Notes: 1.All dimensions are in millimeters. 2.Tolerances unless dimensions ±0.3mm. Available Types For Different Carrier Frequencies Type IRM-3636T IRM-3638T IRM-3640T IRM-3656T Carrier Frequencies (Typ) 36 kHz 38 kHz 40 kHz 56 kHz Everlight Electronics Co., Ltd. : http:\\www.everlight.com : Rev 1 : Page: 2 of 10 Zhang Meijuan Device No SZDMO-036-077 Prepared date 2-Mar-2007 Prepared by EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES Absolute Maximum Ratings (Ta=25℃) Parameter Supply Voltage Operating Temperature Storage Temperature Soldering Temperature Symbol Vcc Topr Tstg Tsol Rating 0~6 -25 ~ +80 -40 ~ +85 260 Unit V ℃ ℃ ℃ 4mm from mold body less than 10 seconds Notice Recommended Operating Condition Supply Voltage Rating: Vcc 2.7V to 5.5V Electro-Optical Characteristics (Ta=25℃, and Vcc=3V) Parameter Consumption Current Peak Wavelength Reception Distance Half Angle(Horizontal) Half Angle(Vertical) High Level Pulse Width Low Level Pulse Width High Level Output Voltage Low Level Output Voltage Symbol Icc λp L0 L45 Θh Θv TH TL VH VL MIN. ----14 6 ----400 400 2.7 --TYP. 1.0 940 ----45 45 --------MAX. 1.2 ----------800 800 --0.5 deg deg μs μs V V At the ray axis *2 At the ray axis *1 Unit mA nm m Condition No signal input Notes: *1:The ray receiving surface at a vertex and relation to the ray axis in the range of θ= 0° and θ=45°. *2:A range from 30cm to the arrival distance. Average value of 50 pulses. Everlight Electronics Co., Ltd. : http:\\www.everlight.com : Rev 1 : Page: 3 of 10 Zhang Meijuan Device No SZDMO-036-077 Prepared date 2-Mar-2007 Prepared by EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES Test Method: The specified electro-optical characteristics is satisfied under the following Conditions at the controllable distance. Measurement place A place that is nothing of extreme light reflected in the room. External light Project the light of ordinary white fluorescent lamps which are not high Frequency lamps and must be less then 10 Lux at the module surface. (Ee≦10Lux) Standard transmitter A transmitter whose output is so adjusted as to Vo=400mVp-p and the output Wave form shown in Fig.-1.According to the measurement method shown in Fig.-2 the standard transmitter is specified. However , the infrared photodiode to be used for the transmitter should be λp=940nm,∆λ=50nm. (Standard light / Light source temperature 2856°K). Measuring system According to the measuring system shown in Fig.-3 Block Diagram: Vs IN Input CGA & filter Demodulator OUT µC Oscillator Carrier frequency f0 AGC/ATC & digital control Modulated IR signal min 10 pulses GND Everlight Electronics Co., Ltd. : http:\\www.everlight.com : Rev 1 : Page: 4 of 10 Zhang Meijuan Device No SZDMO-036-077 Prepared date 2-Mar-2007 Prepared by EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES Application Circuit: RC Filter should be connected closely between Vcc pin and GND pin. Fig.-1 Transmitter Wave Form D.U.T output Pulse Duty=0.5 Fig.-2 Measuring Method mc02 Everlight Electronics Co., Ltd. : http:\\www.everlight.com : Rev 1 : Page: 5 of 10 Zhang Meijuan Device No SZDMO-036-077 Prepared date 2-Mar-2007 Prepared by tuoV noitceriD lacitreV & latnoziroH fO elgnA :θ ccV DNG TUO ecnatsiD noissimsnarT :L T.U.D θ θ ECIVED FO ESLUP TUPTUO rettimsnarT dradnatS .tcudorp hcae fo ycneuqerf retnec ot detsujda si ycneuqerf reirraC V1.0 ±0.5+ tuoV epocsollicsO Fu01 k01 1 0 0 k rettimsnarT dradnatS MROF EVAW TUPTUO RETTIMSNAT RI Fig.-3 Measuring System EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES The Notice of Application: Transmission of remote control signal consist of four parts: Encode Part, IR Transmitter Source, IRM device, Decode Part 1. When IRM-36xxT SERIES code select frequency, it need to well understand the center system of encode part. 2. Strong or weak light of IR Transmitter can affect distance of transmission. 3. When using IRM-36xxT SERIES device, it requires the composition of code pattern to reach the demand as follows: Minimum tburst ( number of pulses per burst) 10 pulses Minimum tburst_gap ( number of pulses between two burst) 14 pulses Minimum tpause 25 msec 4. It needs to ensure the translation range of decode part if it is applied to the pulse-width range. If the above items hardly assure of its application, it’ll cause NG(no good) message from the edge of signal. IRM-36xxT SERIES Code Property: Data format NEC RC5 _ Philips RC6 _ Philips RCA _ Thomson Toshiba Sharp JVC O O O X O O O Data format Sony 12 Bit Sony 15 Bit Sony 20 Bit Matsushita Mitsubishi Zenith High data rate (4000 bit/s) O X X O O O X Everlight Electronics Co., Ltd. : http:\\www.everlight.com : Rev 1 : Page: 6 of 10 Zhang Meijuan Device No SZDMO-036-077 Prepared date 2-Mar-2007 Prepared by EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES Typical Electro-Optical Characteristics Curves Fig.-4 Relative Spectral Sensitivity vs. Wavelength Fig.-5 Relative Direction Transmission Distance vs. Relative Transmission Distance (%) 80 60 40 20 0 -60 -40 -20 0 20 40 60 Angle (deg) Fig.-6 Output Pulse Length vs. Arrival Distance Fig.-7 Arrival Distance vs. Supply Voltage 5.71 Output Pulse Width TWL (µsec) Transmission Distance Lc (m) Transmission Distance Lc (m) Everlight Electronics Co., Ltd. : http:\\www.everlight.com : : Device No SZDMO-036-077 Prepared date 2-Mar-2007 5.01 0.7 5.3 0 2.7 3.0 3.3 3.5 3.8 4.1 4.4 4.7 5.0 5.3 5.5 61 41 21 01 8 6 4 2 0 Supply Voltage Vcc (V) Rev 1 Prepared by Page: 7 of 10 Zhang Meijuan EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES Typical Electro-Optical Characteristics Curves Fig.-8 Relative Transmission Distance vs. Center Carrier Frequency IRM-3636T IRM-3638T IRM-3640T IRM-3656T Relative Transmission Distance (%) Relative Transmission Distance (%) Center Carrier Frequency (kHz) Center Carrier Frequency (kHz) Everlight Electronics Co., Ltd. : http:\\www.everlight.com : Rev 1 : Page: 8 of 10 Zhang Meijuan Device No SZDMO-036-077 Prepared date 2-Mar-2007 Prepared by EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES Typical Electro-Optical Characteristics Curves Fig.-9 Arrival Distance vs. Ambient Temperature 5.71 Transmission Distance Lc (m) Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level:90% LTPD:10% Test Items Test Conditions 1 cycle -40℃ Temperature cycle +100℃ n=22,c=0 Failure Judgement Criteria Samples(n) Defective(c) High temperature test Vcc:6V 1000hrs Low temperature storage High temperature High humidity Temp: -40℃ 1000hrs Ta: 85℃,RH:85% 1000hrs Temp: 260±5℃ 10sec 4mm From the bottom of the package. Solder heat Everlight Electronics Co., Ltd. : : : Device No 0.4 1 5.3 5.0 1 0.7 Ambient Temperature Ta (°C) (15min)(5min)(15min) 300 cycle test Temp: +100℃ L0≦ L×0.8 L45≦ L×0.8 n=22,c=0 n=22,c=0 L: Lower specification limit n=22,c=0 n=22,c=0 http:\\www.everlight.com Prepared date 2-Mar-2007 Rev 1 Prepared by Page: 9 of 10 Zhang Meijuan SZDMO-036-077 EVERLIGHT ELECTRONICS CO.,LTD. IRM-36xxT SERIES Packing Quantity Specification 1. 1500 PCS/1Box 2. 10 Boxes/1Carton Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: None REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place IRM- Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. : http:\\www.everlight.com : Rev 1 : Page: 10 of 10 Zhang Meijuan Device No SZDMO-036-077 Prepared date 2-Mar-2007 Prepared by
