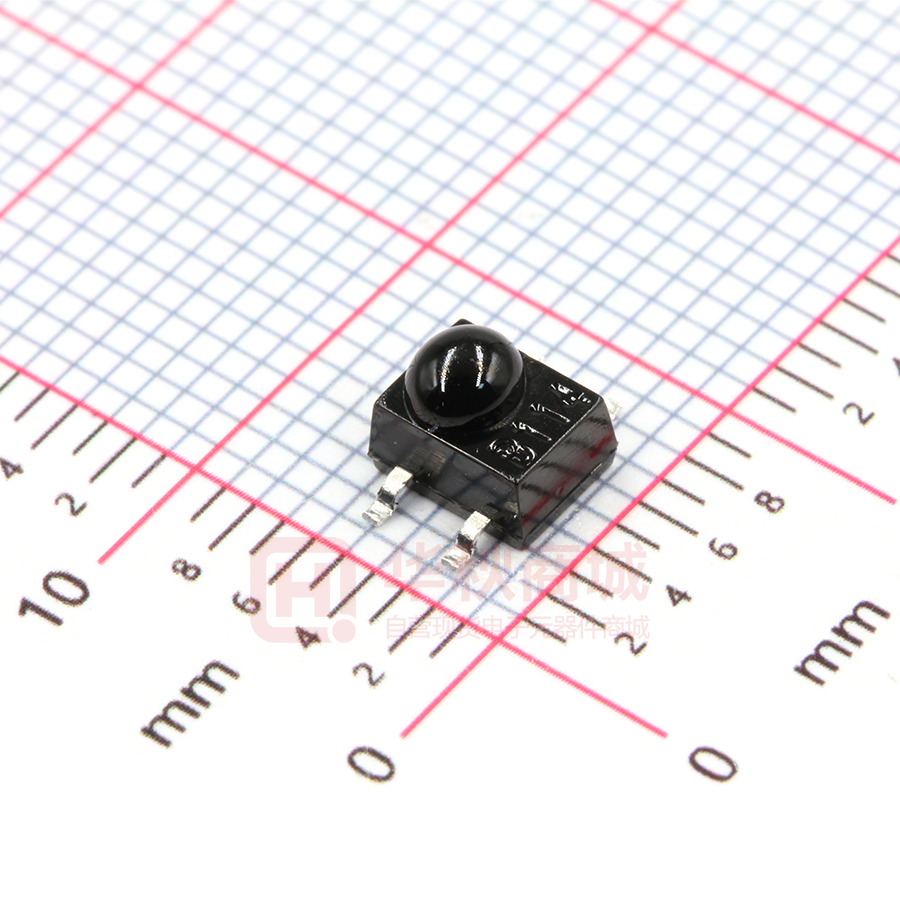

Infrared Receiver Module
IRM-H6XXT/TR2 Series
Block Diagram
1
Pin Configuration
2
4
3
1. GND
2. GND
3. OUT
4. Vcc
Features
‧ High protection ability against EMI
‧ Available for various carrier frequencies
‧ min burst length: 12 cycles
‧ min gap length: 16 cycles
‧ Low operating voltage and low power consumption
‧ High immunity against ambient light
‧ High immunity against TFT backlight
‧ Long reception range
‧ High sensitivity
‧ Pb free and RoHS compliant
‧ Compliance with EU REACH
‧ Compliance Halogen Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
Descriptions
The device is miniature SMD type infrared receiver
that has been developed and designed by utilizing the
latest IC technology.
The PIN diode and preamplifier are assembled onto
a lead frame and molded into an epoxy package which
operates as an IR filter.
The demodulated output signal can directly be decoded
by a microprocessor.
1
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
Applications
‧Light detecting portion of remote control
‧AV instruments such as Audio, TV, VCR, CD, MD, etc
‧Home appliances such as Air-conditioner, Fan, etc
‧Other devices using IR remote control
‧CATV set top boxes
‧Multi-media Equipment
Application Circuit
The RC filter must be connected as close as possible to Vcc and GND pins.
Part number table
2
Model No.
Carrier Frequency
IRM-H638T/TR2
38 kHz
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
Absolute Maximum Ratings (Ta=25°C) *1
Parameter
Symbol
Rating
Unit
Vs
6
V
Operating Temperature
Topr
-20 ~ +80
°C
Storage Temperature
Tstg
-40 ~ +85
°C
Tsol
260
°C
Supply Voltage
Soldering Temperature
*1
*2
*2
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation
of the device is not implied at these or any other conditions in excess of those given in the operational sections of this
document. Exposure to absolute maximum ratings for extended periods of the time can adversely affect reliability.
Soldering time≦5 seconds
Electro-Optical Characteristics (Ta=25°C and Vcc=3.0V)
Parameter
Symbol
MIN.
TYP.
MAX.
Unit
Condition
Current Consumption
Icc
---
0.4
0.7
mA
No signal input
Supply Voltage
Vs
2.7
---
5.5
V
Peak Wavelength
λp
---
940
---
nm
L0
8
---
--m
Reception Distance
L45
5
---
---
Half Angle (Horizontal)
Θh
---
±45
---
deg
Half Angle (Vertical)
Θv
---
±45
---
deg
High Level Pulse Width
TWH
400
---
800
μs
Low Level Pulse Width
TWL
400
---
800
μs
High Level Output Voltage
VH
Vcc-0.4
---
---
V
ISOURCE≦1μA
Low Level Output Voltage
VL
---
0.2
0.5
V
ISINK≦2mA
*3
*4
3
See chapter
'Test method'
*3
Test signal according to
4
figure 1 *
The ray receiving surface at a vertex and relation to the ray axis in the range of θ=0° and θ=45°.
A range from 30cm to the arrival distance. Average value of 50 pulses.
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
Test Method
The specified electro-optical characteristic is satisfied under the following Conditions:
1. Measurement environment
A place without extreme light reflected
2. External light
Ordinary white fluorescent lamps (Light source temperature 2856°K, Ee≦10Lux) without high frequency
modulation
3. Standard transmitter
The test transmitter is calibrated by using the circuit shown in figure 2. The radiation intensity of the
transmitter is adjusted until Vo=400mVp-p. Both, the test transmitter and the photo diode, have a peak
wavelength of 940nm. The photo diode for calibration is PD438B (λp=940nm, Vr=5V).
4. Measuring system According to the measuring system shown in Fig.-3
Fig.-1 Transmitter Wave Form
Fig.-2 Measuring Method
4
D.U.T output Pulse
Fig.-3
Measuring System
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
Typical Performance Curves
5
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
Package Dimenstions
(Dimensions in mm)
Pin Configuration
1. GND
2. GND
3. OUT
4. Vcc
Note:1. All dimensions are in millimeters.
2. Tolerances unless otherwise mentioned ±0.5mm.
Recommend soldering patterns
The following soldering patterns are recommended for reflow-soldering
Notice:Suggested pad dimension is just for reference only.
Please modify the pad dimension based on individual need.
6
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
Code information
Protocol
Suitable
Protocol
Suitable
Matsushita
Yes
Sony 12 bit
Yes
NEC
Yes
Sony 15 bit
No
RC5
Yes
Sony 20 bit
No
RC6
Yes
Sharp
Yes
Toshiba
Yes
Zenith
Yes
1)
RCA
No
Continuous Code
1) RC6 is only compatible if the data low time is 25ms or more.
No
Tape & Reel Packing Specifications
Packing Quantity
1000 pcs / Reel
5 Reels / Carton
7
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
Recommended method of storage
The following are general recommendations for moisture sensitive level (MSL) 4 storage and use:
1. Do not open moisture proof bag before devices are ready to use.
2. Shelf life in sealed bag from the bag seal date: 12 months at 10°C~30°C and < 90% RH.
3. After opening the package, the devices must be stored at 10°C~30°C and 60%RH, and used within 72
hours (floor life).
4. If the moisture absorbent material (desiccant material) has faded or unopened bag has exceeded the shelf
life or devices (out of bag) have exceeded the floor life, baking treatment is required.
5. If baking is required, refer to IPC/JEDEC J-STD-033 for bake procedure or recommend the following
conditions:96 hours at 60°C ± 5°C and < 5 % RH.
8
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
ESD Precaution
Proper storage and handing procedures should be followed to prevent ESD damage to the devices especially
when they are removed from the Anti-static bag. Electro-Static Sensitive Devices warning labels are on the
packing.
Solder Reflow Temperature Profile
Note:
Reference: IPC/JEDEC J-STD-020D
Preheat
Temperature min (Tsmin)
150 °C
Temperature max (Tsmax)
200°C
Time (Tsmin to Tsmax) (ts)
60-120 seconds
Average ramp-up rate (Tsmax to Tp)
3 °C/second max
Other
Liquidus Temperature (TL)
217 °C
Time above Liquidus Temperature (t L)
60-100 sec
Peak Temperature (TP)
260°C
Time within 5 °C of Actual Peak Temperature: TP - 5°C
30 s
Ramp- Down Rate from Peak Temperature
6°C /second max.
Time 25°C to peak temperature
8 minutes max.
Reflow times
2 times
Note:
1. Reflow soldering should not be done more than two times.
2. When soldering, do not put stress on the IRM device during heating.
3. After soldering, do not warp the circuit board.
9
Copyright © 2017, Everlight All Rights Reserved. Release Date : 2017/03/24 Issue No: DMO-0000008 Rev:2
www.everlight.com
Data Sheet
Infrared Receiver Module
IRM-H6XXT/TR2 Series
产品规格咨询热线:梁 SR 18148584520(微信同号)
DISCLAIMER
1.
EVERLIGHT reserves the right(s) on the adjustment of product material mix for the specification.
2.
The product meets EVERLIGHT published specification for a period of twelve (12) months from date of
shipment.
3.
The graphs shown in this datasheet are representing typical data only and do not show guaranteed
values.
4.
When using this product, please observe the absolute maximum ratings and the instructions for using
outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting
from the use of the product which does not comply with the absolute maximum ratings and the
instructions included in these specification sheets.
5.
These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in
any form is prohibited without obtaining EVERLIGHT’s prior consent.
6.
This product is not intended to be used for military, aircraft, automotive, medical, life sustaining or life
saving applications or any other application which can result in human injury or death. Please contact
authorized Everlight sales agent for special application request.
10
