IRM-H638T/TR2

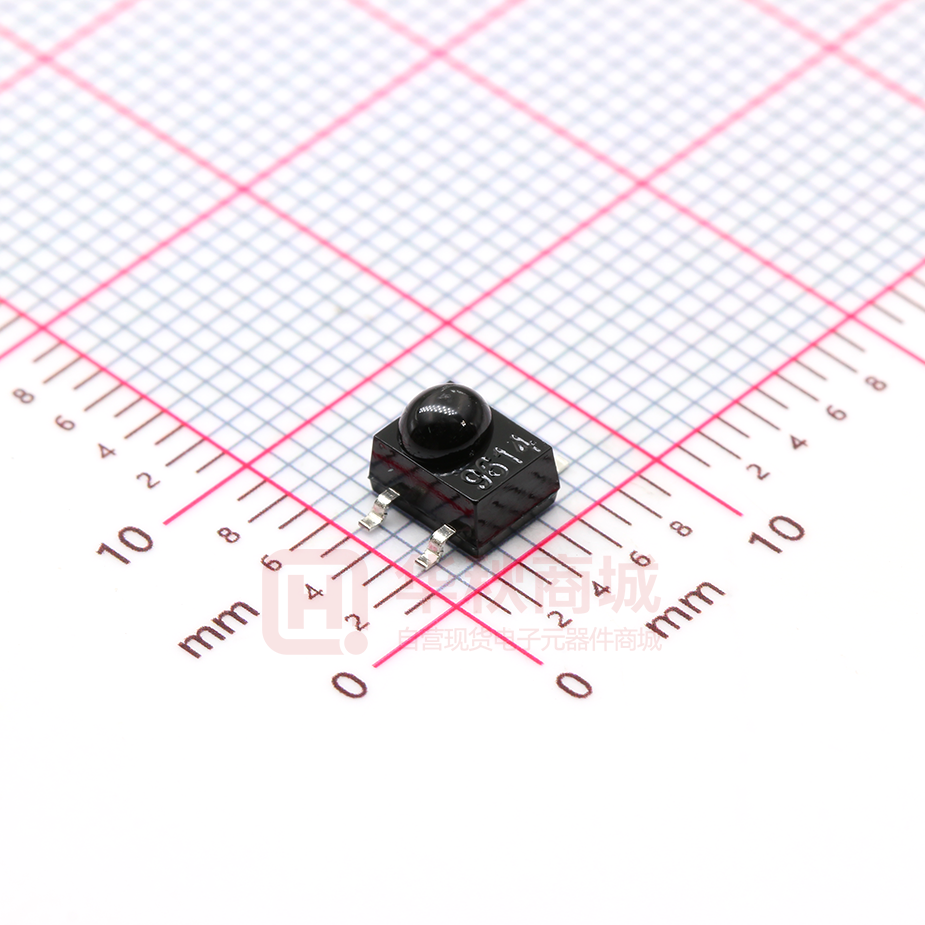

EVERLIGHT ELECTRONICS CO.,LTD. Technical Data Sheet Infrared Remote-control Receiver Module IRM-H6XXT/TR2 Features ‧High shielding against electric field disturbance. ‧Circular lens to improve the receive characteristic. ‧Line-up for various center carrier frequencies. ‧Low voltage and low power consumption. ‧High immunity against ambient light. ‧Photodiode with integrated circuit. ‧TTL and CMOS compatibility. ‧Top-received SMD. ‧Suitable burst length ≧10 pulses/burst. ‧This product itself will remain within RoHS compliant version. ‧Pb free. ‧External dimensions 5(L)*7(W)*4(H)mm. Descriptions The device is a miniature SMD type infrared remote control system receiver that has been developed and designed by utilizing the most updated IC technology. The PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as an IR filter. The demodulated output signal can directly be decoded by a microprocessor. Applications 1. Light detecting portion of remote control ․AV instruments such as Audio, TV, VCR, CD, MD, etc. ․Home appliances such as Air-conditioner, Fan , etc. ․The other equipments with wireless remote control. ․CATV set top boxes ․Multi-media Equipment Device Selection Guide PART MATERIAL COLOR Chip Silicon --- Package Epoxy Black Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 1 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 Package Dimensions Notes：1.All dimensions are in millimeters. 2.Tolerances unless dimensions ±0.2mm. Soldering patterns The following soldering patterns are recommended for reflow-soldering : Unit: mm Available Types For Different Carrier Frequencies Type Carrier Frequencies (Typ) IRM-H638T/TR2 38 kHz Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 2 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Supply Voltage Vcc 0~6 V Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +85 ℃ Notice Recommended Operating Condition Supply Voltage Rating: Vcc 2.7V to 5.5V Electro-Optical Characteristics (Ta=25℃, and Vcc=3.0V) Parameter Symbol MIN. TYP. MAX. Unit Condition Supply Current Icc --- --- 1.2 mA No signal input Peak Wavelength λp --- 940 --- nm L0 8 --- --- L45 5 --- --- Half Angle(Horizontal) Θh --- 45 --- deg Half Angle(Vertical) Θv --- 45 --- deg High Level Pulse Width TH 400 --- 800 μs Low Level Pulse Width TL 400 --- 800 μs High Level Output Voltage VH 2.7 --- --- V Low Level Output Voltage VL --- 0.2 0.5 V Reception Distance m At the ray axis *1 At the ray axis *2 Notes: *1：The ray receiving surface at a vertex and relation to the ray axis in the range of θ= 0° and θ=45°. *2：A range from 30cm to the arrival distance. Average value of 50 pulses. Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 3 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 The Notice of Application: Transmission remote control signal consist of four parts: Encode Part, IR Transmitter Source, IRM device, Decode Part 1. When IRM-H6XXT code select frequency, it need to well understand the center system of encode part. 2. Strong or weak light of IR Transmitter can affect distance of transmission. 3. Minimum Burst Length Tburst (number of pulses per burst) : 10 cycles 4. It needs to ensure the translation range of decode part if it is applied to the pulse-width range. If the above items hardly assure of its application, it’ll cause NG(no good) message from the edge of signal. Note: This model might not work well with RCA code. Test Method： The specified electro-optical characteristics is satisfied under the following Conditions at the controllable distance. cMeasurement place A place that is nothing of extreme light reflected in the room. dExternal light Project the light of ordinary white fluorescent lamps which are not high Frequency lamps and must be less then 10 Lux at the module surface. (Ee≦10Lux) eStandard transmitter A transmitter whose output is so adjusted as to Vo=400mVp-p and the output Wave form shown in Fig.-1.According to the measurement method shown in Fig.-2 the standard transmitter is specified. However , the infrared photodiode to be used for the transmitter should be λp=940nm,Δλ=50nm. Also, photodiode is used of PD438B(Vr=5V). (Standard light / Light source temperature 2856°K). fMeasuring system According to the measuring system shown in Fig.-3 Fig.-1 Transmitter Wave Form D.U.T output Pulse Carrier frequency is adjusted to center frequency of each product. IR TANSMITTER OUTPUT WAVE FORM OUTPUT PULSE OF DEVICE Duty=0.5 Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 4 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 Fig.-2 Measuring Method Fig.-3 Measuring System 20cm 10k +5.0± 0.1V L: Transmission Distance Vcc OUT θ θ 10uF D.U.T Standard Transmitter Vout GND 100k Vout Standard Transmitter θ: Angle Of Horizontal & Vertical Direction Oscilloscope Block Diagram： Vs IN OUT Input Oscillator CGA & filter µC Demodulator AGC/ATC & digital control Carrier frequency f0 Modulated IR signal min 10 pulses GND Application Circuit： Ω RC Filter should be connected closely between Vcc pin and GND pin. Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 5 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 Typical Electro-Optical Characteristics Curves Fig.-4 Relative Spectral Sensitivity vs. Wavelength Fig.-5 Relative Transmission Distance vs. Direction θ Fig.-6 Output Pulse Length vs. Arrival Distance Fig.-7 Arrival Distance vs. Supply Voltage 10 8 6 4 2 Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 6 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. Fig.-8 Fig.-9 Relative Transmission Distance vs. Center Carrier Frequency Fig.-9 Arrival Distance vs. Ambient Temperature IRM-H638T/TR2 Relative Transmission Distance (%) 8 6 4 Center Carrier Frequency (kHz) Acceptable Code List IR C ode NEC R C 5_P hilips R C 6_P hilips R C A _T hom son T oshiba S harp Sony 12 B it Sony 15 B it Sony 20 B it M atsushita M itsubishi Z enith JV C C ontinuous C ode H igh D ata R ate C ode Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 A cceptable ○ ○ ○ ○ ○ ○ ○ × × ○ × ○ × × × Rev 1 Page: 7 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% Reflow Terms: JEDEC Level 4 Specification Drying; Temp.:125℃ 24hrs Æ Moisture 30℃ / 60% RH 96hrs Æ Reflow Temp.: 260℃±5℃ 10sec, 3 times Note: 1. Not sooner than 15 minutes and not longer than 4 hours after removal from the temperature/humidity chamber. 2. The time between reflow shall be 5 minutes minimum and 60 minutes maximum. Recommended method of storage Dry box storage is recommended as soon as the aluminum bag has been opened prevent moisture absorption. The following conditions should be observed, if dry boxes are not available: z Storage temperature 10℃ to 30℃ z Storage humidity ≦60%RH max. After more than 72 hours under these conditions moisture content will be too high for Reflow soldering: In case of moisture absorption, the devices will recover to former condition by drying under the following condition: 192 hours at 40℃+5℃/-0℃ and 5%RH (dry air / nitrogen) or 96 hours at 60℃+5℃ and < 5%RH for all device containers or 24 hours at 125℃+5℃ not suitable for reel or tubes. ESD Precaution Proper storage and handing procedures should be followed to prevent ESD damage to the devices especially when they are removed from the Anti-static bag. Electro-Static Sensitive Devices warning labels are on the packing. Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 8 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 Recommended Solder Profile 260°C Max. 10sec Max. 1~5°C/sec 1~5°C/sec. Pre-heating 180~200°C 60sec. Max. Above. 220°C 120sec.Max. Notice: (1) Reflow soldering should not be done more than two times. (2) When soldering, do not put stress on the IRM-H6XXT/TR2 Series devices during heating. (3) After soldering, do not warp the circuit board. Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. Repairing Repair should not be done after the Devices have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the Devices will or will not be damaged by repairing. Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 9 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 Packing Quantity Specification 1. 1000 PCS/1 Reel 2. 5 Reel /1Carton Carrier Tape Dimensions: Loaded quantity 1000 PCS per reel Packing process Bar Code Label Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 10 of 9 Prepared by：IBU_NPID2 EVERLIGHT ELECTRONICS CO.,LTD. IRM-H6XXT/TR2 Label Form Specification Pb RoHS IRM-H6XXT/TR2 CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: None HUE: None REF: Reference LOT No: Lot Number MADE IN CHINA: Production Place Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. http:\\www.everlight.com Device No：DMO-0000008 Prepared date：09 -26-2007 Rev 1 Page: 11 of 9 Prepared by：IBU_NPID2
