ITR1502SR40A/TR8

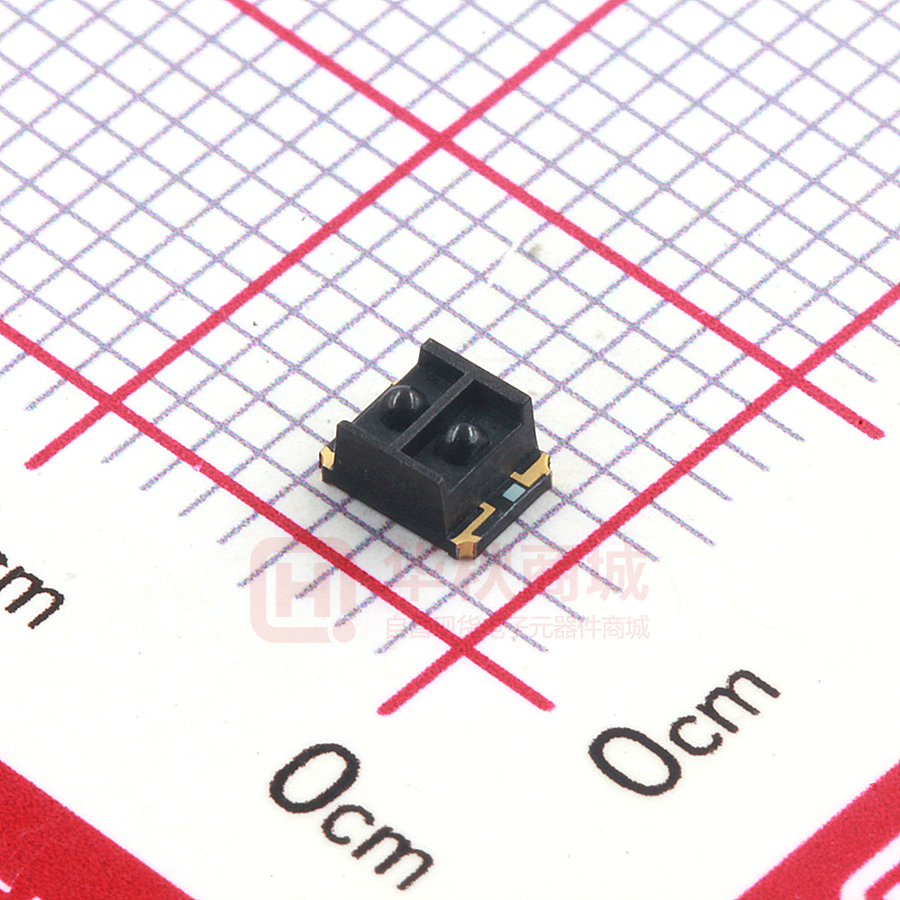

Preliminary ITR1502SR40A/TR8 Features  High sensitivity  Cut-Off visible wavelength  Compliance Halogen Free(Br < 900ppm, Cl < 900ppm, Br+Cl < 1500ppm)  Compliance with EU REACH  This product itself will remain within RoHS compliant version.  Optimal Sensing Distance: 4 mm  Package size : 4.0*3.0*2.0 mm Description  ITR1502SR40A/TR8 is a compact-package, phototransistor output, reflective photo interrupter, with emitter and detector facing the same direction in a molding that provides non-contact sensing. The compact package series is a result of unique technology, combing transfer and injection molding, that also blocks visible light to minimize false detection. This device has a long focal distance for this family of devices and has a leadless (T&R) package, suitable for reflow soldering. Applications  Detection of object presence or motion.  Example : printer, optical storage, Projector Device Selection Guide Device No. IR PT 1 Chip Material GaAs Silicon Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 Lens Color Black clear Black clear www.everlight.com DATASHEET ITR1502SR40A/TR8 Package Dimensions  Notes: 1. All dimensions are in millimeters 2. Tolerances unless dimensions ±0.1mm 3. Lead spacing is measured where the lead emerge from the package 4. Product mass : approx. 0.025g 2 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 www.everlight.com DATASHEET ITR1502SR40A/TR8 Absolute Maximum Ratings (Ta=25℃) Parameter Power Dissipation at(or below) 25 ℃ Free Air Temperature Reverse Voltage Input Forward Current Peak Forward Current (*1) Pulse width ≦100μs, Duty cycle=1% Collector Power Dissipation Collector Current Output Collector-Emitter Voltage Emitter-Collector Voltage Operating Temperature Storage Temperature Lead Soldering Temperature (*2) (1/16 inch form body for 5 seconds)  Symbol Ratings Unit Pd 75 mW VR IF 5 50 V mA IFP 1 A PC IC B VCEO B VECO Topr Tstg 75 25 30 5 -25~+85 -40~+100 mW mA V V ℃ ℃ Tsol 260 ℃ Notes: (*1) tw=100 μsec., T=10 msec. (*2) t=10 Sec Electro-Optical Characteristics (Ta=25℃) Parameter Forward Voltage Reverse Current Input Peak Wavelength Dark Current Output Symbol VF IR λP ICEO Min. − − − − Typ. 1.2 − 940 1 Max. 1.4 10 − 100 Unit V μA nm nA IC(ON) 60 − 450 μA IC(OFF) − − 600 nA tr − 20 100 μs tf − 20 100 μs Collect Current Transfer Characteristics Response time Conditions IF=20mA VR=6V IF=10mA VCE=20V VCE=2V IF=4mA d=4mm VCE=2V IF=4mA VCE=2V, IC=100μA, RL=1kΩ, d=4mm *Operating dark current may be affected by surrounding situation Bin Range of Collect Current Bin number A B C D 3 Min 60 100 180 310 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 Max 120 220 350 450 www.everlight.com DATASHEET ITR1502SR40A/TR8 Test Condition and Arrangement for Collector Current Aluminum Evaporation Surface Glass 4 mm Typical Electro-Optical Characteristics Curves Forward Current VS. Forward Voltage Forward Current V.S Collector Current 2500 1.4 2000 Collector Current(μ A) Forward Voltage(V) 1.2 1.0 0.8 0.6 0.4 1500 1000 500 0.2 0.0 0 1 2 3 4 5 6 7 8 0 9 10 11 12 13 14 15 16 17 18 19 20 0 1 2 3 4 5 Forward Current(mA) 5 10 15 20 50 2 3 Collecotr-Emitter Voltage(V) 4 8 9 10 11 12 13 14 15 16 17 18 19 20 Forward Voltage V.S Ambient Temperature Forward Voltage(V) Collector Current( μ A) 3400 3200 3000 2800 2600 2400 2200 2000 1800 1600 1400 1200 1000 800 600 400 200 0 -200 1 7 Forward Current(mA) Collector Current V.S Collector-Emitter Voltage 0 6 5 1.22 1.21 1.20 1.19 1.18 1.17 1.16 1.15 1.14 1.13 1.12 1.11 1.10 1.09 1.08 1.07 1.06 1.05 1.04 -20 0 20 40 60 80 Ambient Temperature Ta(oC) 4 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 www.everlight.com DATASHEET ITR1502SR40A/TR8 Relative Collector Current V.S Ambient Temperature Relative Collector Current V.S Z-Moving Distance Condition : IF=4 mA、VCE=2 V 120 60 VCE=2V IF = 4mA d=4mm 40 20 0 -20 -10 0 10 20 30 40 50 60 70 80 90 IF=4mA VCE=2V 80 60 40 20 0 100 0 Ambient Temperature (℃) 10 30 40 50 Power Dissipation vs. Ambient Temperature 100 80 80 Power Dissipation(mW) 100 60 40 20 60 40 20 0 0 -20 0 20 40 60 -20 80 0 20 40 60 80 Ambient Temperature Ta(oC) Ambient Temperature Ta(oC) Collector Dark Current vs. Ambient Temperature Wave length 1000 100 Relative Radinat Intensity (%) 100 Dark Current Iceo (nA) 20 Mirror Moving Distance Forward Current V.S Ambient Temperature Forward Current(mA) Relative Collector Current VS. Mirror Moving Distance 100 80 Relative Collector Current Relative Collector Current (%) 100 10 1 0.1 Vce=20V 0.01 -40 -20 0 20 40 60 Ambient Temperature Ta (℃) 80 80 60 40 20 100 0 750 775 800 825 850 875 900 925 950 975 1000 1025 1050 Wave length (nm) 5 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 www.everlight.com DATASHEET ITR1502SR40A/TR8 Measuring Circuit For Response Time Switching Time t (μs) 1000 Switching Time VS. Load Resistance (Ta=25℃) 100 tf tr 10 Vce=2V,IC(on)=100μA 1 0.1 1 10 Load Resistance RL (K) Test Condition and Arrangement for Collector Current 120 Relative Collector Current VS. Mirror Moving Distance IF=4mA VCE=2V Relative Collector Current 100 80 60 40 20 0 0 1 2 3 4 5 Mirror Moving Distance 120 Relative Collector Current VS. Mirror Moving Distance IF=4mA VCE=2V Relative Collector Current 100 80 60 40 20 0 0 1 2 3 4 5 Mirror Moving Distance 6 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 www.everlight.com DATASHEET ITR1502SR40A/TR8 120 Relative Collector Current VS. Mirror Moving Distance IF=4mA VCE=2V Relative Collector Current 100 80 60 40 20 0 0 1 2 3 4 5 Mirror Moving Distance Recommended pattern Regarding amount of solder, if there is solder leakage in terminal wiring pattern between PCB and housing main body, the reliability will be deteriorated. Please check the proper amount of solder in advance not to have solder leakage into terminal wiring pattern between PCB and housing main body. Package specification ● Tape and Reel package 7 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 www.everlight.com DATASHEET ITR1502SR40A/TR8 Reel Dimensions Progressive Direction Label Note: The tolerances unless mentioned is ±1.0mm ,Unit = mm Packing Quantity Specification   800pcs / 1 Reel 38 Reels / 1 Carton Packing Procedure Label Aluminum moistue-proof bag Desiccant Label Outer Carton Dimension : 409mm(A)*245mm(B)*360mm(C) 8 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 www.everlight.com DATASHEET ITR1502SR40A/TR8 Recommended Method of Storage The following are general recommendations for moisture sensitive level (MSL) 3 storage and use： 1. Storage 1.1 Do not open moisture proof bag before the products are ready to use. 1.2 Before opening the package, the device should be kept at 30℃ or less and 90%RH or less. 1.3 The device should be used within a year. 1.4 After opening the package, the device should be kept at 30℃ or less and 70%RH or less. 1.5 The device should be used within 168 hours (7 days) after opening the package. 1.6 If the moisture absorbent material (silica gel) has faded away or the device have exceeded the storage time, baking treatment should be performed using the following conditions. Baking treatment : 60±5℃ for 24 hours. 2. Soldering Condition a) Pb-free solder temperature profile b) Reflow soldering should not be done more than two times. c) When soldering, do not put stress on the LEDs during heating. d) After soldering, do not warp the circuit board. Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. 9 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 www.everlight.com DATASHEET ITR1502SR40A/TR8 Label Form Specification XXXXXXXXX CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 10 Copyright © 2015, Everlight All Rights Reserved. 2016.August.18 NO: DRX-0000288 Rev 3.0 www.everlight.com
