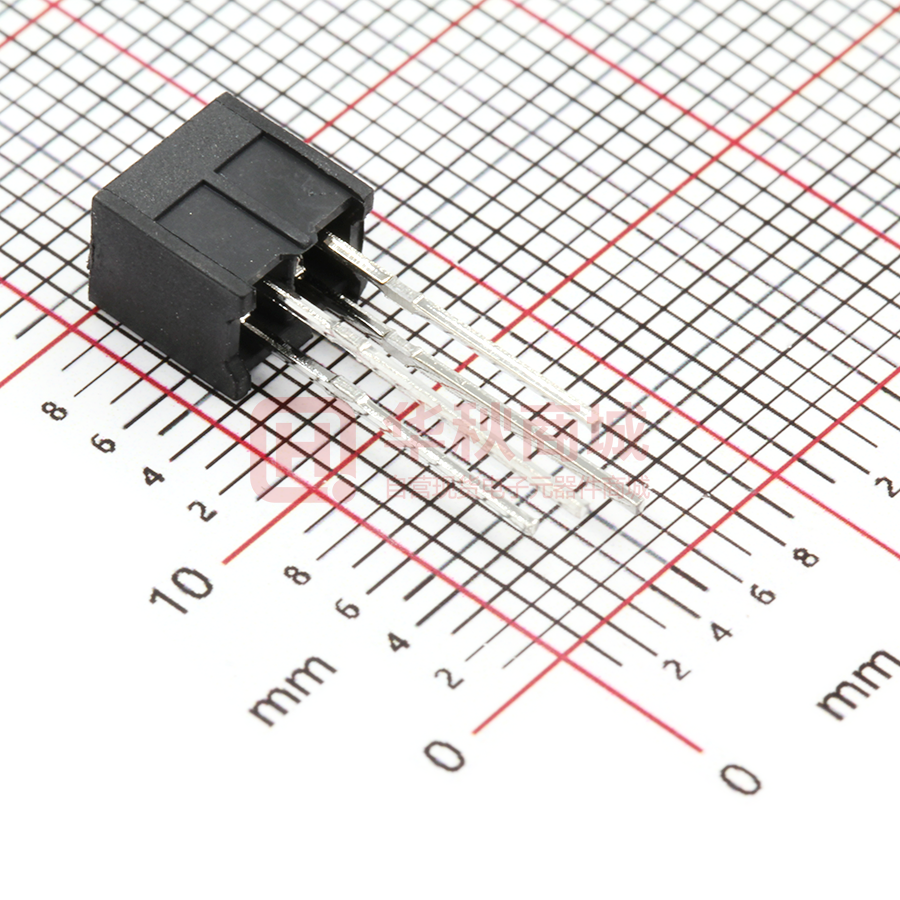

Opto Interrupter
ITR20001/T
Features
․Fast response time
․High analytic
․Cut-off visible wavelength λp=940nm
․High sensitivity
․Pb free
․This product itself will remain within RoHS compliant version
•Compliance with EU REACH
•Compliance Halogen Free.(Br<900ppm,Cl<900ppm, Br+ Cl<1500ppm
Description
․The ITR20001/T consist of an infrared emitting diode and an NPN silicon phototransistor, encased
side-by-side on converging optical axis in a black thermoplastic housing. The phototransistor
receives radiation from the IR only . This is the normal situation. But when an reflecting object close
to ITR, phototransistor receives the reflecting radiation .For additional component information,
please refer to IR and PT.
Applications
․Mouse Copier
․Switch Scanner
․Floppy disk driver
․Non-contact Switching
․For Direct Board
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : 6.28.2016. Issue No: DRX-0000278_Rev.6
www.everlight.com
DATASHEET
Opto Interrupter
ITR20001/T
Device Selection Guide
Chip
Device No.
Lens Color
Materials
IR
GaAlAs
Water clear
PT
Silicon
Black
Absolute Maximum Ratings (Ta=25℃)
Input
Output
Parameter
Power Dissipation at(or below) 25℃ Free Air
Temperature
Reverse Voltage
Forward Current
Peak Forward Current (*1)
Pulse width ≦100μs, Duty cycle=1%
Collector Power Dissipation
Collector Current
Collector-Emitter Voltage
Emitter-Collector Voltage
Operating Temperature
Storage Temperature
Lead Soldering Temperature (*2)
(1/16 inch form body for 5 seconds)
(*1)
2
tw=100 μsec. ,
T=10 msec.
(*2)
Symbol
Ratings
Unit
Pd
75
mW
VR
IF
5
50
V
mA
IFP
1
A
Pd
75
mW
IC
B VCEO
20
30
mA
V
B VECO
5
V
Topr
Tstg
-40~+85
-40~+85
℃
℃
Tsol
260
℃
t=5 Sec
Copyright © 2010, Everlight All Rights Reserved. Release Date : 6.28.2016. Issue No: DRX-0000278_Rev.6
www.everlight.com
DATASHEET
Opto Interrupter
ITR20001/T
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Input
Reverse Curren
Peak Wavelength
Dark Current
C-E Saturation
Output
Voltage
Collect Current
Transfer
Characteristics
Rise time
Fall time
Symbol
VF
IR
λP
ICEO
Min.
---------
Typ.
1.2
--940
---
Max.
1.5
10
--100
Unit
V
μA
nm
nA
Conditions
IF=20mA
VR=5V
IF=20mA
2
VCE=5V,Ee=0mW/cm
VCE(sat)
---
---
0.4
V
IC=2mA
2
Ee=1mW/cm
IC(ON)
200
---
---
uA
VCE=5V,IF=20mA
IC(OFF)
---
---
2
tr
---
25
---
μsec
tf
---
25
---
μsec
VCE=5V,IC=100uA
,RL=100Ω
Tolerance of Collect Current: ±20%
3
Copyright © 2010, Everlight All Rights Reserved. Release Date : 6.28.2016. Issue No: DRX-0000278_Rev.6
www.everlight.com
DATASHEET
Opto Interrupter
ITR20001/T
Typical Electrical/Optical/Characteristics Curves for IR
Forward Current vs. Ambient Temperature
Spectral Sensitivity
70
60
50
40
30
20
10
0
-40 -20 0
20
40
60
80
100
Peak Emission Wavelength vs. Ambient Temperature
Forward Current vs. Forward Voltage
980
10
4
960
10
940
920
900
-25
10
0
25
50
75
100
3
2
1
10
0
4
1
Copyright © 2010, Everlight All Rights Reserved. Release Date : 6.28.2016. Issue No: DRX-0000278_Rev.6
2
3
4
www.everlight.com
DATASHEET
Opto Interrupter
ITR20001/T
Radiant Intensity vs Forward Current
Relative Radiant Intensity vs Angular Displacement
-20
Ie-Radiant Intensity(mW/sr)
1000
-10
0
10
20
30
100
10
0
10
0
10
1
2
10
10
3
10 4
1.0
40
0.9
50
0.8
0.7
60
70
80
0.6 0.4 0.2 0
0.2 0.4 0.6
IF-Forward Current (mA)
5
Copyright © 2010, Everlight All Rights Reserved. Release Date : 6.28.2016. Issue No: DRX-0000278_Rev.6
www.everlight.com
DATASHEET
Opto Interrupter
ITR20001/T
Typical Electrical/Optical/Characteristics Curves for PT
6
Copyright © 2010, Everlight All Rights Reserved. Release Date : 6.28.2016. Issue No: DRX-0000278_Rev.6
www.everlight.com
DATASHEET
Opto Interrupter
ITR20001/T
Package Dimension
10.0min
Aluminun Evaporation
Note: Tolerances unless dimensions ±0.25mm
7
Copyright © 2010, Everlight All Rights Reserved. Release Date : 6.28.2016. Issue No: DRX-0000278_Rev.6
www.everlight.com
DATASHEET
Opto Interrupter
ITR20001/T
Packing Quantity Specification
1.200PCS/1Bag, 6Bags/1Box
2.10Boxes/1Carton
Label Form Specification
‧CPN: Customer’s Product Number
‧P/N: Product Number
‧QTY: Packing Quantity
‧CAT: Luminous Intensity Rank
‧HUE: Dom. Wavelength Rank
‧REF: Forward Voltage Rank
‧LOT No: Lot Number
‧X: Month
‧Reference: Identify Label Number
Notes
1. Above specification may be changed without notice. EVERLIGHT will reserve authority on
material change for above specification.
2. When using this product, please observe the absolute maximum ratings and the instruction
for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for
any damage resulting from use of the product which does not comply with the absolute
maximum ratings and the instructions included in these specification sheets.
3. These specification sheets include materials protected under copyright of EVERLIGHT corporation.
Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent.
8
