Technical Data Sheet
Opto Interrupter
ITR20001/T24
█ Features
․Fast response time
․High analytic
․High sensitivity
․Cut-off visible wavelength λP=940nm
․Pb Free
․This product itself will remain within RoHS compliant version.
█ Descriptions

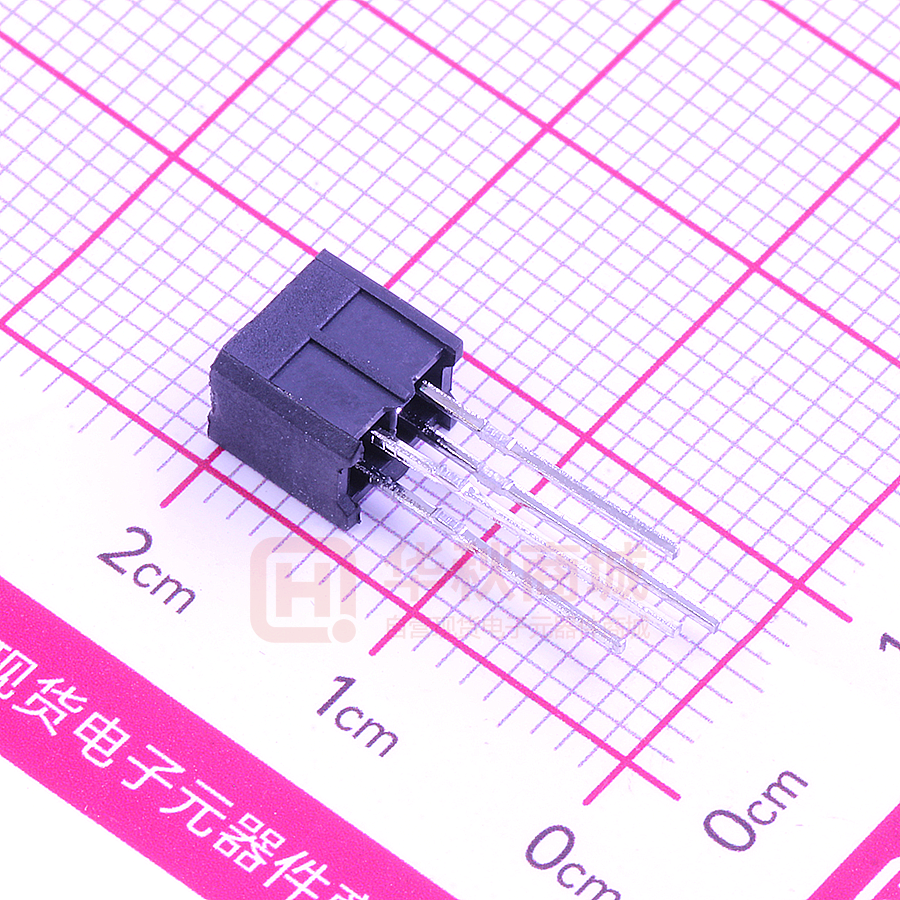

The ITR20001/T24 consist of an infrared emitting
diode and an NPN silicon phototransistor, encased
side-by-side on converging optical axis in a black
thermoplastic housing. The phototransistor
receives radiation from the IR only . This is the
normal situation. But when an reflecting object
close to ITR , phototransistor receives the
reflecting radiation .For additional component
information, please refer to IR2424-3C and
PT2424-6B.
█ Applications
․Mouse Copier
․Switch Scanner
․Floppy disk driver
․Non-contact Switching
․For Direct Board
█ Device Selection Guide
Device No.
Chip Material
LENS COLOR
IR2424-3C
GaAlAs
Water Clear
PT2424-6B
Silicon
Black
Everlight Electronics Co., Ltd.
Device No:CDRX-200-009
http:\\www.everlight.com
Rev 3
Page: 1of 8
Prepared date:2007/04/04
Prepared by:wangyinsheng
ITR20001/T24
█ Package Dimensions
Internal connection diagram
Everlight Electronics Co., Ltd.
Device No:CDRX-200-009
http:\\www.everlight.com
Rev 3
Page: 2of 8
Prepared date:2007/04/04
Prepared by:wangyinsheng
ITR20001/T24
█ Absolute Maximum Ratings (Ta=25℃)
Parameter
Power Dissipation at(or below) 25℃ Free
Symbol
Ratings
Unit
Pd
75
mW
Reverse Voltage
VR
5
V
Forward Current
IF
50
mA
Peak Forward Current (*1)
Pulse width ≦100μs, Duty cycle=1%
IFP
1
A
Collector Power Dissipation
PC
75
mW
Collector Current
IC
20
mA
Collector-Emitter Voltage
B VCEO
30
V
Emitter-Collector Voltage
B VECO
5
Operating Temperature
Topr
-25~+85
V
℃
Storage Temperature
Tstg
-40~+85
℃
Tsol
260
℃
Air Temperature
Input
Output
Lead Soldering Temperature (*2)
(1/16 inch form body for 5 seconds)
(*1)
tw=100 μsec. ,
T=10 msec.
Everlight Electronics Co., Ltd.
Device No:CDRX-200-009
(*2)
t=5 Sec
http:\\www.everlight.com
Rev 3
Page: 3of 8
Prepared date:2007/04/04
Prepared by:wangyinsheng
ITR20001/T24
█ Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
Min.
Typ.
Max.
VF1
-
1.2
1.5
VF2
-
1.4
1.8
VF3
-
2.6
4.0
IR
-
-
10
μA
VR=5V
Peak Wavelength
λP
-
940
-
nm
IF=20mA
View Angle
2θ1/2
-
35
-
Deg
IF=20mA
Dark Current
ICEO
-
-
100
nA
VCE=5V,Ee=0mW/cm2
VCE(sat)
-
-
0.4
V
IC=0.04mA, IF=40mA
IC(ON) L
400
-
900
uA
IC(ON) K
800
-
1800
uA
IC(ON) J
1600
-
3600
uA
IC(OFF)
-
-
2
μA
tR
-
25
-
μs
VCE=5V,IC=100μA
tF
-
25
-
μs
,RL=100Ω
Forward Voltage
Input
Output
reverse Current
C-E Saturation
Voltage
Collector Current(*3)
Response Rise Time
Time
(*3)
Fall Time
Unit
Condition
IF=20mA
V
IF=100mA,tp=100μs,tp/T=0.01
IF=1A,tp=100μs,tp/T=0.01
VCE=2V,IF=10mA
IC(on) at the testing condition—-with reflector in 5mm away,
IC(off)at the testing condition—-without reflector and external light less than 10 Lux at the module surface.
Everlight Electronics Co., Ltd.
Device No:CDRX-200-009
http:\\www.everlight.com
Rev 3
Page: 4of 8
Prepared date:2007/04/04
Prepared by:wangyinsheng
ITR20001/T24
█ Typical Electrical/Optical/Characteristics Curves for IR
10
10
4
3
2
10
10
1
0
-20
1000
1
2
-10
0
3
10
4
20
30
100
10
1
10
0
10
1
Everlight Electronics Co., Ltd.
Device No:CDRX-200-009
2
10
10
3
10
1.0
40
0.9
50
0.8
0.7
60
70
80
4
0.6 0.4 0.2
0
0.2 0.4 0.6
http:\\www.everlight.com
Rev 3
Page: 5of 8
Prepared date:2007/04/04
Prepared by:wangyinsheng
ITR20001/T24
█ Typical Electrical/Optical/Characteristics Curves for PT
Everlight Electronics Co., Ltd.
Device No:CDRX-200-009
http:\\www.everlight.com
Rev 3
Page: 6of 8
Prepared date:2007/04/04
Prepared by:wangyinsheng
ITR20001/T24
█ Reliability Test Item And Condition
The reliability of products shall be satisfied with items listed below.
Confidence level:90%
LTPD:10%
NO.
Item
Test Condition
1
Solder Heat
TEMP : 260℃ ± 5 ℃
H : +100℃
2
3
5 sec
Failure
Judgement
Criteria
22 PCs
Ac/Re
0/1
15 mins
Temperature Cycle
5 min
L : -40℃
15 min
H : +100℃
5 min
10 sec
Thermal Shock
Test Sample
Hours/
Size
Cycle
L : -10℃
50 cycle 22 PCs Ic(on)≦L×0.8
50 cycle 22 PCs
5 min
L :Lower
specification
limit
0/1
0/1
4
High Temperature
TEMP. : +100℃
Storage
1000
hrs
22 PCs
0/1
5
Low Temperature
TEMP. : -40℃
Storage
1000
hrs
22 PCs
0/1
1000
hrs
22 PCs
0/1
1000
hrs
22 PCs
0/1
6
7
DC Operating Life
VCE=5V
IF=20mA
High Temperature / 85℃ / 85% R.H.
High Humidity
Everlight Electronics Co., Ltd.
Device No:CDRX-200-009
http:\\www.everlight.com
Rev 3
Page: 7of 8
Prepared date:2007/04/04
Prepared by:wangyinsheng
ITR20001/T24
Packing Quantity Specification
1.200PCS/1Bag, 6Bag/1Box
2. 10Boxes/1Carton
Label Form Specification
CPN: Customer’s Production Number
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Peak Wavelength
REF: Reference
LOT No: Lot Number
ITR20001/T24
Notes
1.All dimensions are in millimeters
2.Tolerances unless dimensions ±0.2mm
3.Lead spacing is measured where the lead emerge from the package
4.Above specification may be changed without notice. EVERLIGHT will reserve authority
on material change for above specification
5.These specification sheets include materials protected under copyright of
EVERLIGHT corporation . Please don't reproduce or cause anyone to reproduce them
without EVERLIGHT's consent
6.When using this product , please observe the absolute maximum ratings and the
instructions for use outlined in these specification sheets. EVERIGHT assumes
no responsibility for any damage resulting from use of the product which does
not comply with the absolute maximum ratings and the instructions included
in these specification sheets.
EVERLIGHT ELECTRONICS CO., LTD.
Office: No 25, Lane 76, Sec 3, Chung Yang Rd,
Tucheng, Taipei 236, Taiwan, R.O.C
Everlight Electronics Co., Ltd.
Device No:CDRX-200-009
Tel: 886-2-2267-2000, 2267-9936
Fax: 886-2267-6244, 2267-6189, 2267-6306
http:\\www.everlight.com
http:\\www.everlight.com
Rev 3
Page: 8of 8
Prepared date:2007/04/04
Prepared by:wangyinsheng
