PD204-6B

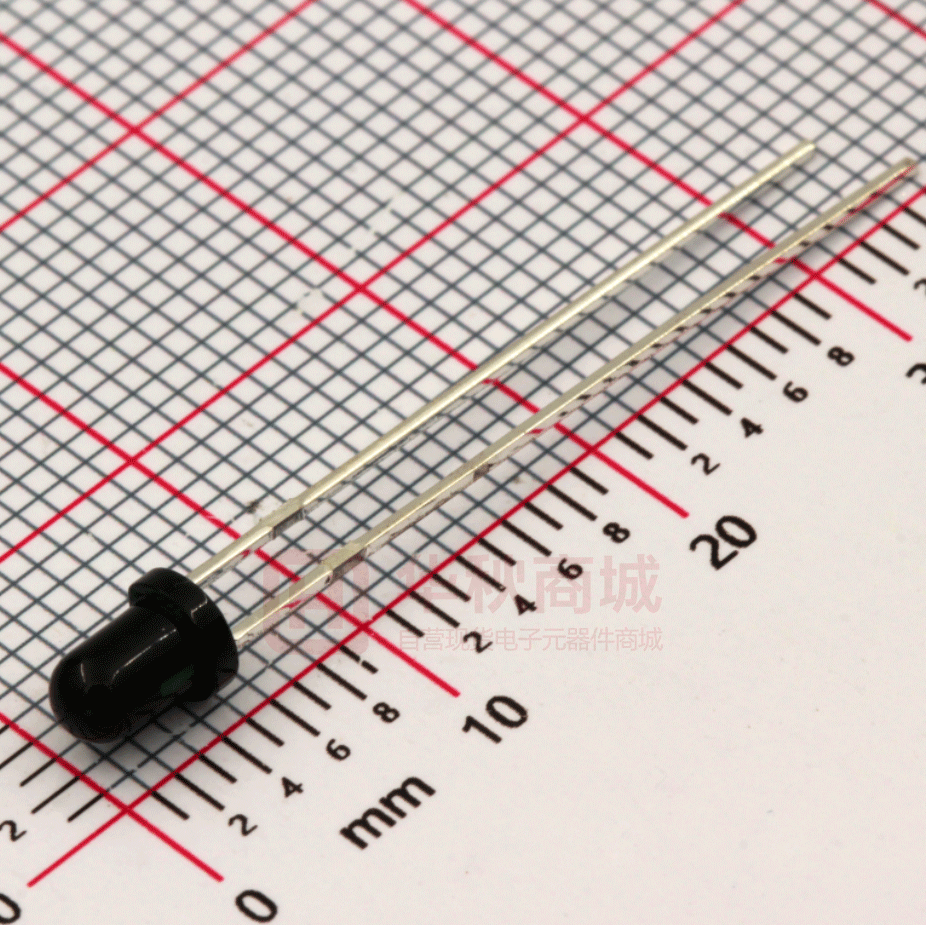

Technical Data Sheet 3mm Silicon PIN Photodiode T-1 PD204-6B Features ․Fast response time ․High photo sensitivity ․Small junction capacitance ․Pb free Descriptions ․PD204-6B is a high speed and high sensitive PIN photodiode in a standard 3Φplastic package. The device is matched to infrared emitting diode. Applications ․Automatic door sensor ․Copier ․Game machine Device Selection Guide LED Part No. PD Chip Material Silicon Lens Color Water clear Everlight Electronics Co., Ltd. Device No：DPD-020-040 http:\\www.everlight.com Prepared date：07-20-2004 Rev 1.3 Page: 1 of 7 Prepared by：Jaine Tsai PD204-6B Package Dimensions Notes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.1mm Absolute Maximum Ratings (Ta=25℃) Parameter Reverse Voltage Operating Temperature Storage Temperature Soldering Temperature Power Dissipation at(or below) 25℃Free Air Temperature Symbol VR Topr Tstg Tsol Pc Rating 32 -25 ~ +85 -40 ~ +85 260 150 Units V ℃ ℃ ℃ mW Notes: *1:Soldering time≦5 seconds. Everlight Electronics Co., Ltd. Device No：DPD-020-040 http:\\www.everlight.com Prepared date：07-20-2004 Rev 1.3 Page: 2 of 7 Prepared by：Jaine Tsai PD204-6B Electro-Optical Characteristics (Ta=25℃) Parameter Rang Of Spectral Bandwidth Wavelength Of Peak Sensitivity Open-Circuit Voltage Symbol λ0.5 λP VOC ISC Condition ----Ee=5mW/cm2 λp=940nm Ee=1mW/cm2 λp=940nm Ee=1mW/cm2 λp=940nm VR=5V Ee=0mW/cm2 VR=10V Ee=0mW/cm2 IR=100μA Ee=0mW/cm2 VR=5V f=1MHz VR=10V RL=1000Ω Min 840 ----Typ --940 0.42 Max 1100 ----Unit nm nm V μA Short- Circuit Current --- 3.0 --- Reverse Light Current IL 1.0 3.0 --- μA Reverse Dark Current ID --- --- 10 nA Reverse Breakdown Voltage BVR 32 170 --- V Total Capacitance Rise Time Fall Time Ct tr tf ------- 5 6 6 ----- pF nS --- Everlight Electronics Co., Ltd. Device No：DPD-020-040 http:\\www.everlight.com Prepared date：07-20-2004 Rev 1.3 Page: 3 of 7 Prepared by：Jaine Tsai PD204-6B Typical Electro-Optical Characteristics Curves Fig.1 Power Dissipation vs. Ambient Temperature 200 Fig.2 Spectral Sensitivity 1.0 Ta=25 C O 150 0.8 0.6 100 0.4 50 0.2 0 -25 0 25 50 75 85 100 0 600 700 800 900 1000 1100 1200 Fig.3 Dark Current vs. Ambient Temperature 1000 Fig. 4 Reverse Light Current vs. Ee 9 7 100 5 10 3 VR=10V 1 20 40 60 80 100 VR=5V 1 0.5 1.0 1.5 2 3.0 Everlight Electronics Co., Ltd. Device No：DPD-020-040 http:\\www.everlight.com Prepared date：07-20-2004 Rev 1.3 Page: 4 of 7 Prepared by：Jaine Tsai PD204-6B Typical Electro-Optical Characteristics Curves Fig.5 Terminal Capacitance vs. Reverse Voltage Fig.6 Response Time vs. Load Resistance 10 8 f=1MHZ VR=5V 10 2 1 VR=10V Ta=25°C 10 0 t 6 10 -1 4 10 10 -2 -3 2 0.1 1 10 100 10 1 10 2 10 3 10 4 10 5 Everlight Electronics Co., Ltd. Device No：DPD-020-040 http:\\www.everlight.com Prepared date：07-20-2004 Rev 1.3 Page: 5 of 7 Prepared by：Jaine Tsai PD204-6B Reliability Test Item And Condition The reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Conditions Test Hours/ Sample Cycles Sizes 10secs 22pcs 22pcs IL≦L×0.8 L：Lower 22pcs Specification Limit 0/1 Failure Judgement Criteria Ac/Re 1 Solder Heat TEMP.：260℃±5℃ 0/1 0/1 2 Temperature Cycle H : +100℃ L : -40℃ 3 Thermal Shock H :+100℃ L :-10℃ 4 High Temperature Storage 5 Low Temperature Storage 15mins 50Cycles 5mins 15mins 5mins 50Cycles 10secs 5mins 1000hrs 1000hrs 1000hrs 1000hrs TEMP.：+100℃ TEMP.：-40℃ 22pcs 22pcs 22pcs 22pcs 0/1 0/1 0/1 0/1 6 DC Operating Life VR=5V 7 High Temperature/ 85℃ / 85% R.H High Humidity Everlight Electronics Co., Ltd. Device No：DPD-020-040 http:\\www.everlight.com Prepared date：07-20-2004 Rev 1.3 Page: 6 of 7 Prepared by：Jaine Tsai PD204-6B Packing Quantity Specification 1.1000PCS/1Bag，4Bags/1Box 2.10Boxes/1Carton Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production Place PD204-6B Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.C Tel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\www.everlight.com Everlight Electronics Co., Ltd. Device No：DPD-020-040 http:\\www.everlight.com Prepared date：07-20-2004 Rev 1.3 Page: 7 of 7 Prepared by：Jaine Tsai
