PD204-6C/L3(OP)

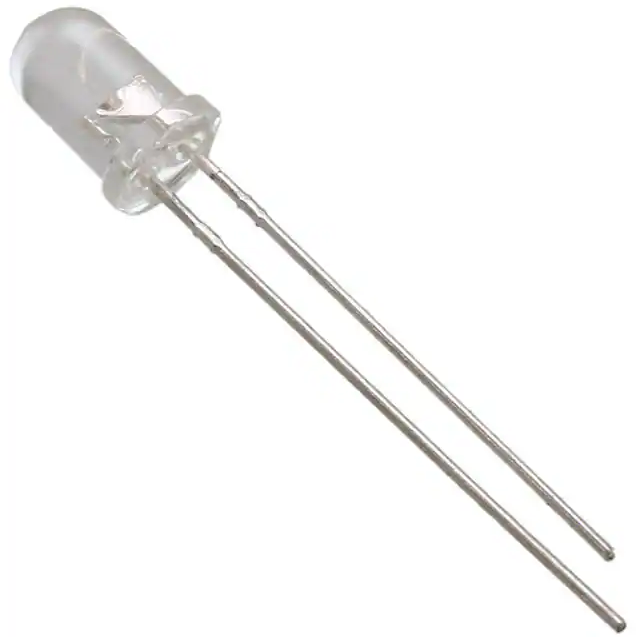

3mm Photodiode PD204-6C/L3 Features •Fast response time •High photo sensitivity •Small junction capacitance •Pb free •This product itself will remain within RoHS compliant version. • Compliance with EU REACH Description PD204-6C/L3 is a high speed and high sensitive PIN photodiode in a standard 3Φplastic package. The device is Spectrally matched to visible and infrared emitting diode. Applications •Automatic door sensor •Copier •Game machine 1 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-00000152. Rev.4 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3 Device Selection Guide Chip Materials Silicon Lens Color Black Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Reverse Voltage VR 32 V Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +100 ℃ Soldering Temperature(*1) Power Dissipation at (or below) Tsol 260 ℃ Pc 150 mW 25℃Free Air Temperature Notes: *1:Soldering time≦5 seconds. 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3 Electro-Optical Characteristics (Ta=25℃) Parameter Symbol Min. Typ. Max. Unit Condition Range Of Spectral Bandwidth λ0.5 760 ----- 1100 nm ----- Wavelength Of Peak Sensitivity λP ----- 940 ----- nm ----- VOC ----- 0.42 ----- V Ee=1mW/cm λp=940nm 2 Open-Circuit Voltage Short- Circuit Current ----- μA Ee=1mW/cm λp=940nm 2 ISC 2 μA Ee=1mW/cm λp=940nm VR=5V Ee=0mW/cm VR=10V 2 nA Ee=0mW/cm IR=100μA 2 μA 2 ----- 4.3 Reverse Light Current IL 3.9 6 Reverse Dark Current ID ---- ---- Reverse Breakdown Voltage VBR 32 10 170 Total Capacitance Ct ----- 10 ----- pF Ee=0mW/cm VR=5V f=1MHz Rise Time/ Fall Time tr/ / tf ----- 10/10 ----- ns VR=10V RL=100Ω ----- 45 ----- deg IF=20mA 2θ1/2 View Angle Note: Tolerance of Luminous Intensity: ±10% Tolerance of Dominant Wavelength: ±1nm Tolerance of Forward Voltage: ±0.1V 3 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3 Typical Electro-Optical Characteristics Curves Power Dissipation vs. Ambient Temperature Spectral Sensitivit 200 1.0 Ta=25 C 0.8 150 0.6 100 0.4 50 0.2 0 -25 0 25 50 75 85 100 Reverse Dark Current vs. Ambient Temperature 0 100 300 500 700 900 1100 1300 Reverse Light Current vs. Ee 20 1000 15 100 10 10 5 VR=5V VR=10V 1 20 40 60 80 100 0 0.5 1.0 1.5 3.0 2 4 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3 Terminal Capacitance vs. Reverse Voltage t 40 10 2 30 10 20 10 10 10 0 10 1 VR=10V O Ta=25 C 0 -1 -2 -3 0.1 5 f=1MHZ VR=5V Response Time vs. Load Resistance 1 10 100 10 1 10 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 3 10 10 4 5 10 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3 Package Dimension Note: Tolerances unless dimensions ±0.25mm 6 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3 Packing Quantity Specification 1.200~1000PCS/1Bag，4Bags/1Box 2.10Boxes/1Carton Label Form Specification ‧CPN: Customer’s Product Number ‧P/N: Product Number ‧QTY: Packing Quantity ‧CAT: Luminous Intensity Rank ‧HUE: Dom. Wavelength Rank ‧REF: Forward Voltage Rank ‧LOT No: Lot Number ‧X: Month ‧Reference: Identify Label Number 7 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3 1. Lead Forming  During lead formation, the leads should be bent at a point at least 3mm from the base of the epoxy bulb.  Lead forming should be done before soldering.  Avoid stressing the LED package during leads forming. The stress to the base may damage the LED’s characteristics or it may break the Photodiode .  Cut the LED leadframes at room temperature. Cutting the leadframes at high temperatures may cause failure of the Photodiode .  When mounting the Photodiode onto a PCB, the PCB holes must be aligned exactly with the lead position of the LED. If the Photodiode are mounted with stress at the leads, it causes deterioration of the epoxy resin and this will degrade thePhotodiode. 2. Storage  The Photodiode should be stored at 30°C or less and 70%RH or less after being shipped from Everlight and the storage life limits are 3 months. If the Photodiode are stored for 3 months or more, they can be stored for a year in a sealed container with a nitrogen atmosphere and moisture absorbent material.  Please avoid rapid transitions in ambient temperature, especially, in high humidity environments where condensation can occur. 3. Soldering  Careful attention should be paid during soldering. When soldering, leave more then 3mm from solder joint to epoxy bulb, and soldering beyond the base of the tie bar is recommended.  Recommended soldering conditions: Hand Soldering 300℃ Max. (30W Temp. at tip of iron Max.) Soldering time 3 sec Max. Distance 3mm Min.(From solder joint to epoxy bulb)  DIP Soldering 100℃ Max. (60 sec Preheat temp. Max.) Bath temp. & time 260 Max., 5 sec Max Distance 3mm Min. (From solder joint to epoxy bulb) Recommended soldering profile laminar wave Fluxing Prehead 8 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3  Avoiding applying any stress to the lead frame while the Photodiode are at high temperature particularly when soldering.  Dip and hand soldering should not be done more than one time  After soldering the Photodiode, the epoxy bulb should be protected from mechanical shock or vibration until thePhotodiode return to room temperature.  A rapid-rate process is not recommended for cooling the Photodiode down from the peak temperature.  Although the recommended soldering conditions are specified in the above table, dip or handsoldering at the lowest possible temperature is desirable for the Photodiode.  Wave soldering parameter must be set and maintain according to recommended temperature and dwell time in the solder wave. 4. Cleaning  When necessary, cleaning should occur only with isopropyl alcohol at room temperature for a duration of no more than one minute. Dry at room temperature before use.  Do not clean the Photodiode by the ultrasonic. When it is absolutely necessary, the influence of ultrasonic cleaning on the Photodiode depends on factors such as ultrasonic power and the assembled condition. Ultrasonic cleaning shall be pre-qualified to ensure this will not cause damage to the LED 5. Circuit Protection  Below the zener reference voltage Vz, all the current flows through LED and as the voltage rises to Vz, the zener diode “breakdown." If the voltage tries to rise above Vz current flows through the zener branch to keep the voltage at exactly Vz.  When the LED is connected using serial circuit, if either piece of LED is no light up but current can’t flow through causing others to light down. In new design, the LED is parallel with zener diode. if either piece of LED is no light up but current can flow through causing others to light up. 6. Heat Management  Heat management of Photodiode must be taken into consideration during the design stage of LED application. The current should be de-rated appropriately by referring to the de-rating curve found in each product specification.  The temperature surrounding the LED in the application should be controlled. Please refer to the data sheet de-rating curve. 7. ESD (Electrostatic Discharge)  Electrostatic discharge (ESD) or surge current (EOS) can damage Photodiode  An ESD wrist strap, ESD shoe strap or antistatic gloves must be worn whenever handling Photodiode  All devices, equipment and machinery must be properly grounded.  Use ion blower to neutralize the static charge which might have built up on surface of the Photodiode plastic lens as a result of friction between Photodiode during storage and handing. 9 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 www.everlight.com DATASHEET 3mm Photodiode PD204-6C/L3 DISCLAIMER 1. EVERLIGHT reserves the right(s) on the adjustment of product material mix for the specification. 2. The product meets EVERLIGHT published specification for a period of twelve (12) months from date of shipment. 3. The graphs shown in this datasheet are representing typical data only and do not show guaranteed values. 4. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from the use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 5. These specification sheets include materials protected under copyright of EVERLIGHT. Reproduction in any form is prohibited without obtaining EVERLIGHT’s prior consent. 6. This product is not intended to be used for military, aircraft, automotive, medical, life sustaining or life saving applications or any other application which can result in human injury or death. Please contact authorized Everlight sales agent for special application request. 10 Copyright © 2010, Everlight All Rights Reserved. Release Date : Dec.3.2016. Issue No: DPD-0000152, Rev.4 www.everlight.com
