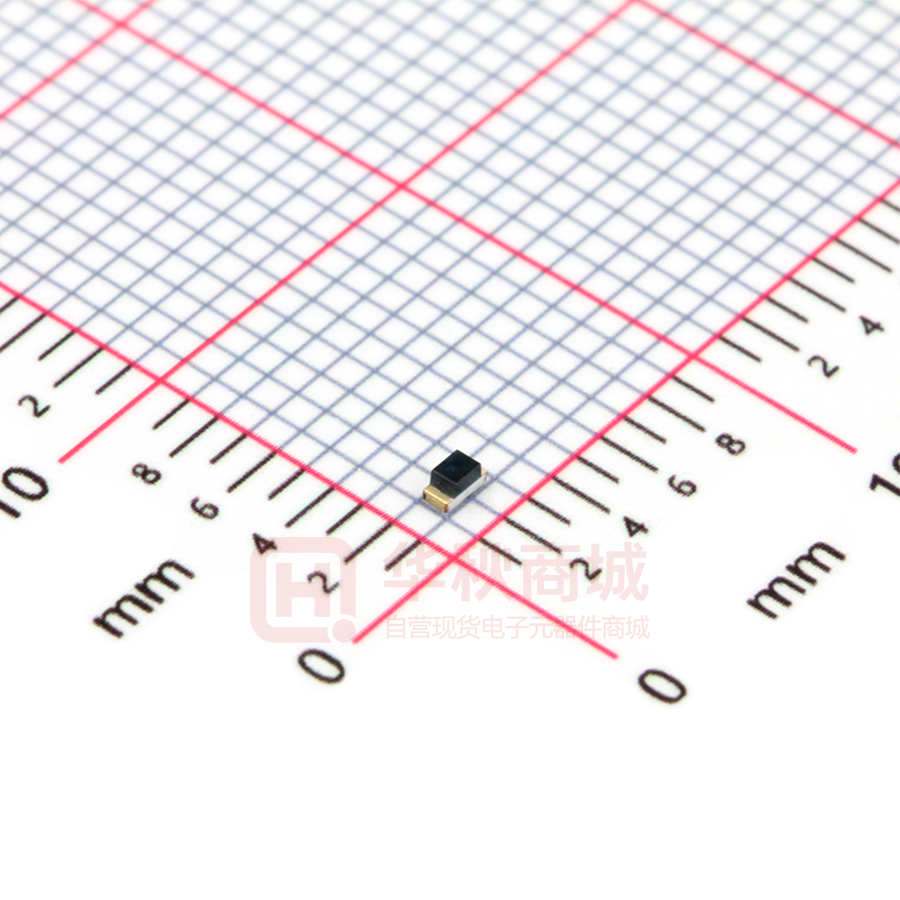

PT19-21B/L41/TR8

0.8mm Height Flat Top Phototransistor PT19-21B/L41/TR8 Features ․Fast response time ․High photo sensitivity ․Small junction capacitance ․Pb free ․The product itself will remain within RoHS compliant version. ․Compliance with EU REACH Descriptions ․ PT19-21B/L41/TR8 is a phototransistor in miniature SMD package which is molded in a water clear with right angle lens. ․The device is Spectrally matched to visible and infrared emitting diode. Applications ․Miniature switch ․Counters and sorter ․Position sensor ․Infrared applied system ․Encoder Device Selection Guide Chip Material Part Category PT 1 Silicon Lens Color Black Copyright © 2015, Everlight All Rights Reserved. Release Date : 2015/9/30. Issue No: DPT-0000302 . Rev:3 www.everlight.com Data Sheet 0.8mm Height Flat Top Phototransistor PT19-21C/L41/TR8 Package Dimensions Notes: 1.All dimensions are in millimeters Notes: Notes: 2 2.Tolerances unless dimensions ±0.1mm 3.Suggested pad dimension is just for reference only .Please modify the pad dimension based on individual need Copyright © 2015, Everlight All Rights Reserved. Release Date : 2015/9/30. Issue No: DPT-0000302 . Rev:3 www.everlight.com Data Sheet 0.8mm Height Flat Top Phototransistor PT19-21C/L41/TR8 Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Collector-Emitter Voltage VCEO 30 Units V Emitter-Collector-Voltage VECO 5 V IC 20 mA Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +85 ℃ Soldering Temperature *1 Tsol 260 ℃ Power Dissipation at(or below) 25℃Free Air Temperature Pd 75 mW Collector Current Notes: *1:Soldering time≦5 seconds. Electro-Optical Characteristics (Ta=25℃) 3 Parameter Symbol Condition Min. Rang Of Spectral Bandwidth λ0.5 --- 730 --- 1100 nm Wavelength Of Peak Sensitivity λP --- --- 940 --- nm Collector-Emitter Breakdown Voltage BVCEO IC=100μA 2 Ee=0mW/cm 30 --- --- V Emitter-Collector Breakdown Voltage BVECO IE=100μA Ee=0mW/cm2 5 --- --- V Collector-Emitter Saturation Voltage VCE(sat) IC=2mA Ee=1m W/cm2 --- --- 0.4 V Collector Dark Current ICEO VCE=20V Ee=0mW/cm2 --- --- 100 nA On State Collector Current IC(ON) VCE=5V Ee=1mW /cm2 0.3 0.6 --- mA Copyright © 2015, Everlight All Rights Reserved. Release Date : 2015/9/30. Issue No: DPT-0000302 . Rev:3 Typ. Max. Units www.everlight.com Data Sheet 0.8mm Height Flat Top Phototransistor PT19-21C/L41/TR8 Typical Electro-Optical Characteristics Curves Fig.1 Spectral Sensitivity Fig.2 Collector Current vs rradiance 10 1.0 Ta=25 C 0.8 C 1 0.6 0.1 0.4 0.01 0.2 0 700 800 900 1000 1100 1300 0.001 0.01 0.1 1 10 2 Fig.3 Collector Current vs Collector-Emitter Voltage 4 Copyright © 2015, Everlight All Rights Reserved. Release Date : 2015/9/30. Issue No: DPT-0000302 . Rev:3 www.everlight.com Data Sheet 0.8mm Height Flat Top Phototransistor PT19-21C/L41/TR8 Precautions For Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the Phototransistor should be kept at 10℃~30℃ and 90%RH or less. 2.3 The Phototransistor suggested be used within one year. 2.4 After opening the package, the devices must be stored at 10°C~30°C and  60%RH, and used within 168 hours (floor life). If unused Phototransistor remain, it should be stored in moisture proof packages. 2.5 If the moisture absorbent material (desiccant material) has faded or unopened bag haexceeded the shelf life or devices (out of bag) have exceeded the floor life, baking treatment is required. 2.6 If baking is required, refer to IPC/JEDEC J-STD-033 for bake procedure or recommend the following conditions: 96 hours at 60°C ± 5°C and < 5 % RH (reeled/tubed/loose units) 3. Soldering Condition 3.1 Pb-free solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the Phototransistor during heating. 3.4 After soldering, do not warp the circuit board. 5 Copyright © 2015, Everlight All Rights Reserved. Release Date : 2015/9/30. Issue No: DPT-0000302 . Rev:3 www.everlight.com Data Sheet 0.8mm Height Flat Top Phototransistor PT19-21C/L41/TR8 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the Phototransistor have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the Phototransistor will or will not be damaged by repairing. 6 Copyright © 2015, Everlight All Rights Reserved. Release Date : 2015/9/30. Issue No: DPT-0000302 . Rev:3 www.everlight.com Data Sheet 0.8mm Height Flat Top Phototransistor PT19-21C/L41/TR8 Package Dimensions Note: The tolerances unless mentioned are ±0.1, unit: mm. Carrier Taping Dimensions: Loaded Quantity 3000PCS/Reel Emitter Collector Note: The tolerances unless mentioned is ±0.1mm, Unit: mm 7 Copyright © 2015, Everlight All Rights Reserved. Release Date : 2015/9/30. Issue No: DPT-0000302 . Rev:3 www.everlight.com Data Sheet 0.8mm Height Flat Top Phototransistor PT19-21C/L41/TR8 Label Form Specification CPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity CAT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MSL-X: MSL Level Made In: Manufacture place Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on .material change for above specification. 2. The graphs shown in this datasheet are representing typical data only and do not show .guaranteed values. 3. When using this product, please observe the absolute maximum ratings and the instructions for.use outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum .ratings and the instructions included in these specification sheets. 4. These specification sheets include materials protected under copyright of EVERLIGHT. .Reproduction in any form is prohibited without the specific consent of EVERLIGHT. 5. This product is not intended to be used for military, aircraft, automotive, medical, life sustainingor life saving applications or any other application which can result in human injury or death..Please contact authorized Everlight sales agent for special application request. EVERLIGHT ELECTRONICS CO., LTD. Office: No. 6-8, Zhonghua Rd., Shulin Dist., New Taipei City 23860, Taiwan 8 Tel: 886-2-2685-6688 Fax: 886-2685-2699，6897 http://www.everlight.com Copyright © 2015, Everlight All Rights Reserved. Release Date : 2015/9/30. Issue No: DPT-0000302 . Rev:3 www.everlight.com
