PT26-21B/TR8

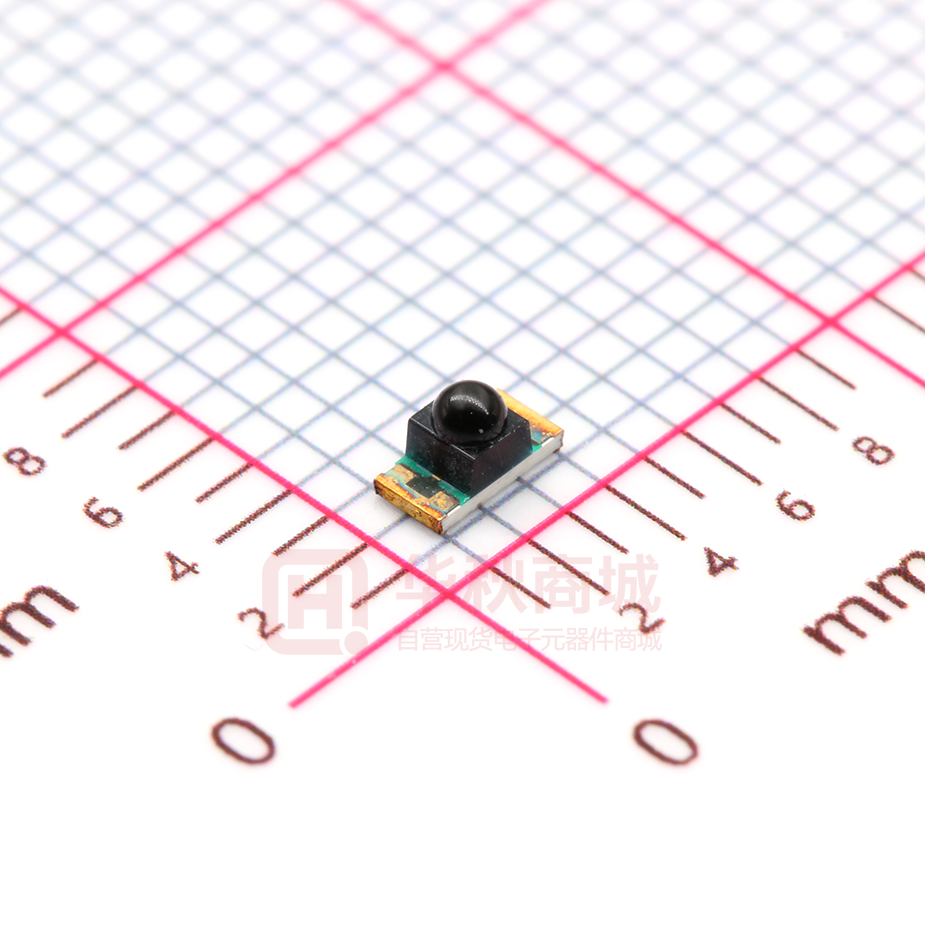

1.6mm Round Subminiature Reverse Package Phototransistor PT26-21B/TR8 Features ․Fast response time ․High photo sensitivity ․Small junction capacitance ․Pb free ․The product itself will remain within RoHS compliant version. ․Compliance with EU REACH Descriptions ․PT26-21B/TR8 is a phototransistor in miniature SMD package which is molded in a black with spherical top view lens. The device is Spectrally matched to visible and infrared emitting diode. Applications ․Miniature switch ․Counters and sorter ․Position sensor ․Infrared applied system ․Encoder Device Selection Guide 1 Part Category Chip Material Lens Color PT Silicon Black Copyright © 2015, Everlight All Rights Reserved. Release Date: 2015/9/26. Issue No:DPT-0000129. Rev:5 Revision :5 LifecyclePhase: www.everlight.com Release Date:2015-10-16 11:09:38.0 Expired Period: Forever Data Sheet 1.6mm Round Subminiature Reverse Package Phototransistor PT26-21B/TR8 Package Dimensions Notes: 1.All dimensions are in millimeters Notes: 2.Tolerances unless dimensions ±0.1mm Notes: 3.Suggested pad dimension is just for reference only Please modify the pad dimension based on individual need 2 Copyright © 2015, Everlight All Rights Reserved. Release Date :2015/9/26 . Issue No: DPT-0000129. Rev:5 Revision :5 LifecyclePhase: www.everlight.com Release Date:2015-10-16 11:09:38.0 Expired Period: Forever Data Sheet 1.6mm Round Subminiature Reverse Package Phototransistor PT26-21B/TR8 Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Collector-Emitter Voltage VCEO 30 Units V Emitter-Collector-Voltage VECO 5 V IC 20 mA Operating Temperature Topr -25 ~ +85 ℃ Storage Temperature Tstg -40 ~ +85 ℃ Soldering Temperature *1 Tsol 260 ℃ Power Dissipation at(or below) 25℃Free Air Temperature Pd 75 mW Collector Current Notes: *1: Soldering time≦5 seconds. Electro-Optical Characteristics (Ta=25℃) Parameter 3 Symbol Condition Min Typ Max Unit Rang Of Spectral Bandwidth λ0.5 --- 730 --- 1100 nm Wavelength Of Peak Sensitivity λP --- --- 940 --- nm Collector-Emitter Breakdown Voltage BVCEO IC=100μA Ee=0mW/cm2 30 --- --- V Emitter-Collector Breakdown Voltage BVECO 5 --- --- V Collector-Emitter Saturation Voltage VCE(sat) IC=2mA Ee=1mW/cm2 --- --- 0.4 V Collector Dark Current ICEO VCE=20V Ee=0mW/cm2 --- --- 100 nA On State Collector Current IC(ON) VCE=5V Ee=1mW/cm2 --- 2.6 --- mA IE=100μA Ee=0mW/cm2 Copyright © 2015, Everlight All Rights Reserved. Release Date :2015/9/26 . Issue No: DPT-0000129. Rev:5 Revision :5 LifecyclePhase: www.everlight.com Release Date:2015-10-16 11:09:38.0 Expired Period: Forever Data Sheet 1.6mm Round Subminiature Reverse Package Phototransistor PT26-21B/TR8 Typical Electro-Optical Characteristics Curves Fig.1 Spectral Sensitivity Fig.2 Collector Current vs. Irradiance 1.0 10 Ta=25 C 0.8 C 1 0.6 0.1 0.4 0.01 0.2 0 700 800 900 1000 1100 1300 0.001 0.01 0.1 10 1 2 Fig.3 Collector Current vs. Collector-Emitter Voltage 4 Copyright © 2015, Everlight All Rights Reserved. Release Date :2015/9/26 . Issue No: DPT-0000129. Rev:5 Revision :5 LifecyclePhase: www.everlight.com Release Date:2015-10-16 11:09:38.0 Expired Period: Forever Data Sheet 1.6mm Round Subminiature Reverse Package Phototransistor PT26-21B/TR8 Precautions For Use 1. Over-current-proof Customer must apply resistors for protection, otherwise slight voltage shift will cause big current change (Burn out will happen). 2. Storage 2.1 Do not open moisture proof bag before the products are ready to use. 2.2 Before opening the package, the Phototransistor should be kept at 10℃~30℃ and 90%RH or less. 2.3 The Phototransistor suggested be used within one year. 2.4 After opening the package, the devices must be stored at 10°C~30°C and  60%RH, and used within 168 hours (floor life). If unused Phototransistor remain, it should be stored in moisture proof packages. 2.5 If the moisture absorbent material (desiccant material) has faded or unopened bag has exceeded the shelf life or devices (out of bag) have exceeded the floor life, baking treatment is required. 2.6 If baking is required, refer to IPC/JEDEC J-STD-033 for bake procedure or recommend the following conditions: 96 hours at 60°C ± 5°C and < 5 % RH (reeled/tubed/loose units) 3. Soldering Condition 3.1 Lead solder temperature profile 3.2 Reflow soldering should not be done more than two times. 3.3 When soldering, do not put stress on the LEDs during heating. 3.4 After soldering, do not warp the circuit board. 5 Copyright © 2015, Everlight All Rights Reserved. Release Date :2015/9/26 . Issue No: DPT-0000129. Rev:5 Revision :5 LifecyclePhase: www.everlight.com Release Date:2015-10-16 11:09:38.0 Expired Period: Forever Data Sheet 1.6mm Round Subminiature Reverse Package Phototransistor PT26-21B/TR8 4.Soldering Iron Each terminal is to go to the tip of soldering iron temperature less than 350℃ for 3 seconds within once in less than the soldering iron capacity 25W. Leave two seconds and more intervals, and do soldering of each terminal. Be careful because the damage of the product is often started at the time of the hand solder. 5.Repairing Repair should not be done after the LEDs have been soldered. When repairing is unavoidable, a double-head soldering iron should be used (as below figure). It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing. 6 Copyright © 2015, Everlight All Rights Reserved. Release Date :2015/9/26 . Issue No: DPT-0000129. Rev:5 Revision :5 LifecyclePhase: www.everlight.com Release Date:2015-10-16 11:09:38.0 Expired Period: Forever Data Sheet 1.6mm Round Subminiature Reverse Package Phototransistor PT26-21B/TR8 Package Dimensions Note: The tolerances unless mentioned are ±0.1mm, Unit: mm Carrier Tape Dimensions: (Loaded Quantity: 1500pcs/reel) Note: The tolerances unless mentioned are ±0.1, unit=mm 7 Copyright © 2015, Everlight All Rights Reserved. Release Date :2015/9/26 . Issue No: DPT-0000129. Rev:5 Revision :5 LifecyclePhase: www.everlight.com Release Date:2015-10-16 11:09:38.0 Expired Period: Forever Data Sheet 1.6mm Round Subminiature Reverse Package Phototransistor PT26-21B/TR8 Label Form Specification CPN: Customer’s Production Number P/N : Production Number LOT No: Lot Number QTY: Packing Quantity HUE: Peak Wavelength CAT: Ranks REF: Reference MSL-X: MSL Level Made In: Manufacture place Notes 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on .material change for above specification. 2. The graphs shown in this datasheet are representing typical data only and do not show .guaranteed values. 3. When using this product, please observe the absolute maximum ratings and the instructions for.use outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 4. These specification sheets include materials protected under copyright of EVERLIGHT. .Reproduction in any form is prohibited without the specific consent of EVERLIGHT. 5. This product is not intended to be used for military, aircraft, automotive, medical, life sustaining.or life saving applications or any other application which can result in human injury or death..Please contact authorized Everlight sales agent for special application request. EVERLIGHT ELECTRONICS CO., LTD. Office: No. 6-8, Zhonghua Rd., Shulin Dist., New Taipei City 23860, Taiwan 8 Tel: 886-2-2685-6688 Fax: 886-2685-2699，6897 http://www.everlight.com Copyright © 2015, Everlight All Rights Reserved. Release Date :2015/9/26 . Issue No: DPT-0000129. Rev:5 Revision :5 LifecyclePhase: www.everlight.com Release Date:2015-10-16 11:09:38.0 Expired Period: Forever
